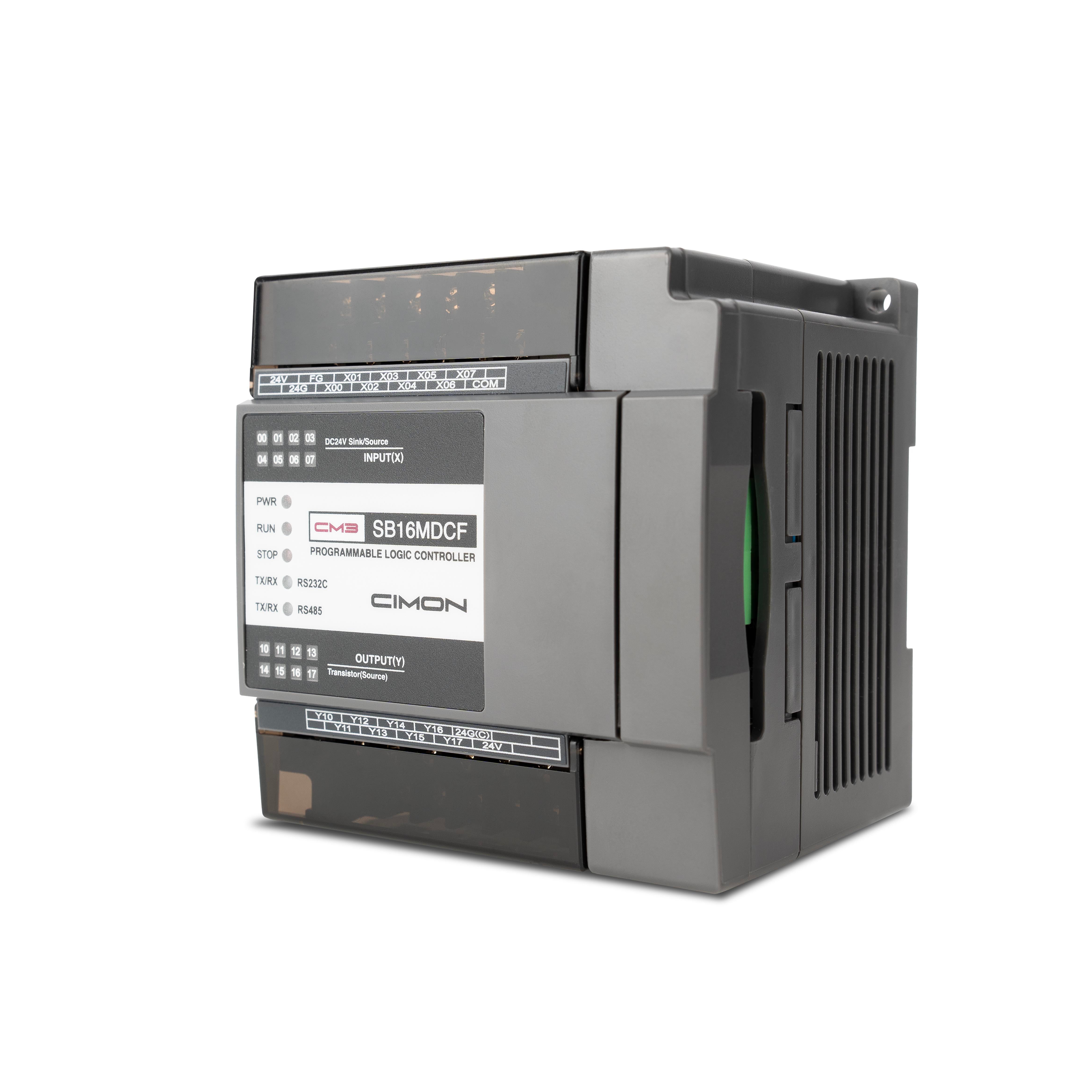

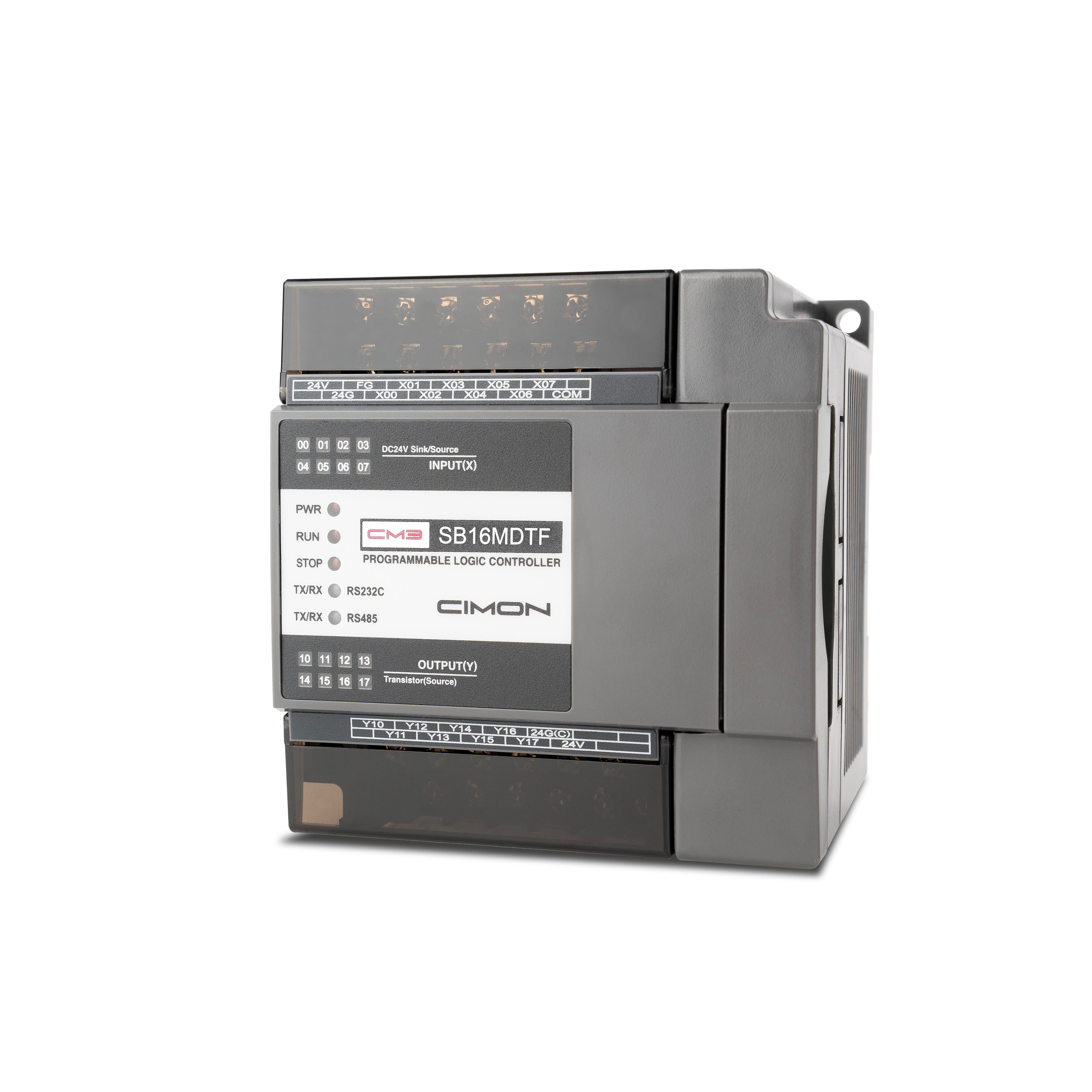

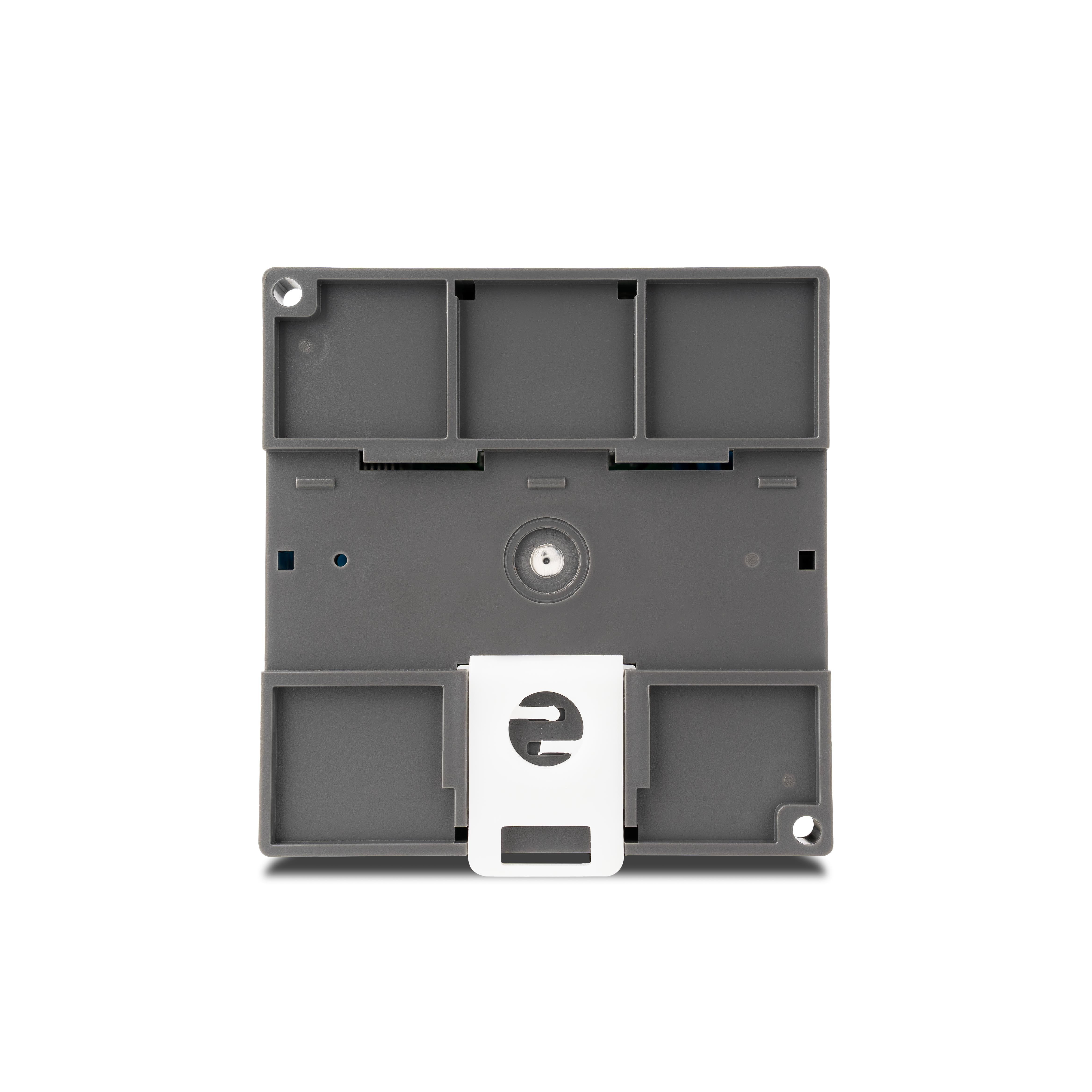

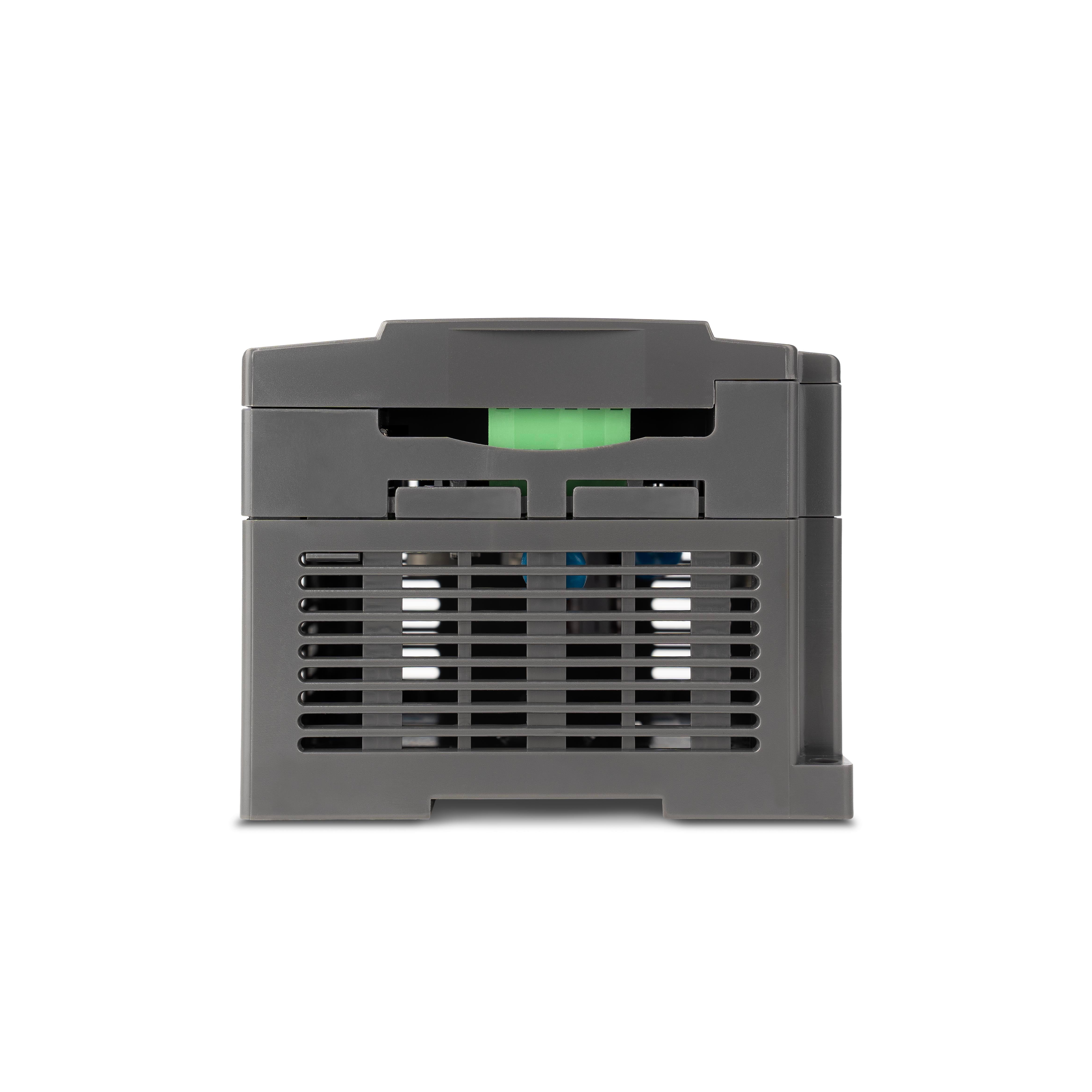

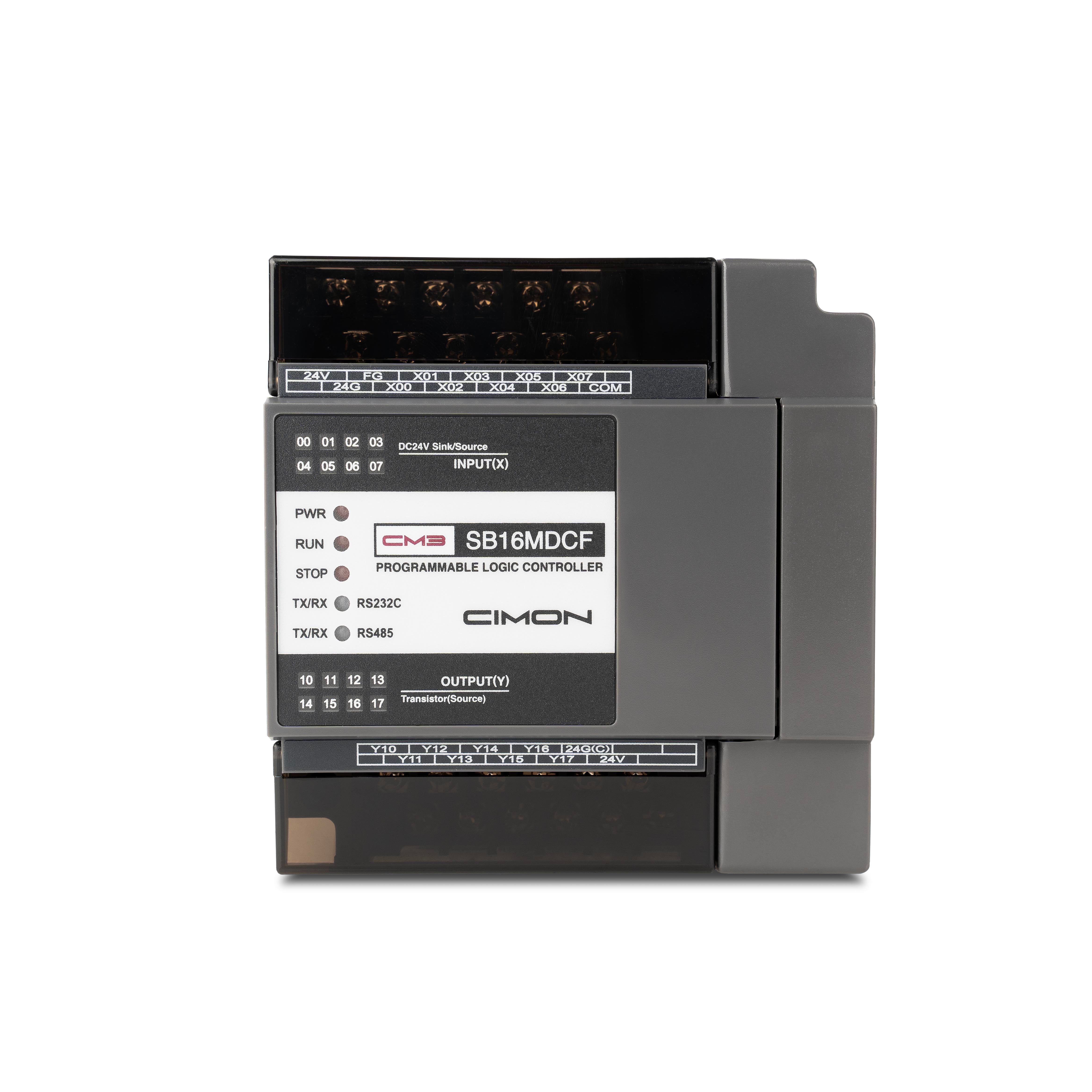

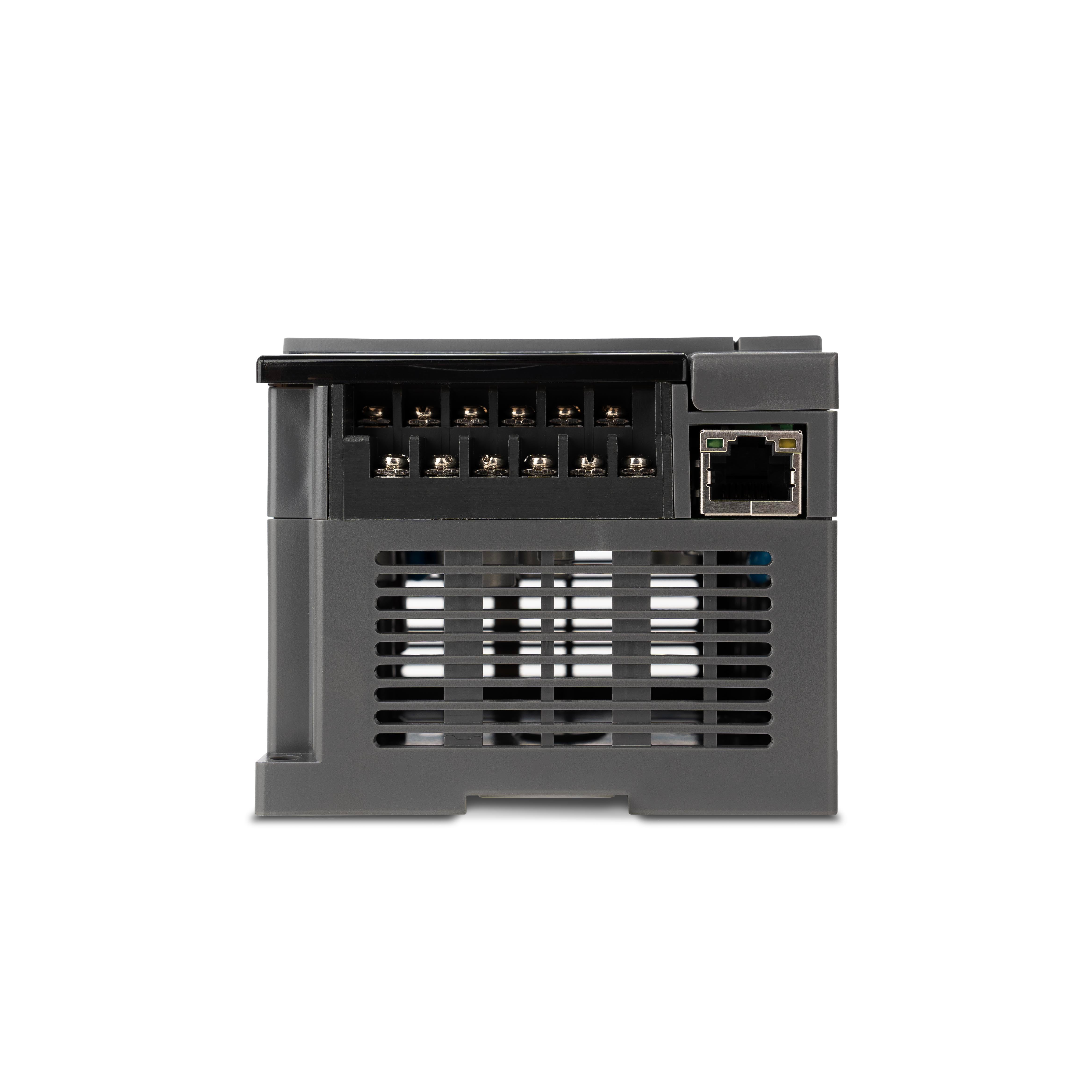

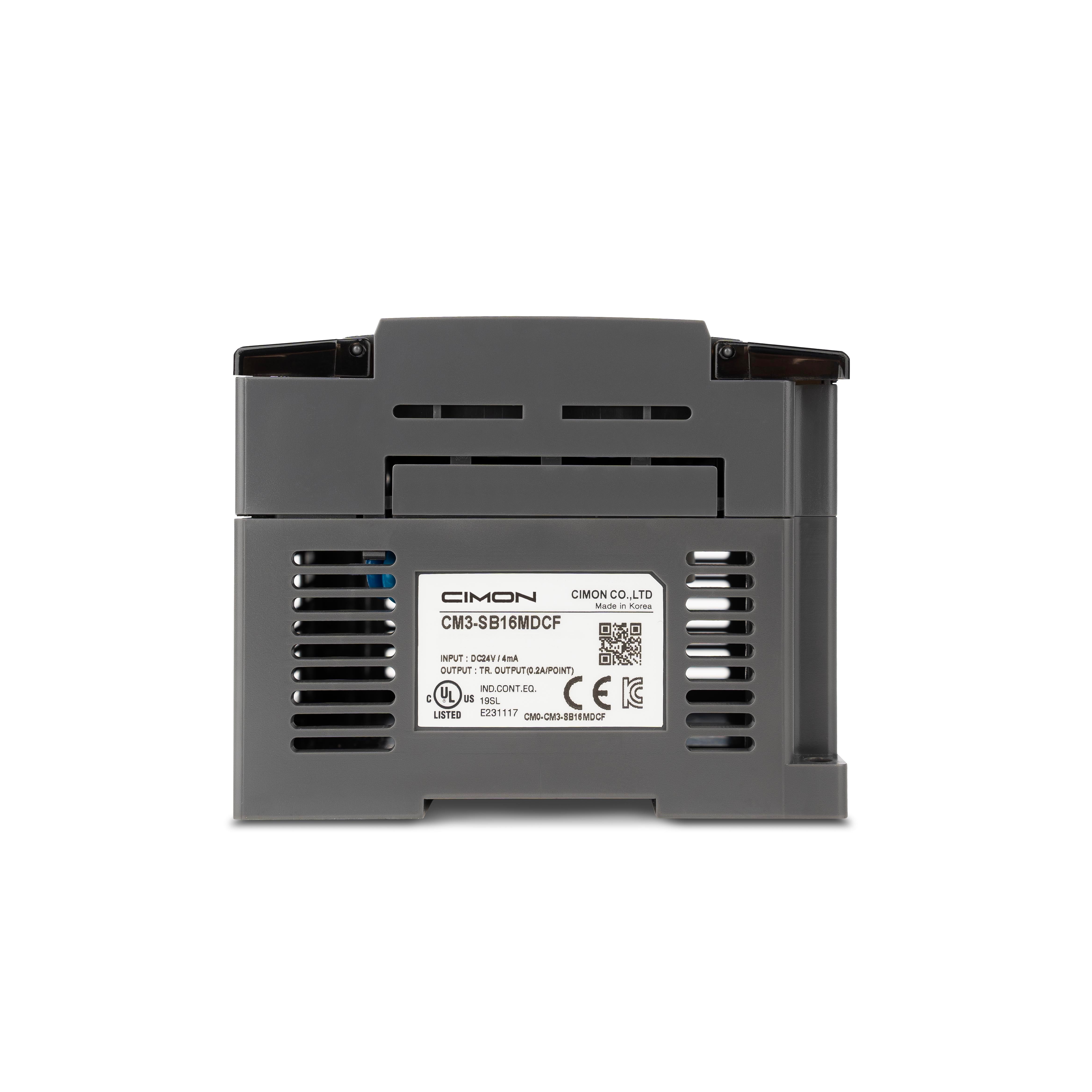

16 I/O Micro-S PLC
- Micro-S Brick PLC
- Power: 12/24 VDC
- Non-expandable
- (1) Ethernet
- (2) Serial

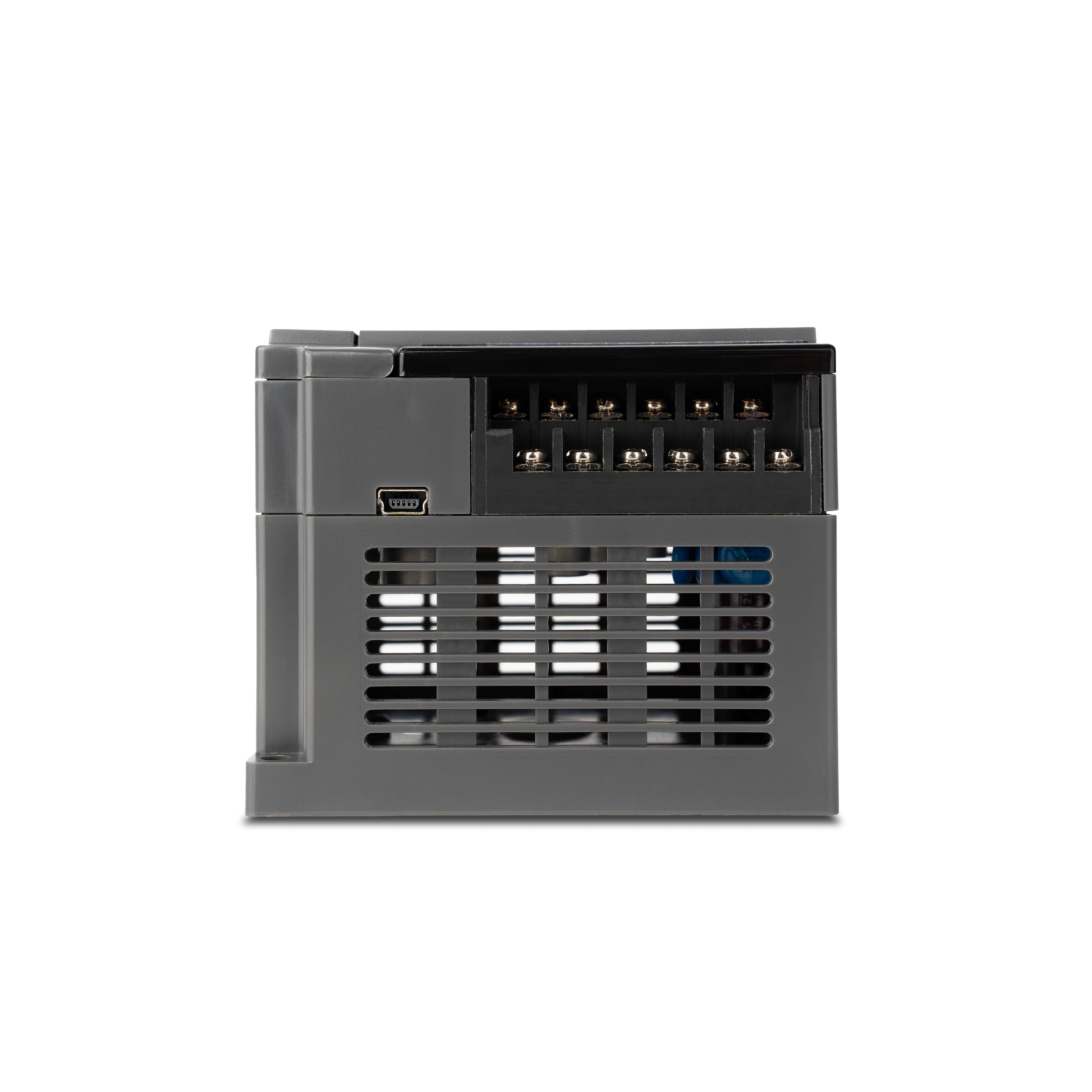

- (1) USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point

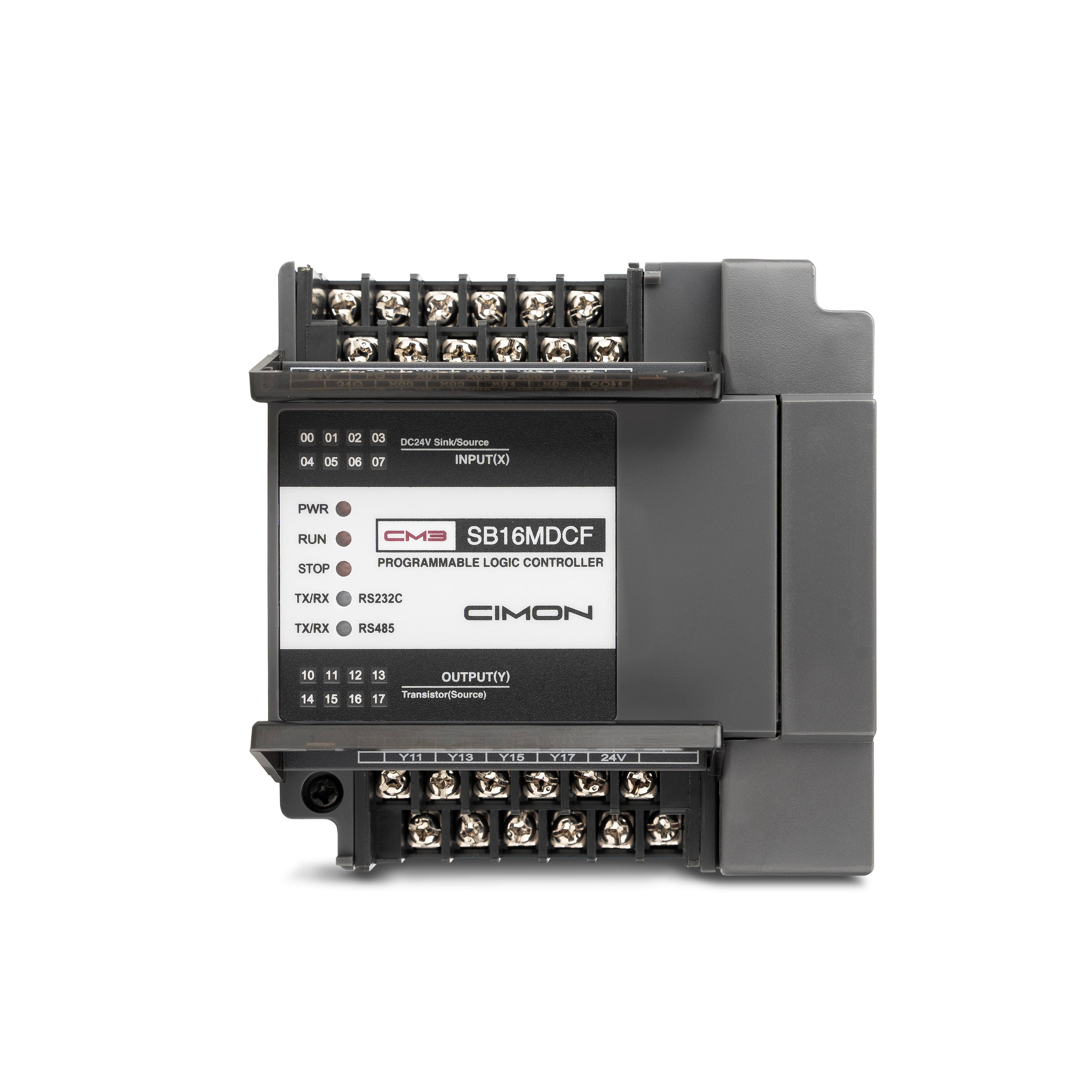

- Screw-based terminals
16 I/O Micro-S PLC
Sale price$250.00
Regular price (/)
Specifications
| SKU | CM3-SB16MDTF |
| Power Supply | 12-24 VDC, 0.12 A |
| Discrete Input Type | TR Sink/Source |
| Discrete Output Type | TR Sink |
| Analog Input Type | N/A |
| Analog Output Type | N/A |
| Number of Channels | (16 Total) 8 Discrete Inputs, 8 Discrete Outputs |
| Rated Discrete Input Voltage | 12 or 24 VDC, Note: 12 VDC is used for the HSC |
| Rated Discrete Input Current | 4 mA |
| Discrete Input Insulation Method | Photocoupler |
| Discrete Input Voltage/Current Thresholds | ON: CH1-4: 10 VDC/3 mA CH5-8: 14 VDC/3 mA OFF: CH1-4: 8 VDC/1 mA CH5-8: 12 VDC/1 mA |
| Rated Discrete Output Voltage | 12, 24 VDC |
| Rated Discrete Output Current | 1 point = 0.2 A 1 COM = 1 A |
| Discrete Output Insulation Method | Photocoupler |

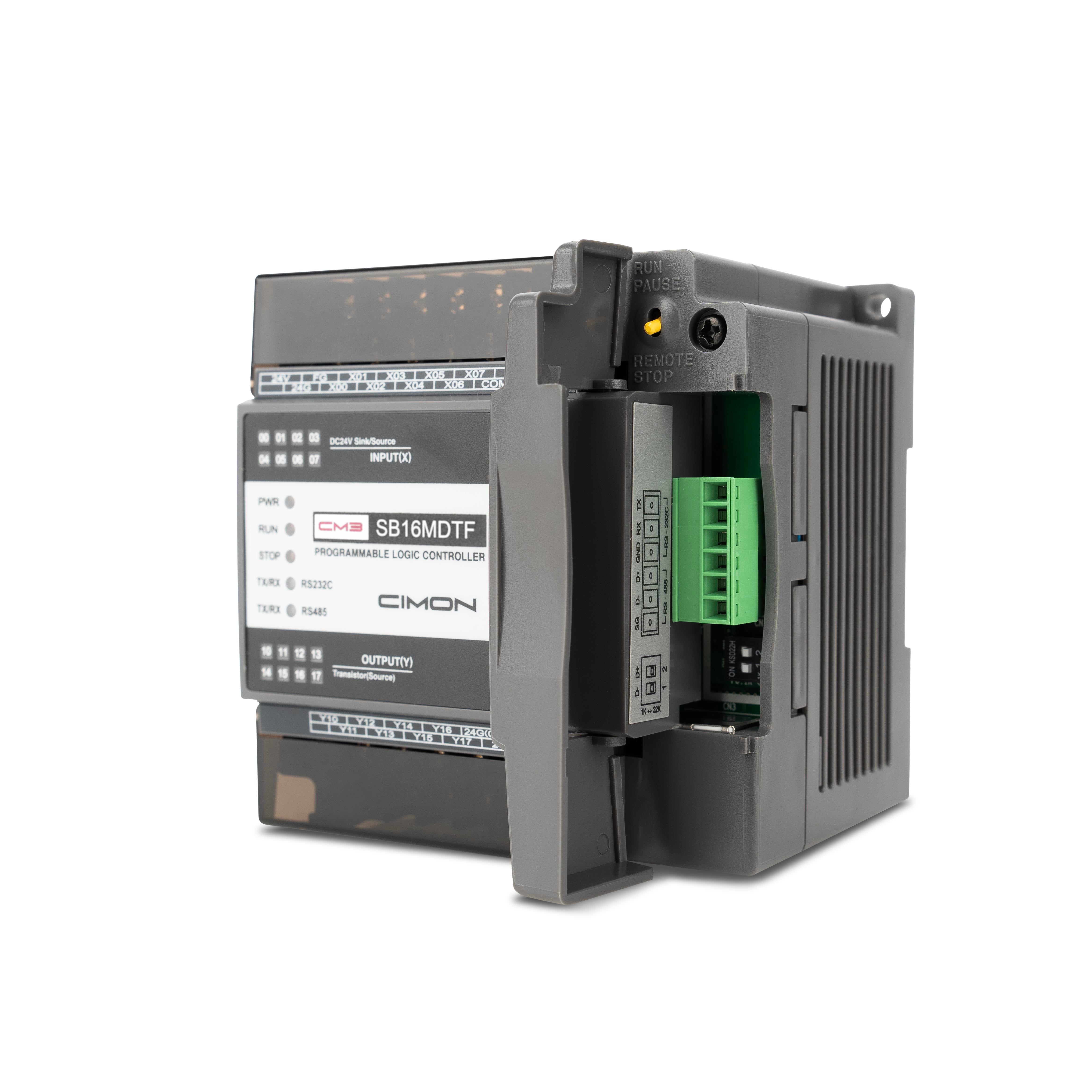

| Communication Ports | RS-232, 1 Channel RS-422/485, 1 Channel Ethernet, 1 Port |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/486 |
