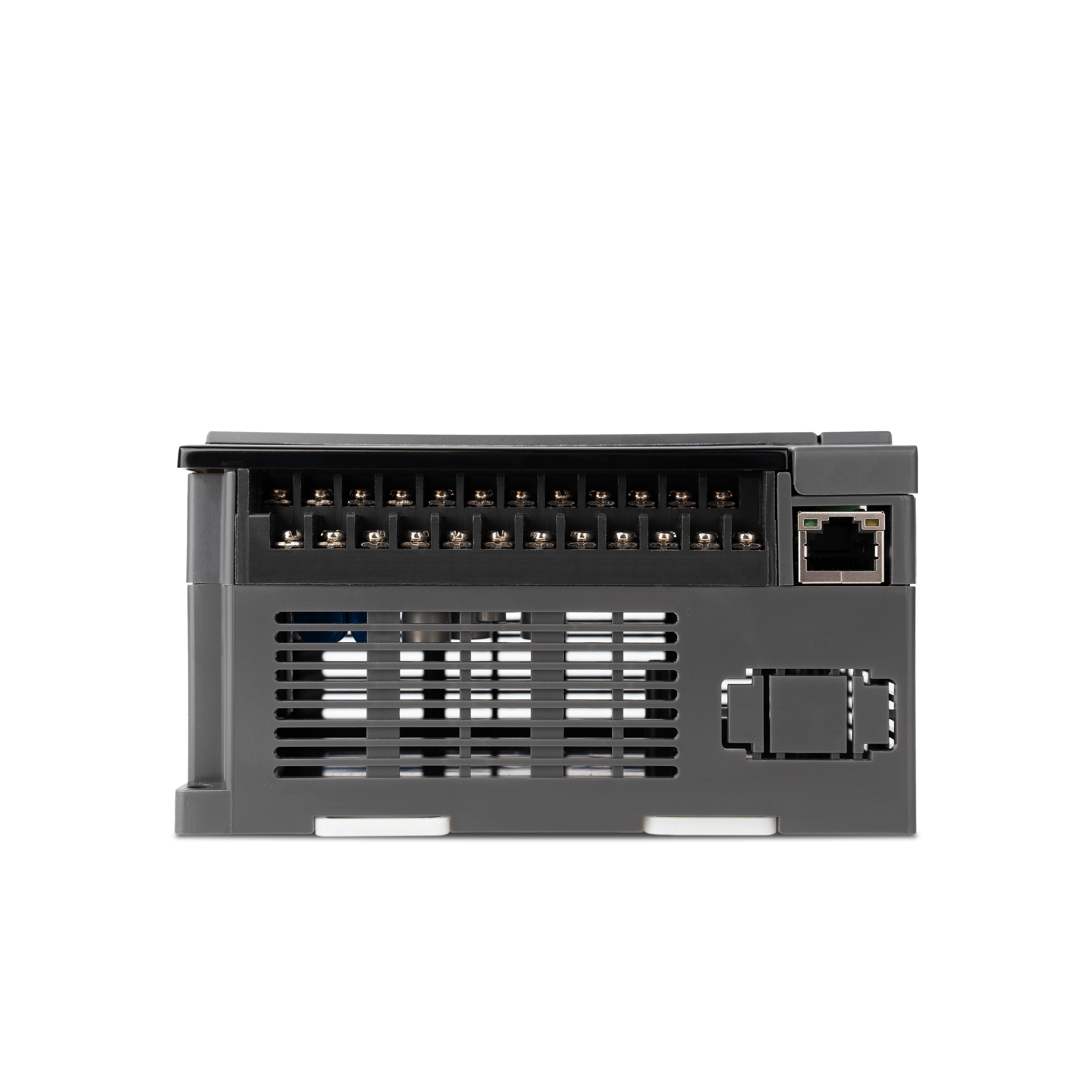

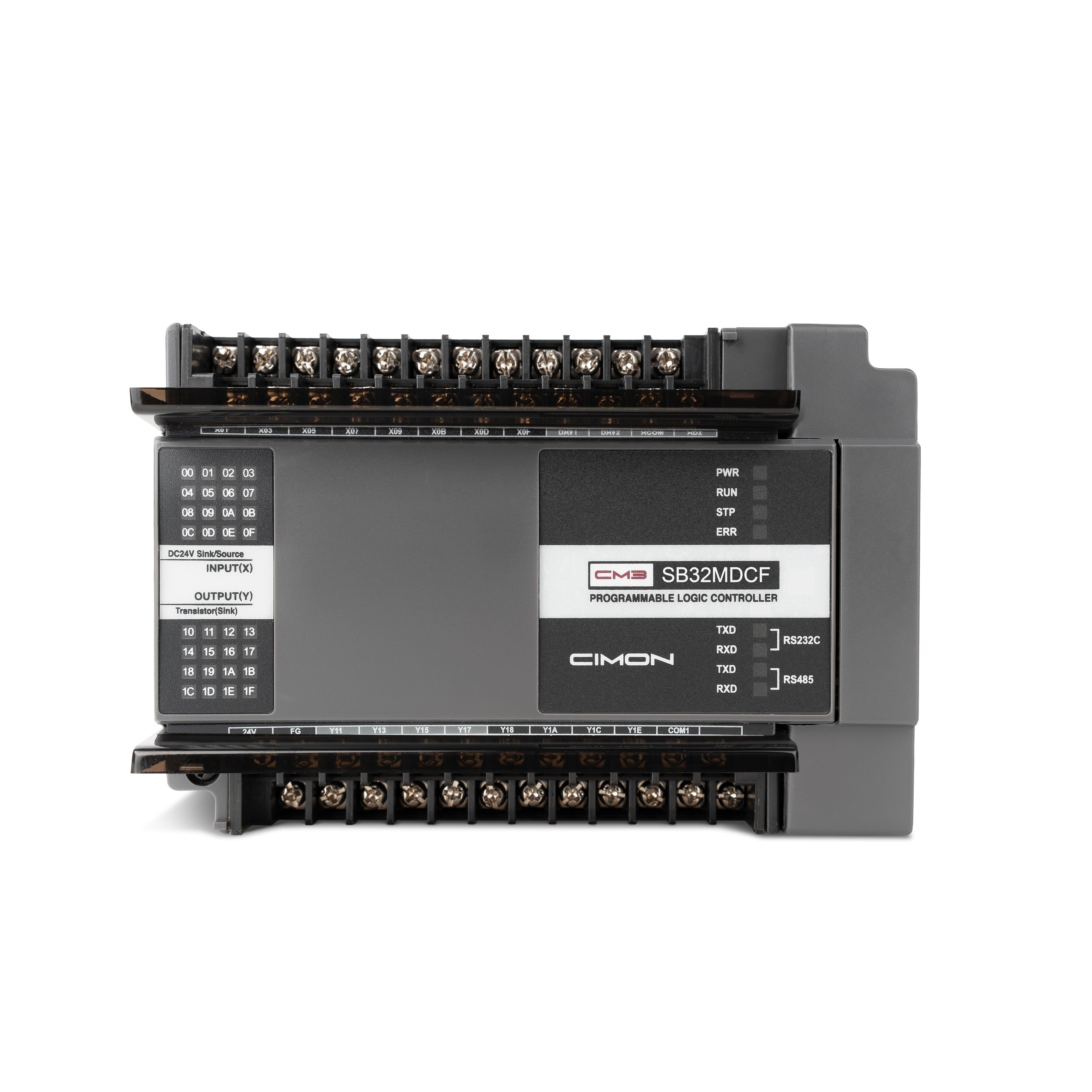

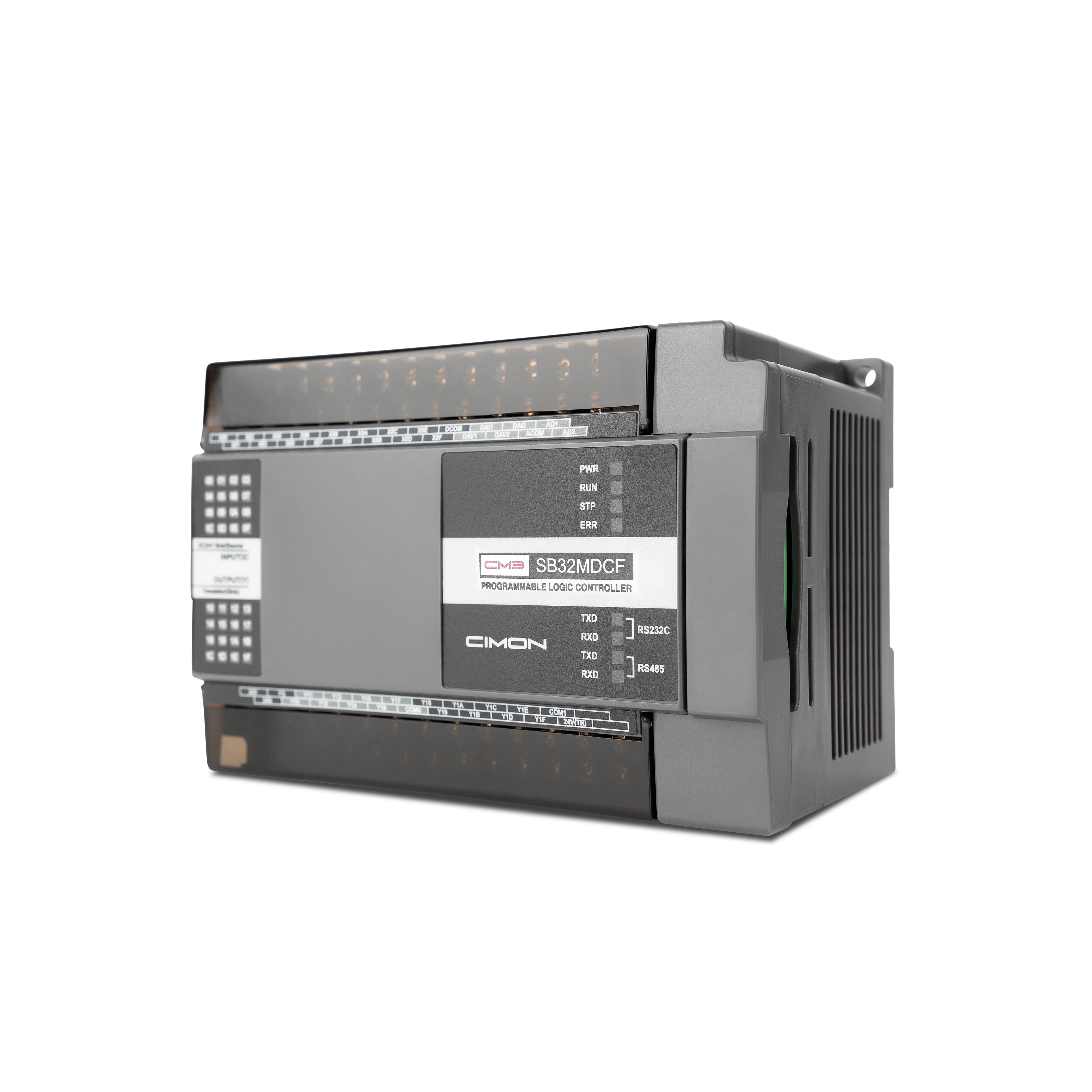

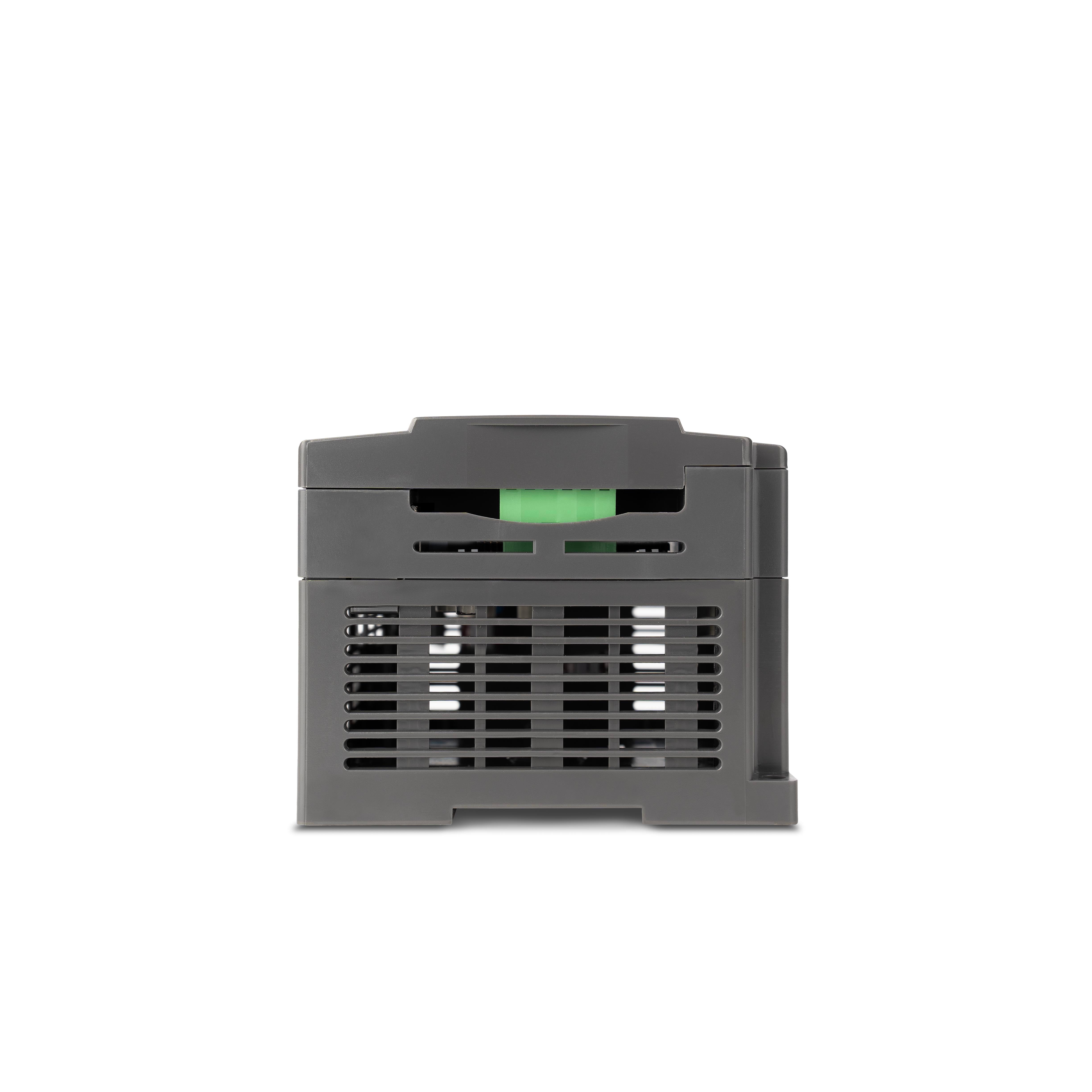

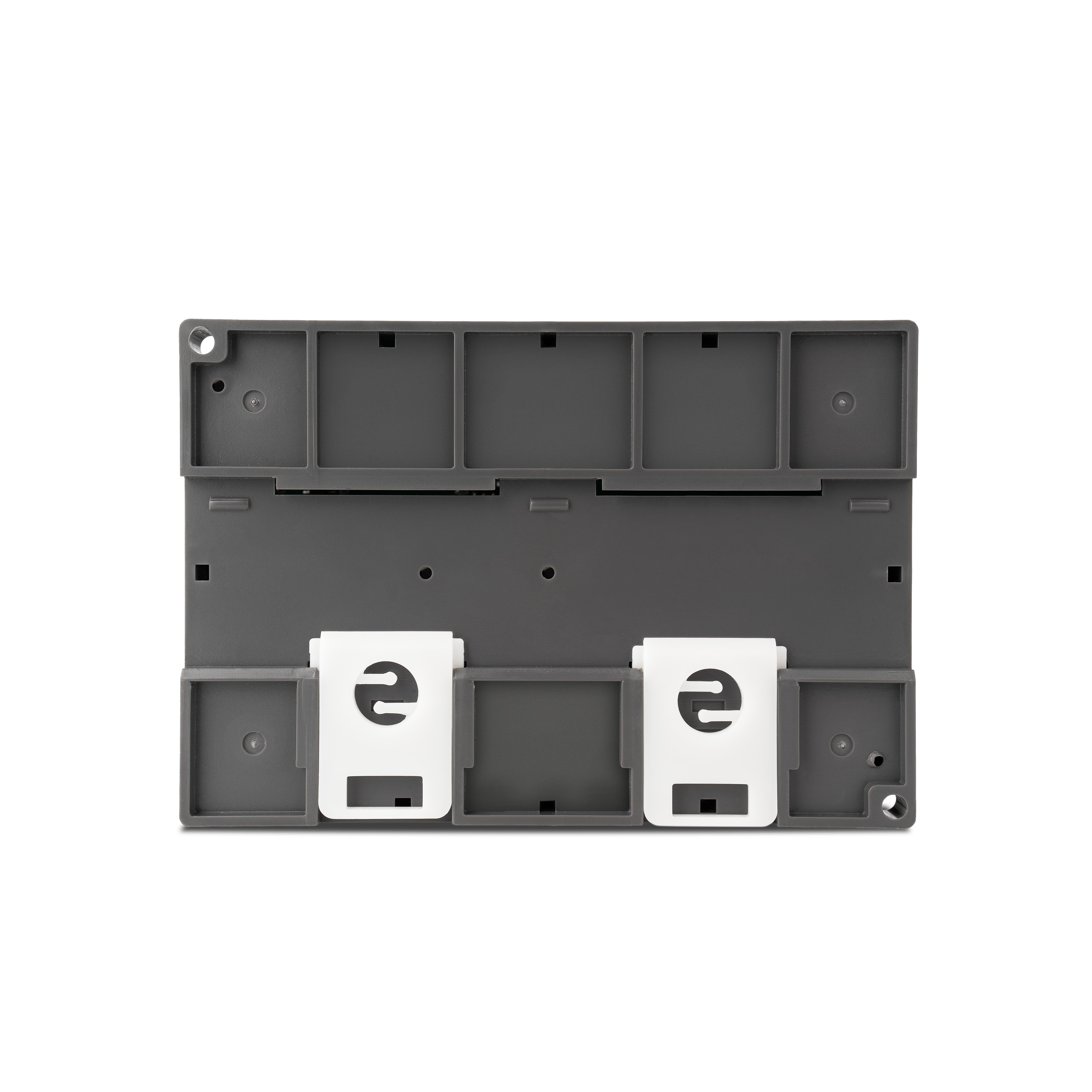

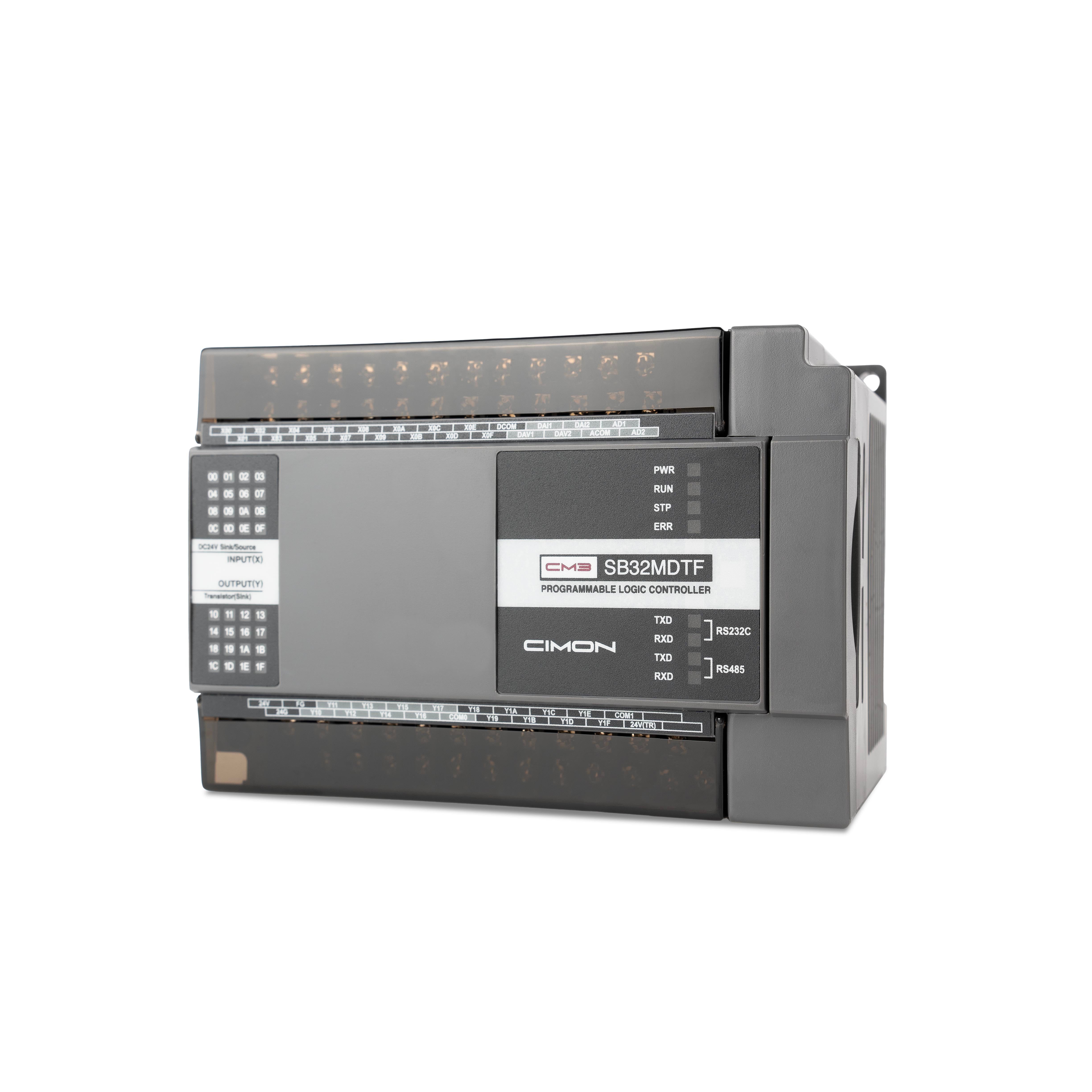

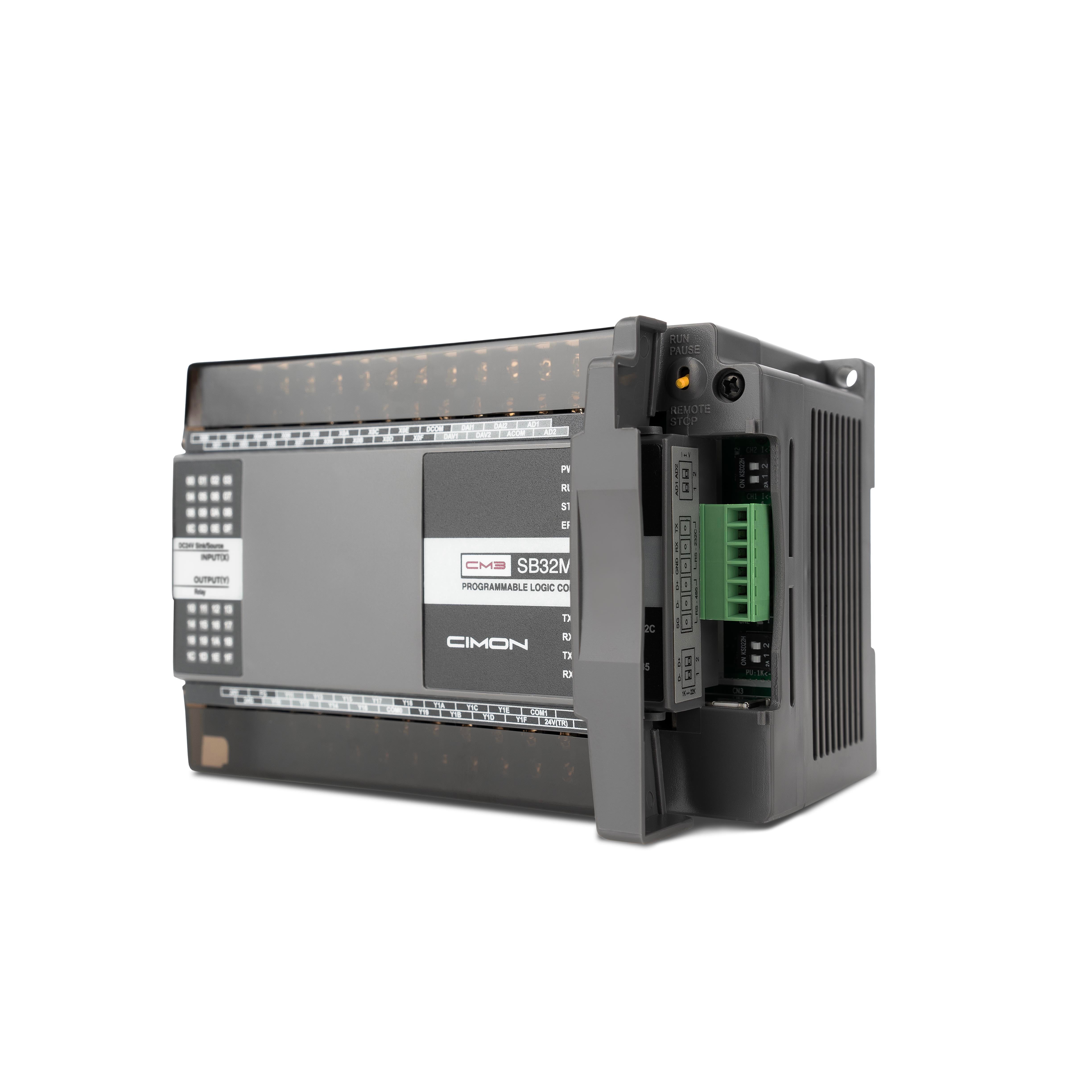

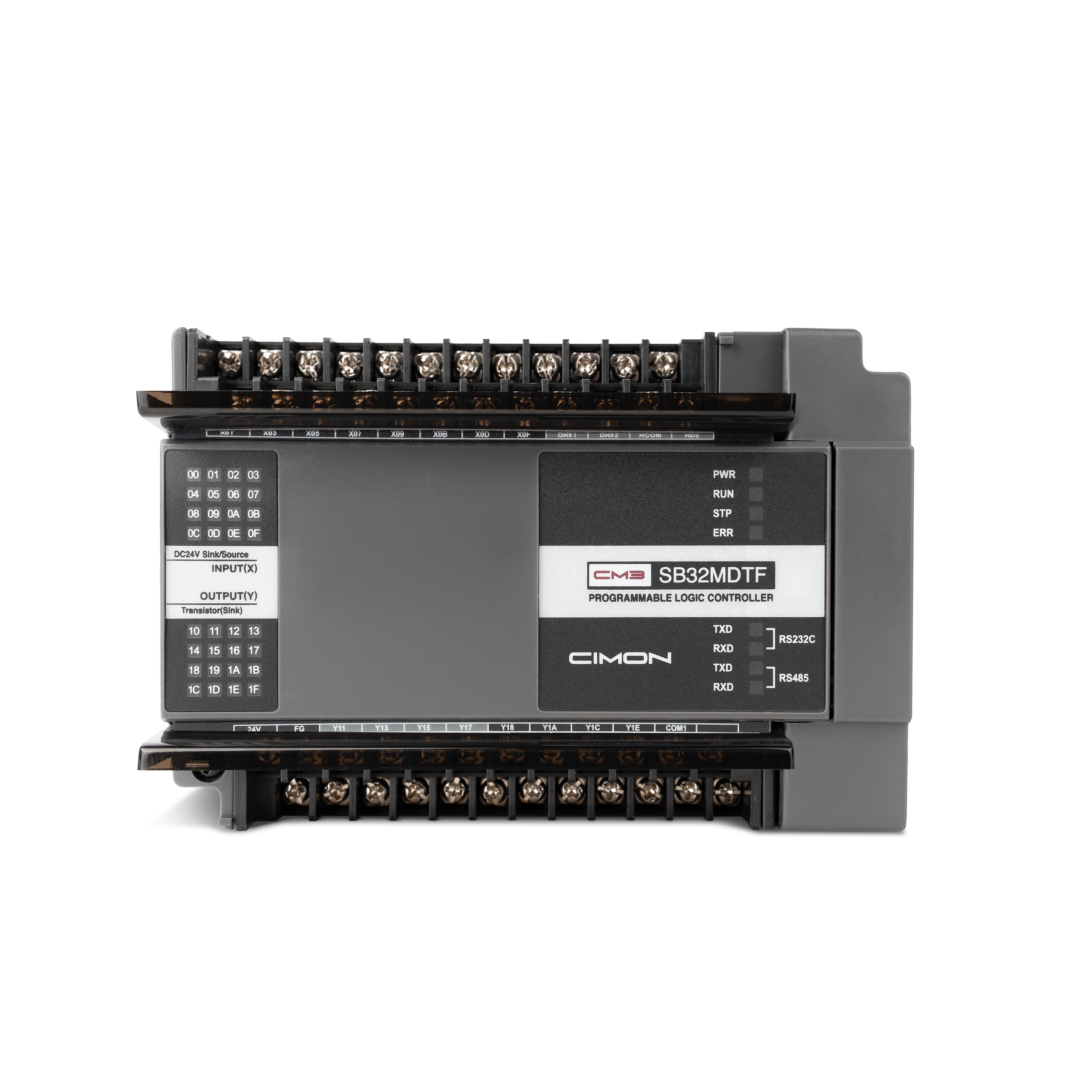

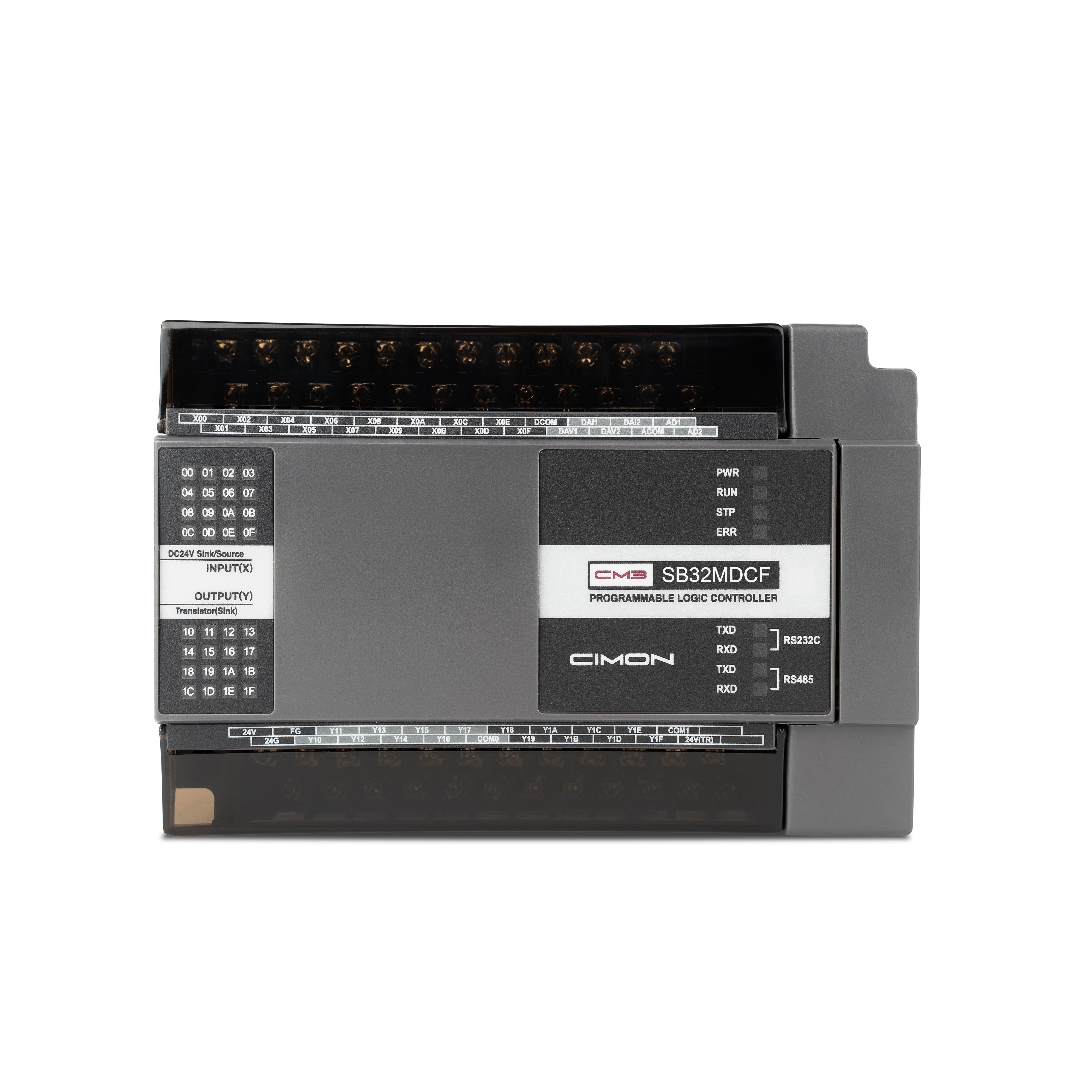

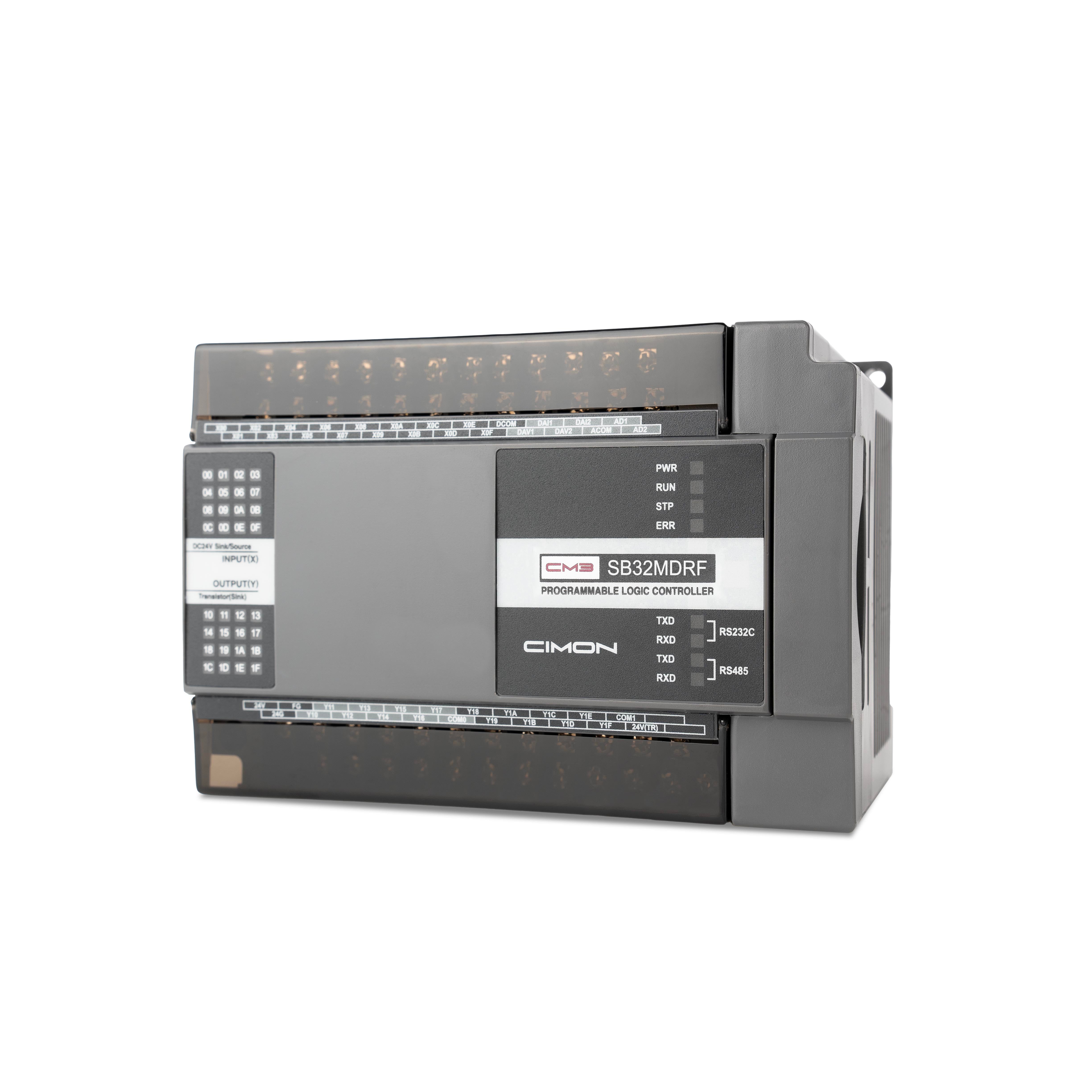

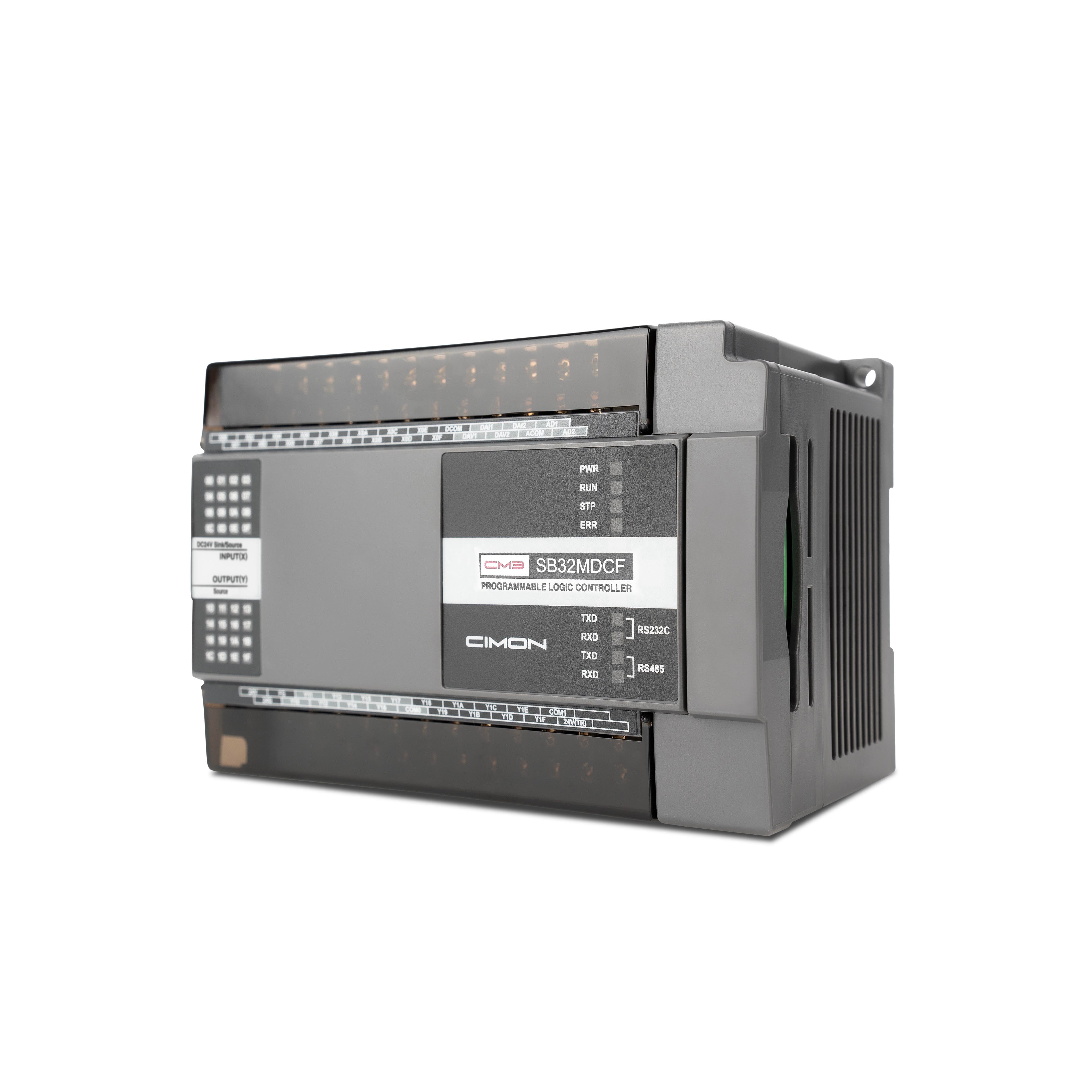

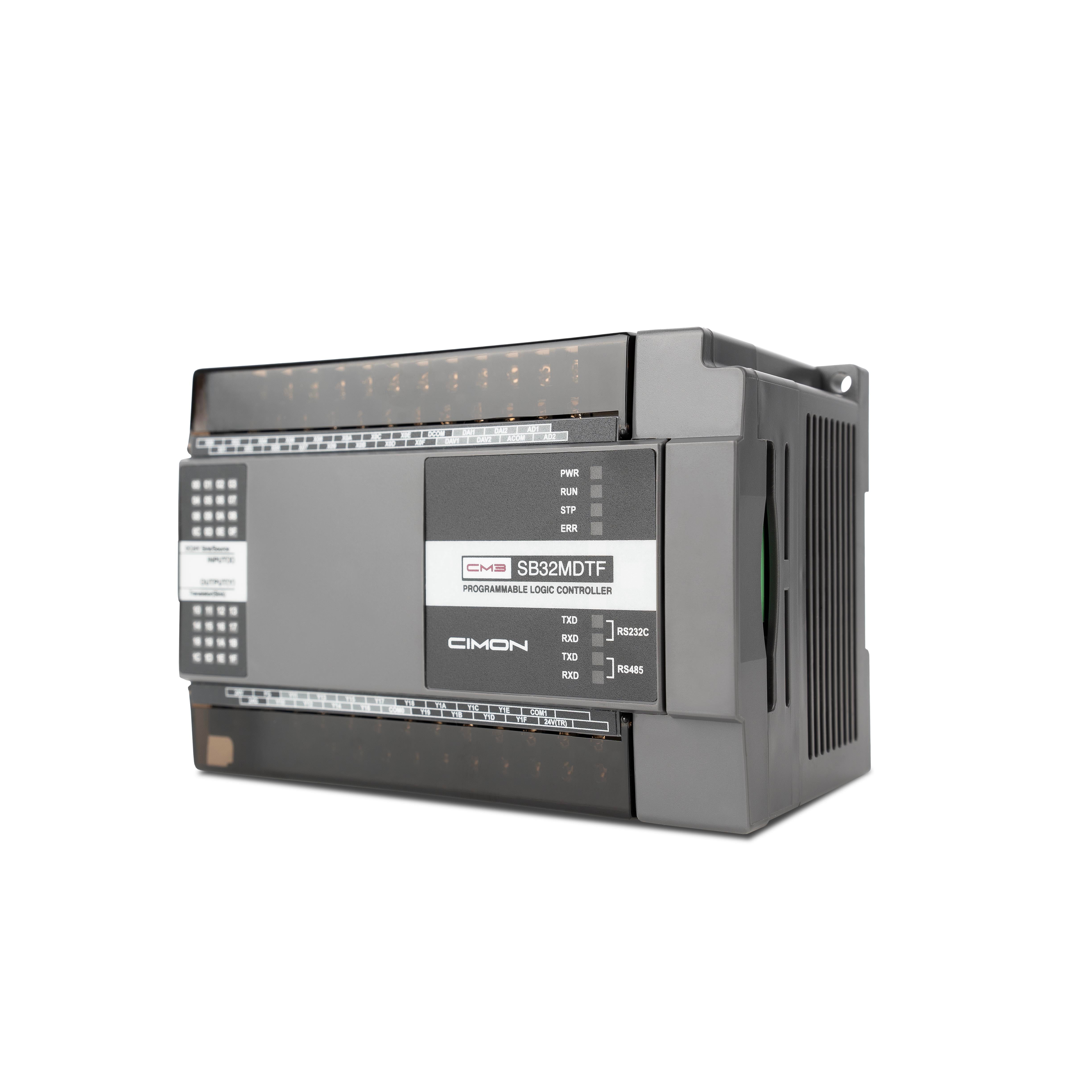

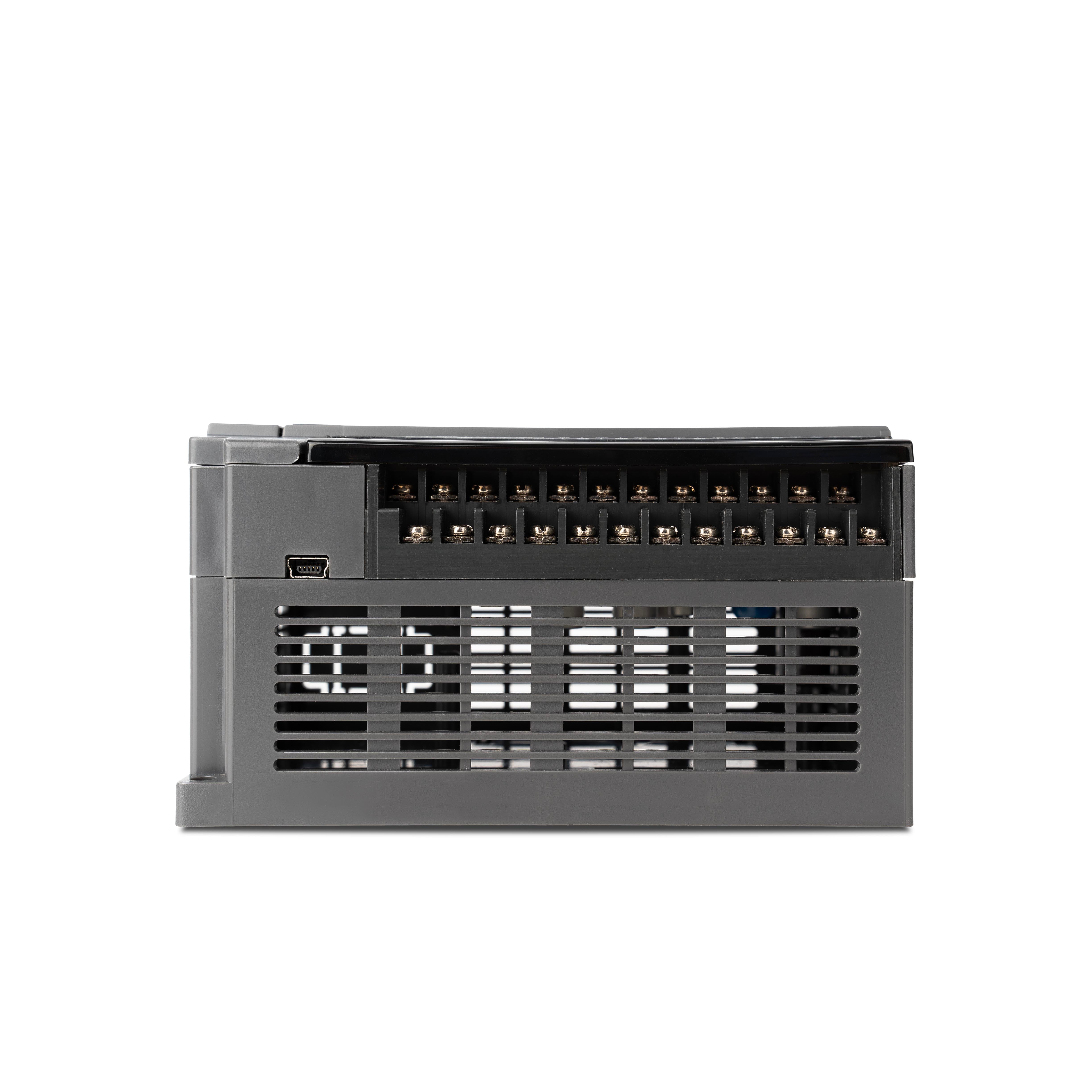

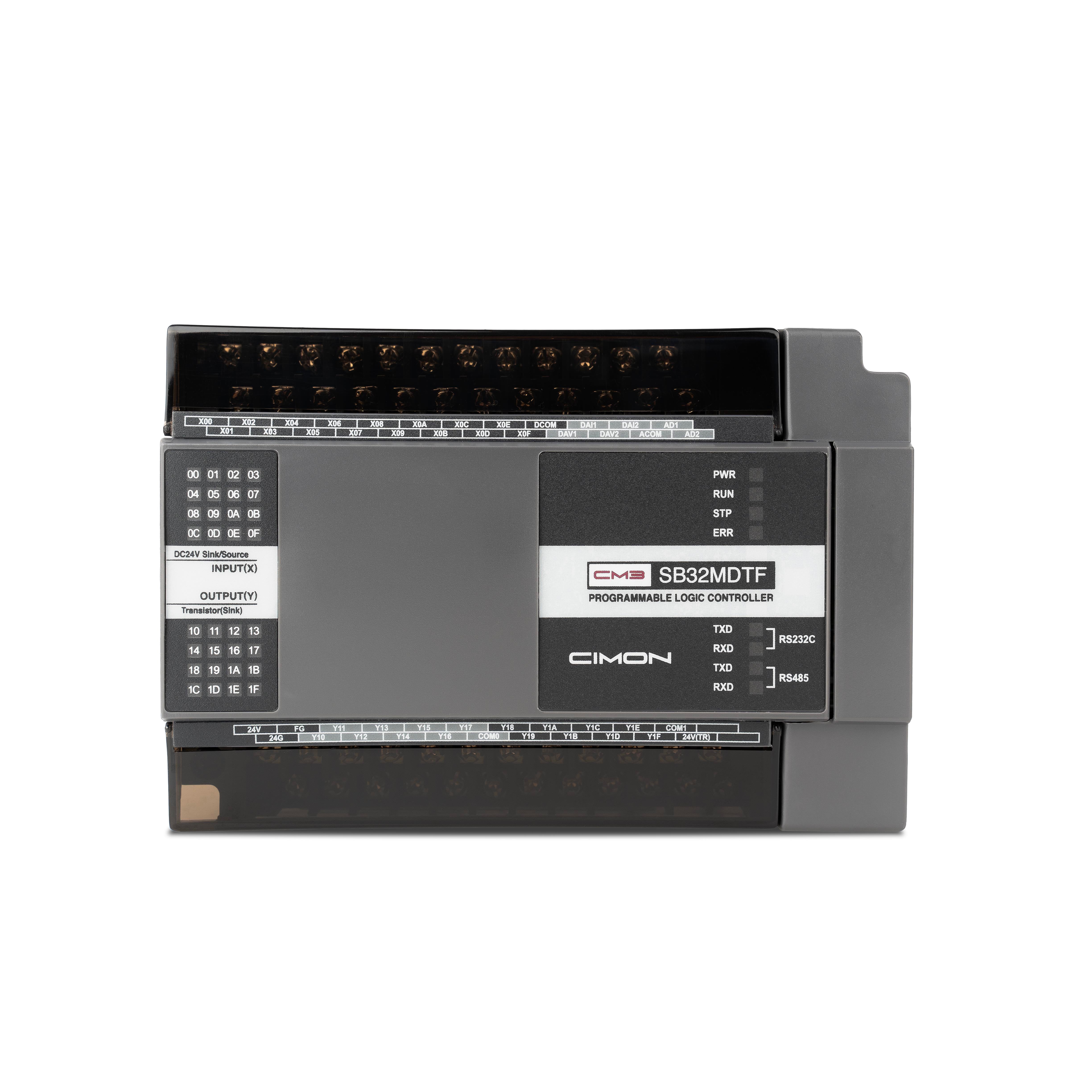

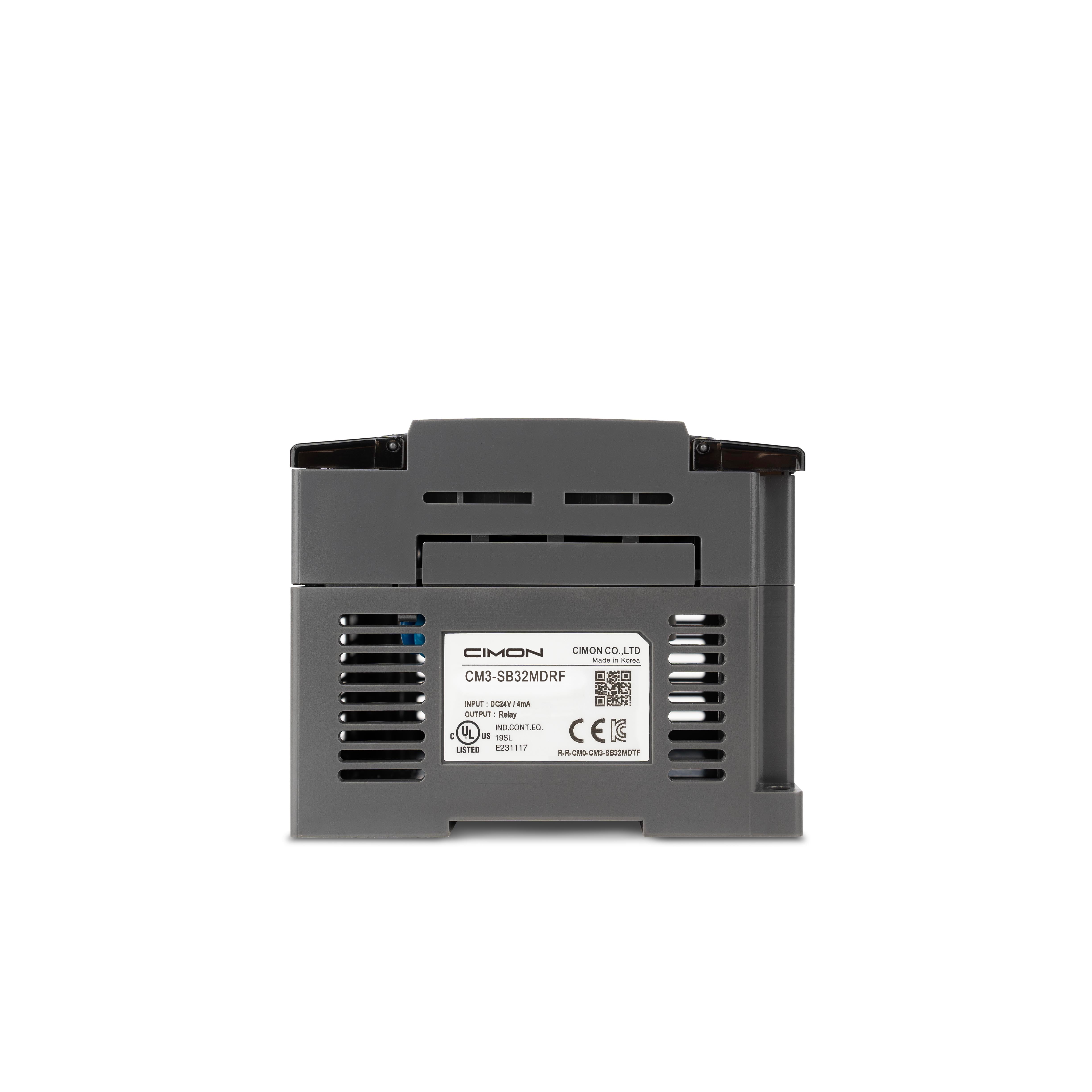

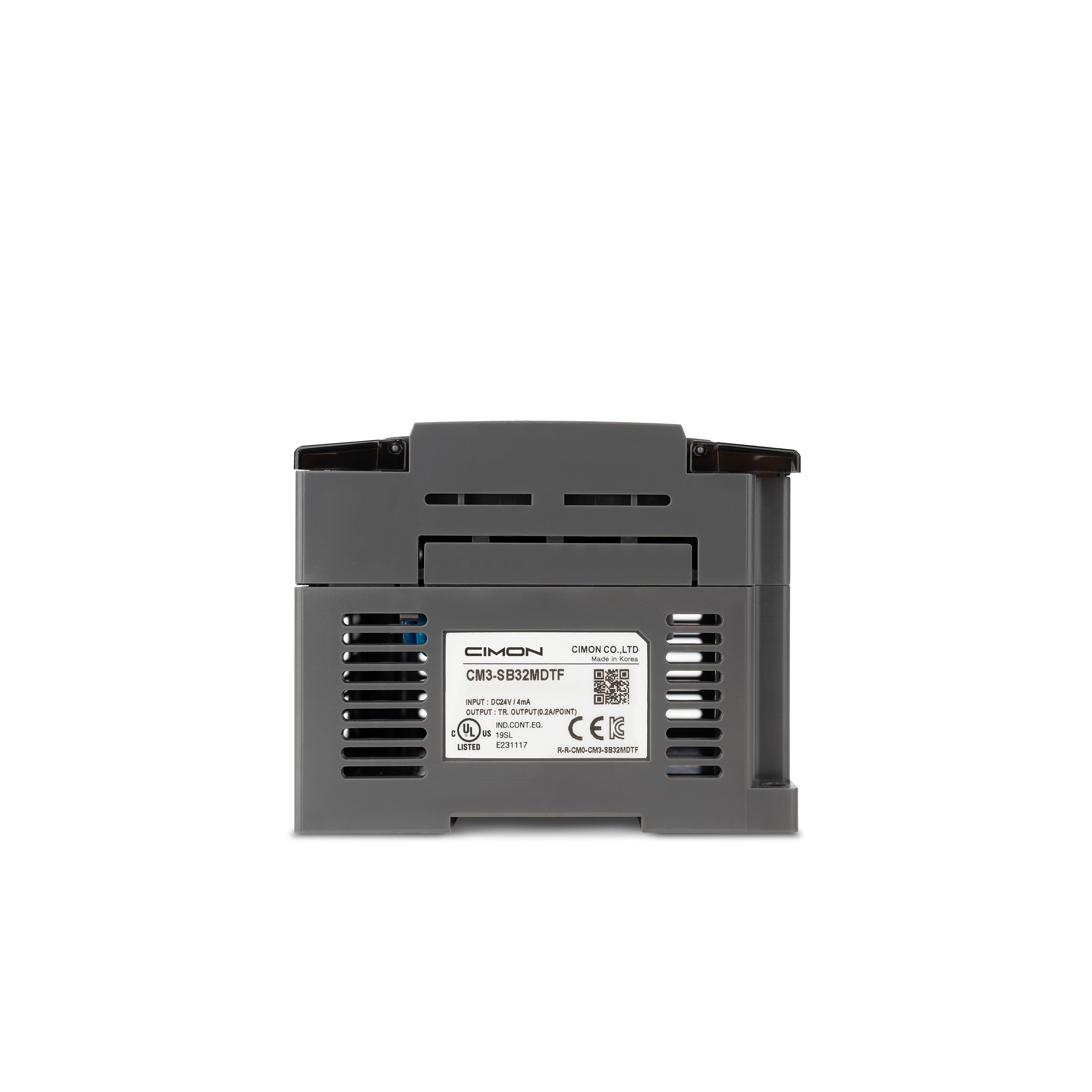

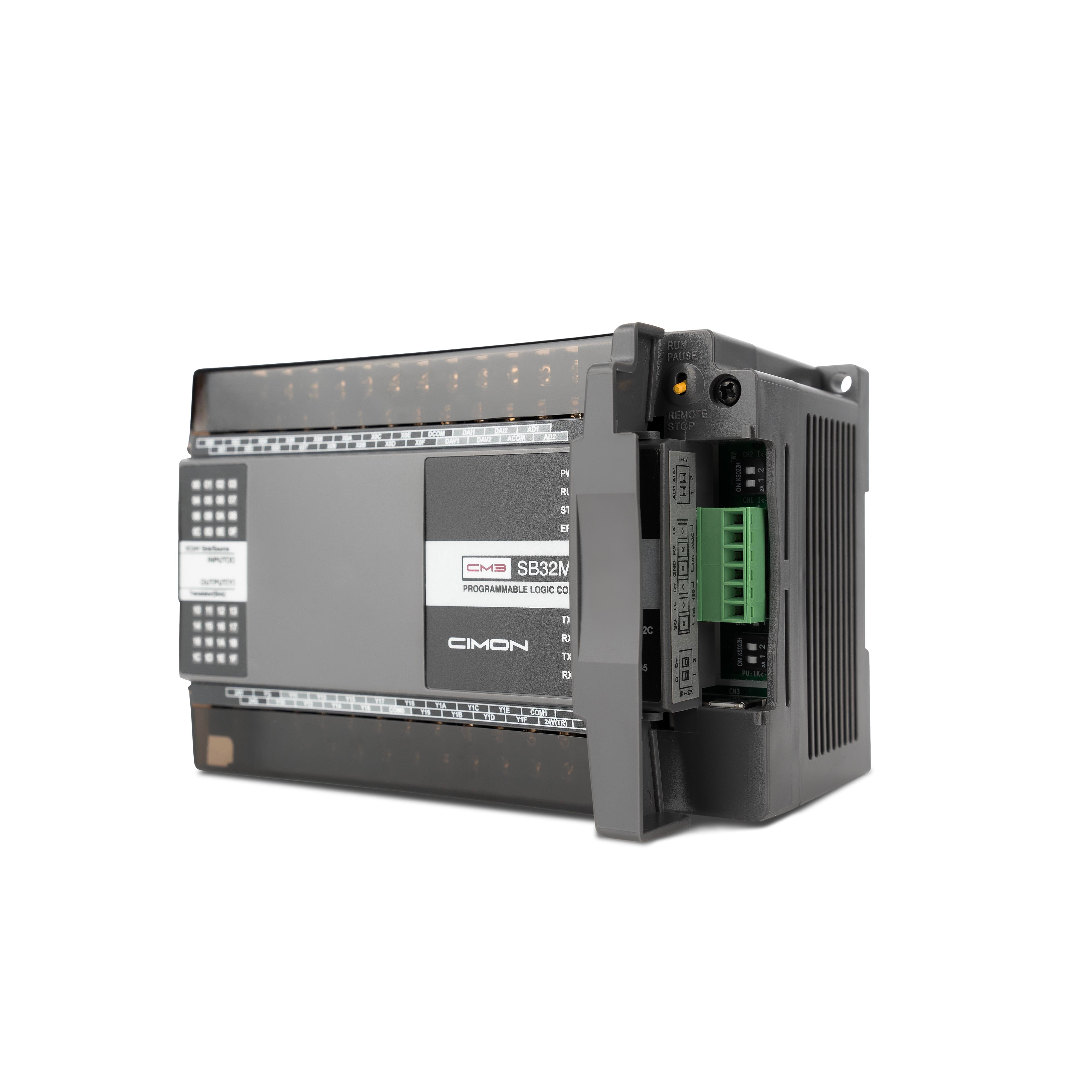

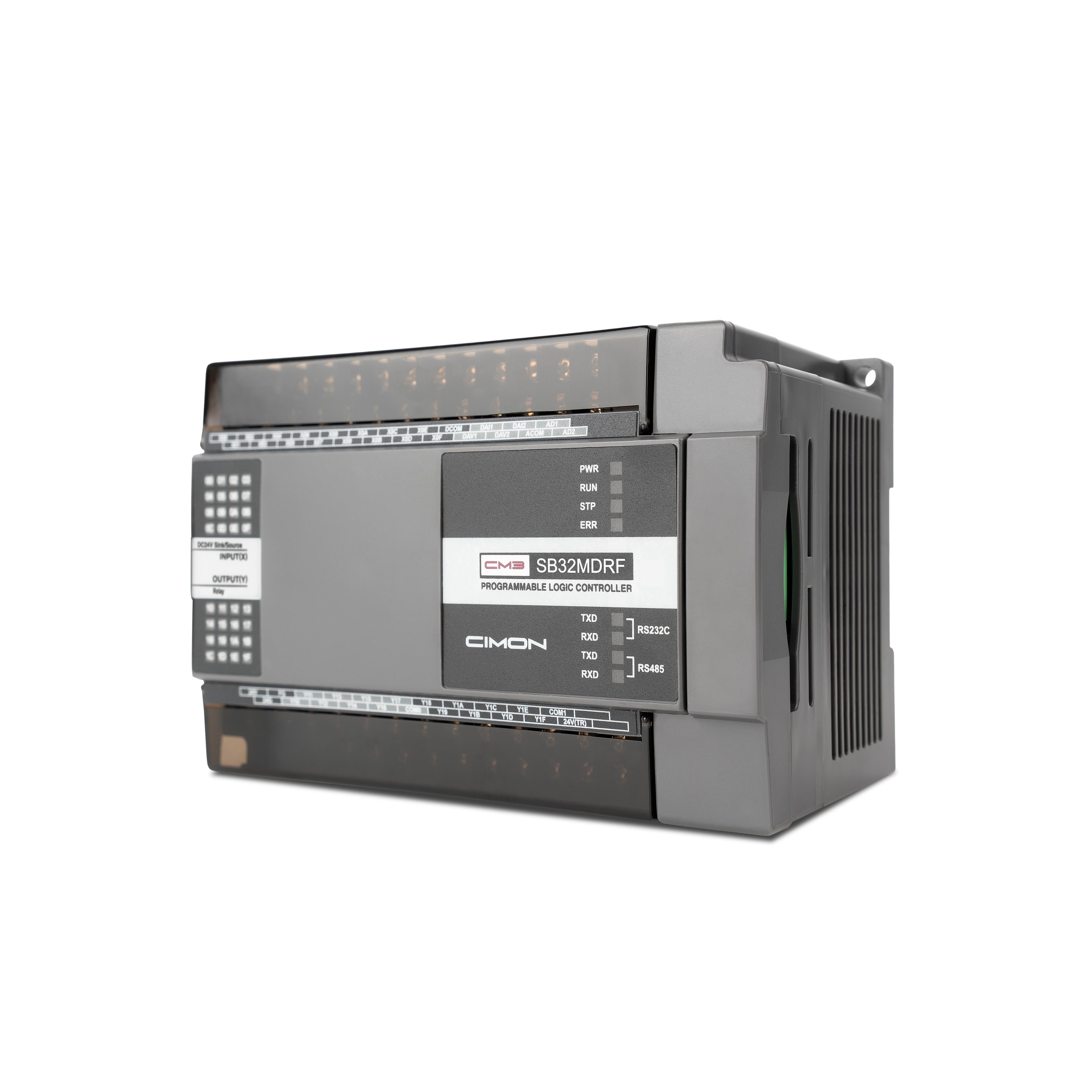

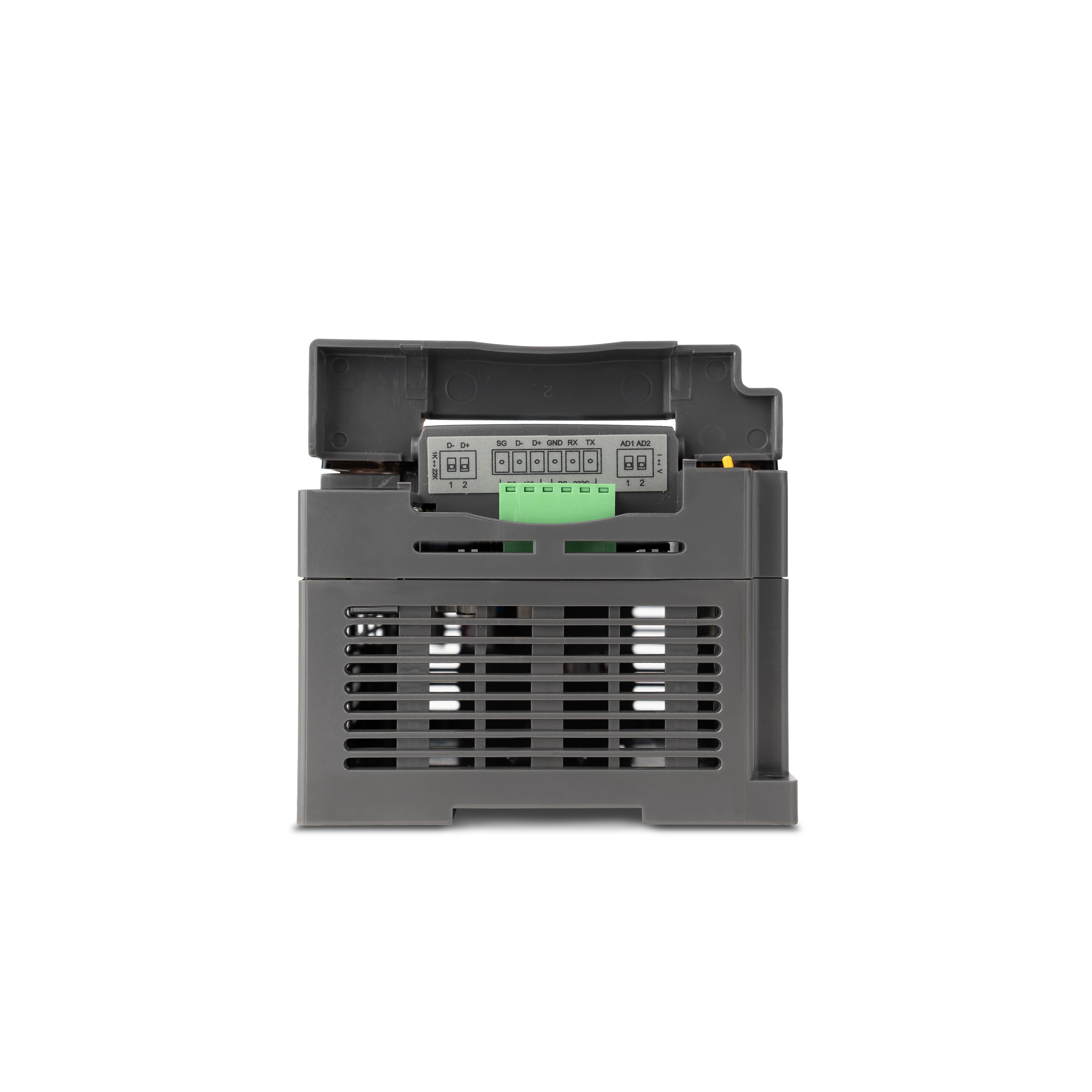

36 I/O Micro-S PLC
- Micro-S Brick PLC
- Power: 24 VDC
- Non-expandable

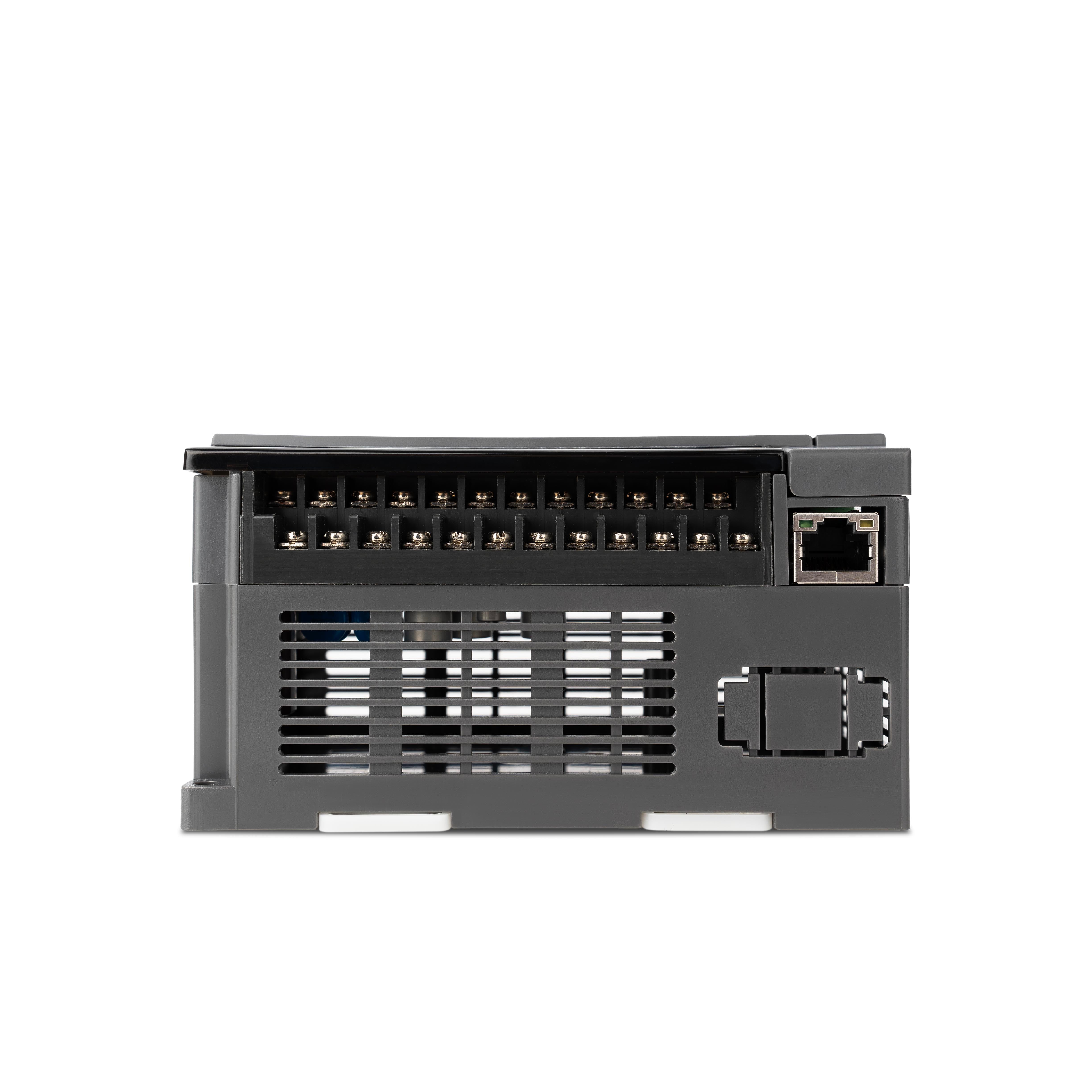

- (1) Ethernet
- (2) Serial

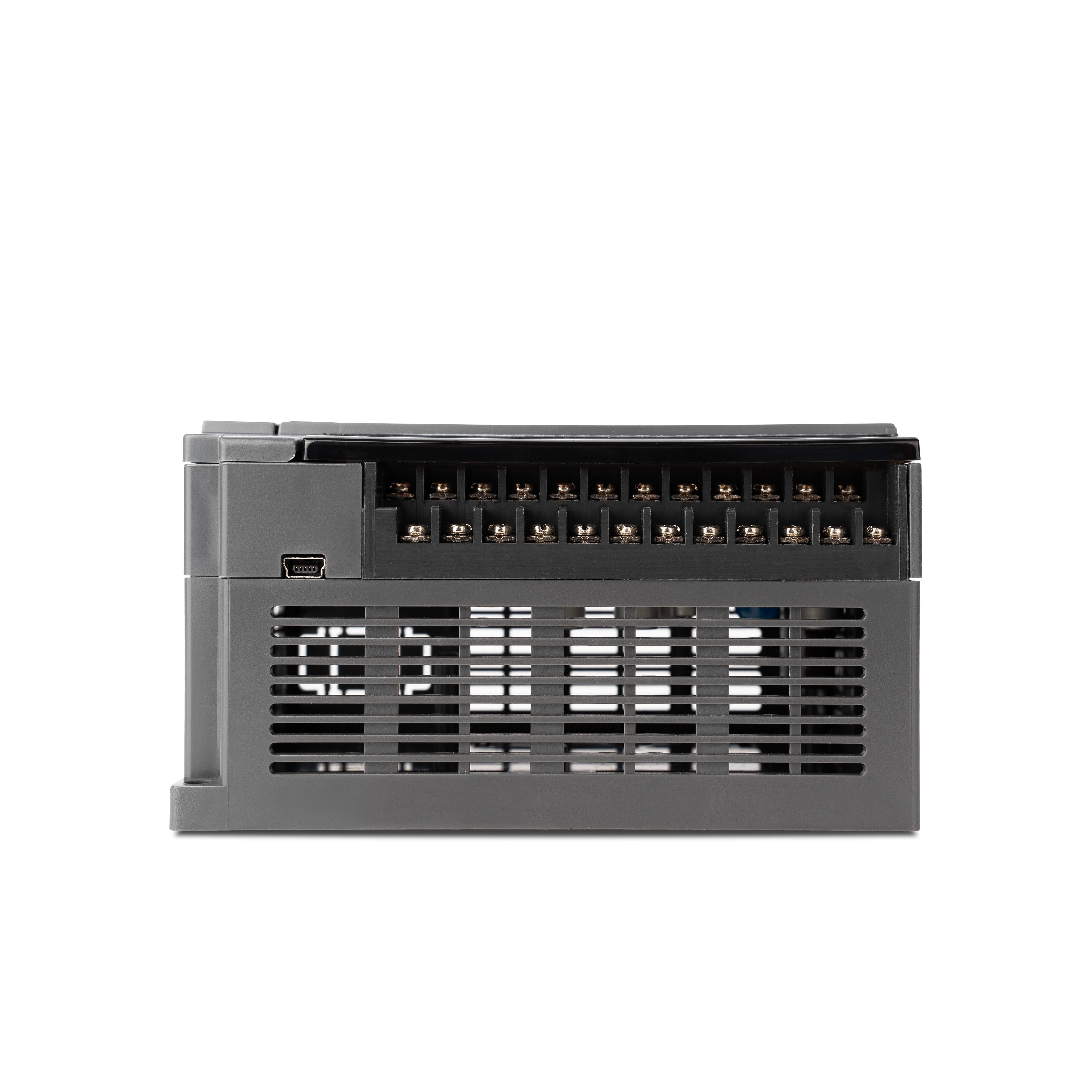

- (1) USB Mini-B Port
- Discrete Input: 16 Point, 12/24 VDC, Sink/Source
- Discrete Output: 16 Point, 12/24 VDC, Sink, 0.2 A/Point
- Analog Input: 2 Point, 0-10 V, 0-20 mA
- Analog Output: 2 Point, 0-10 V, 4-20 mA
- Screw-based terminals
36 I/O Micro-S PLC
Sale price$380.00
Regular price (/)
Specifications
| SKU | CM3-SB32MDTF |
| Power Supply | 20-24 VDC, 0.33 A |
| Discrete Input Type | TR Sink/Source |
| Discrete Output Type | TR Sink |
| Analog Input Type | Voltage: 0-10 V Current: 0-20 mA |
| Analog Output Type | Voltage: 0-10 V (Load resistance > 1 kΩ); Current: 4-20 mA (Load resistance < 600 Ω) |
| Number of Channels | (36 Total) 16 Discrete Inputs, 16 Discrete Outputs, 2 Analog Inputs, 2 Analog Outputs |
| Rated Discrete Input Voltage | 12 or 24 VDC, Note: 12 VDC is used for the HSC |
| Rated Discrete Input Current | 4 mA |
| Discrete Input Insulation Method | Photocoupler |
| Discrete Input Voltage/Current Thresholds | ON: CH1-4: 10 VDC/3 mA CH5-16: 14 VDC/3 mA OFF: CH1-4: 8 VDC/1 mA CH5-16: 12 VDC/1 mA |
| Rated Discrete Output Voltage | 12, 24 VDC |
| Rated Discrete Output Current | 1 point = 0.2 A 1 COM = 1 A |
| Discrete Output Insulation Method | Photocoupler |

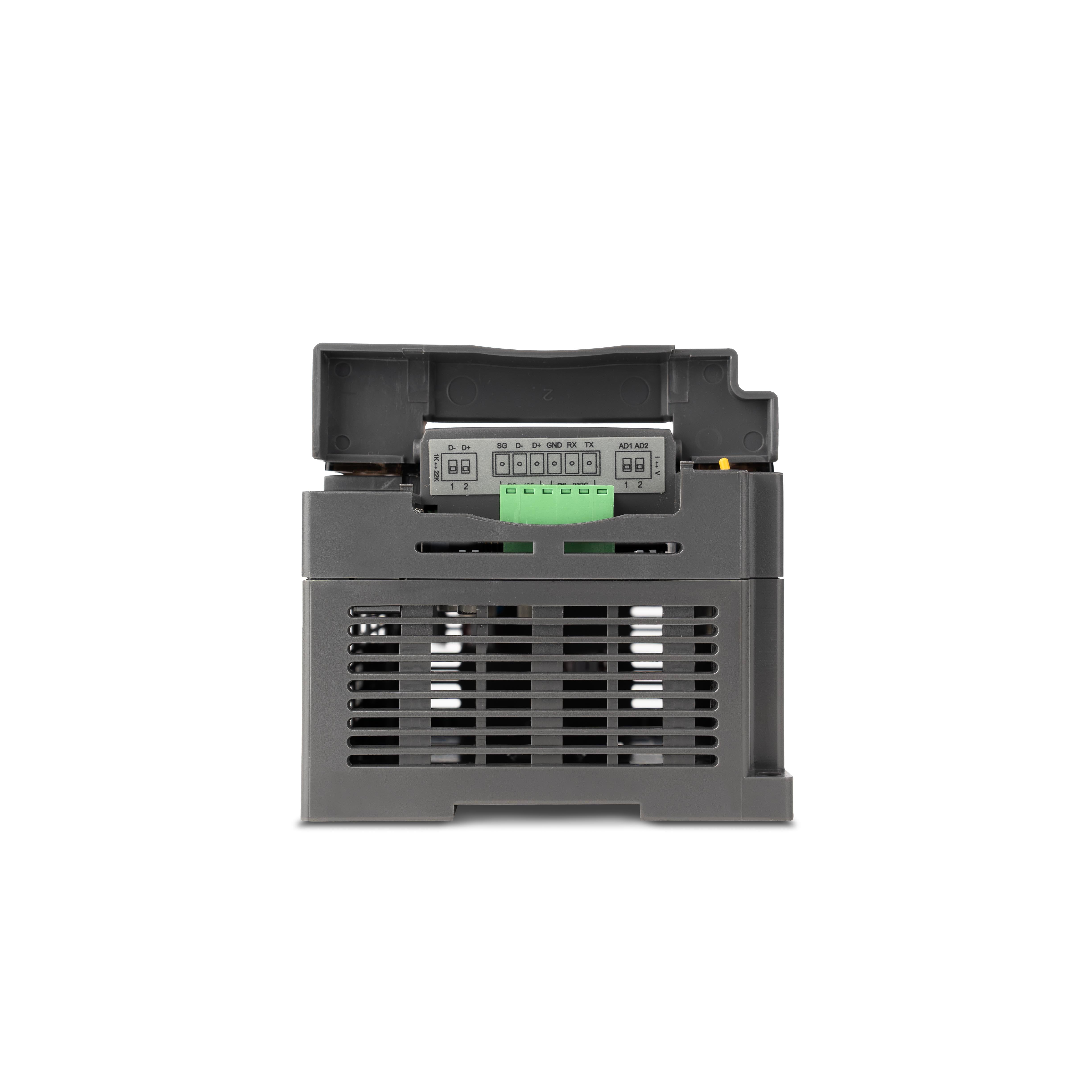

| Communication Ports | RS-232, 1 Channel RS-422/485, 1 Channel Ethernet, 1 Port |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/488 |
