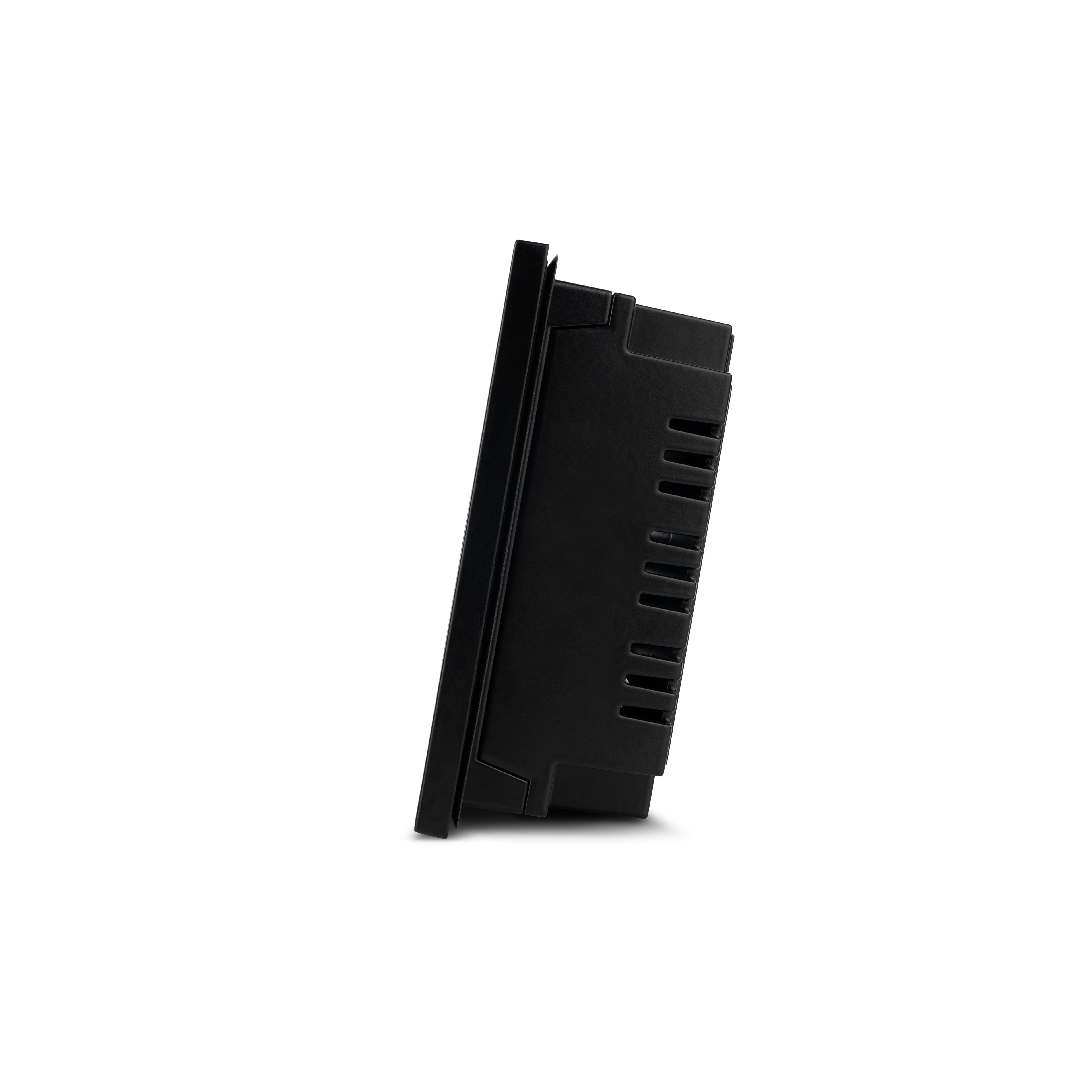

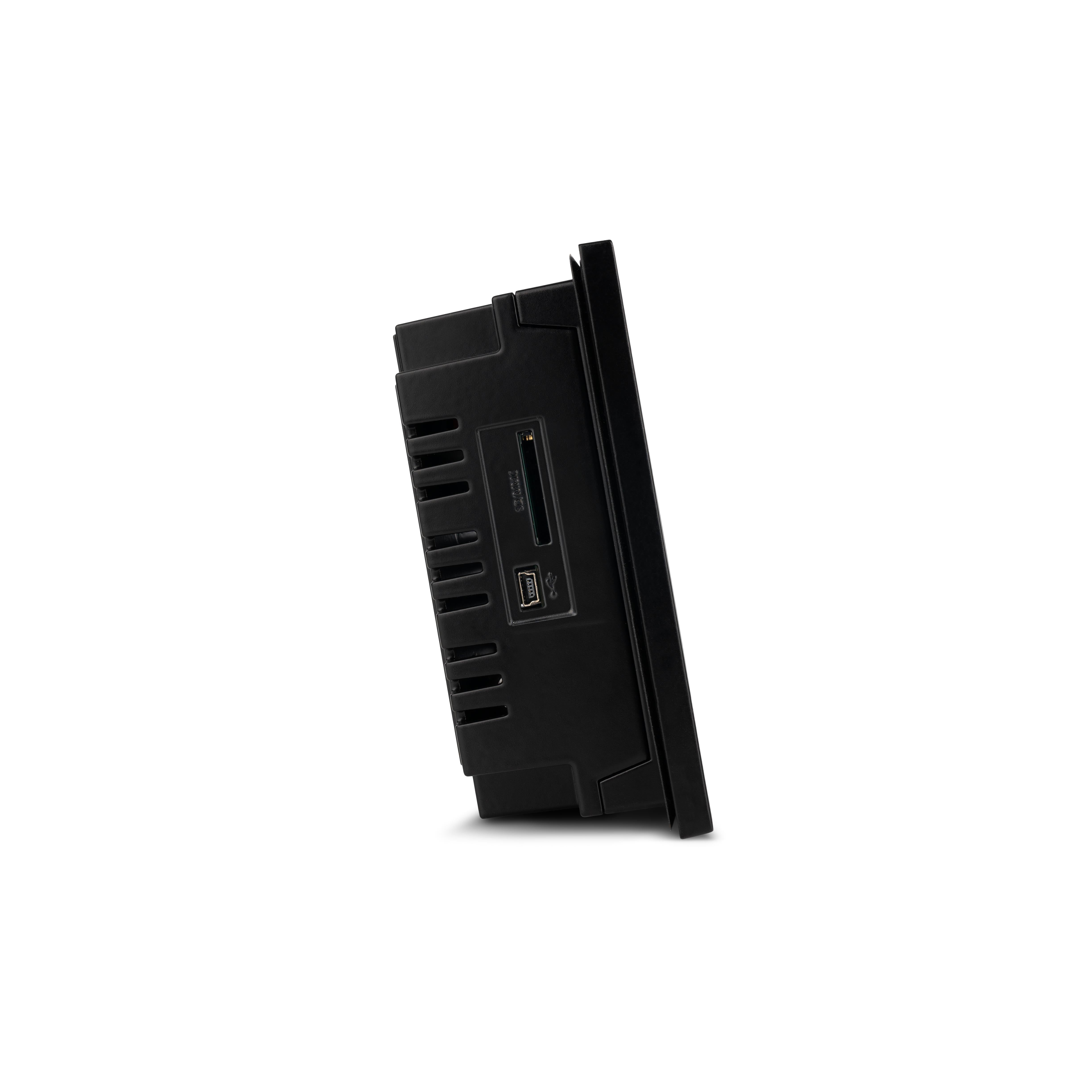

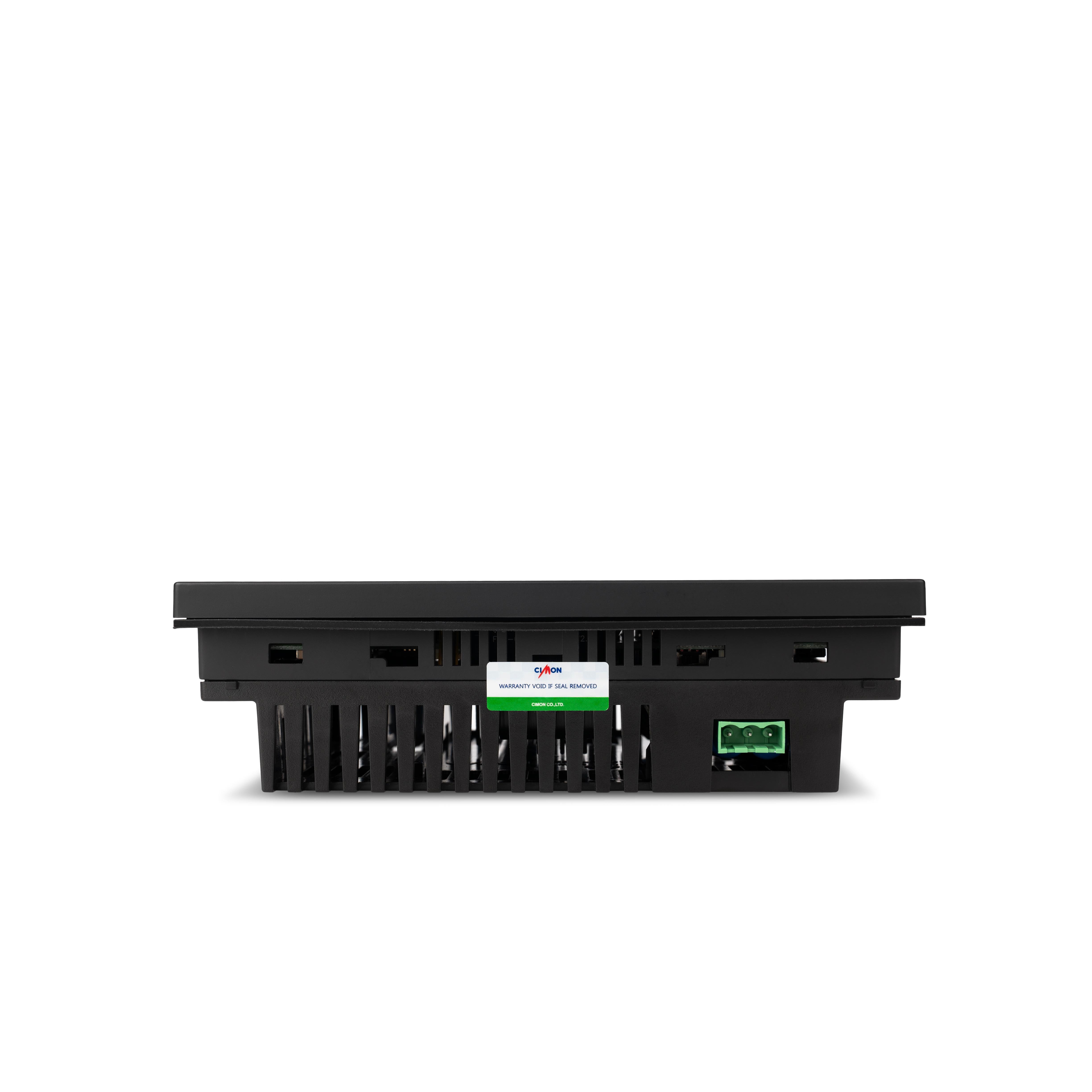

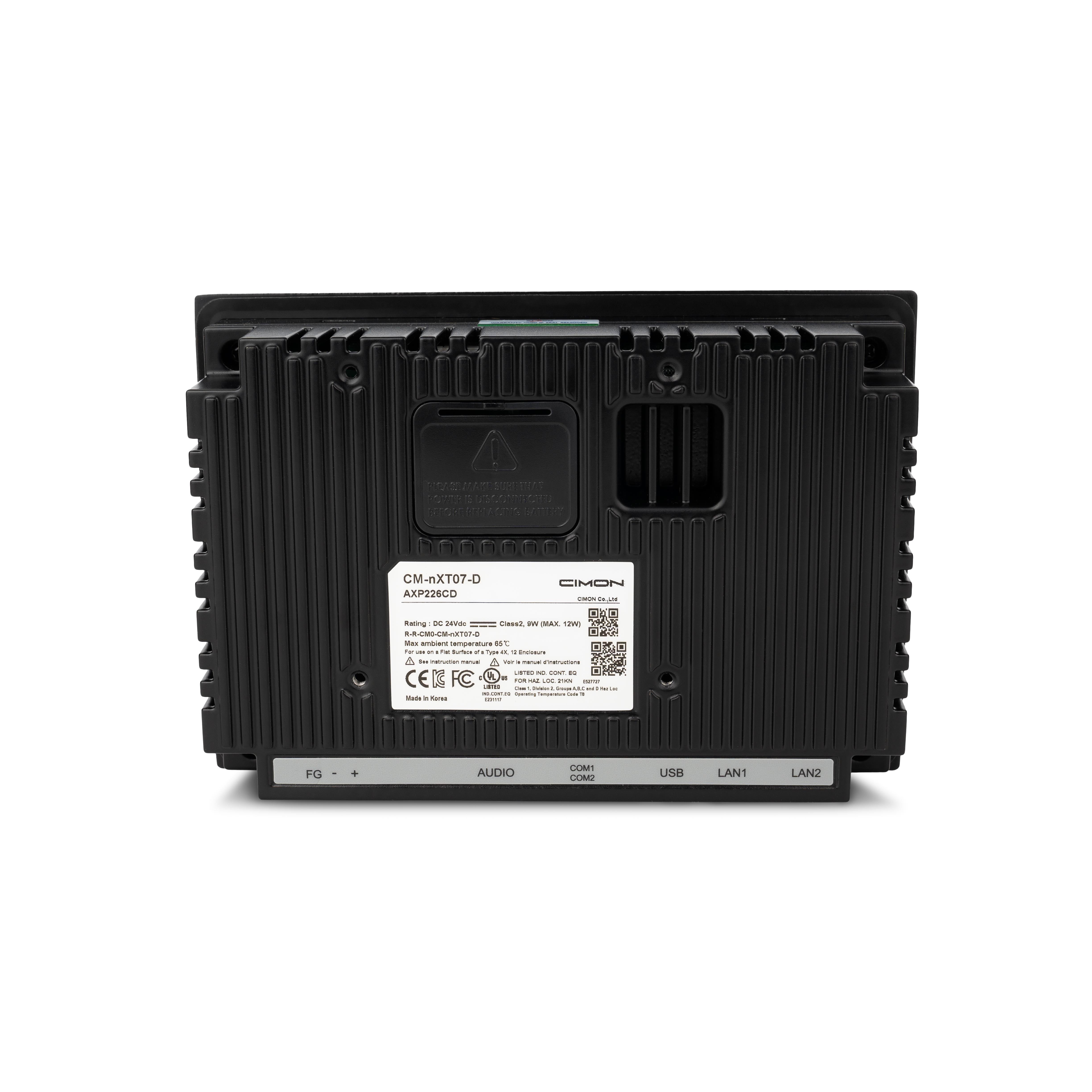

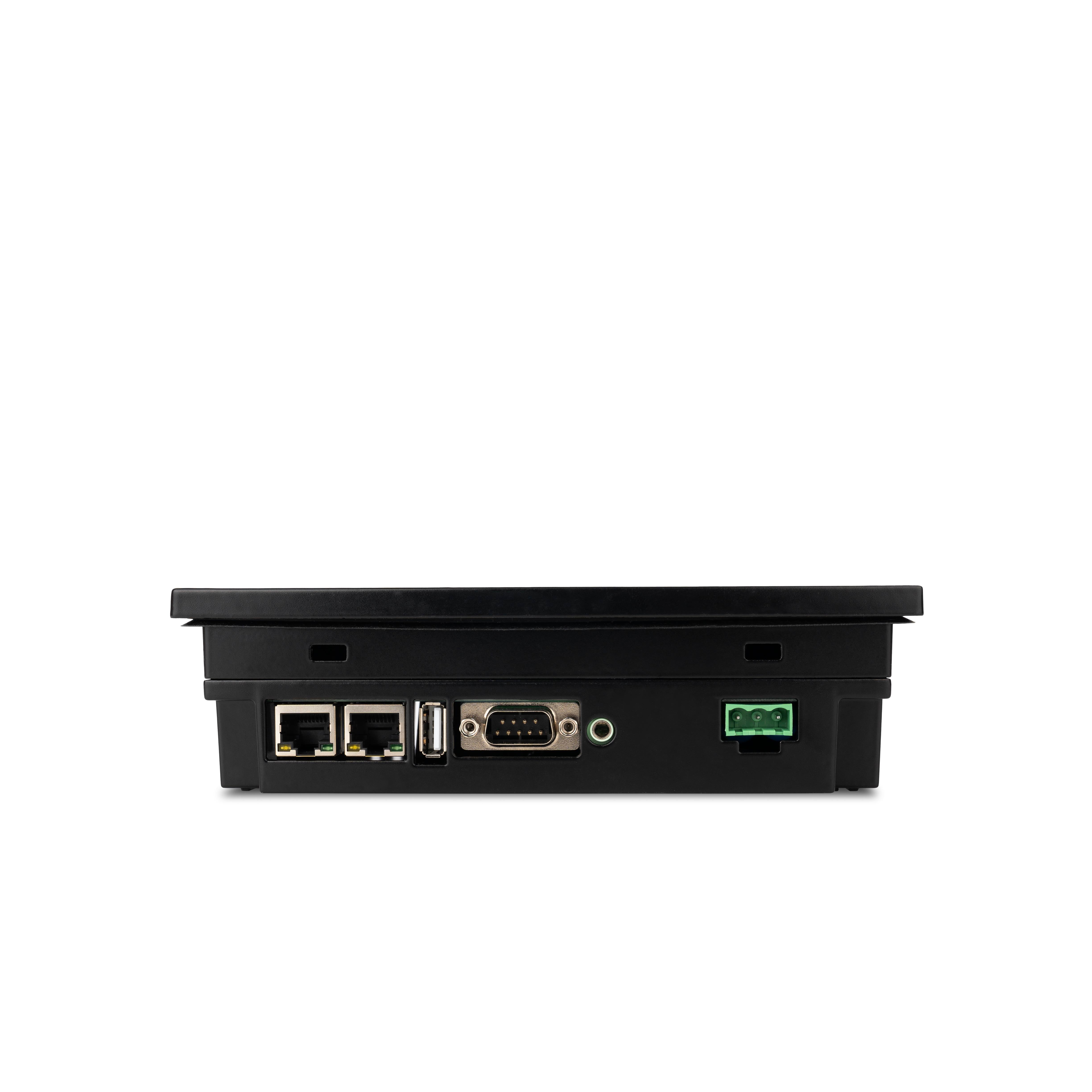

nXT Xpanel, Extreme HMI
- Xpanel nXT Series Touch Screen HMI
- Canvas Software
- Aluminum
- 7 inch Wide Display
- Sunlight Readable
- Capacitive Multi Touch
- Class 1 Division 2
- IP68
- UL Rated 4X & 12
- 5:3 - 800 x 480
- (2) Ethernet
- (2) Serial
- (1) USB Port
- (1) SD Card Slot
- (1) Audio Port
nXT Xpanel, Extreme HMI
Sale price$799.00
Regular price (/)
Specifications
| SKU | CM-nXT07-D |
| LCD Size | 7 inch Wide TFT Color |
| Colors | 16.7M colors |
| Resolution | WVGA 800x480 |
| Backlight | LED |
| Luminance | 1000 cd/m² |
| Backlight Life | 50,000 hours |
| Touch Panel | Capacitive (5 points) |
| Memory | 1 GB DDR3 |
| Storage | 8 GB eMMC |
| SD Card | 1 SD slot |
| COM1 | RS-422/485 |
| COM2 | RS-232 |
| Ethernet | Gigabit (RJ45), 2 ports |
| USB Host | 1 port |
| Tool Port | 1 USB mini-B |
| Audio | 1 port |
| Front Bezel | Aluminum |
| Rated Voltage | -D: DC24 V (Class 2) |
| Power Consumption | 9W (MAX: 12 W) |
| OS | Embedded Linux |
| Weight | 0.879 kg (1.94 lbs) |
| Dimension | 189 × 131 × 53.4 mm (7.44 × 5.16 × 2.10 in) |
| Panel Cut | 177 × 119 mm (6.97 × 4.69 in) |
| Operating Temperature | -20°C – 65°C (-4°F – 149°F) |
| Storage Temperature | -20°C – 65°C (-4°F – 149°F) |
| Operating Humidity | 10–90% RH (below 29°C/84.2°F, not condensed) |
| Storage Humidity | 10–90% RH (below 39°C/102.2°F, not condensed) |
| Environment Condition | 800 hPa–1114 hPa (2000 m/6,500 ft or less) |
| Dust | ≤ 0.1mg/m³ (No conductive dust allowed) |
| Pollution Degree | ≤ Pollution Degree 2 |
| Operating Ambience | No corrosive gas or dust |
| Noise Resistance | Impulse, EFT/Burst, Surge, ±2 kV, 1 us |
| Static Discharge Resistance | 4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2) |
| Concussion Resistance | JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times) |
| Vibration Resistance | JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min) |
