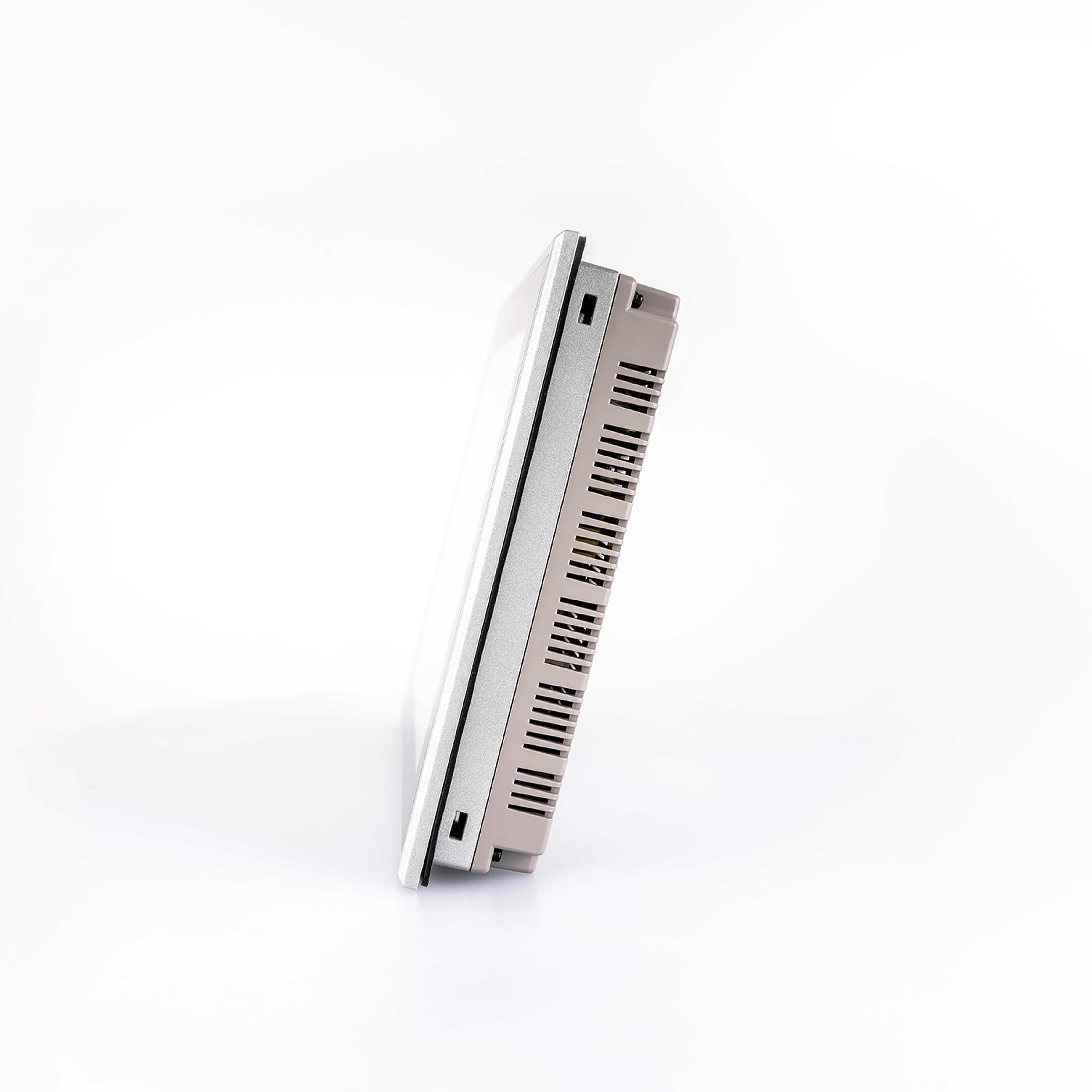

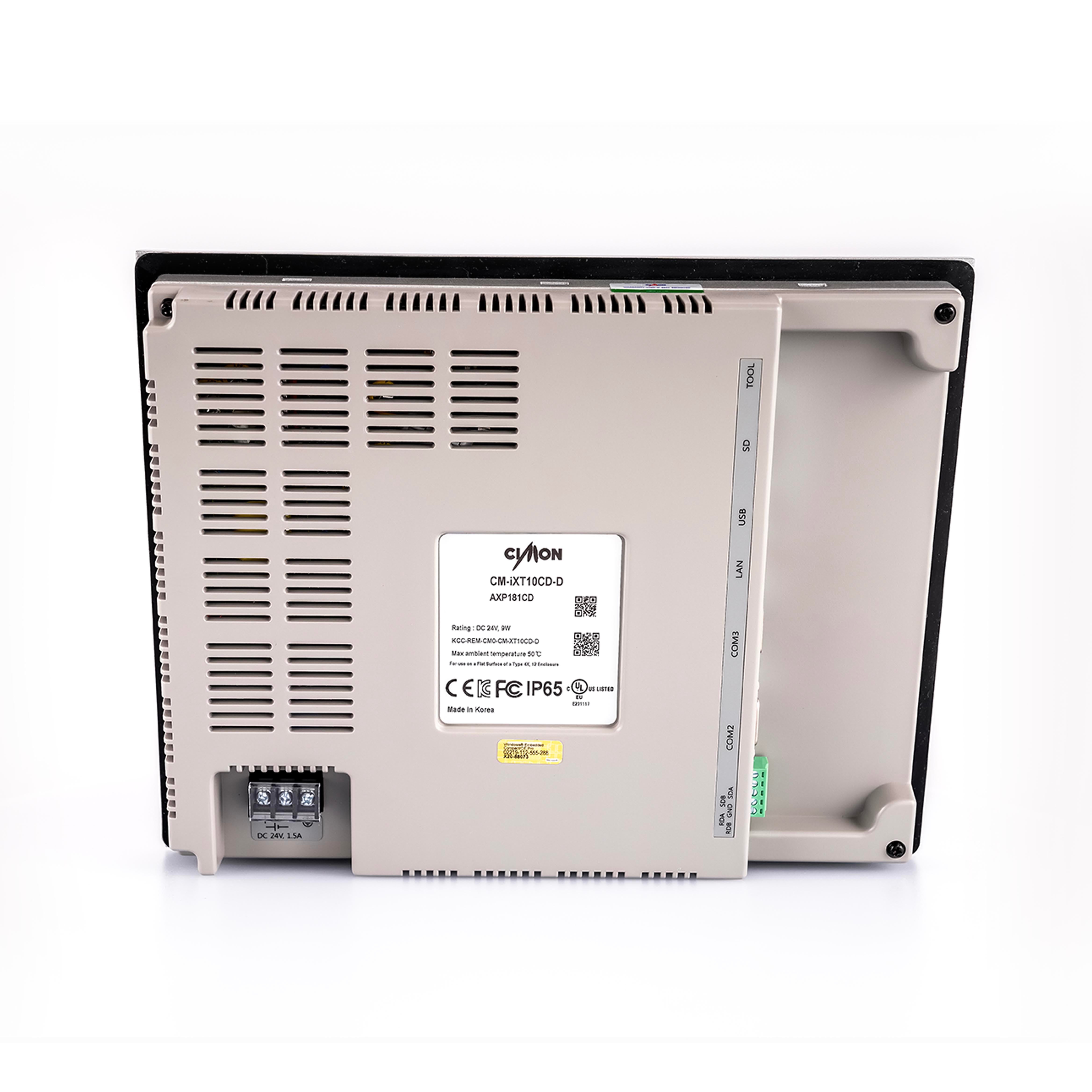

Refurbished 10 Inch, iXT Xpanel, Standard HMI
- Xpanel iXT Series Touch Screen HMI
- XpanelDesigner Software
- Aluminum
- 10.4 inch Display
- Resistive Single Touch
- 4:3 - 800 x 600

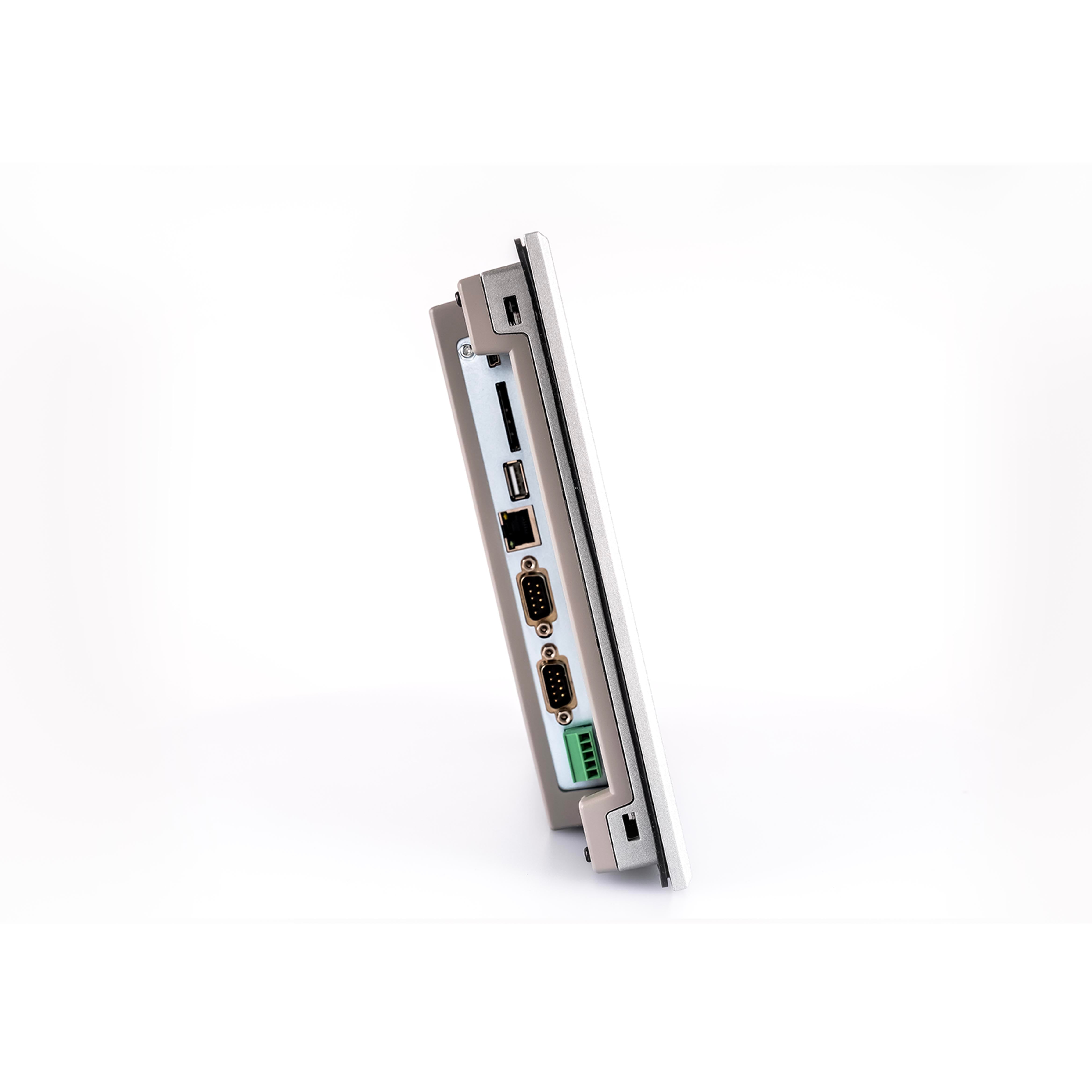

- (1) Ethernet
- (3) Serial
- (1) USB Port
- (1) SD Card Slot
Refurbished 10 Inch, iXT Xpanel, Standard HMI
Sale price$785.40
Regular price$924.00 (/)
Specifications
| SKU | CM-iXT10CD-D |
| Display | 10.4" TFT LCD |
| Touch Panel | 4 wire resistive |
| Resolution | 800x600 |
| Color | 262k colors |
| Luminance | 700 cd/m² |
| Backlight Life | 50,000 hours |
| Memory | 512 MB DDR2 |
| Storage | 128 MB SLC NAND Flash |
| Operating System | Windows Embedded Compact 7 |
| Programming Tool (HMI) | XpanelDesigner |
| Audio | None |
| Interface - Ethernet | 10/100 BASE-T |
| Interface - Serial (COM1) | RS-422/485 |
| Interface - Serial (COM2) | RS-232C |
| Interface - Serial (COM3) | RS-232C |
| Interface - USB Host | 1 Port |
| Interface - Tool Port | 1 Port |
| Interface - SD Card Slot | 1 Slot |
| Rated Voltage | 24VDC (0.46 A) |
| Enclosure | Aluminum |
| Power Consumption | 9W |
| Weight | 2.47 kg (5.43 lbs) |
| Operating Humidity | 10–90% RH, No condensation |
| Operating Temperature | 0–65ºC |
| Storage Temperature | -20-65ºC |
| Vibration Resistance | JIS B 3502, IEC/EN 61131-2 compliant |
| Noise Immunity (Impulse Noise) | Impulse, EFT/Burst, Surge, ±2 kV, 1 μs |
| Ambient Conditions | Avoid corrosive gas and excessive dust |
| Operating Altitude | ≤ 2000 m |
| Pollution | ≤ 2 |
| Cooling | Natural air cooling |
