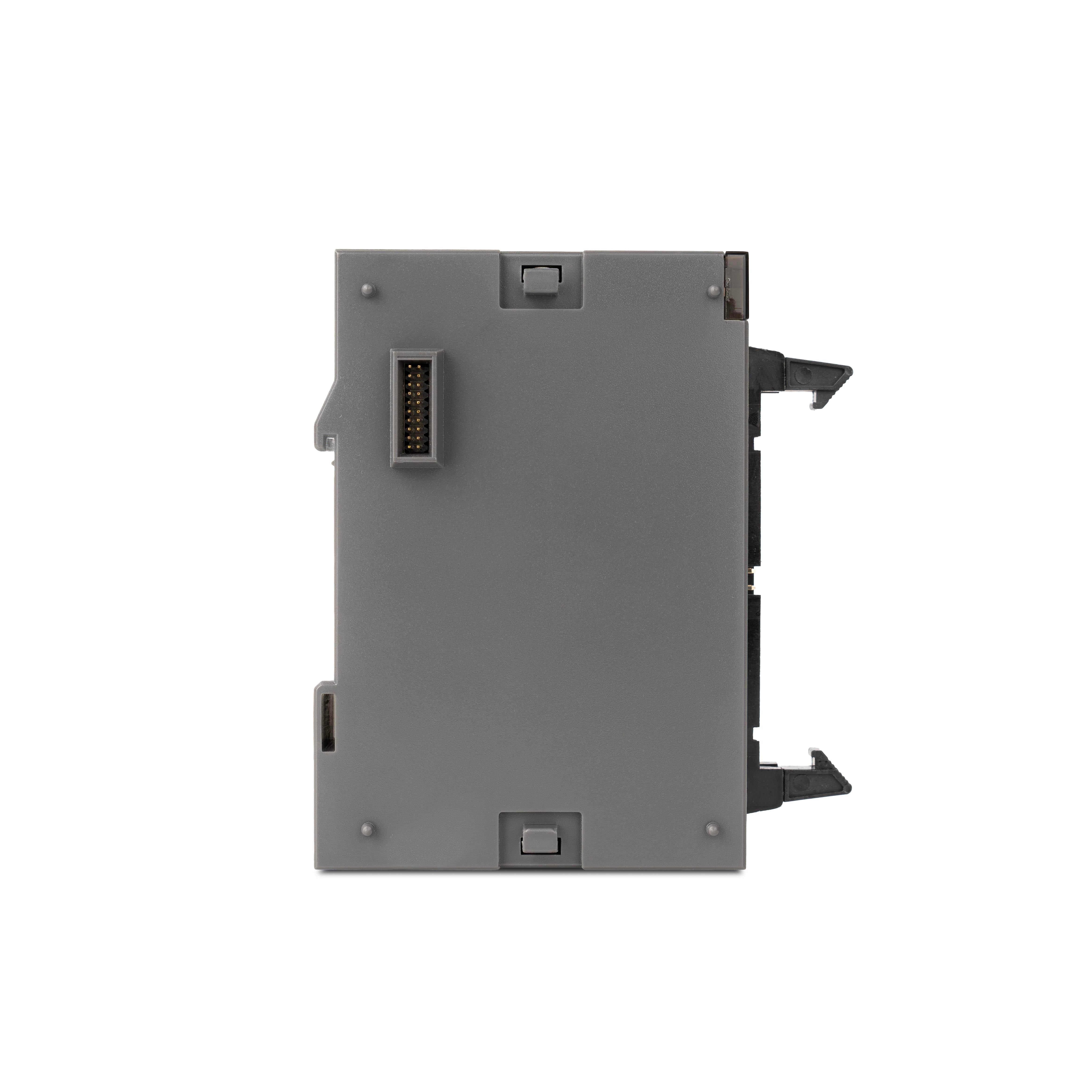

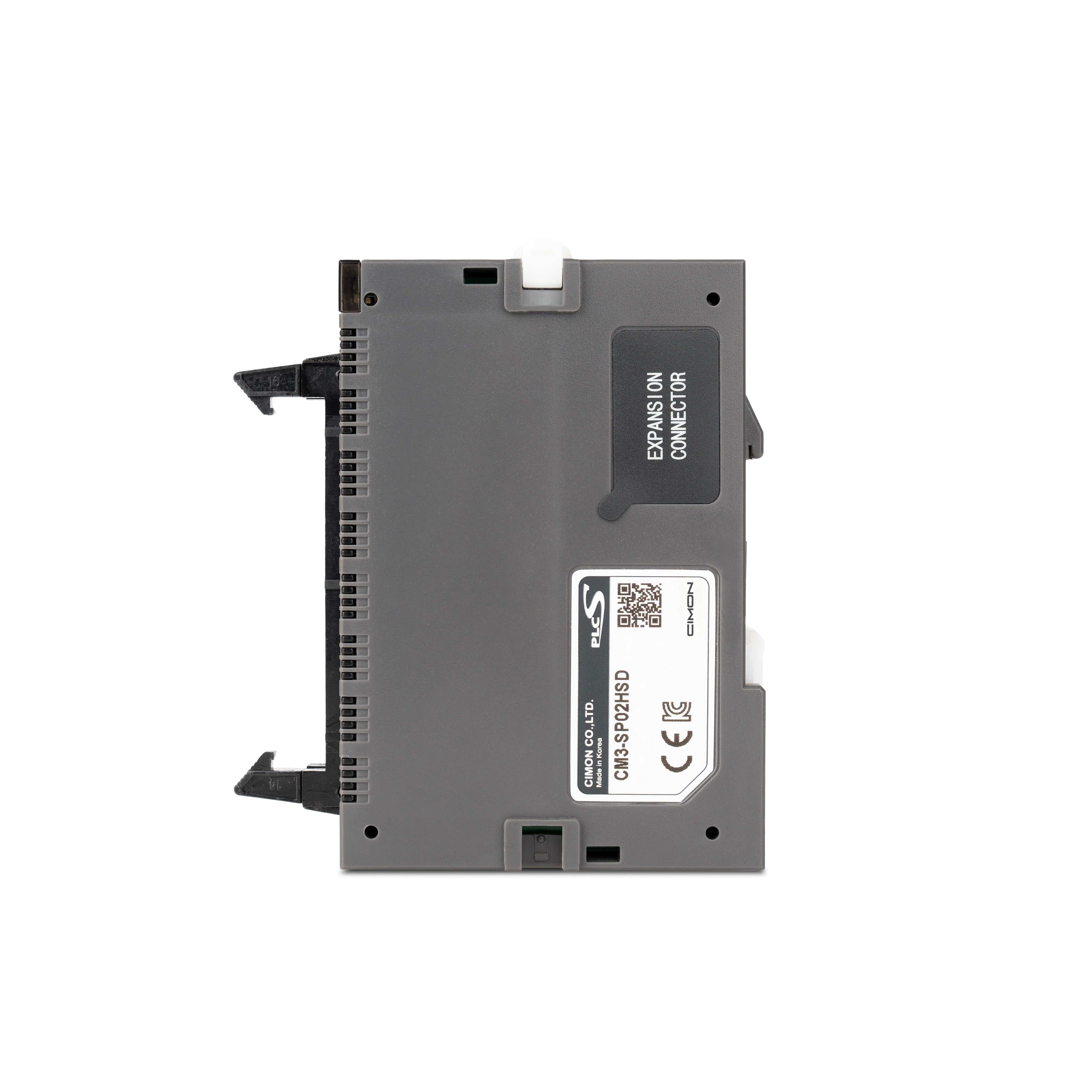

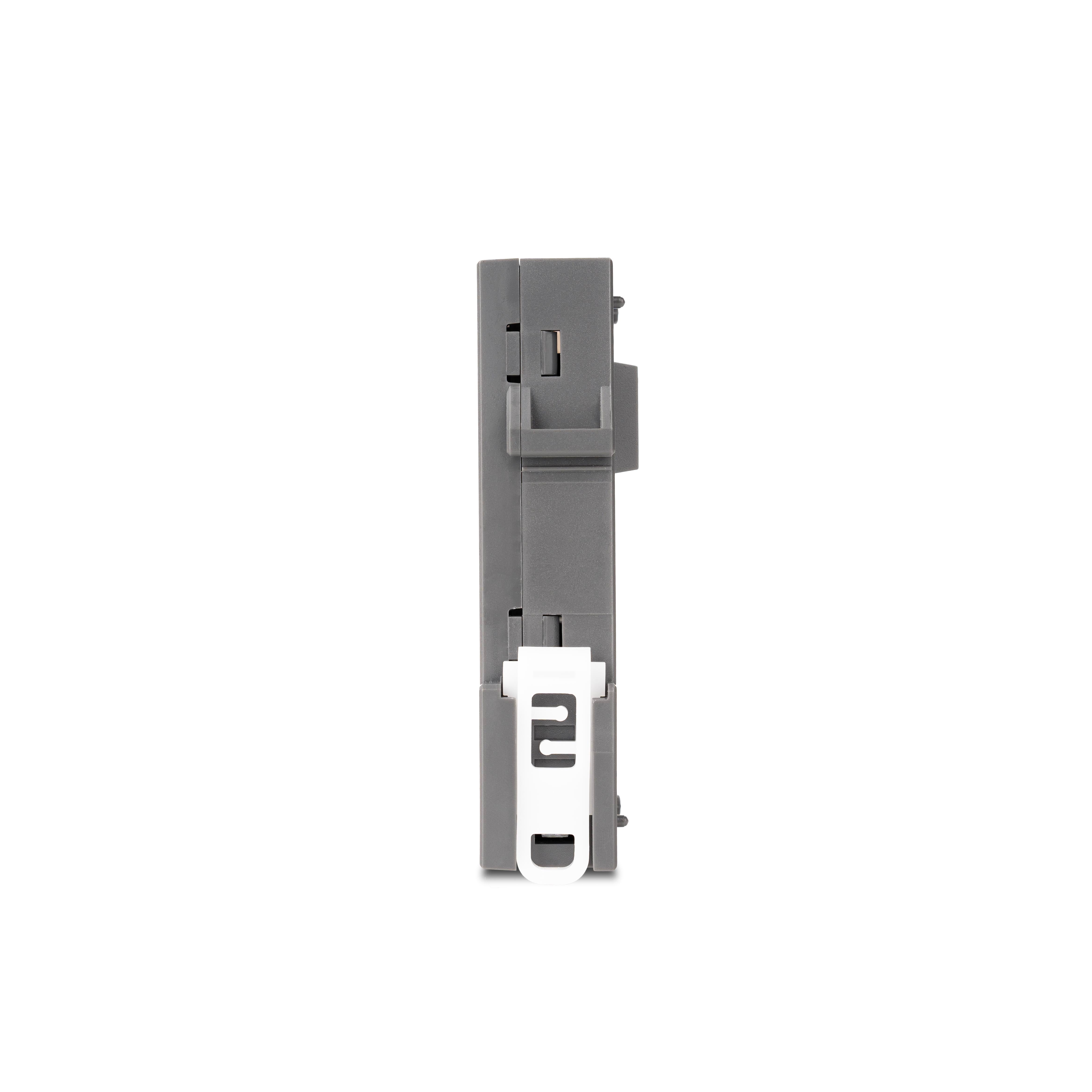

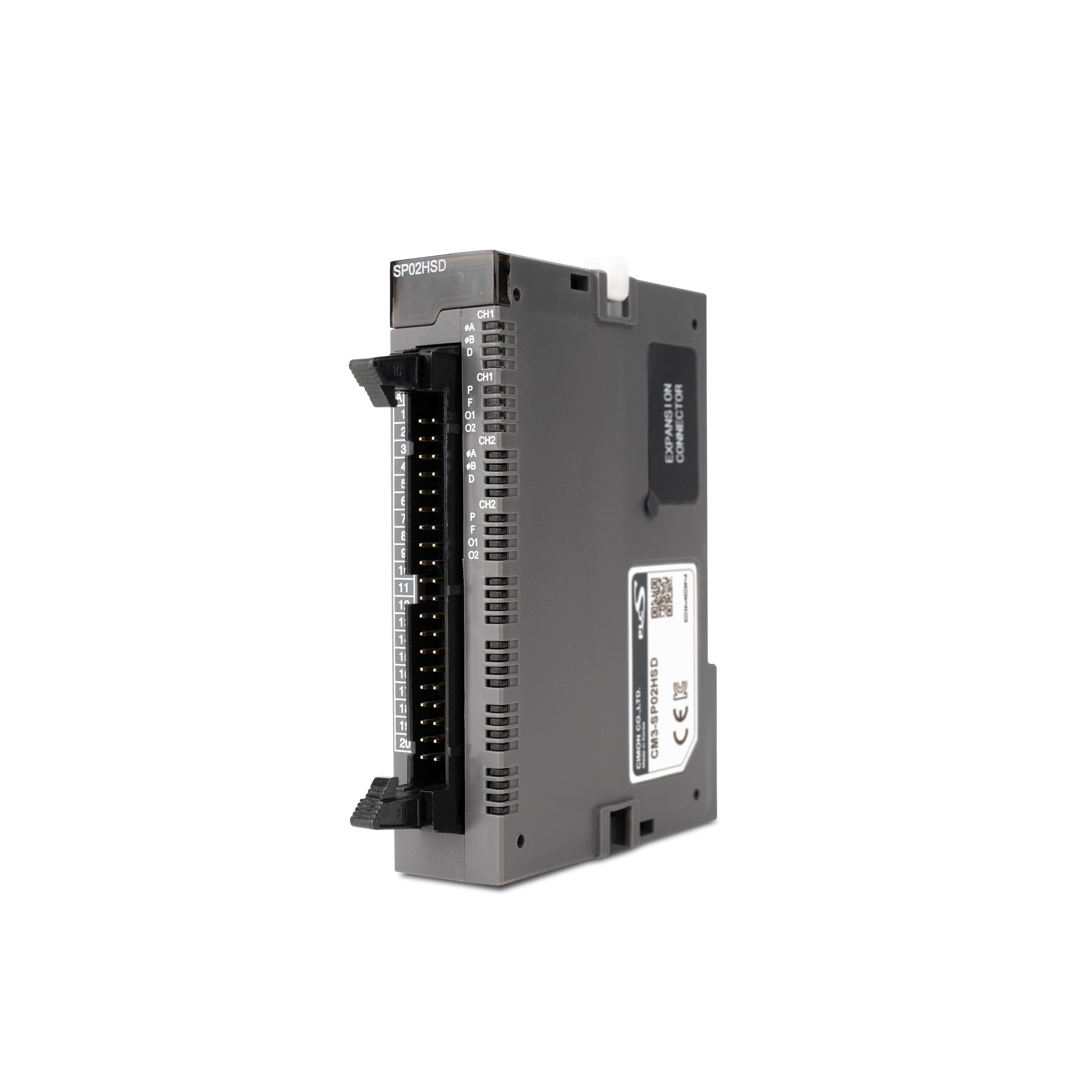

High-Speed Counter Expansion Module, Line Drive Input
- PLC-S High-Speed Counter (HSC) Module
- 2-Channel
- 250/500 kHz
- 5/24 VDC
- HTL/RS-422A Line Drive
- CM0-TB32M terminal block and CM0-SCB15M connection cable required
High-Speed Counter Expansion Module, Line Drive Input
Sale price$250.00
Regular price (/)
Specifications
| SKU | CM3-SP02HSD |
| I/O Points | 16 points |
| Sensor | 2 channels |
| Count Input Signal - Phase | 1 Phase input/2 Phase input |
| Count Input Signal - Level (фA,фB) | RS-422A Line Drive (5 V) /HTL Line Drive (24 V) |
| Count Input Signal - Types | Line Drive (Differential Input) |
| Count - Speed | RS-422A Line Driver: 500 kpps HTL Line Driver: 250 kpps |
| Count - Range | 32-bit signed binary values (-2147483648—2147483647) |
| Count - Mode | Up/Down Preset Counter + Ring Counter |
| Compared - Compared Range | 32-bit signed binary values |
| Output - Comparison | Compared value < Present value Compared value = Present value Compared value > Present value |
| External Input | 5/12/24 V DC 2—5 mA |
| External Output | TR (SINK Type) Output 12—24 V |
| Power Consumption | 105 mA |
