Analog Input Expansion Module, 4 Channel, Current, Voltage
- PLC-S Analog Input Module
- 4-Channel
- Current/Voltage
- 0-20 mA
- +/-10 V
- 14-bit
- External 24 VDC Required
- Removable screw-based terminal blocks
Analog Input Expansion Module, 4 Channel, Current, Voltage
Sale price$150.00
Regular price (/)
Specifications
| SKU | CM3-SP04EAO-A |
| Category | Analog Input Module |
| I/O Points | 4 Current/Voltage Inputs |
| Detail | 0 – 20 mA -10 – +10 V Screw-based Connector |
| Analog Input Points | 4 Points |
| Analog Input | Voltage: 0 – 5 V, 1 – 5V, 0 – 10 V, -10 – 10 V Current: 0 – 20 mA, 4 – 20 mA |
| Resolution | 14-bit, 0 – 16000 16-bit, 0 – 64000 |
| Accuracy | ±0.3% (Full Scale) |
| Conversion Speed | <0.5 ms |
| Insulation Method | Photocoupler |

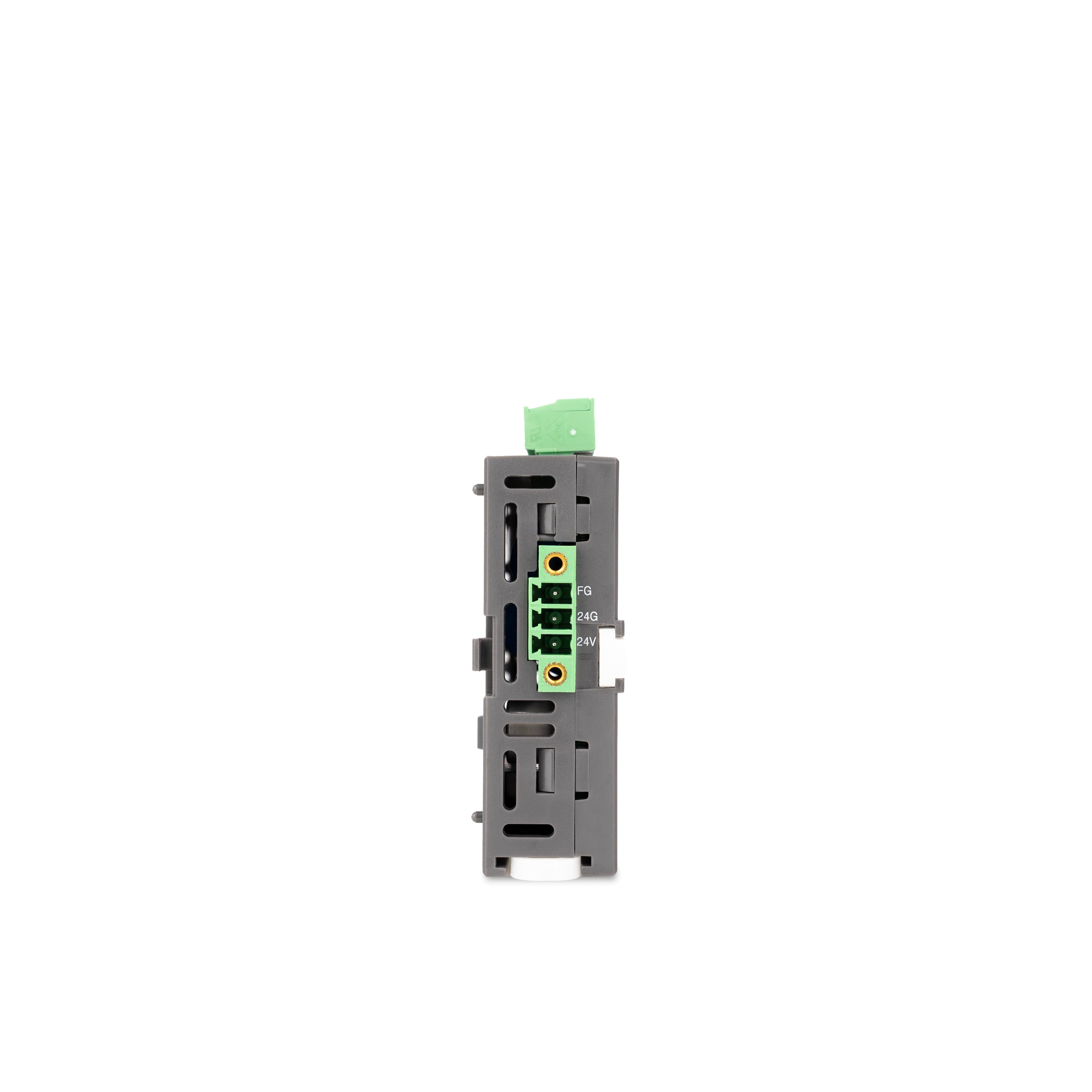

| Power Supply | External 24 VDC |
| Current Consumption (mA) - Internal | @3.3 VDC, 30 mA |
| Current Consumption (mA) - External | @24 VDC, 35 mA |
| Operating Temperature | -10 – +60 °C (+14 – +140 °F) |
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
| Shock | 15G (Standards: IEC 60068-2-64) |
| Vibration | 0.5G - Continuous 1G - Discontinuous (Standards: IEC60068-2-64, IEC60068-2-6) |
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
| ESD Immunity | ±4 kV - Contact Discharges ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
| Surge Transient Immunity | 2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
