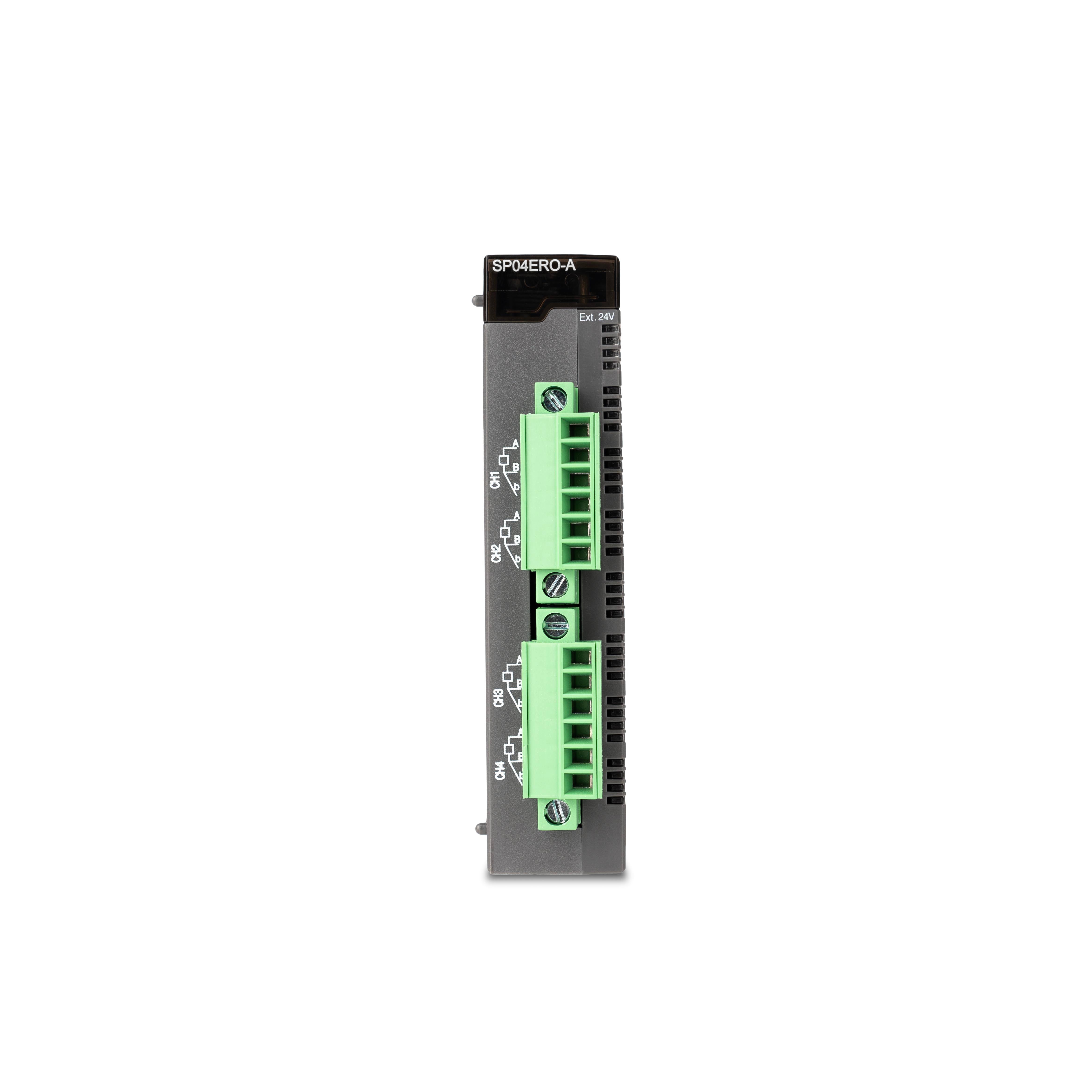

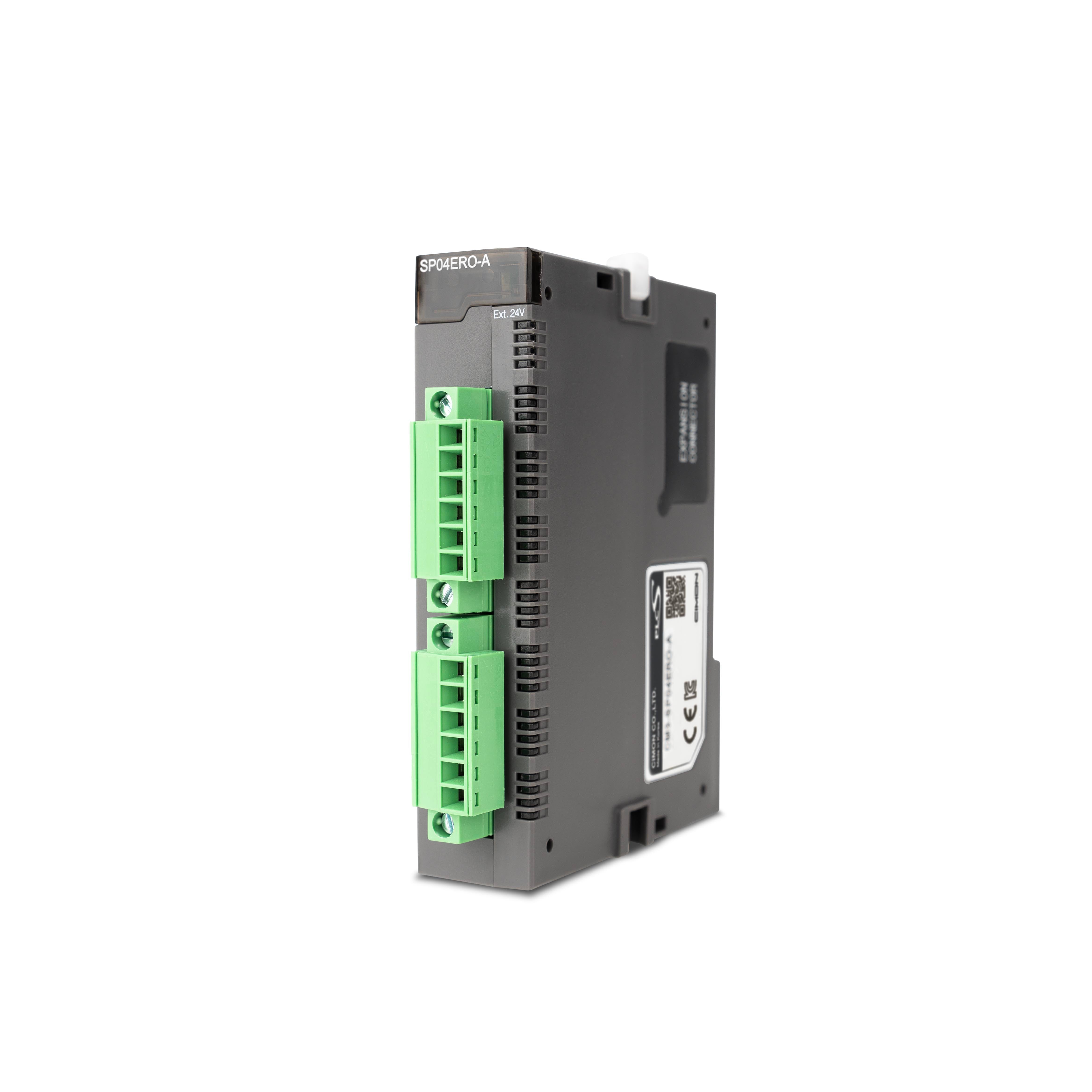

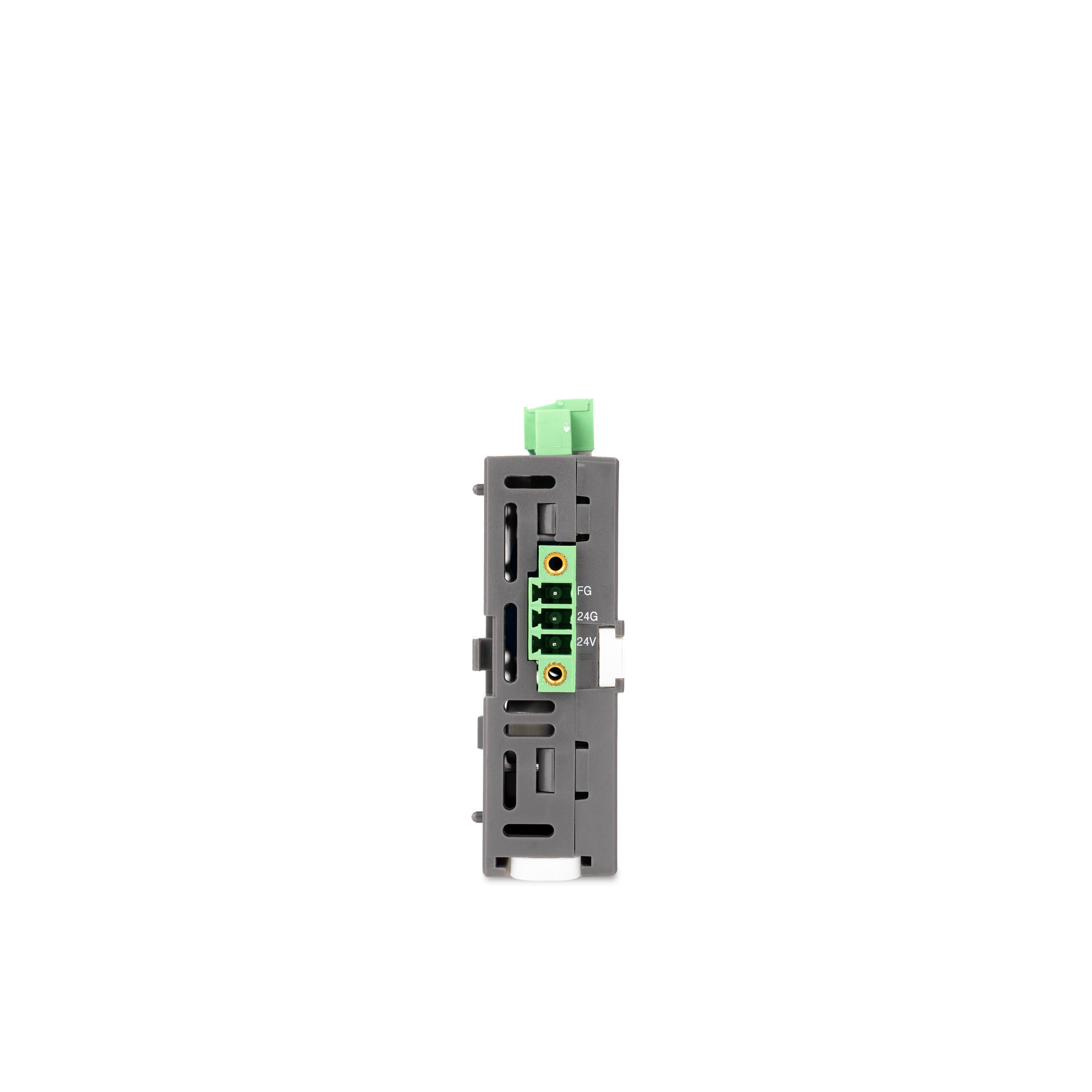

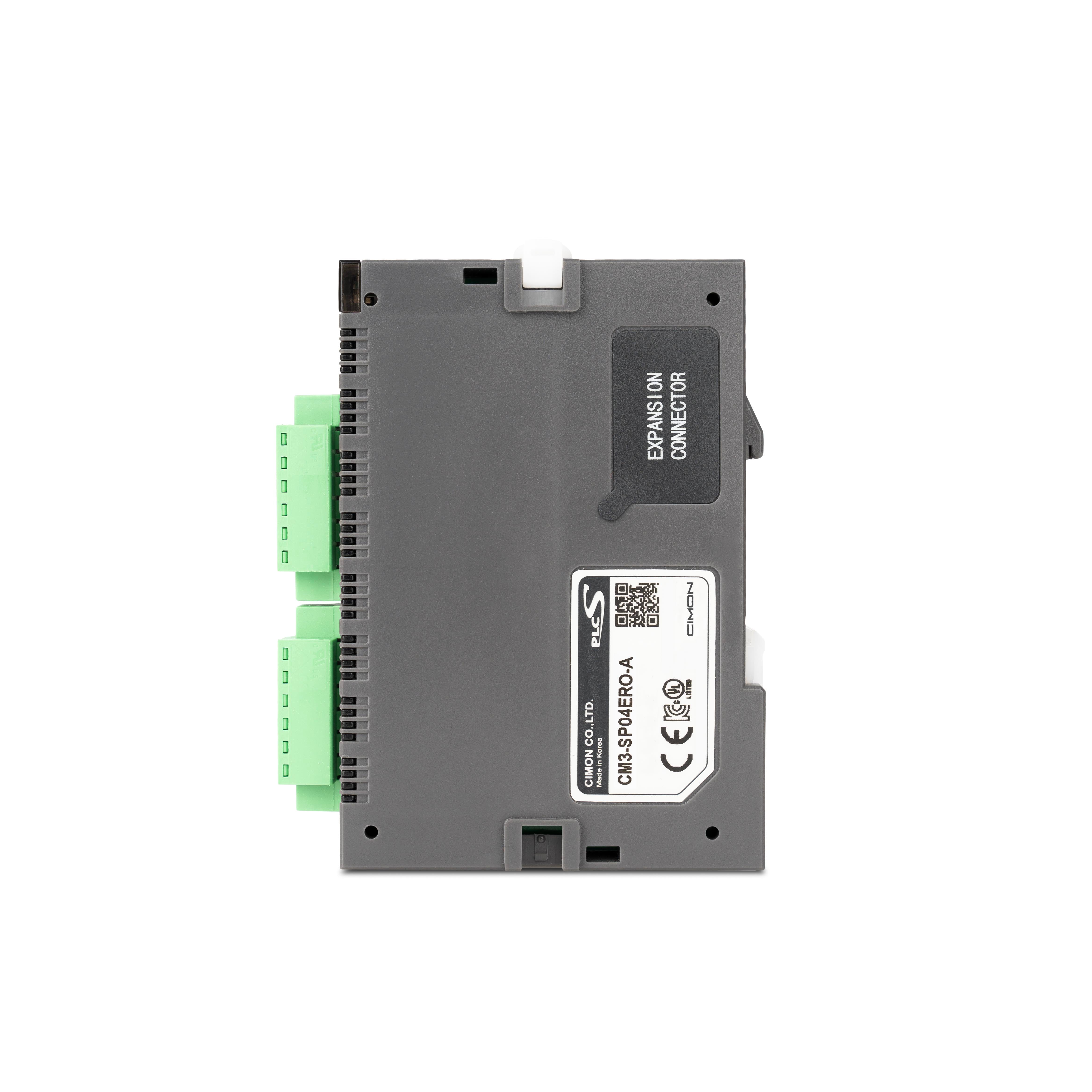

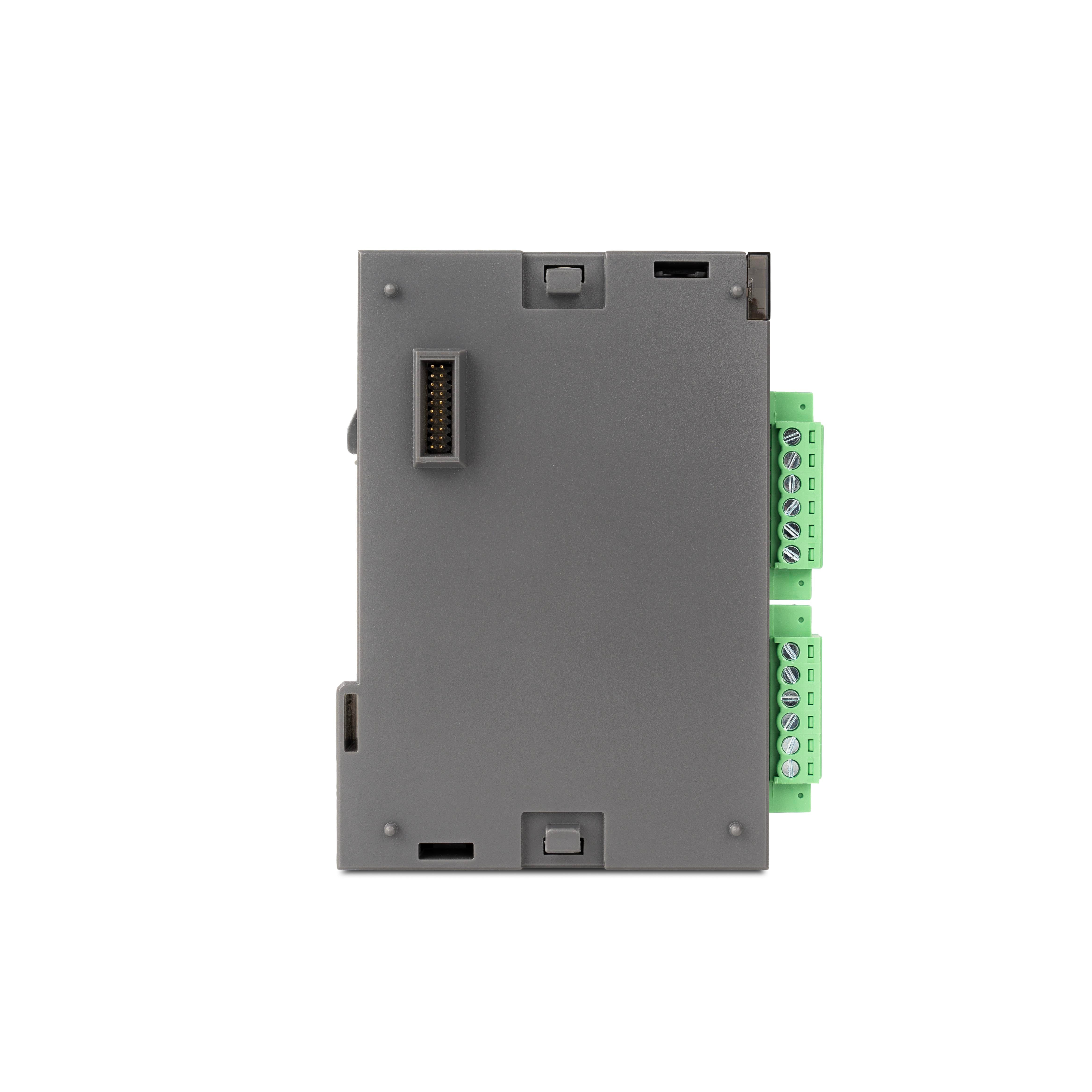

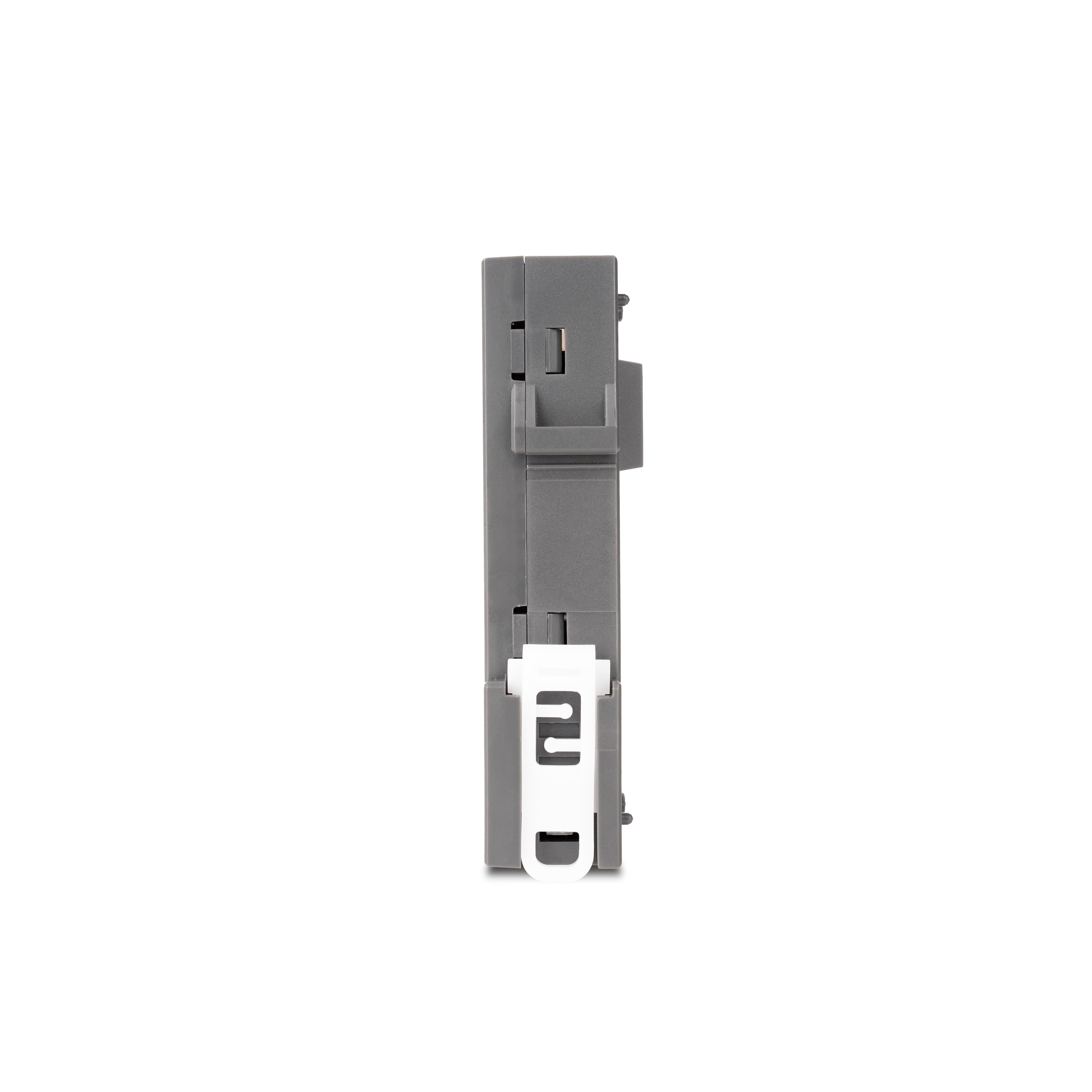

Analog Input Expansion Module, RTD
- PLC-S Analog Input Module
- RTD
- 4-Channel
- 14-bit
- Removable screw-based terminal blocks
Analog Input Expansion Module, RTD
Sale price$200.00
Regular price (/)
Specifications
| SKU | CM3-SP04ERO-A |
| Type | RTD |
| Sensor | PT100, JPT100, PT1000, Ni1000 (DIN 43760), Ni1000 (TCR 5000) |
| Temperature Input Range | PT100: -200.0–600°C (18.52–313.71 Ω) JPT100: -200.0–600°C (17.14–317.31 Ω) PT1000: -200.0– 600°C (185.2–3137.1 Ω) Ni1000 (DIN 43760): -50.0–160°C (742.6–2065.9 Ω) Ni1000 (TCR 5000): -50.0–160°C (790.9–1863.6 Ω) |
| Digital Conversion | Digital converted value (14-bit): -192–16191 (-8192–8191, 0–16000, -8000–8000) Digital converted value (16-bit): 0–65000 (-32768–32767, 0–64000, -32000–32000) Detected Temp. value: -2000–6000 (First decimal place value * 10) or -500–1600 (First decimal place value * 10 |
| Wire Disconnection Detection | 3 wires per channel |
| Accuracy | ±0.1% (full scale) |
| Max Conversion Rate | 40 ms/4 Channels |
| Number of Input Channels | 4 |
| Insulation Type | Photocoupler between input terminal and PLC power |
| Terminal Block | 12 points Terminal Block |
| Current Consumption +3.3V | 40 mA |
| Current Consumption +24V | 10 mA |
