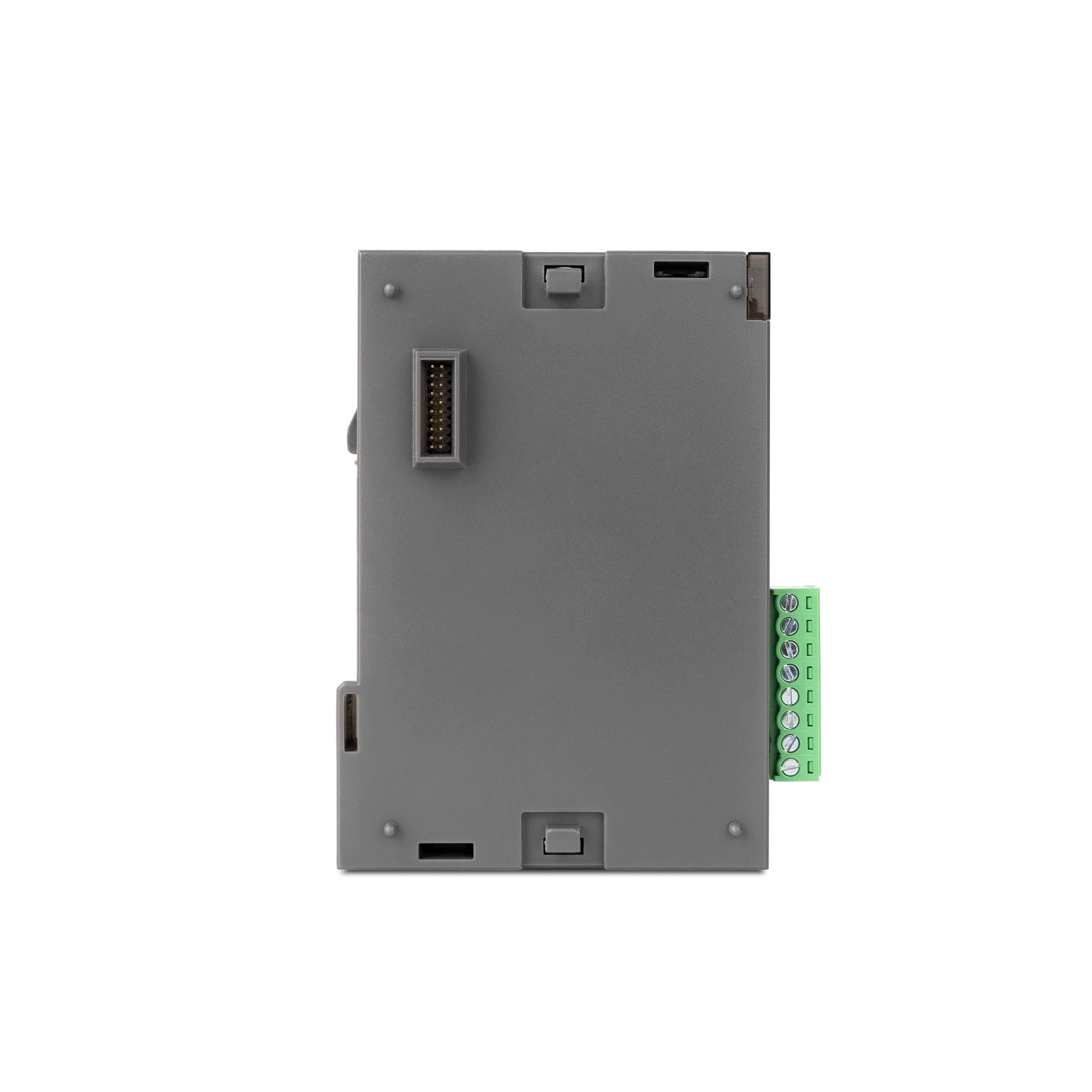

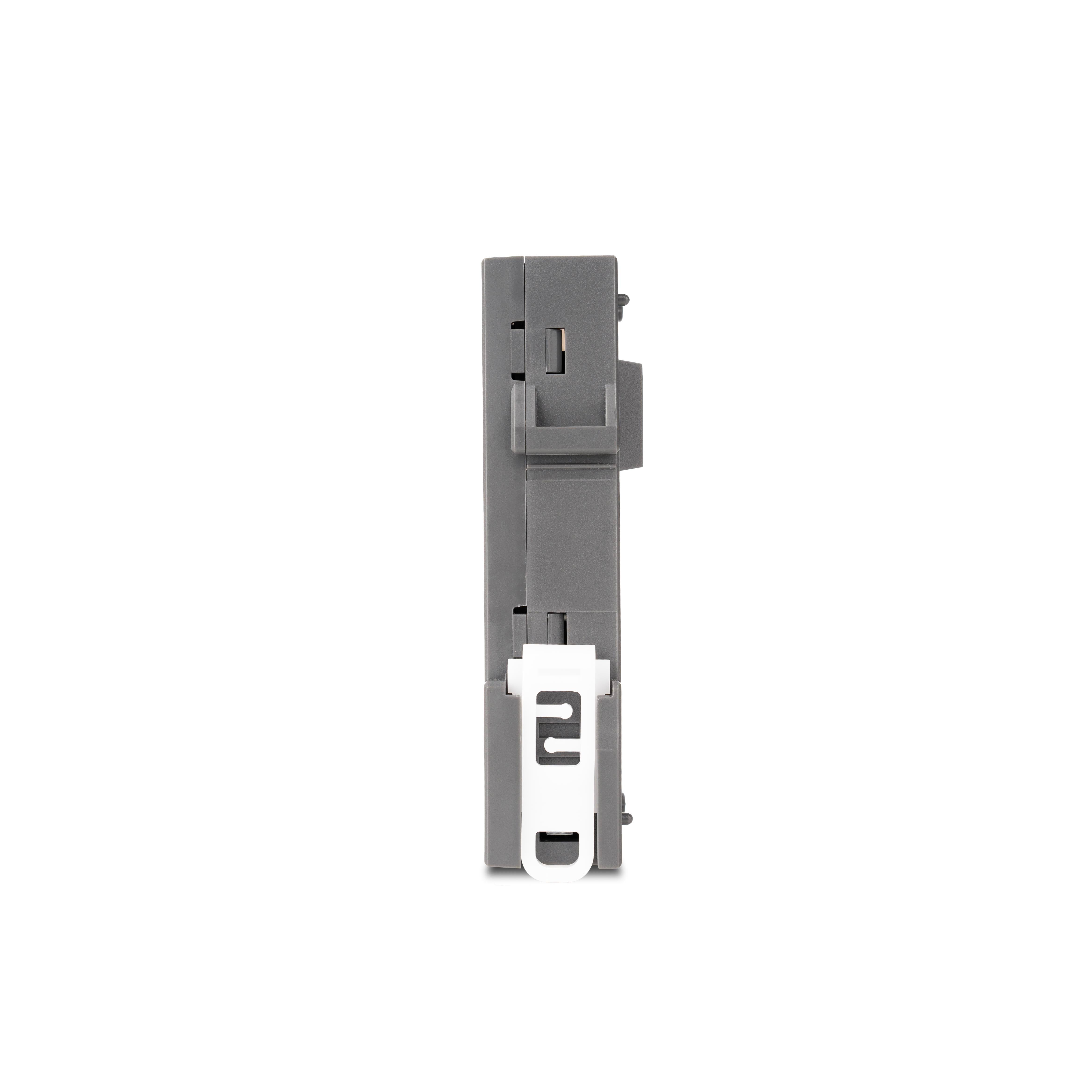

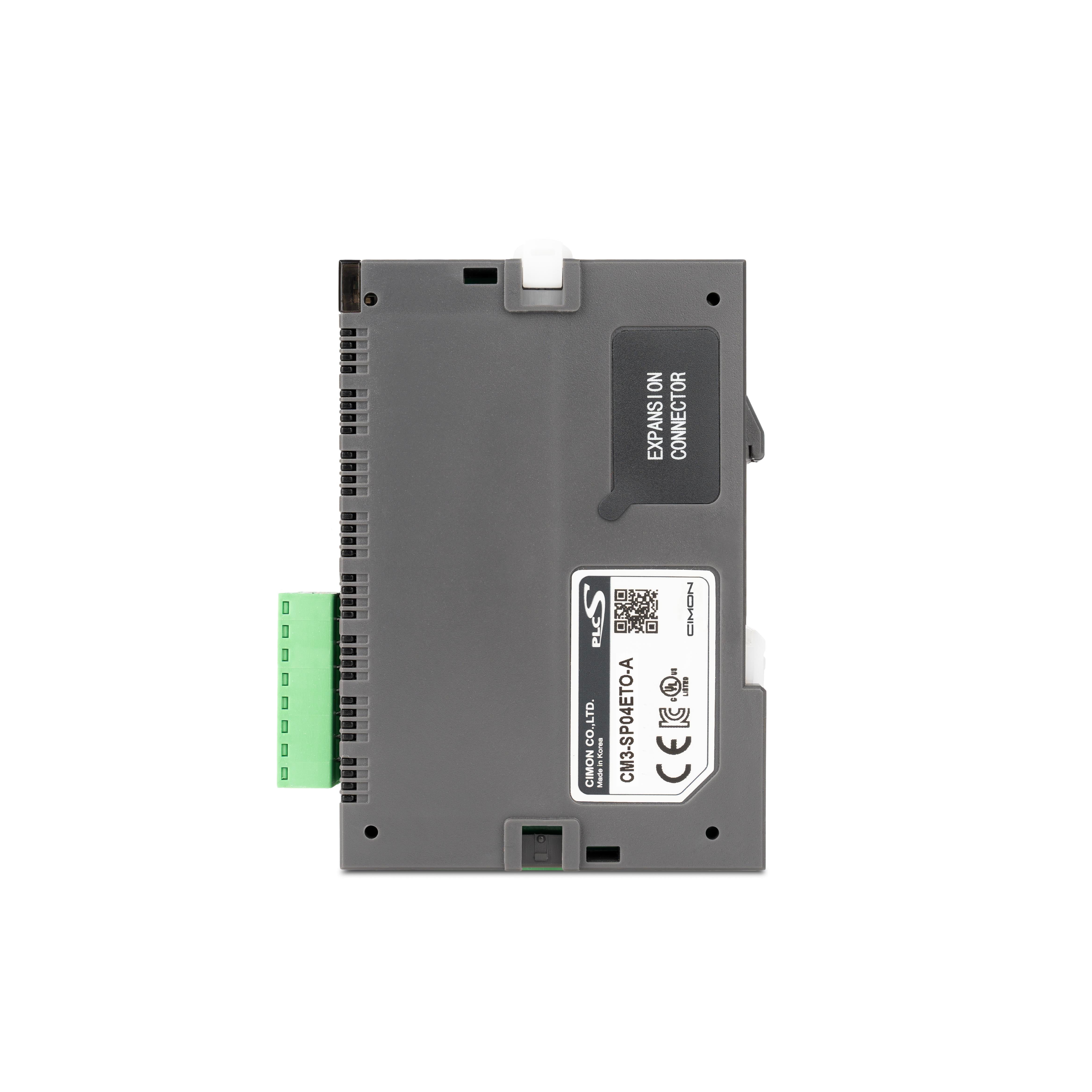

Analog Input Expansion Module, Thermocouple
- PLC-S Analog Input Module
- TC
- 4-Channel
- 14-bit
- Removable screw-based terminal blocks
Analog Input Expansion Module, Thermocouple
Sale price$200.00
Regular price (/)
Specifications
| SKU | CM3-SP04ETO-A |
| Type | Thermocouple |
| Sensor | K, J, E, T, B, R, S, N type |
| Temperature Input Range | K: -200.0 - 1200.0°C (-5891 - 48838 uV) J: -200.0 - 800.0°C (-7890 - 48494 uV) E: -200.0 - 600.0°C (-8825 - 45093 uV) T: -200.0 - 400.0°C (-5603 - 20872 uV) B: 400.0 - 1800.0°C (787 - 13591 uV) R: 0.0 - 1750.0°C (0 - 20877 uV) S: 0.0 - 1750.0°C (0 - 18503 uV) N: -200.0 - 1250.0°C (-3990 - 45694 uV) |
| Digital Conversion | Digitally converted value: 0–16000 (-8000–8000)/- 192–16191 (-8192–8191) Converted temperature value: Range of measured temperature (one digit after the decimal point * 10) |
| Wire Disconnection Detection | Each channel |
| Accuracy | ±[(Full Scale) x 0.3% + 1°C (RJC Error)] |
| Max Conversion Rate | 50 ms/4 Channels |
| Number of Input Channels | 4 |
| Insulation Type | Photocoupler between input terminal and PLC power |
| Terminal Block | 9 points Terminal Block |
| Current Consumption +3.3V | 40 mA |
| Current Consumption +24V | 10 mA |
