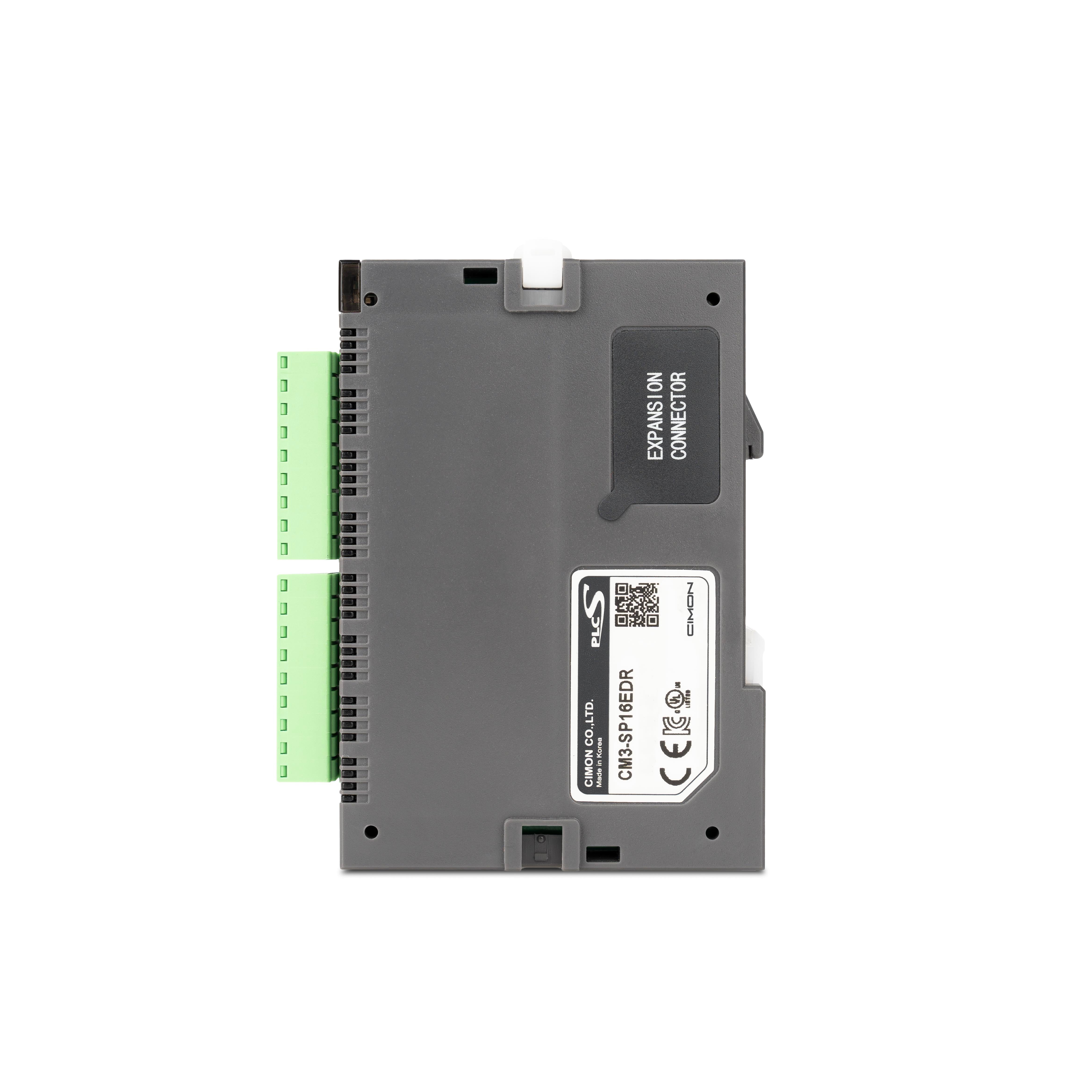

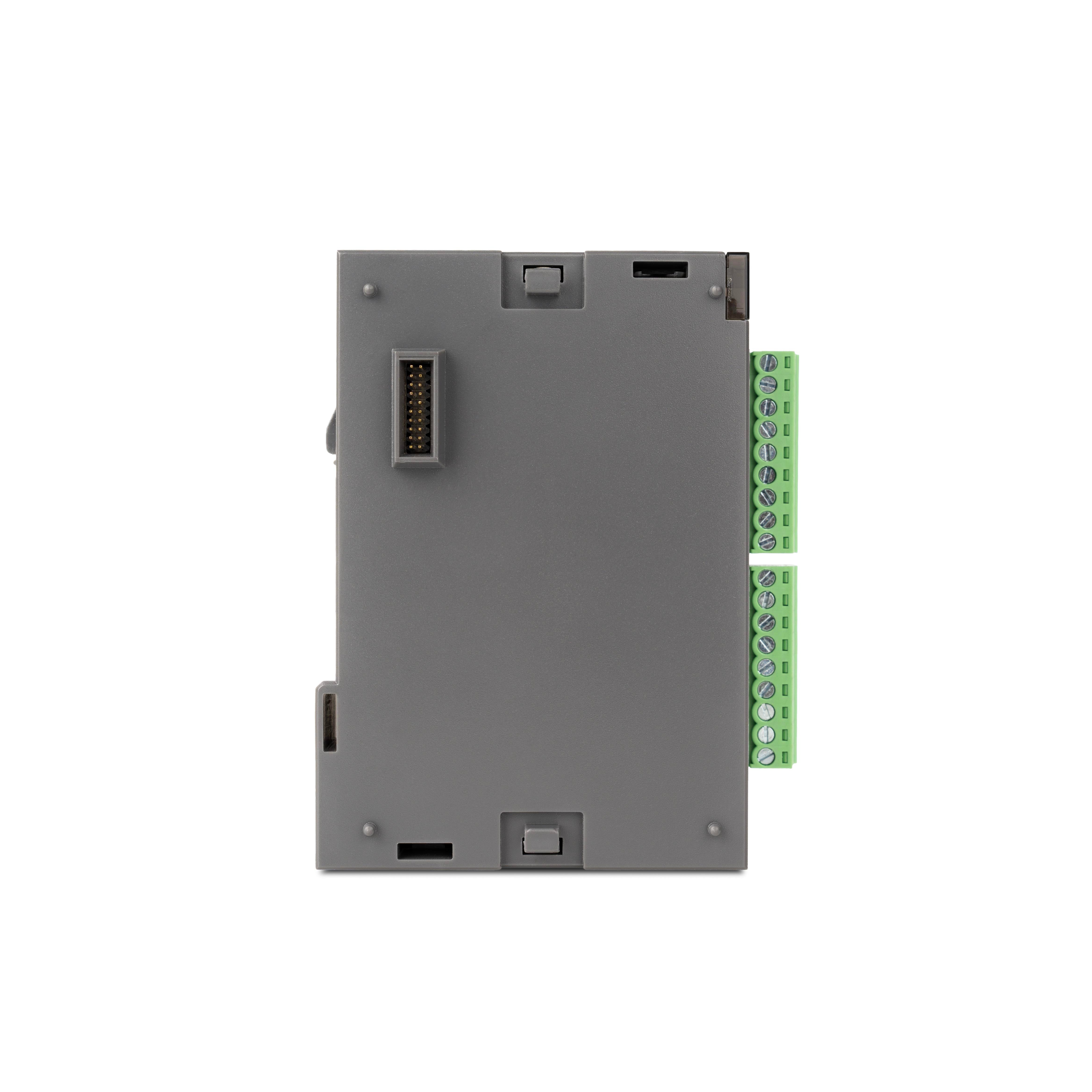

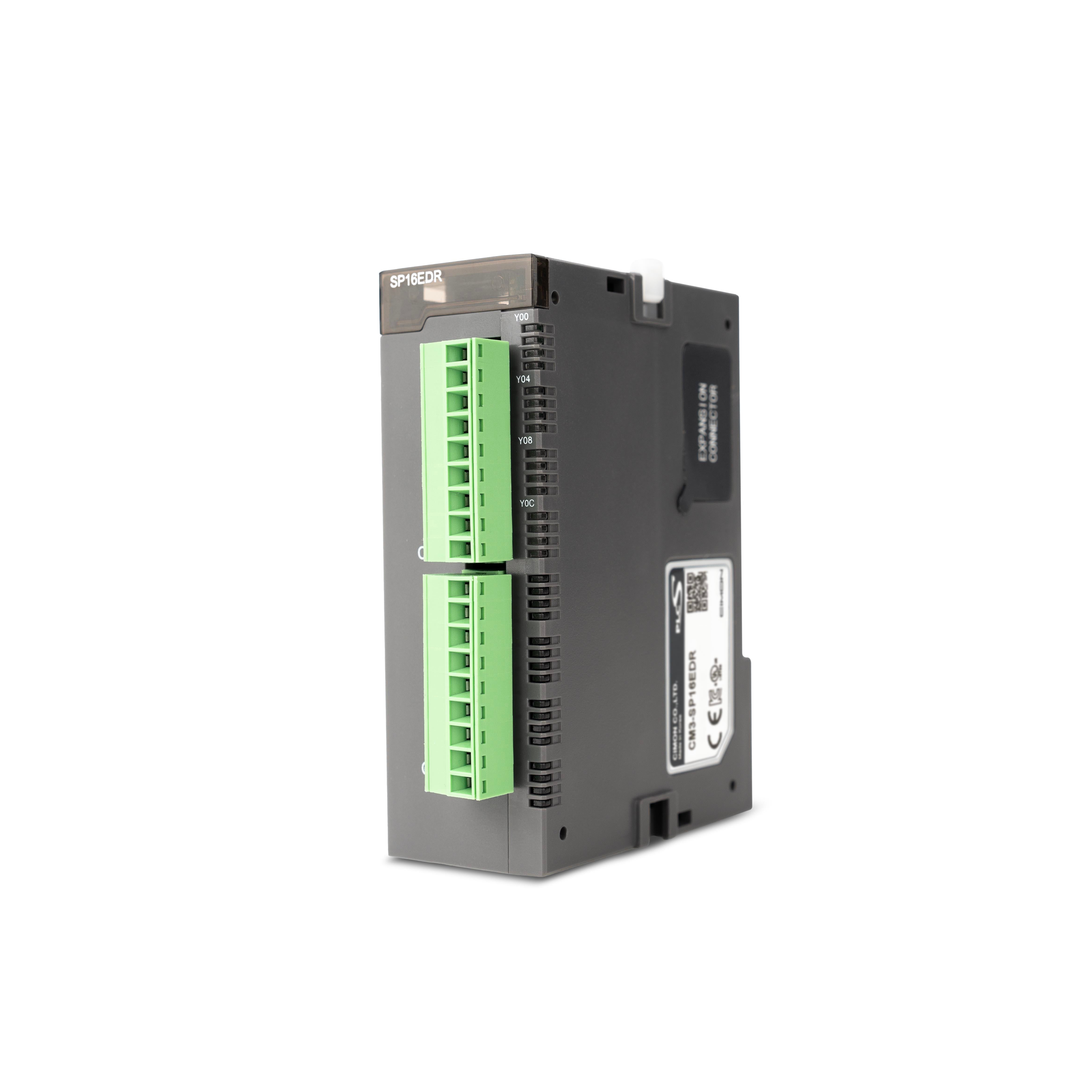

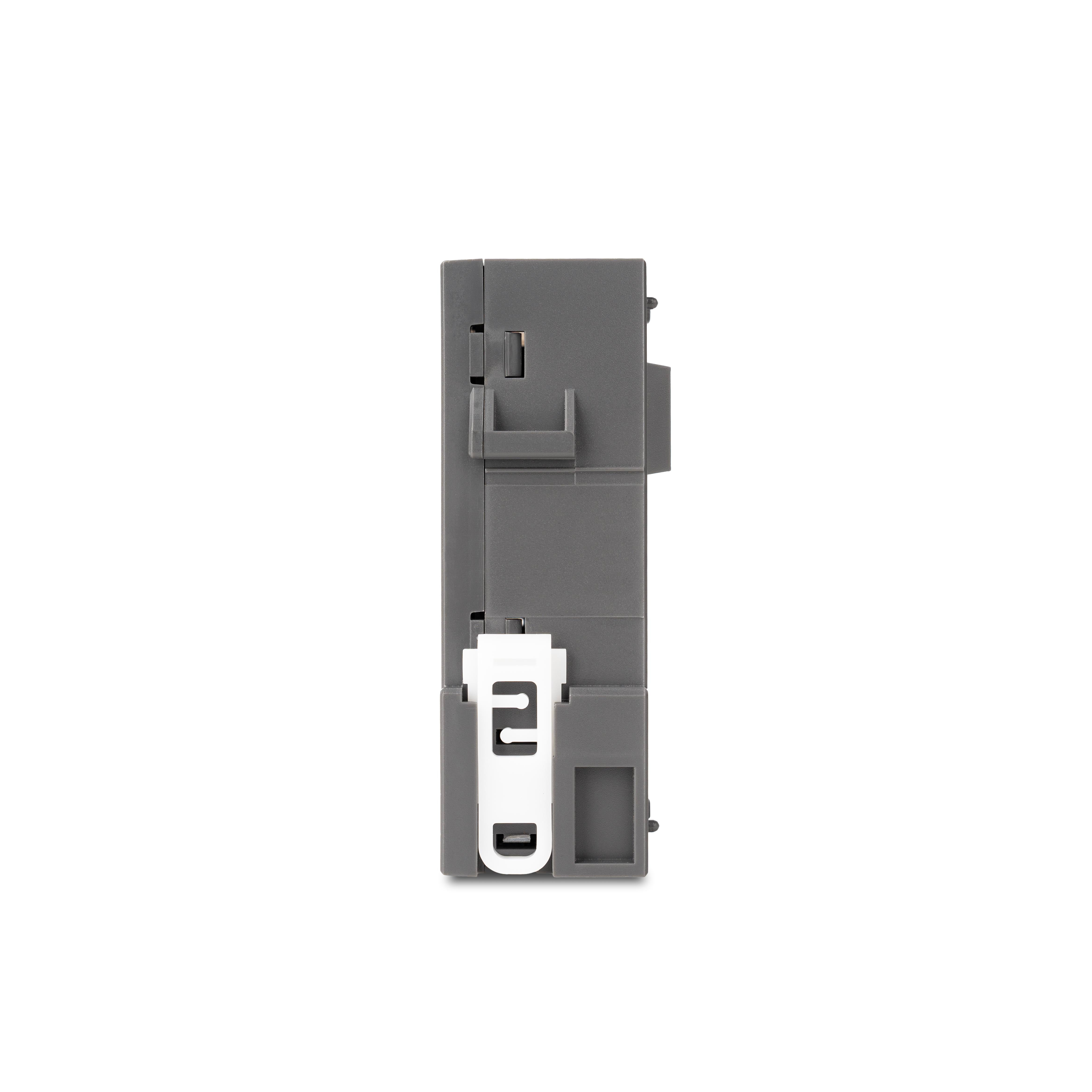

Digital Combo Expansion Module, Sinking/Sourcing Input, Relay Output
- PLC-S Discrete Combo Module
- Input: 8 Point, 24 VDC, Sink/Source
- Output: 8 Point, 24 VDC/240 VAC, Relay, 2 A/Point
- Removable screw-based terminal blocks
Digital Combo Expansion Module, Sinking/Sourcing Input, Relay Output
Sale price$180.00
Regular price (/)
Specifications
| SKU | CM3-SP16EDR |
| Category | Discrete Input/ Discrete Output Module |
| I/O Points | 8 TR Sink/Source Inputs 8 Relay Outputs |
| Details | Input: 24 VDC Output: 24 VDC/250 VAC Screw-based Terminals |
| Rated I/O Voltage | TR Sink/Source Inputs: 24 VDC Relay Outputs: 24 VDC/250 VAC |
| Rated I/O Current | TR Sink/Source Inputs: 4 mA Relay Outputs: 1 point = 2 A 1 COM = 5 A |
| Response Time: Off -> On | TR Sink/Source Inputs: 3 ms or less Relay Outputs: 10 ms or less |
| Response Time: On -> Off | TR Sink/Source Inputs: 3 ms or less Relay Outputs: 5 ms or less |
| Insulation Method | TR Sink/Source Inputs: Photocoupler Relay Outputs: Relay |
| Discrete Input Voltage/Current Thresholds | TR Sink/Source Inputs: ON: 19 VDC/3 mA OFF: 6 VDC/1 mA Relay Outputs: - |
| Operating Temperature | -10 – +65 °C (+14 – +149 °F) |
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
| Shock | 15G (Standards: IEC 61131-2) |
| Vibration | 0.5G - Continuous 1G - Discontinuous (Standards: IEC 61131-2) |
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
| ESD Immunity | ±4 kV - Contact Discharges ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
| Surge Transient Immunity | 2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
