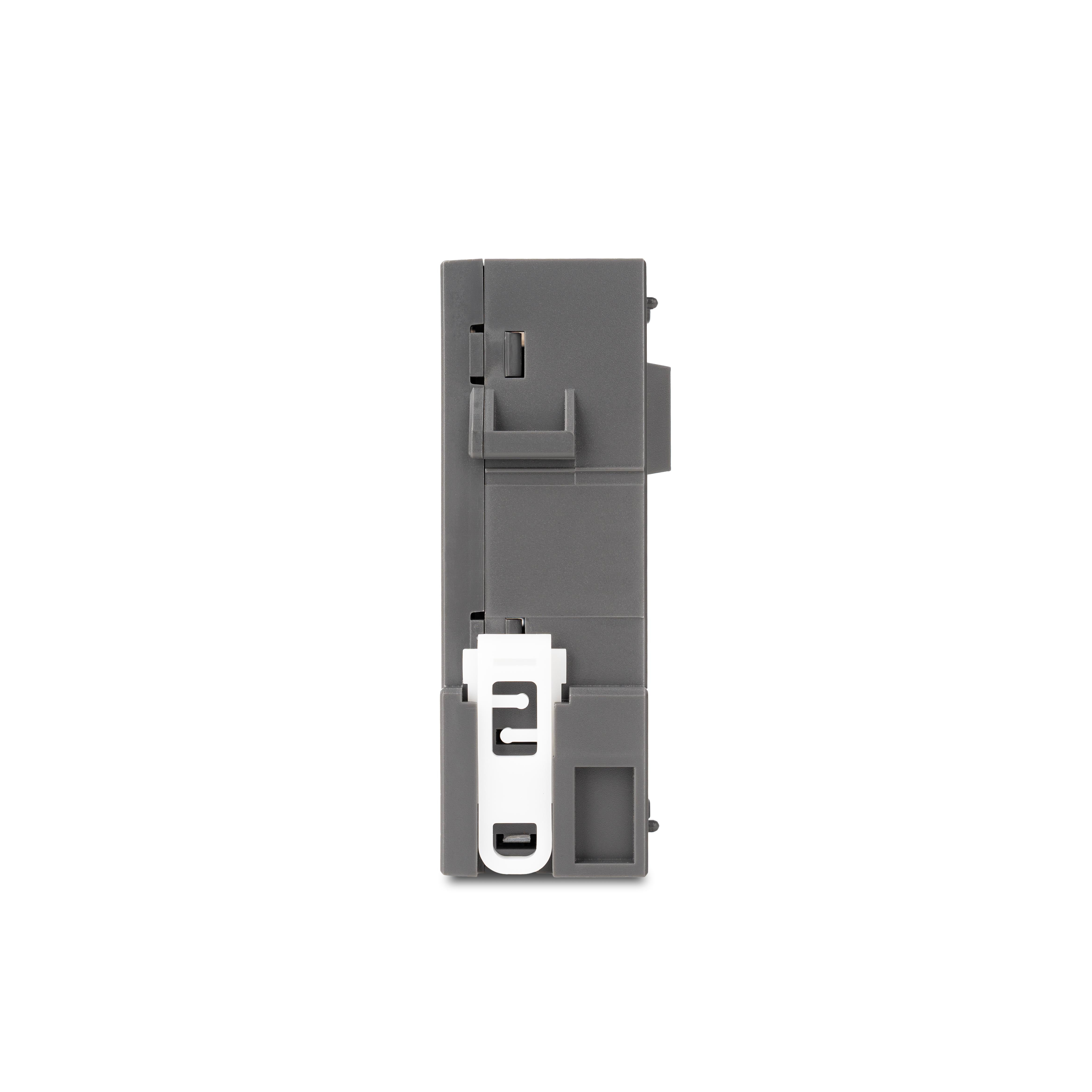

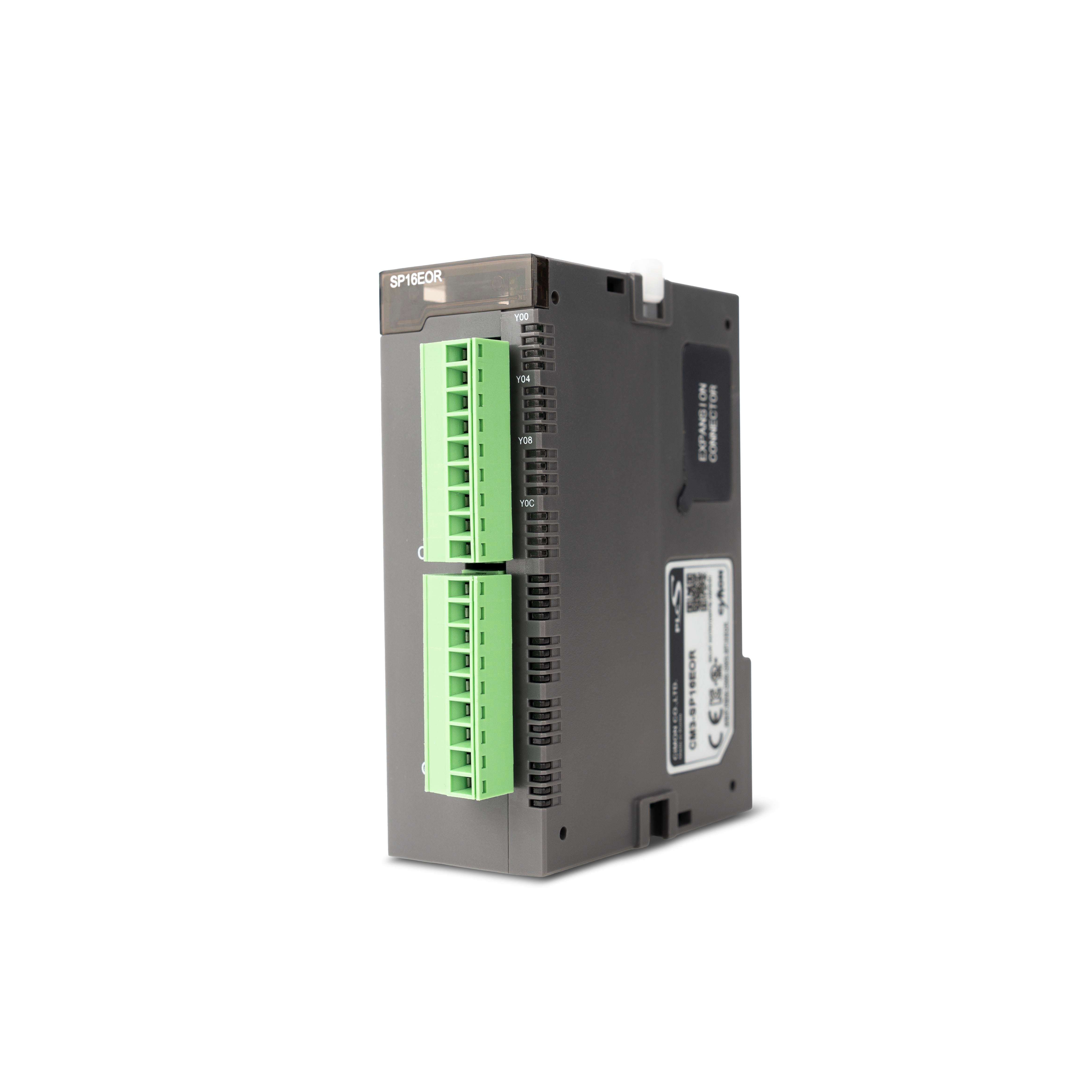

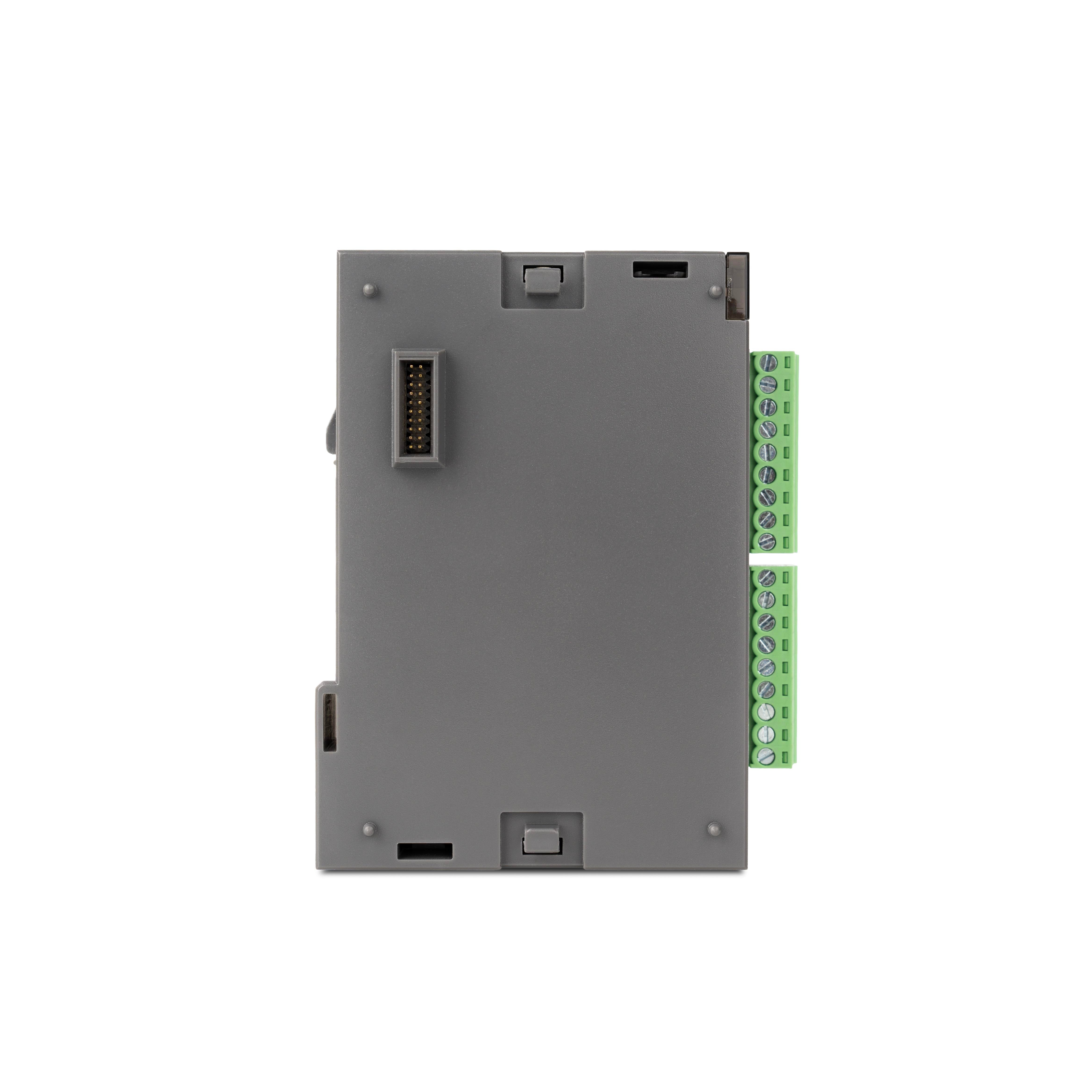

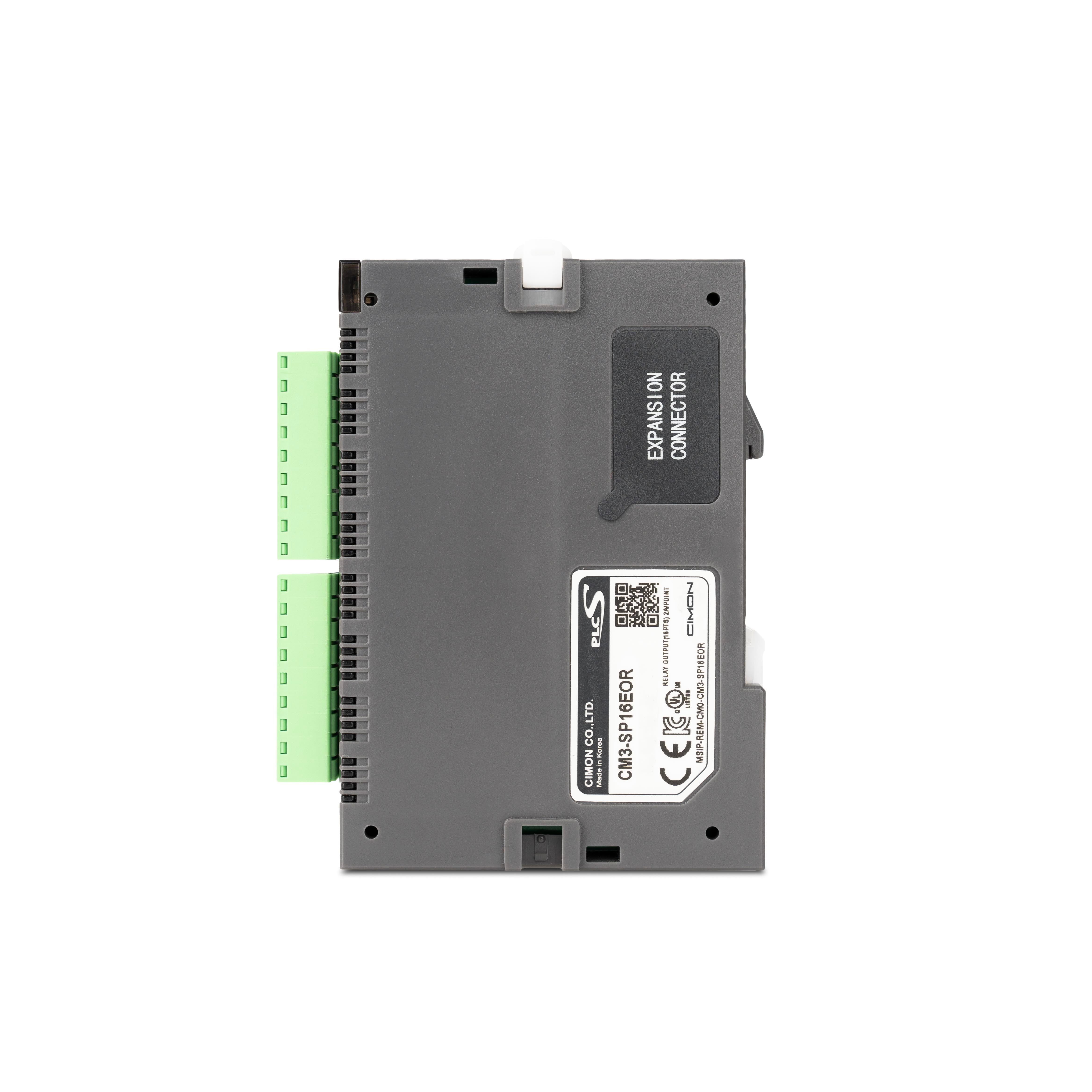

Digital Output Expansion Module, Relay

CM3-SP16EOR
Sale price$200.00

  • PLC-S Discrete Output Module
  • 16 Point
  • 24 VDC/240 VAC
  • Relay
  • 2 A/Point
  • Removable screw-based terminal blocks
Specifications
SKU CM3-SP16EOR
Category Discrete Output
Module
I/O Points 16 Relay Outputs
Details 24 VDC/250 VAC
Screw-based Terminals
Rated I/O Voltage 24 VDC/250 VAC
Rated I/O Current 1 point = 2 A
1 COM = 5 A
Response Time: Off -> On 10 ms or less
Response Time: On -> Off 5 ms or less
Insulation Method Relay
Discrete Input Voltage/Current Thresholds -
Operating Temperature -10 – +65 °C (+14 – +149 °F)
Storage Temperature -25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity 5 – 95% Non-condensing
Shock 15G
(Standards: IEC 61131-2)
Vibration 0.5G - Continuous
1G - Discontinuous
(Standards: IEC 61131-2)
Square Wave Impulse Noise ±2 kV
(Standards: CIMON Standard)
ESD Immunity ±4 kV - Contact Discharges
±8 kV - Air Discharges
(Standards: IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity 80–1000 MHz, 10 V/m
(Standards: IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity 2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication
(Standards: IEC 61131-2, IEC 61000-4-4)
