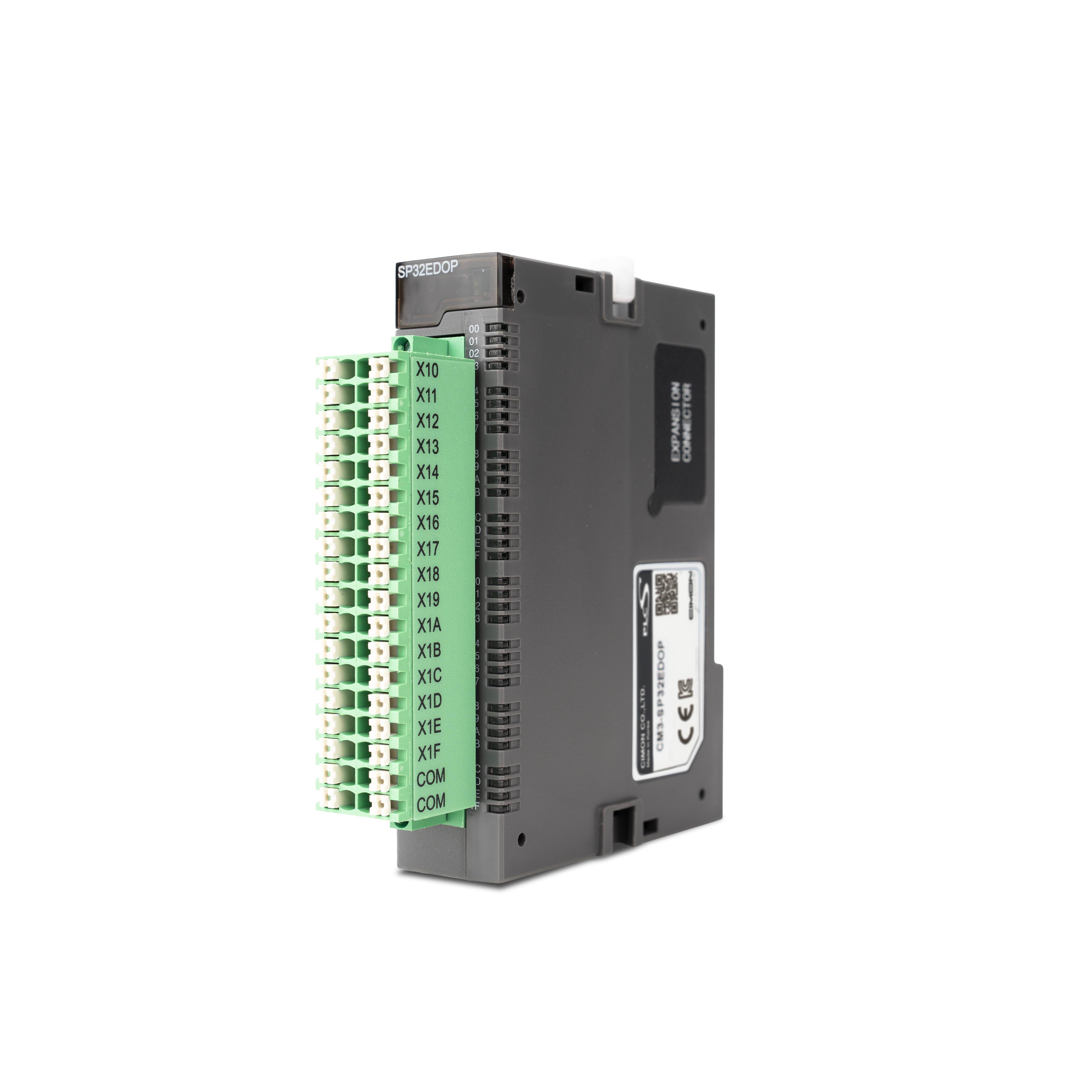

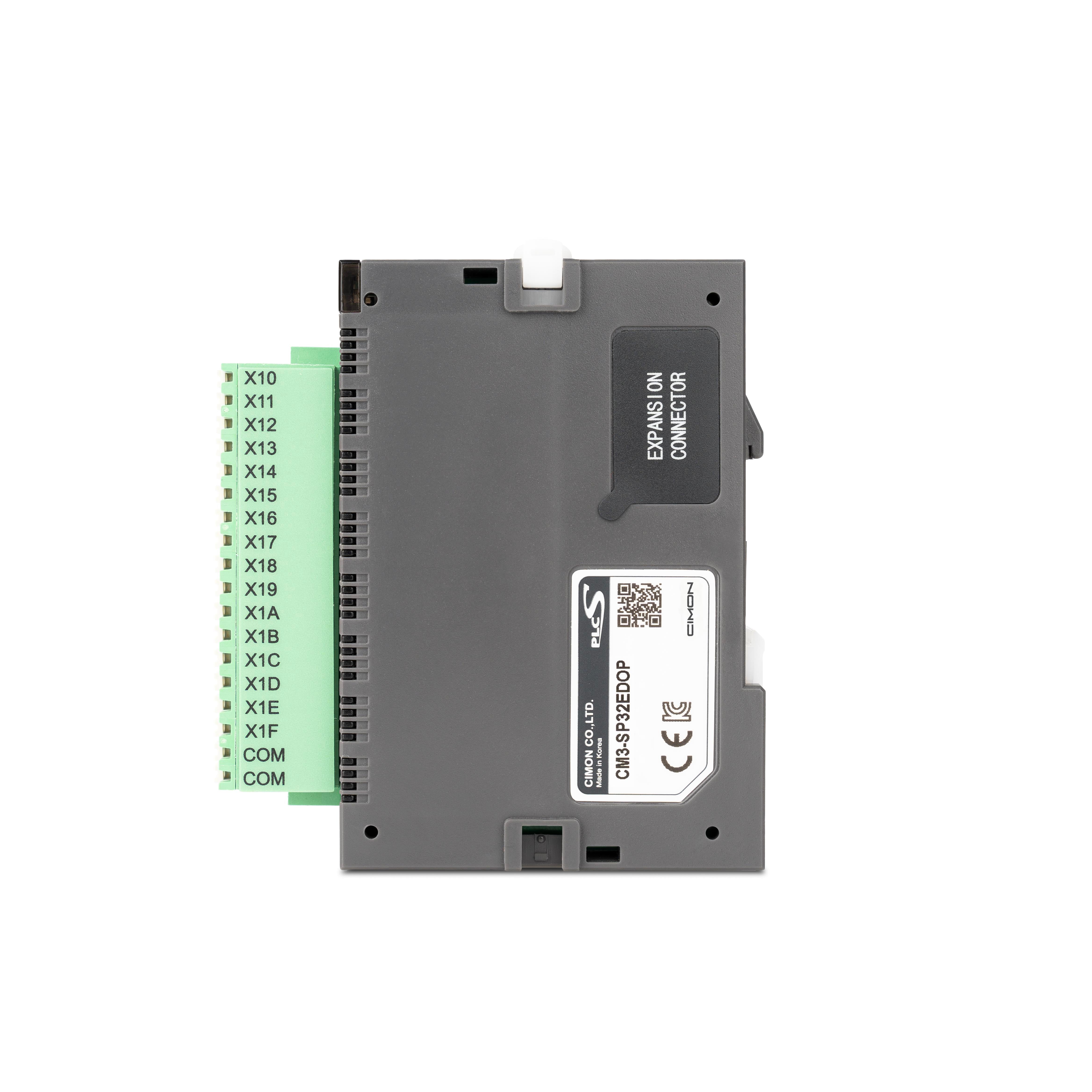

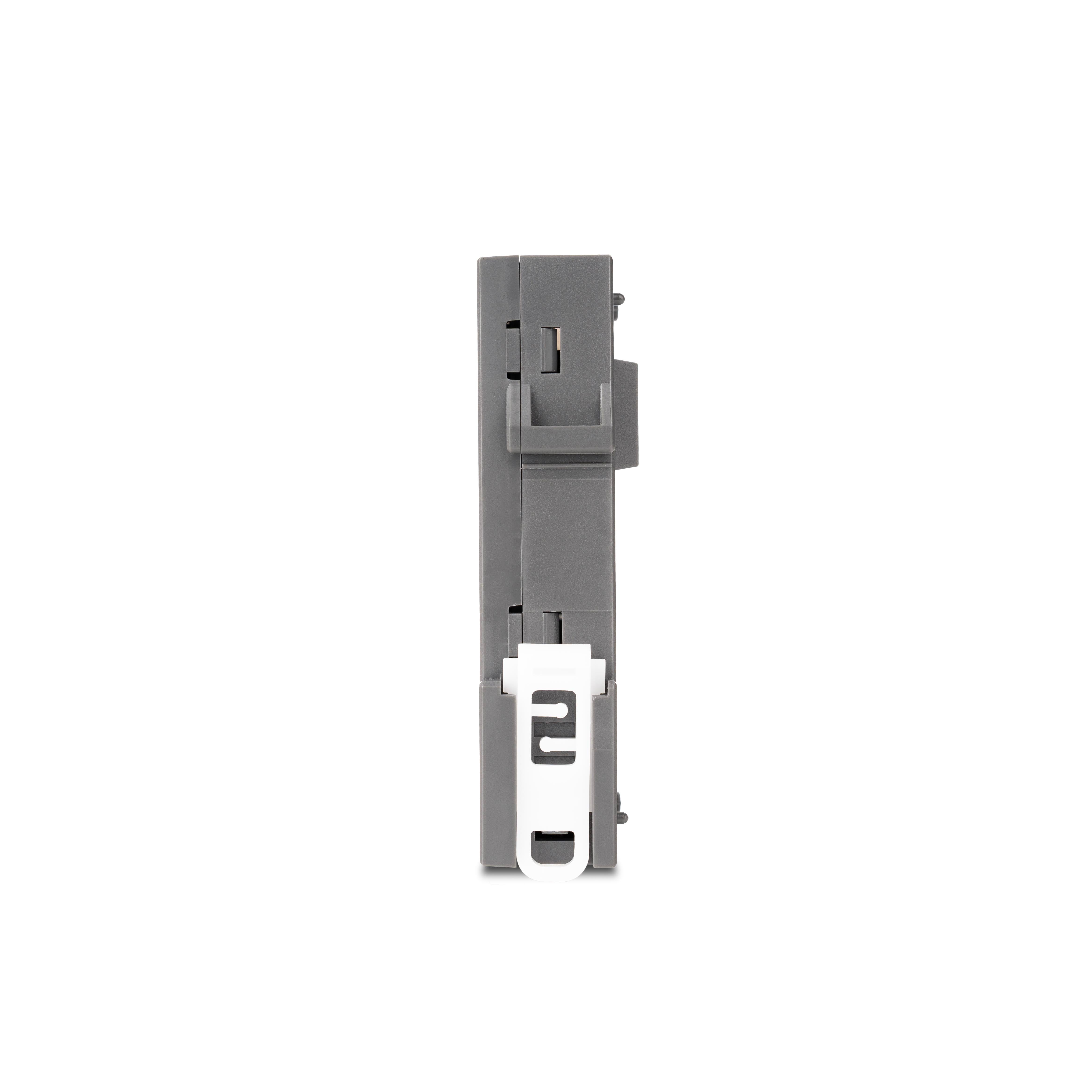

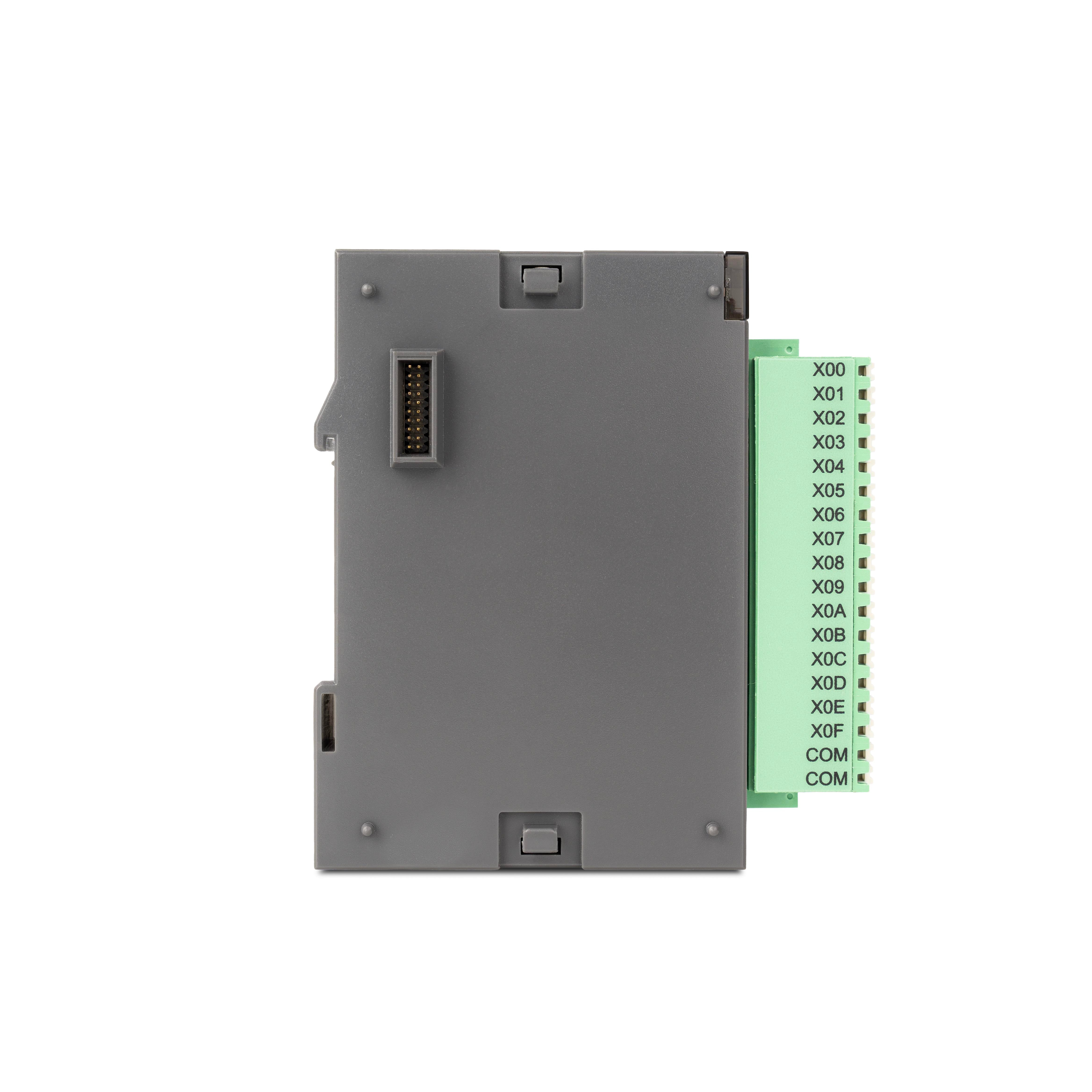

Digital Input Expansion Module, Sinking/Sourcing Input, Push-in terminal

CM3-SP32EDOP
Sale price$190.00

  • PLC-S Discrete Input Module
  • 32 Point
  • 24 VDC
  • Sink/Source
  • Removable push-in terminal blocks
Specifications
SKU CM3-SP32EDOP
Category Discrete Input
Module
I/O Points 32 TR Sink/Source Inputs
Details 24 VDC
Push-in Terminal Connector
Rated I/O Voltage 24 VDC
Rated I/O Current 4 mA
Response Time: Off -> On 3 ms or less
Response Time: On -> Off 3 ms or less
Insulation Method Photocoupler
Discrete Input Voltage/Current Thresholds ON: 19 VDC/3 mA
OFF: 6 VDC/1 mA
Operating Temperature -10 – +65 °C (+14 – +149 °F)
Storage Temperature -25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity 5 – 95% Non-condensing
Shock 15G
(Standards: IEC 61131-2)
Vibration 0.5G - Continuous
1G - Discontinuous
(Standards: IEC 61131-2)
Square Wave Impulse Noise ±2 kV
(Standards: CIMON Standard)
ESD Immunity ±4 kV - Contact Discharges
±8 kV - Air Discharges
(Standards: IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity 80–1000 MHz, 10 V/m
(Standards: IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity 2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication
(Standards: IEC 61131-2, IEC 61000-4-4)
