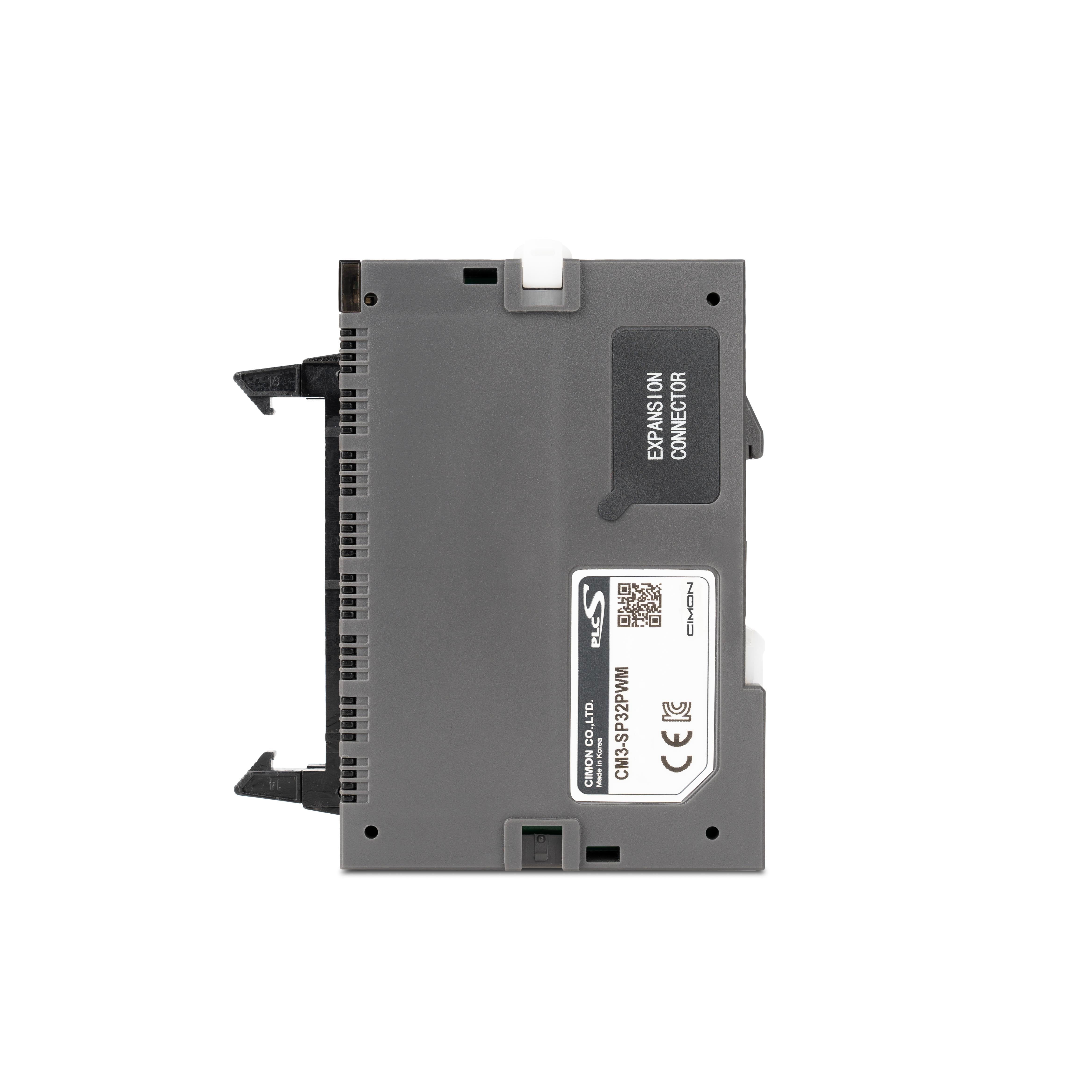

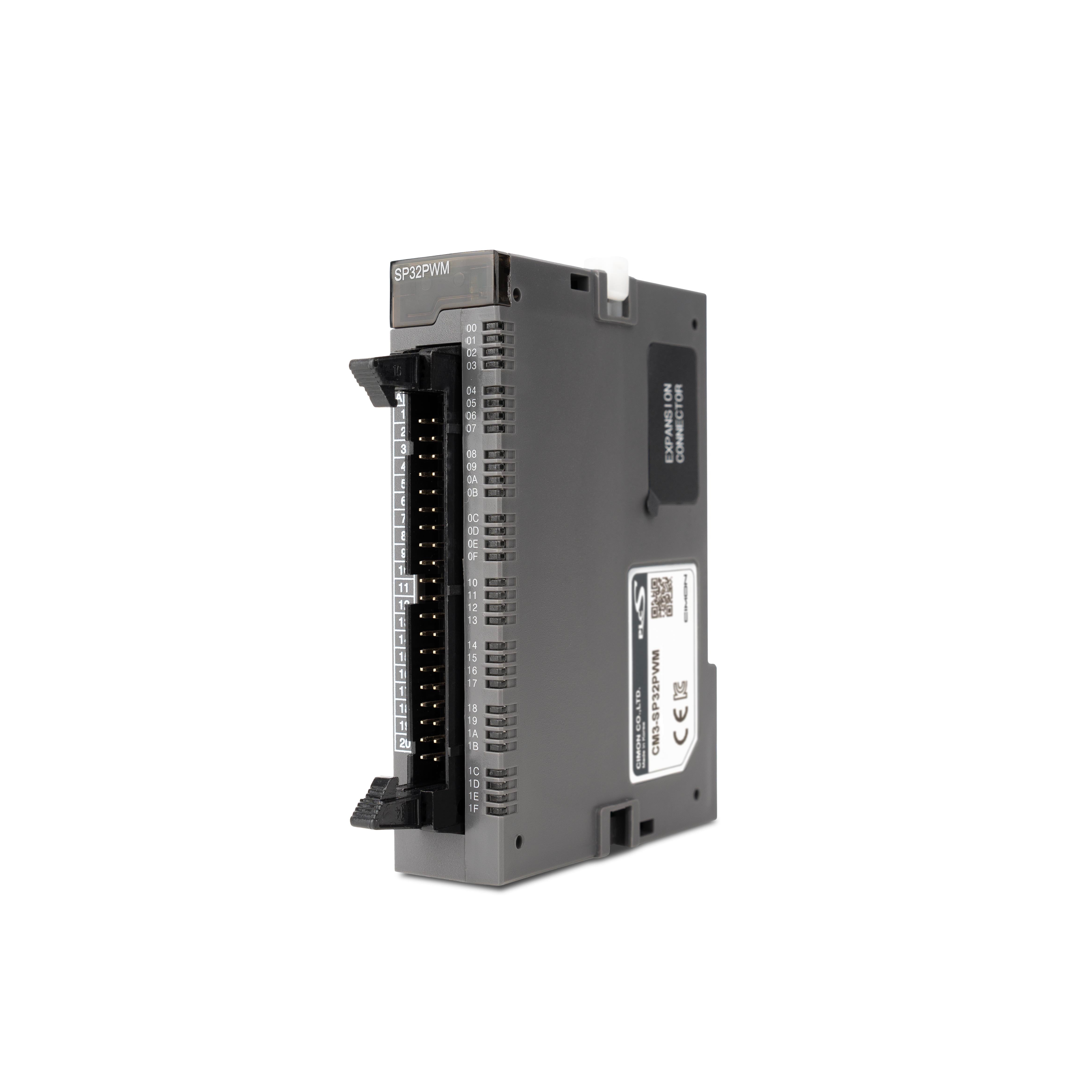

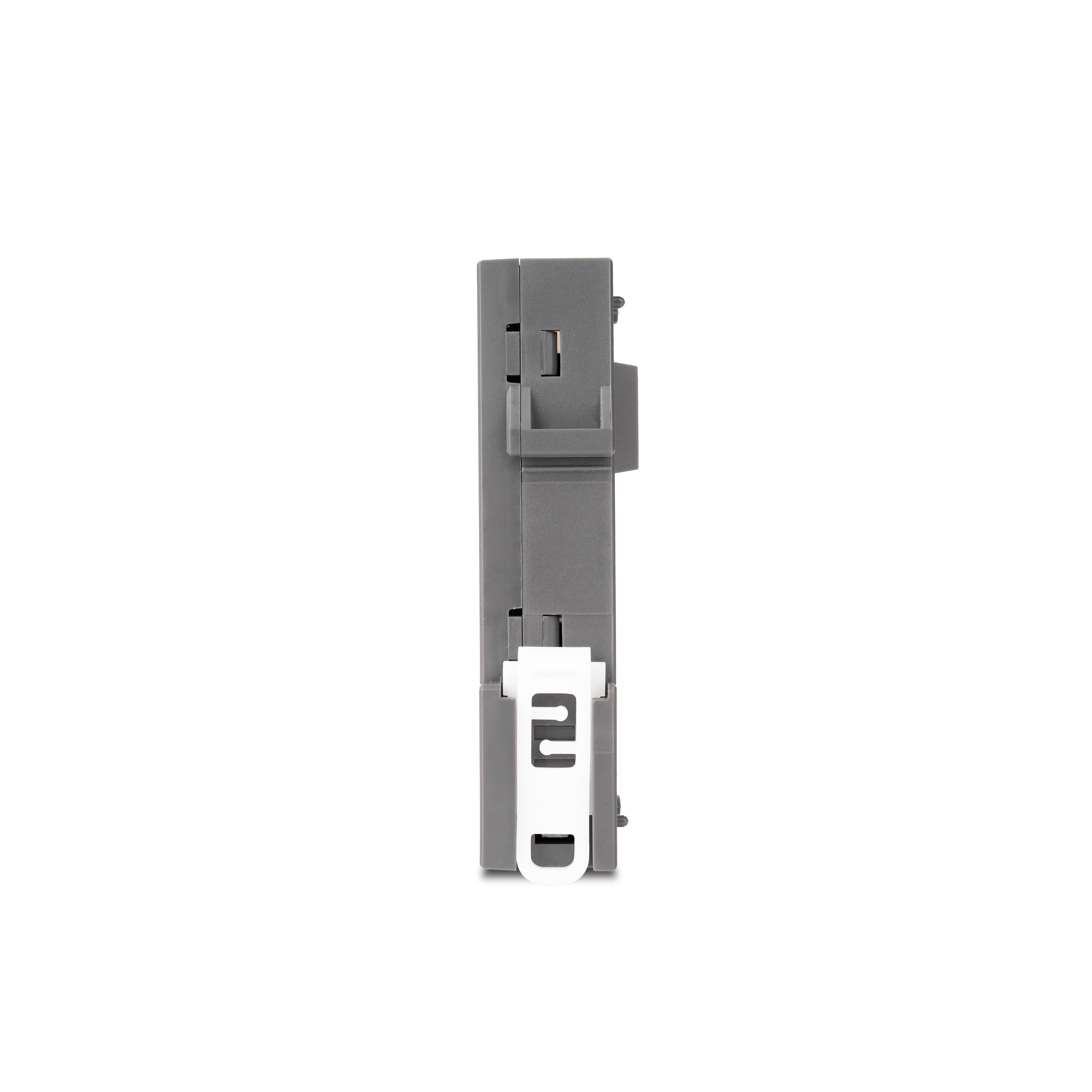

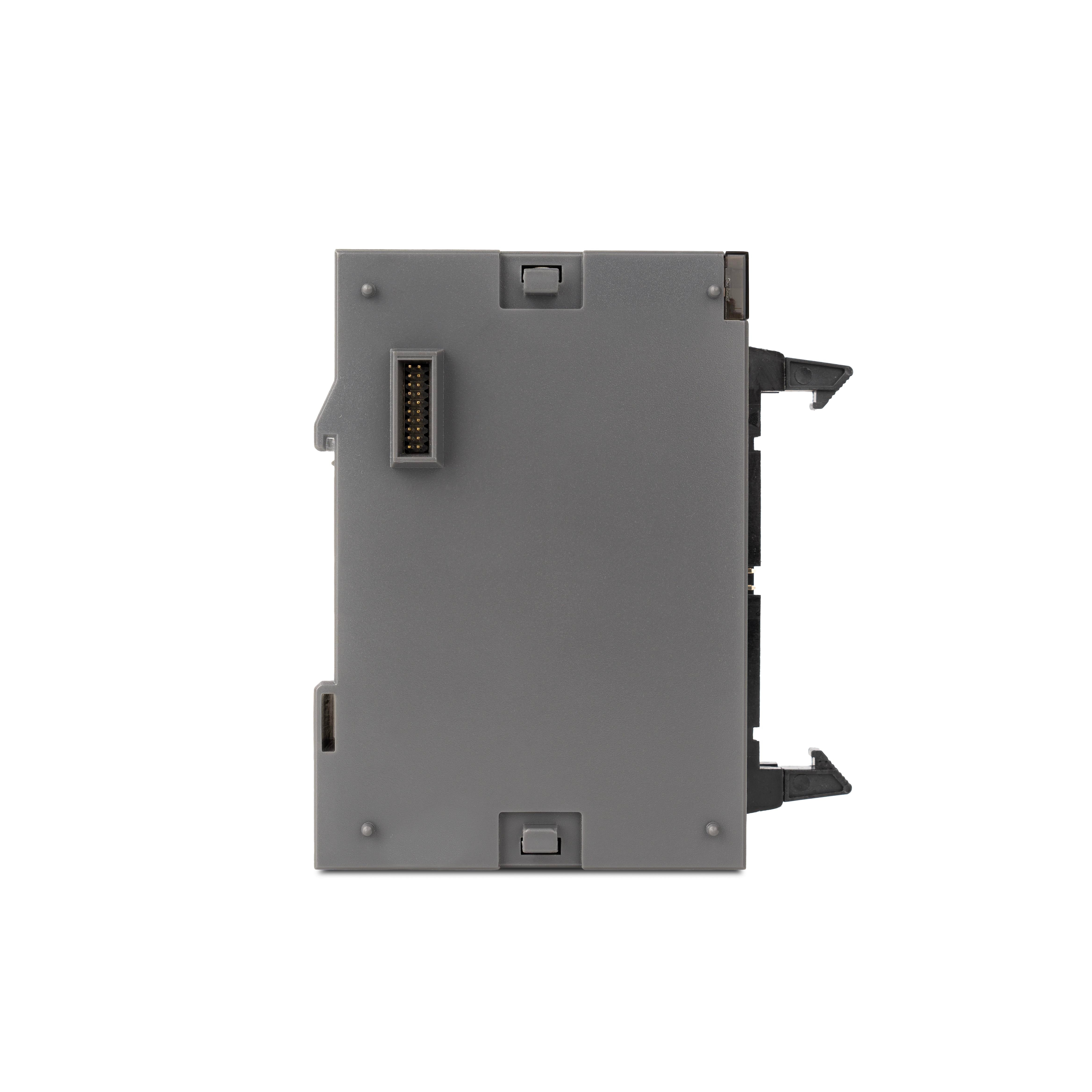

Pulse-Width Modulation Expansion Module
- PLC-S Pulse-Width Modulation (PWM) Module
- 3-Channel
- 4 kHz
- 0-95% Duty Cycle
- 32 Discrete Points
- 12/24 VDC
- Source
- 0.2 A/Point
- CM0-TB32M terminal block and CM0-SCB15M connection cable required
Pulse-Width Modulation Expansion Module
Sale price$340.00
Regular price (/)
Specifications
| SKU | CM3-SP32PWM |
| Category | Discrete Output Module |
| I/O Points | 32 TR Source Outputs (Includes 12 PWM Outputs) |
| Details | 24 VDC, Terminal Block and Cable Required Duty Cycle Guarantee: 1–4000 Hz (pps) Duty Cycle Resolution: 1/1000 |
| Frequency Range (Guarantee Duty Cycle) | 1 – 4000 Hz (pps) |
| Maximum Frequency | 65 kHz (kpps) |
| Duty Cycle Resolution | 0.0 – 100.0% (1/1000) |
| RAMP Control | Frequency RAMP, Duty Cycle RAMP Control |
| Operating Temperature | -10 – +65 °C (+14 – +149 °F) |
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
| Shock | 15G (Standards: IEC 61131-2) |
| Vibration | 0.5G - Continuous 1G - Discontinuous (Standards: IEC 61131-2) |
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
| ESD Immunity | ±4 kV - Contact Discharges ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
| Surge Transient Immunity | 2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
