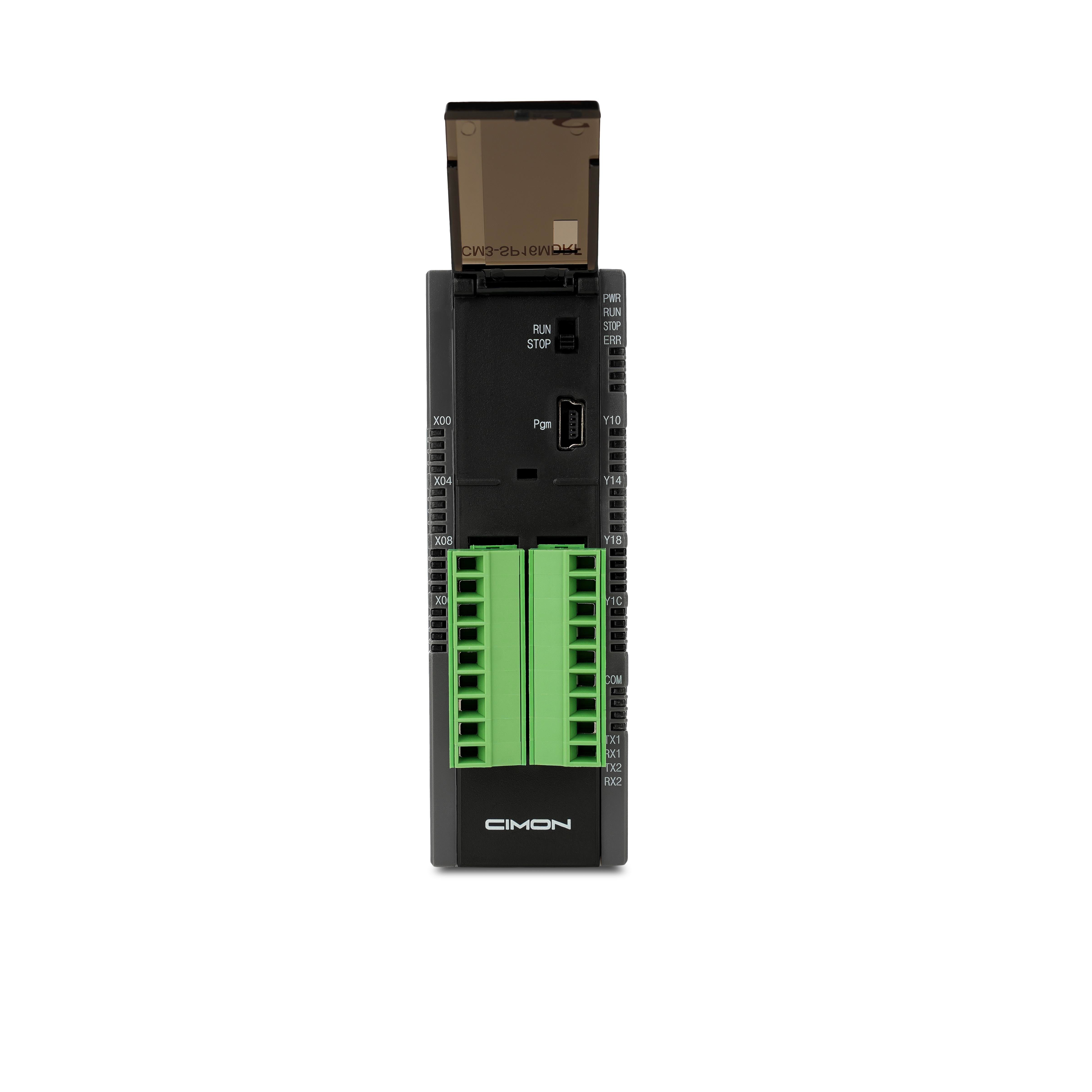

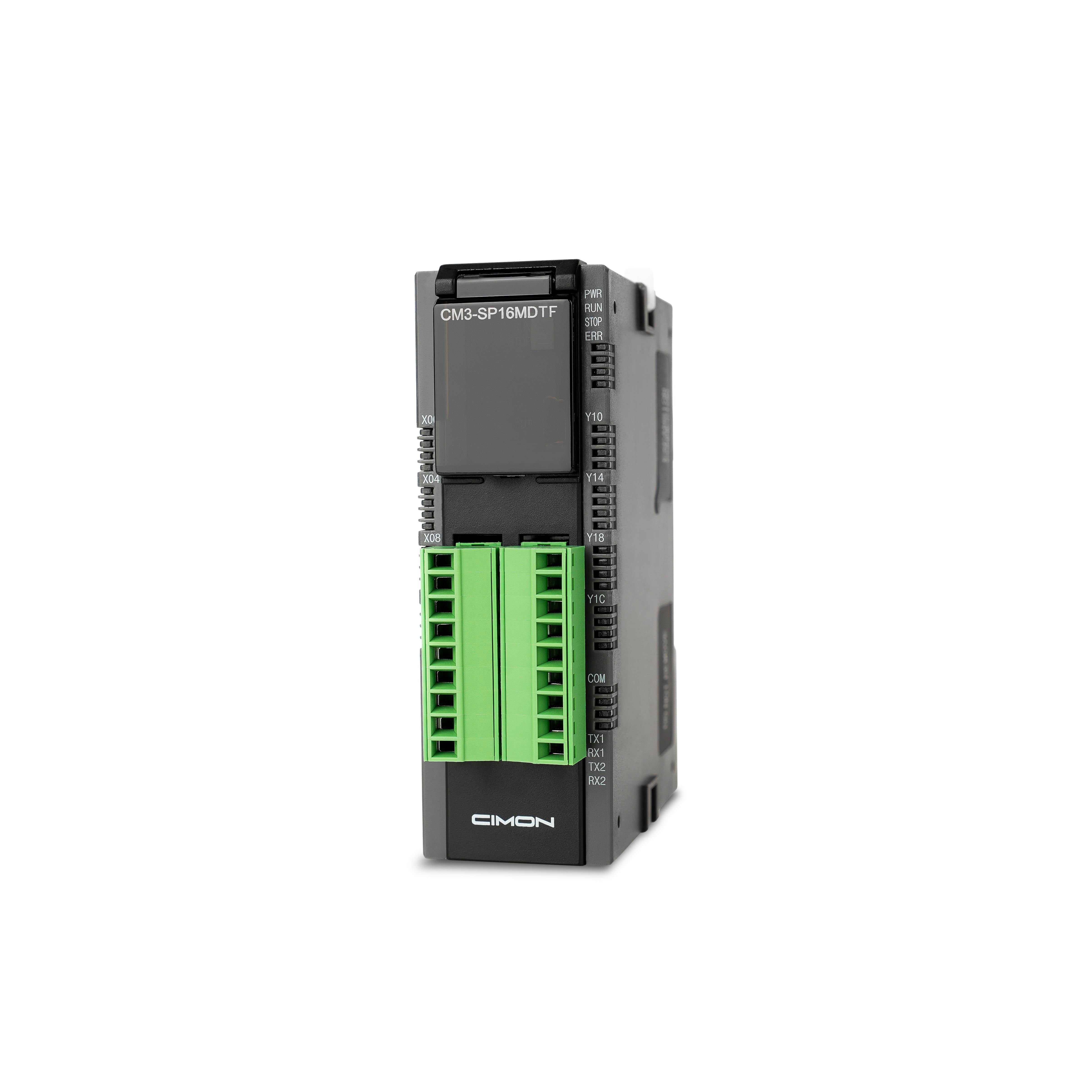

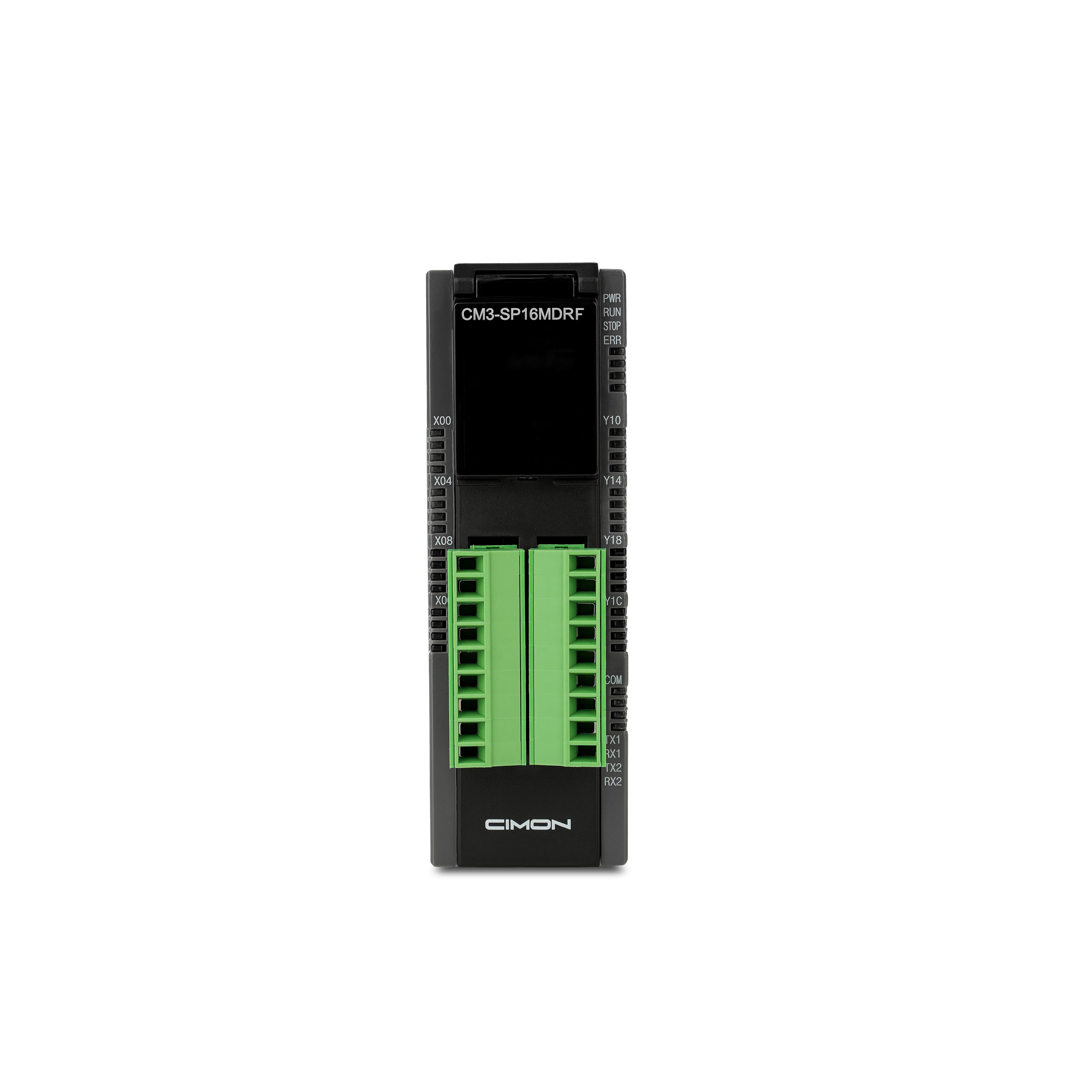

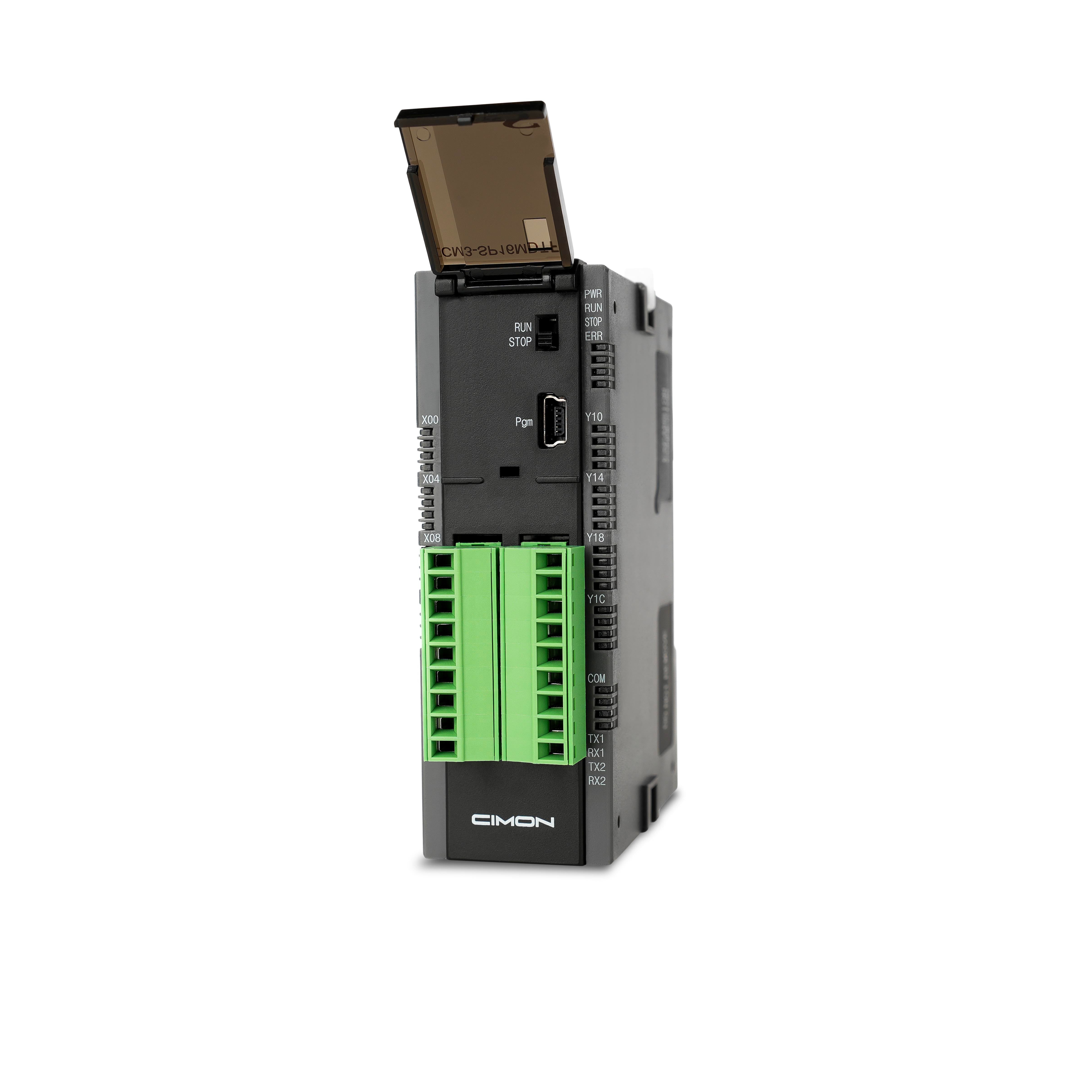

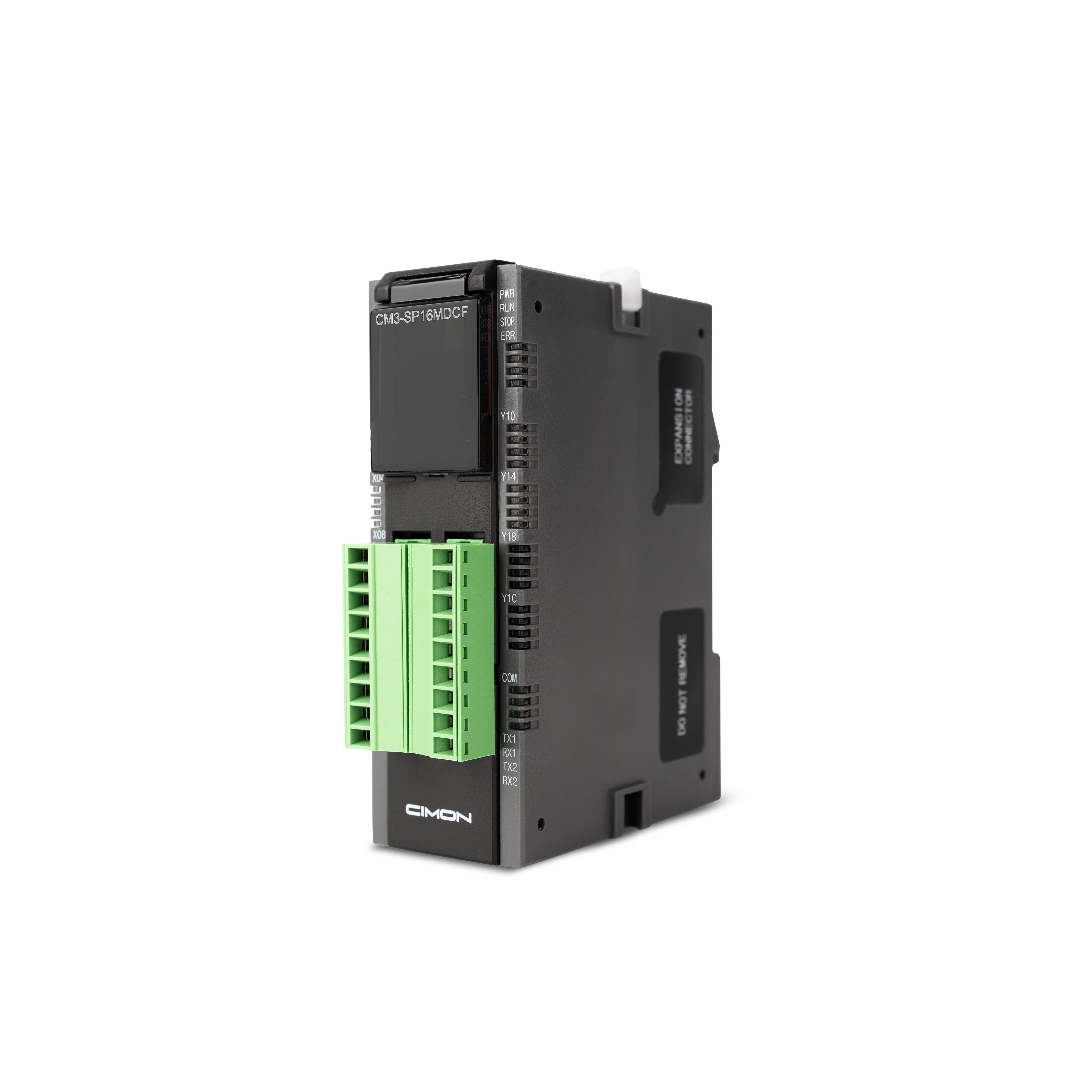

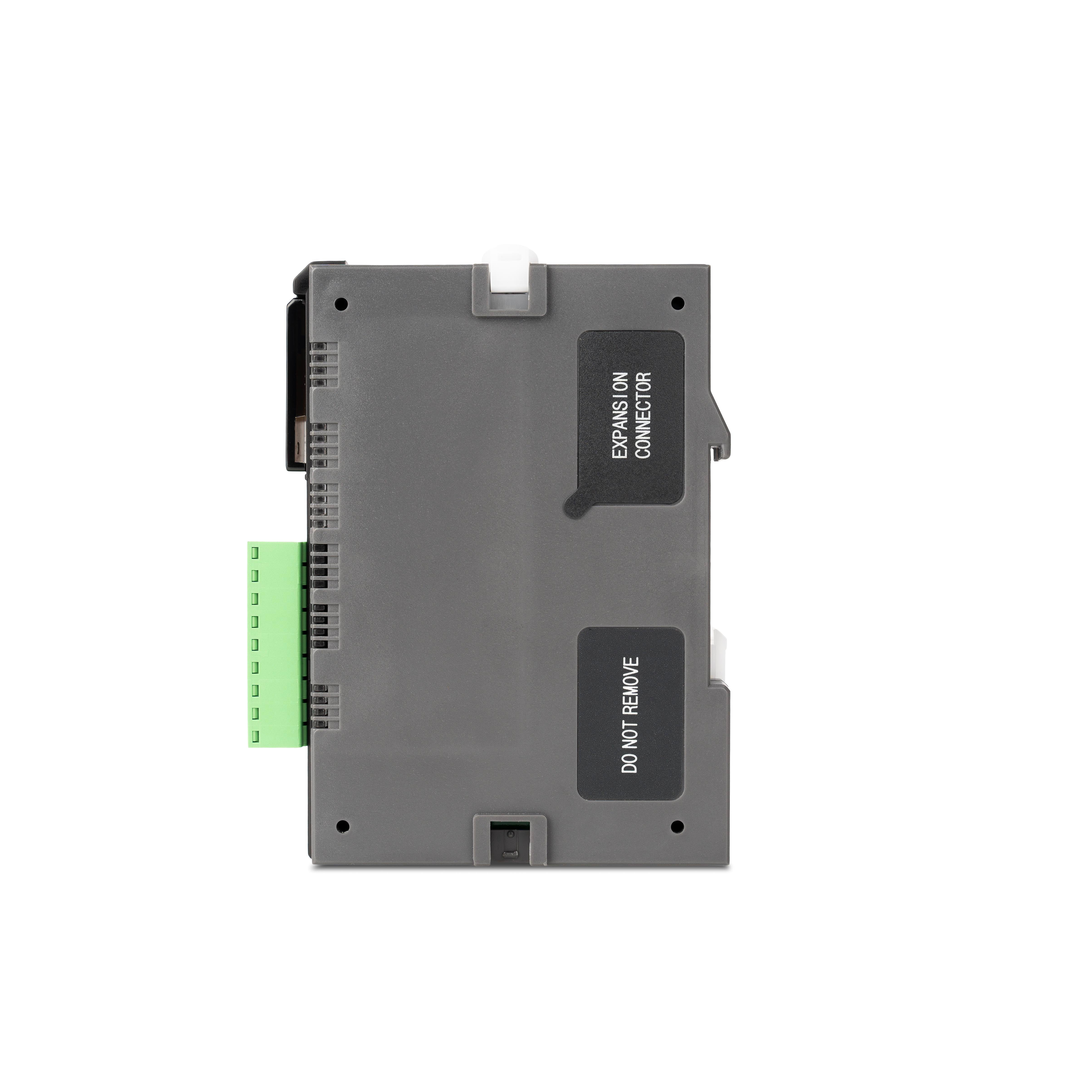

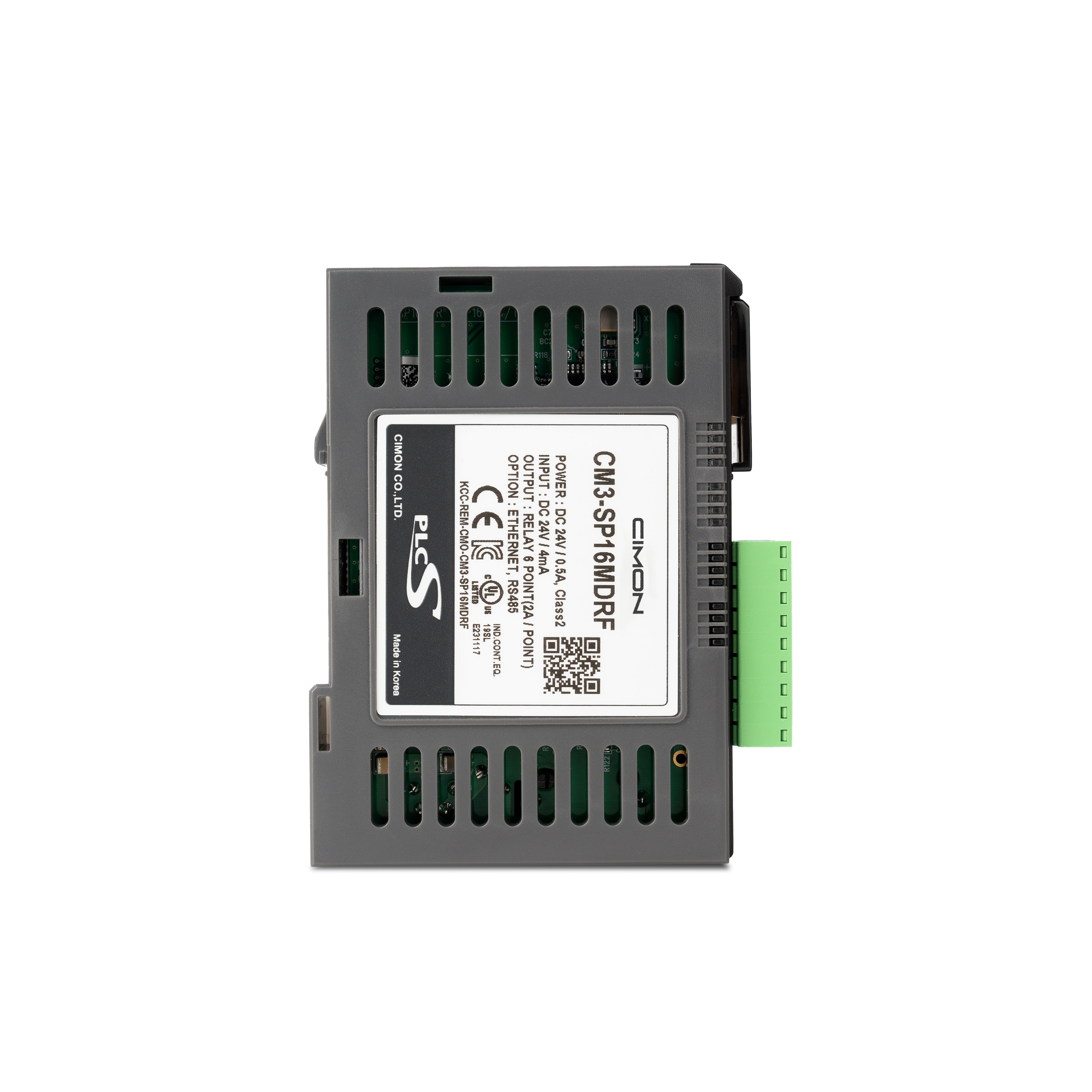

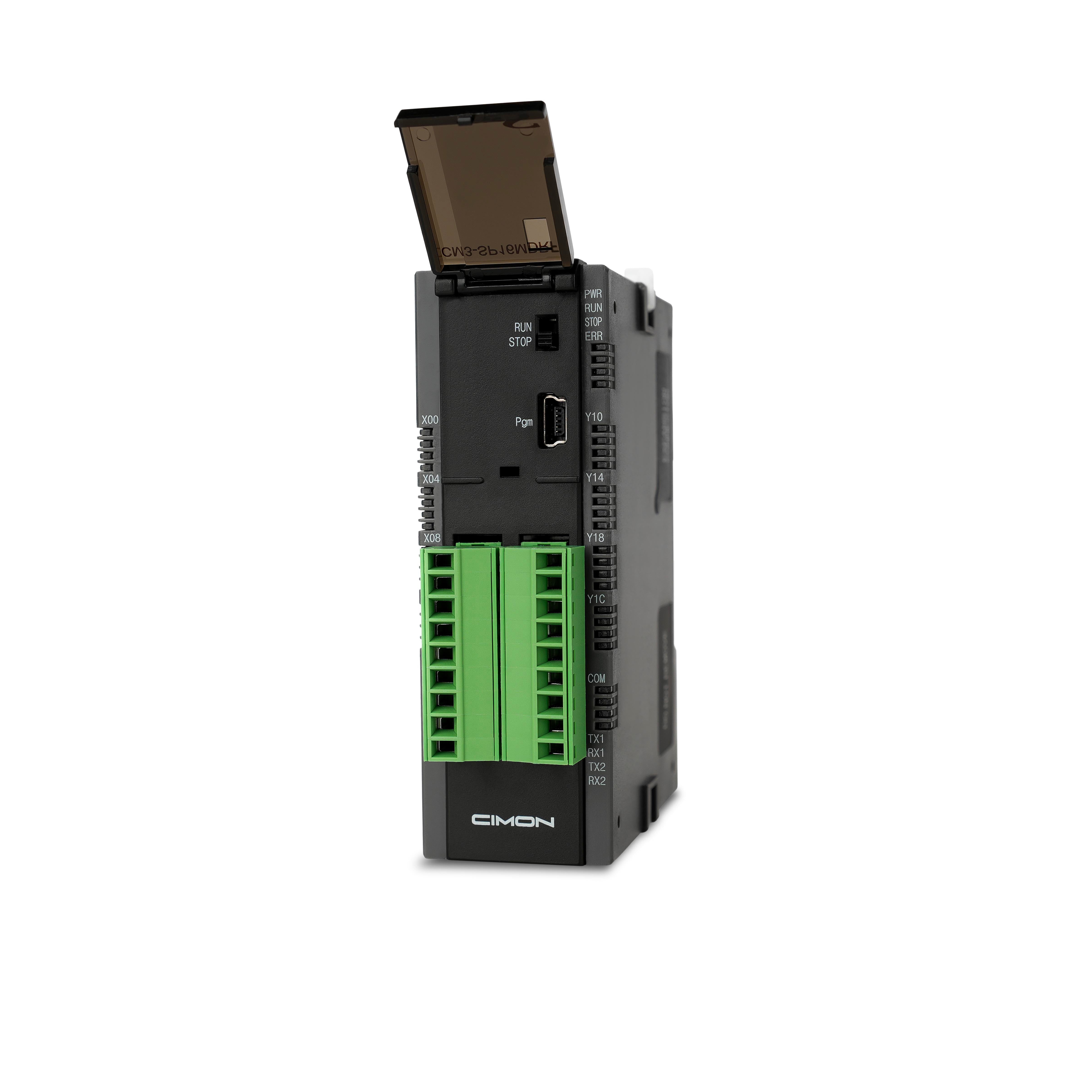

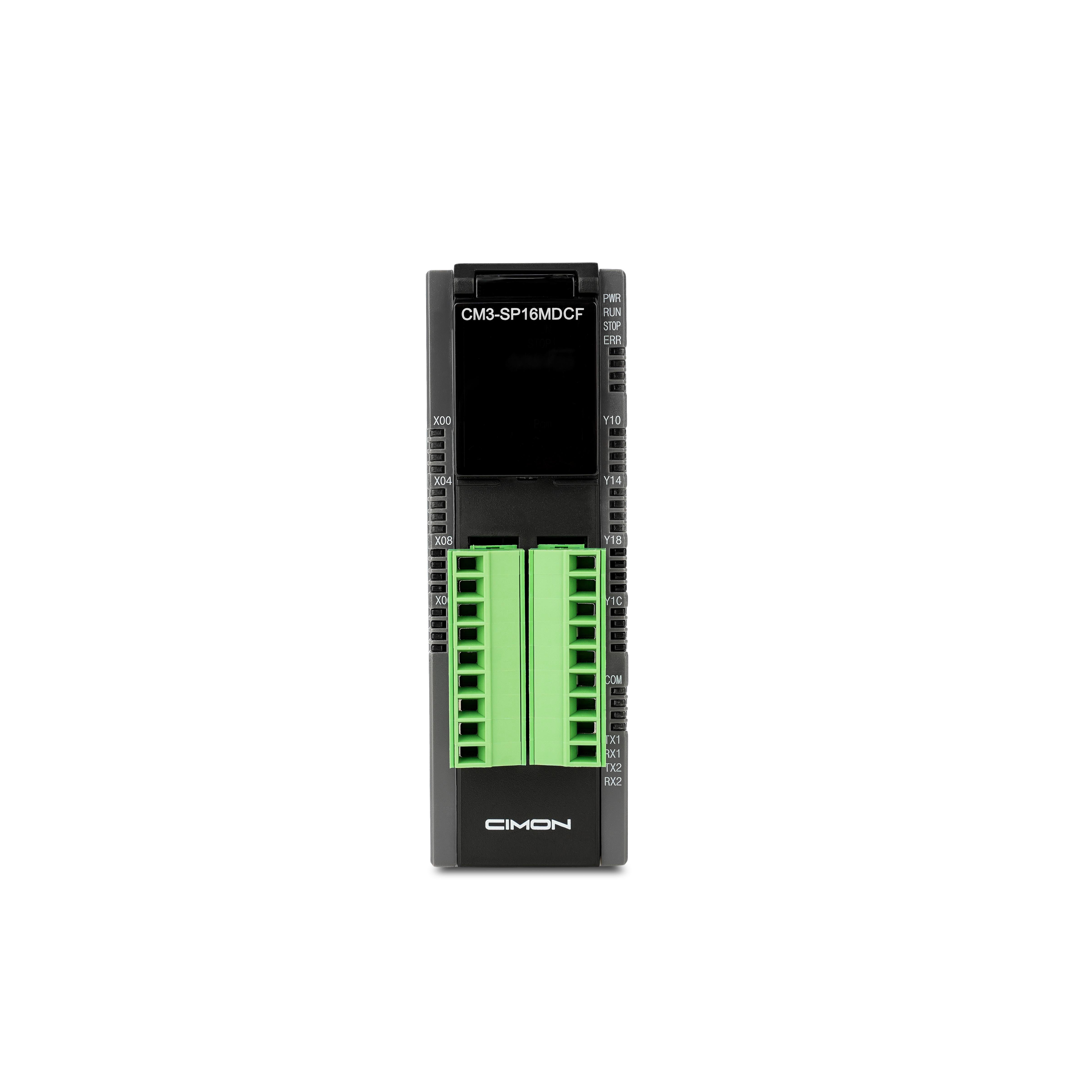

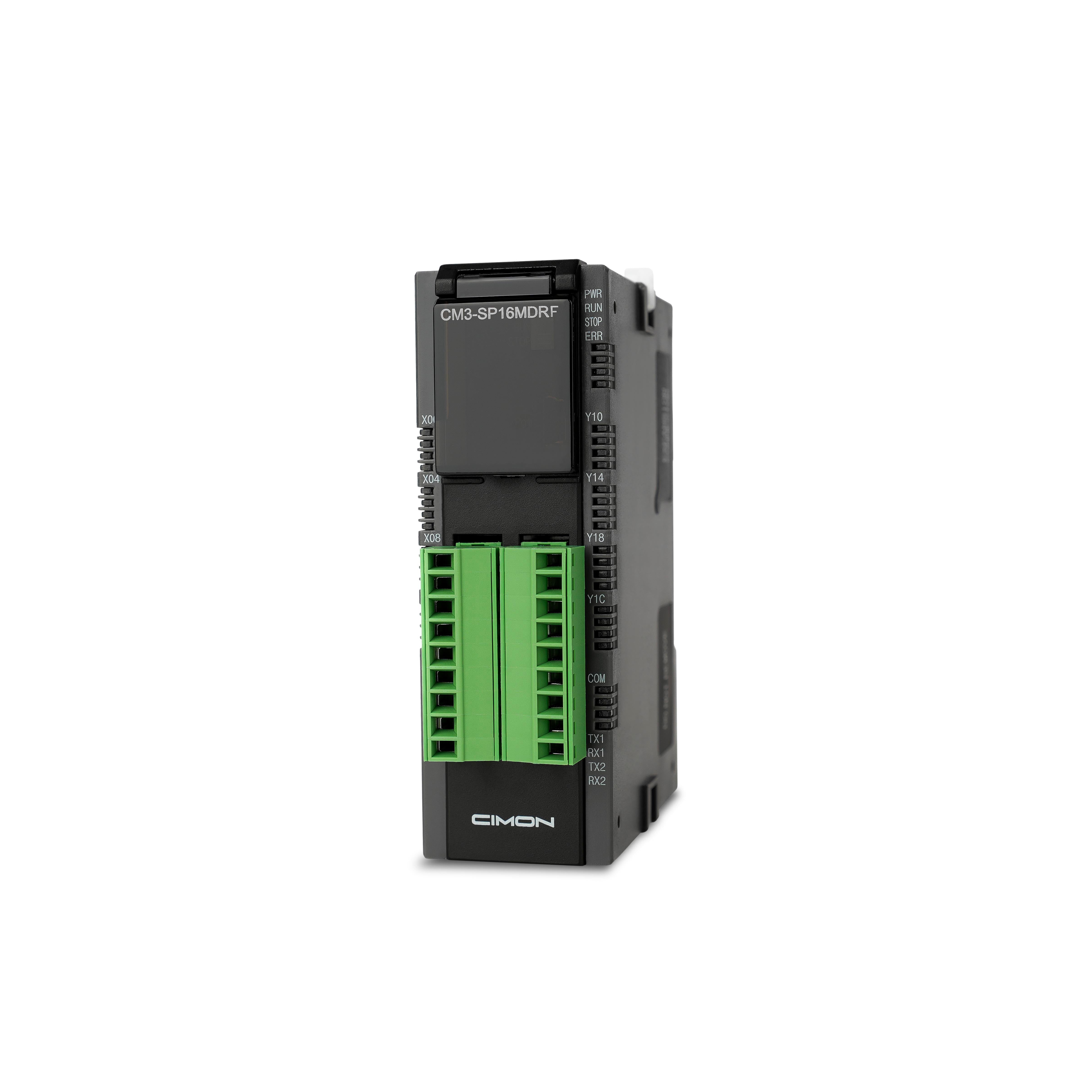

PLC-S CPU Module (16 I/O, Source/Sink Output)
- PLC-S Mini-Modular PLC
- Power: 12/24 VDC
- Expandable
- (1) Ethernet
- (2) Serial
- (1) USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point
- Removable screw-based terminal blocks
PLC-S CPU Module (16 I/O, Source/Sink Output)
Sale price$380.00
Regular price (/)
Specifications

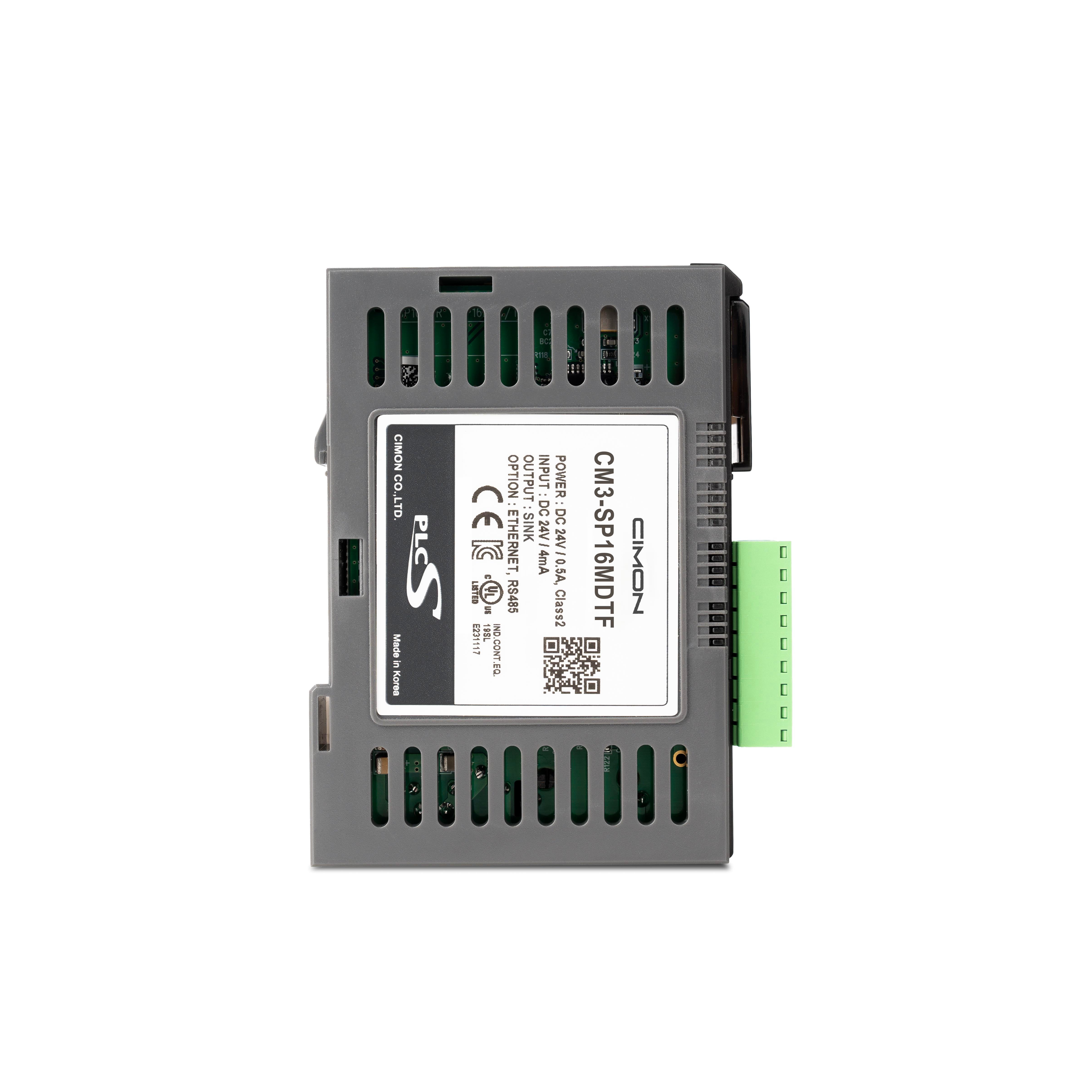

| SKU | CM3-SP16MDTF |
| Power Consumption | 12 W, 24 VDC, 0.5 A |
| Input Type | TR Sink/Source |
| Output Type | TR Sink |
| Number of Channels | (16 Total) 8 Discrete Inputs, 8 Discrete Outputs |
| Rated Input Voltage | 12 or 24 VDC, Note: 12 VDC is used for the HSC. |
| Rated Input Current | 4 mA |
| Input Insulation Method | Photocoupler |
| Input Voltage/ Current Thresholds | ON CH1-4: 10 VDC/4 mA CH5-8: 14 VDC/4 mA OFF CH1-4: 6 VDC/1 mA CH5-8: 12 VDC/1 mA |
| Rated Output Voltage | 12, 24 VDC |
| Rated Output Current | 1 point = 0.2 A 1 COM = 2 A |
| Output Insulation Method | Photocoupler |

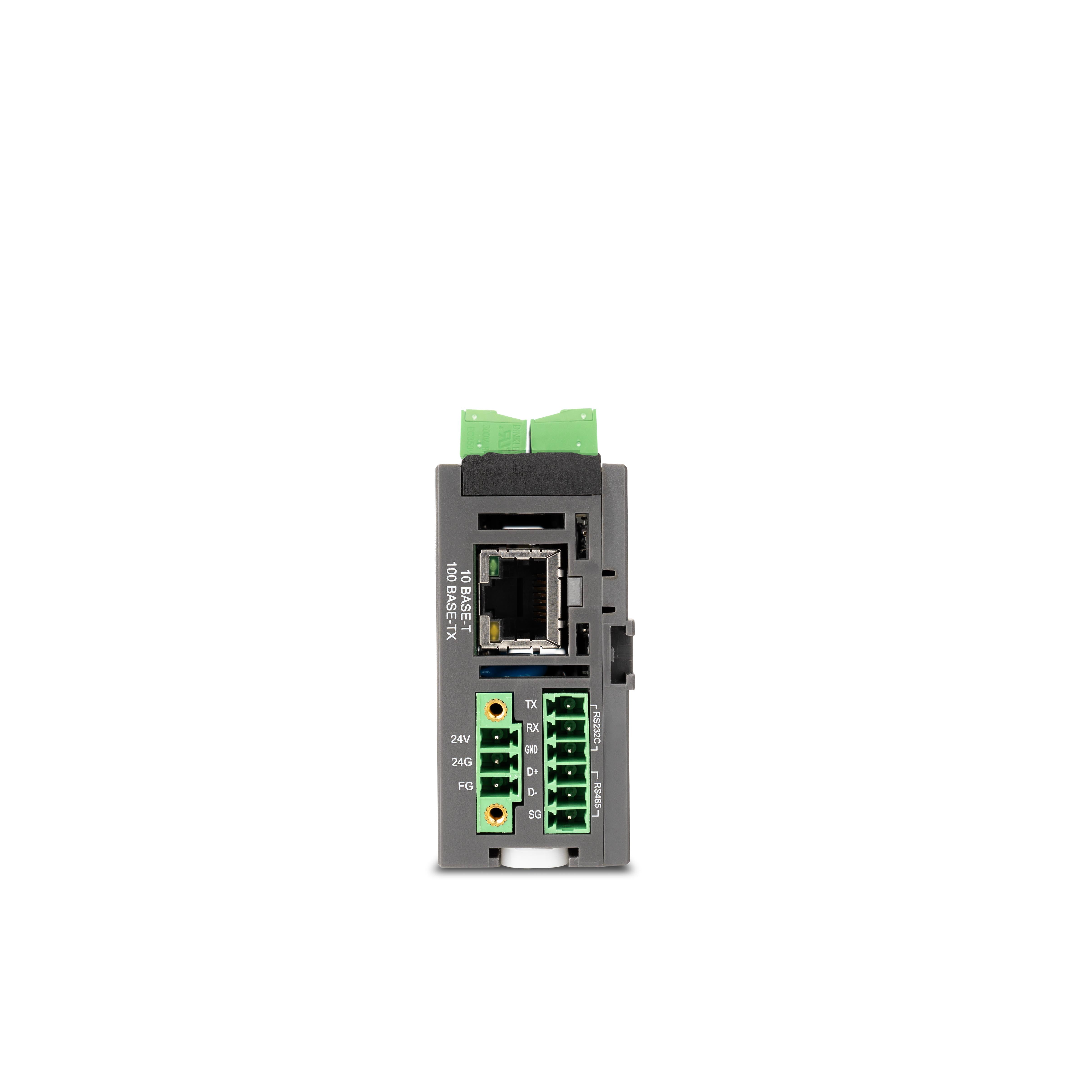

| Communication Ports | RS-232, 1 Channel RS-422/485, 1 Channel Ethernet, 1 Port |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/485 |
