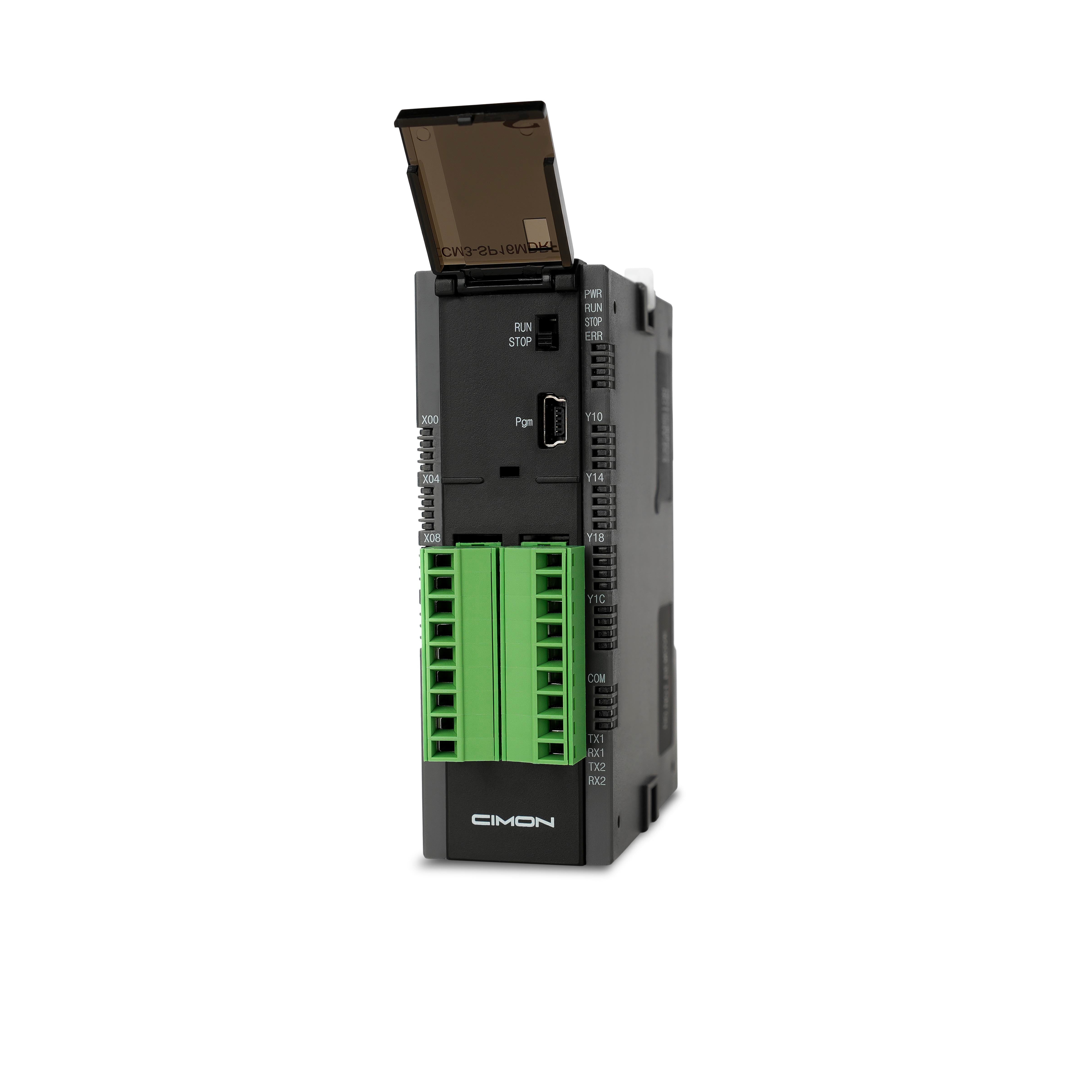

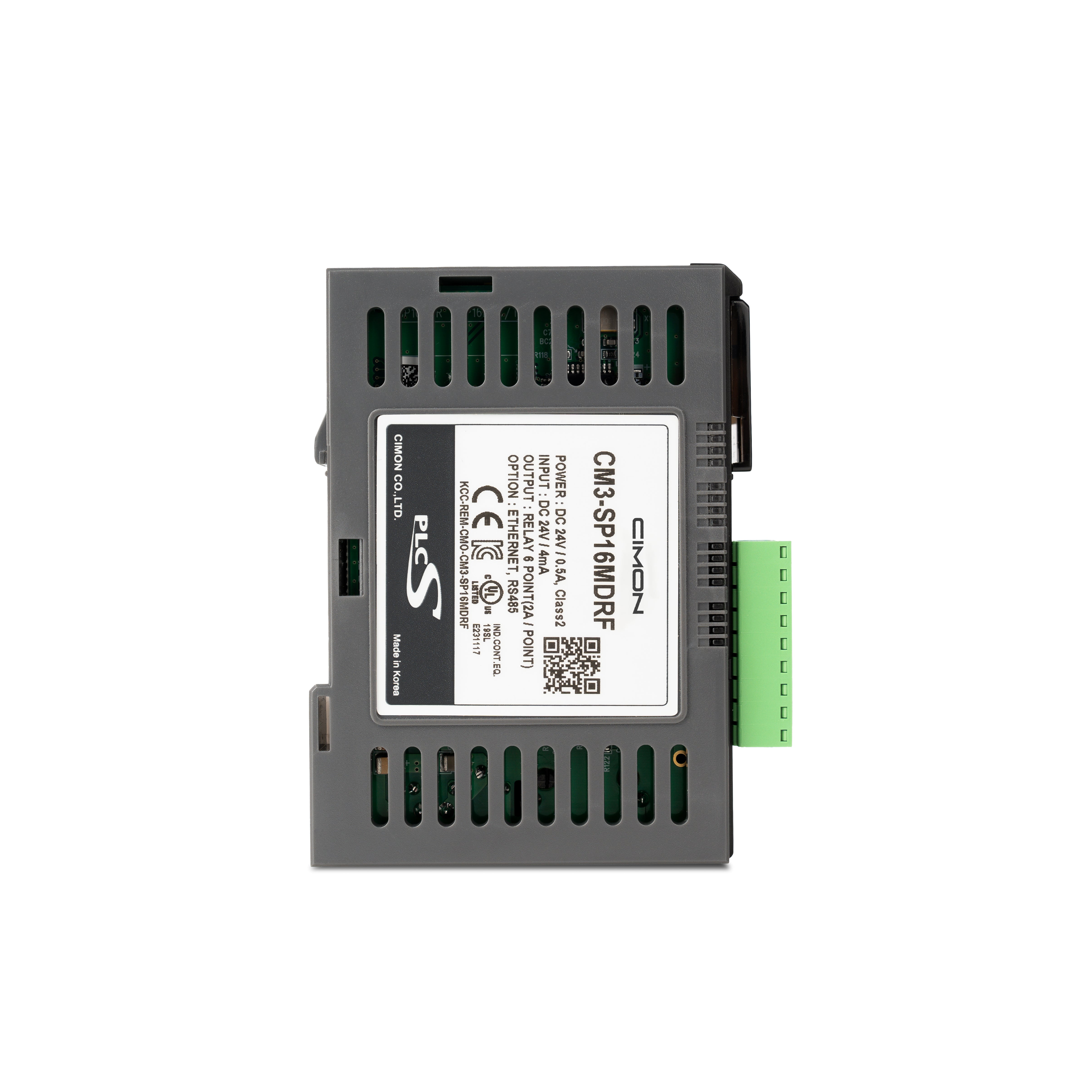

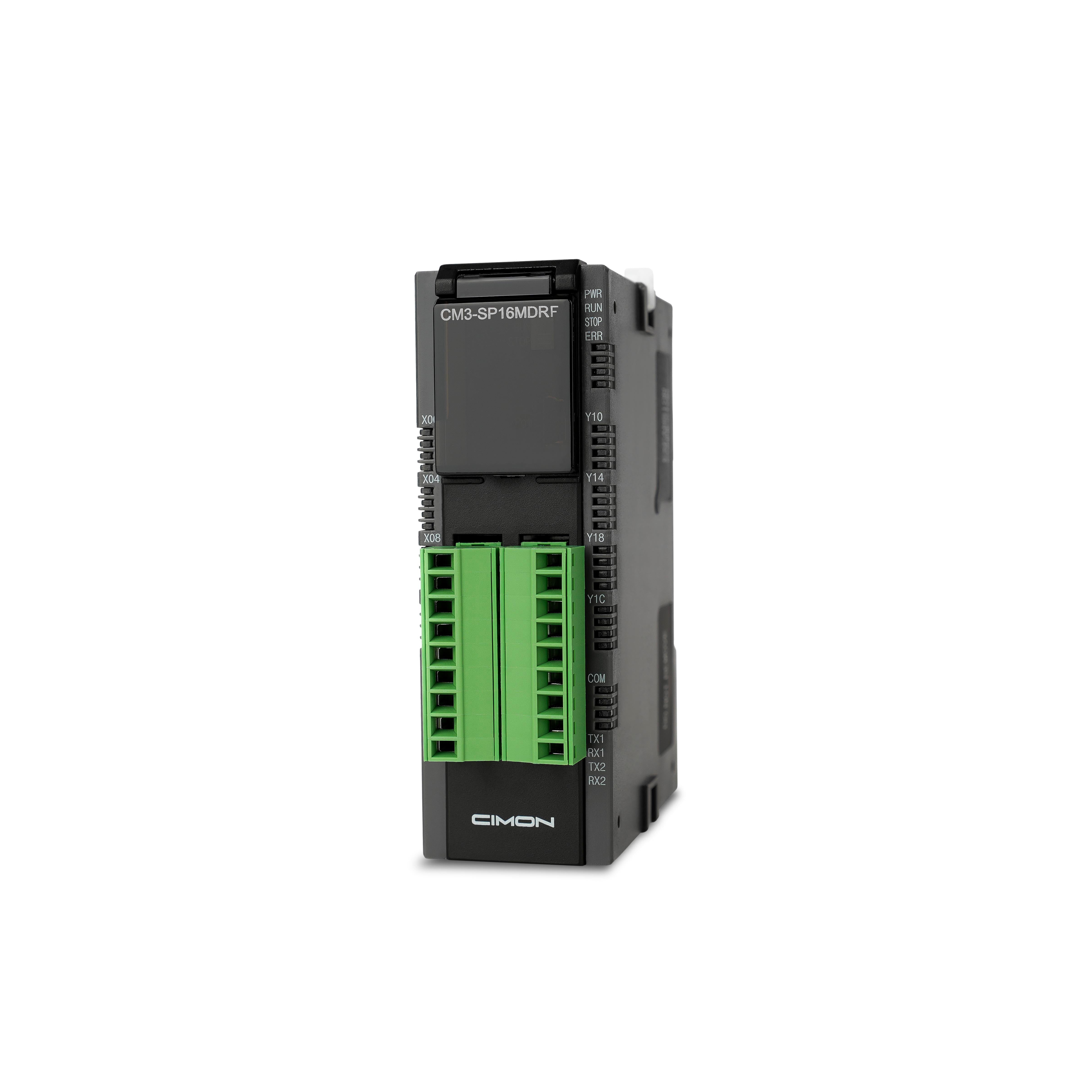

PLC-S CPU Module (14 I/O, Relay Output)
- PLC-S Mini-Modular PLC
- Power: 12/24 VDC
- Expandable
- (1) Ethernet
- (2) Serial
- (1) USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 6 Point, 24 VDC/240 VAC, Relay, 2 A/Point
- Removable screw-based terminal blocks
PLC-S CPU Module (14 I/O, Relay Output)
Sale price$380.00
Regular price (/)
Specifications
| SKU | CM3-SP16MDRF |
| Power Consumption | 12 W, 24 VDC, 0.5 A |
| Input Type | TR Sink/Source |
| Output Type | Relay |
| Number of Channels | (14 Total) 8 Discrete Inputs, 6 Discrete Outputs |
| Rated Input Voltage | 12 or 24 VDC, Note: 12 VDC is used for the HSC. |
| Rated Input Current | 4 mA |
| Input Insulation Method | Photocoupler |
| Input Voltage/ Current Thresholds | ON CH1-4: 10 VDC/4 mA CH5-8: 14 VDC/4 mA OFF CH1-4: 6 VDC/1 mA CH5-8: 12 VDC/1 mA |
| Rated Output Voltage | 24 VDC, 250 VAC |
| Rated Output Current | 1 point = 2 A 1 COM = 5 A |
| Output Insulation Method | Relay Contact |
| Communication Ports | RS-232, 1 Channel RS-422/485, 1 Channel Ethernet, 1 Port |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/485 |
