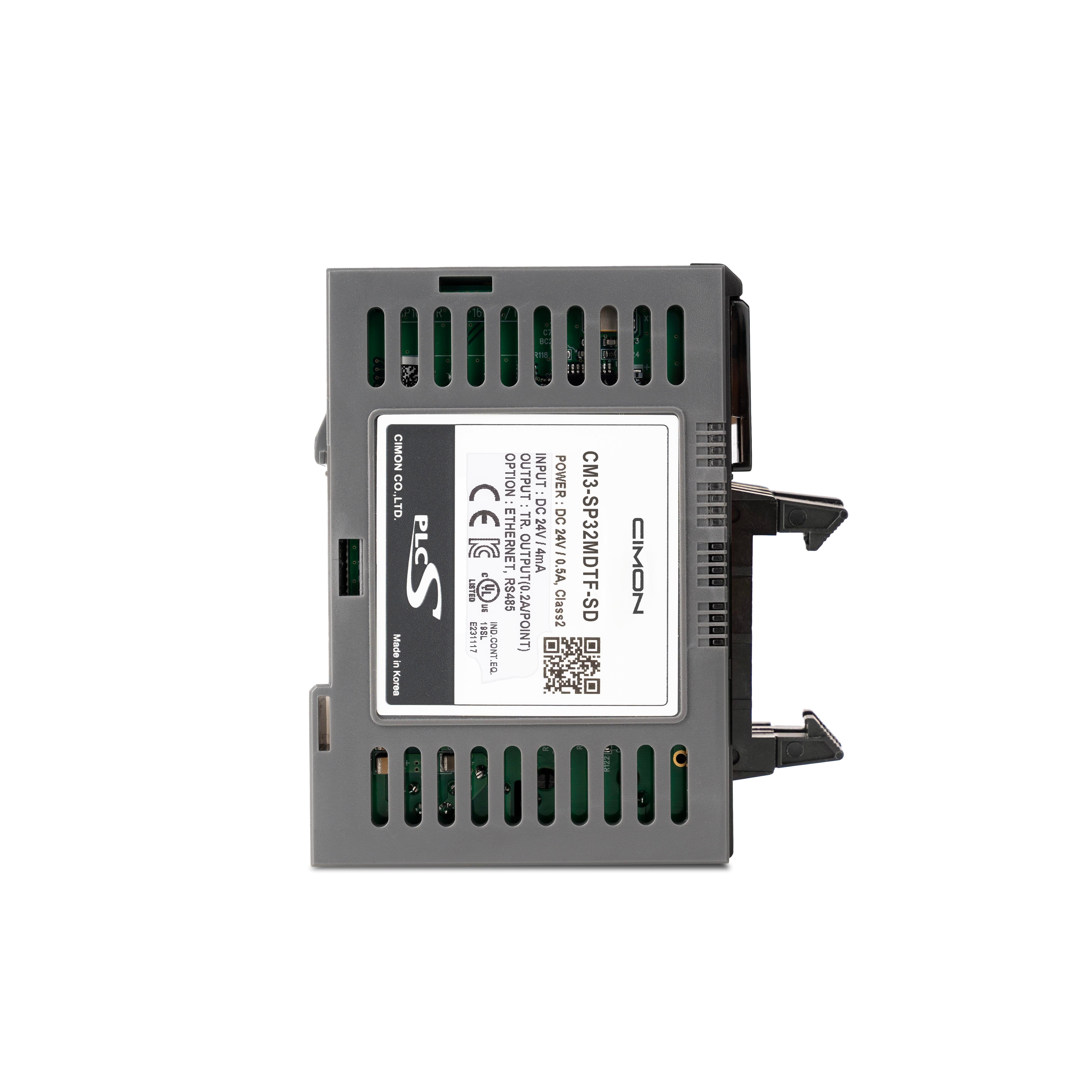

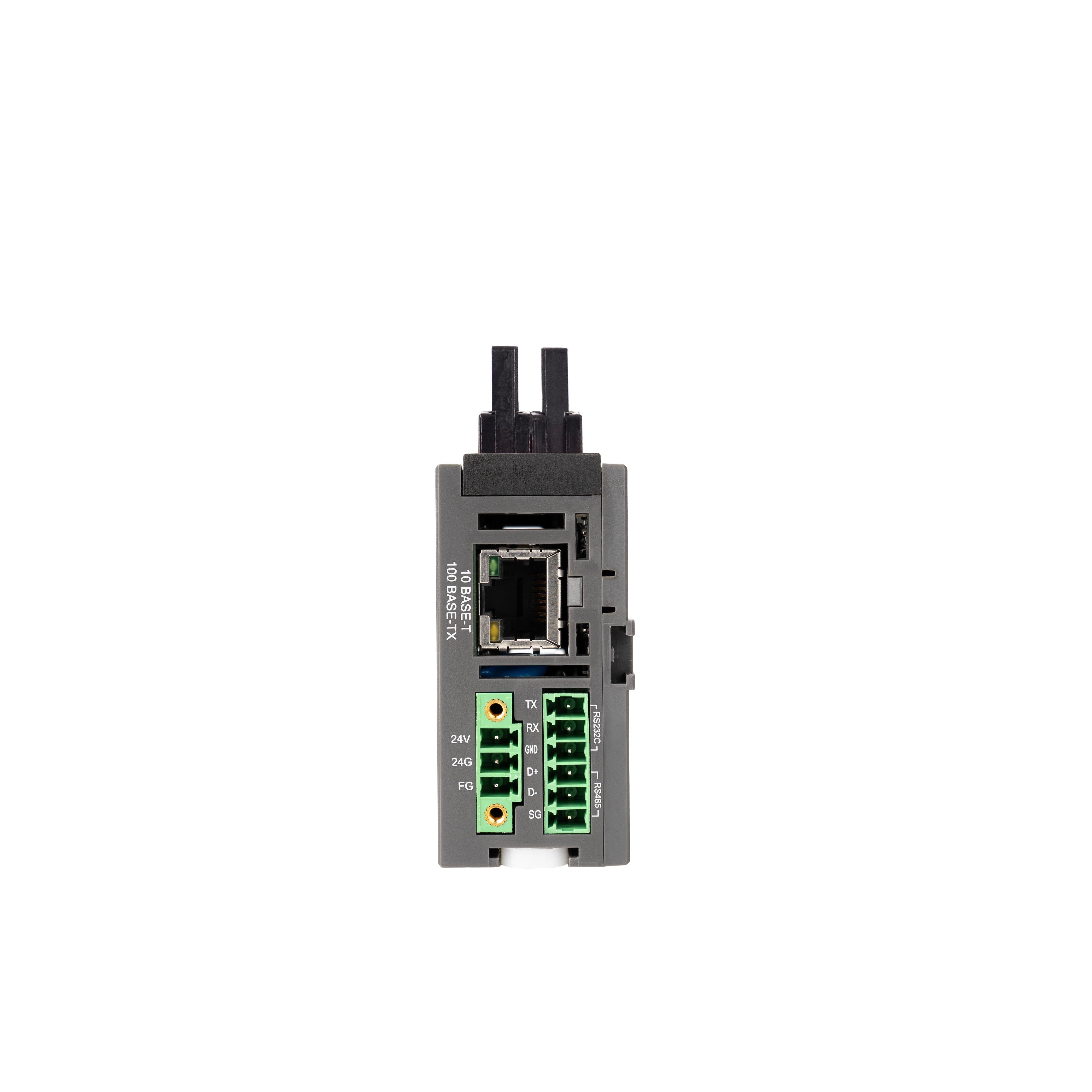

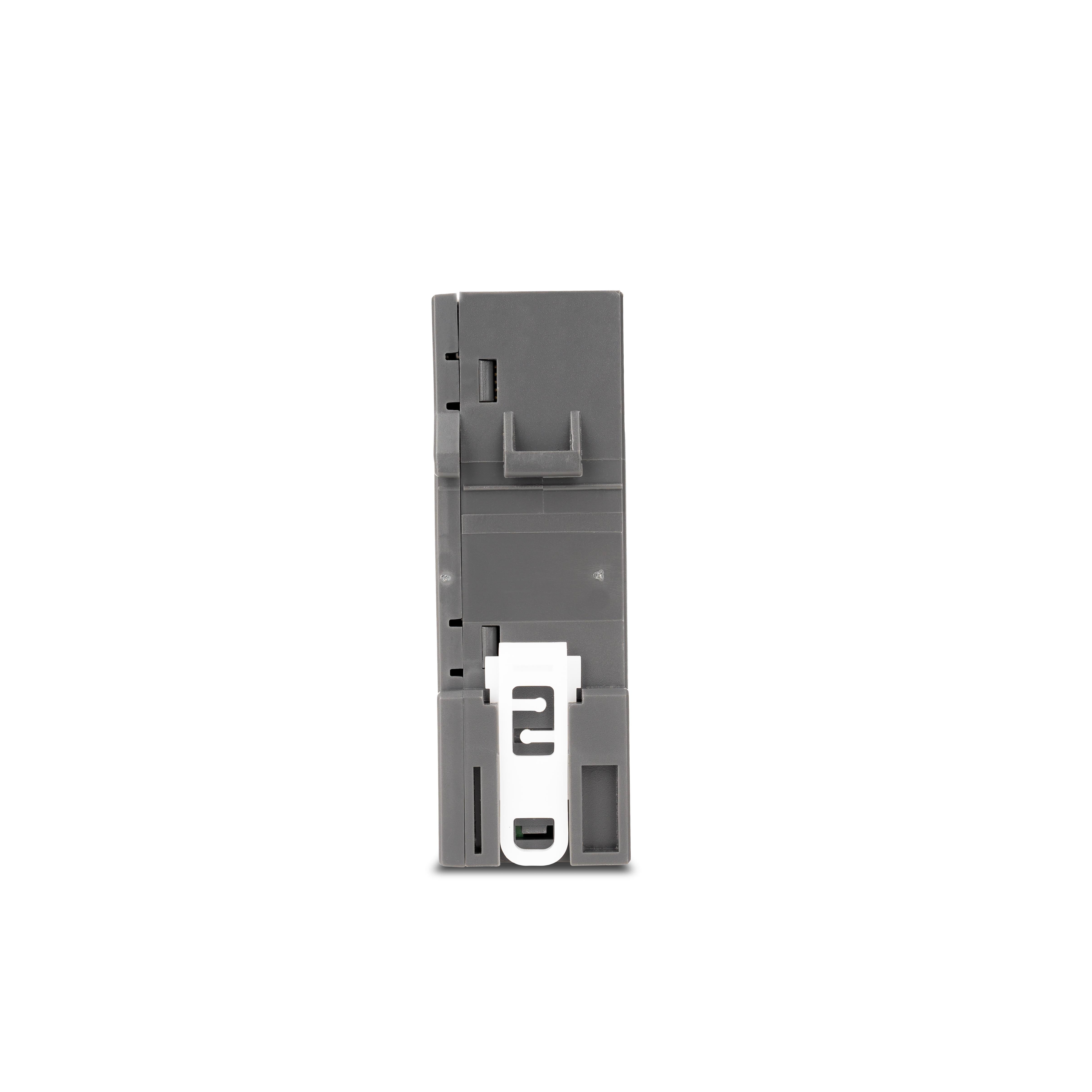

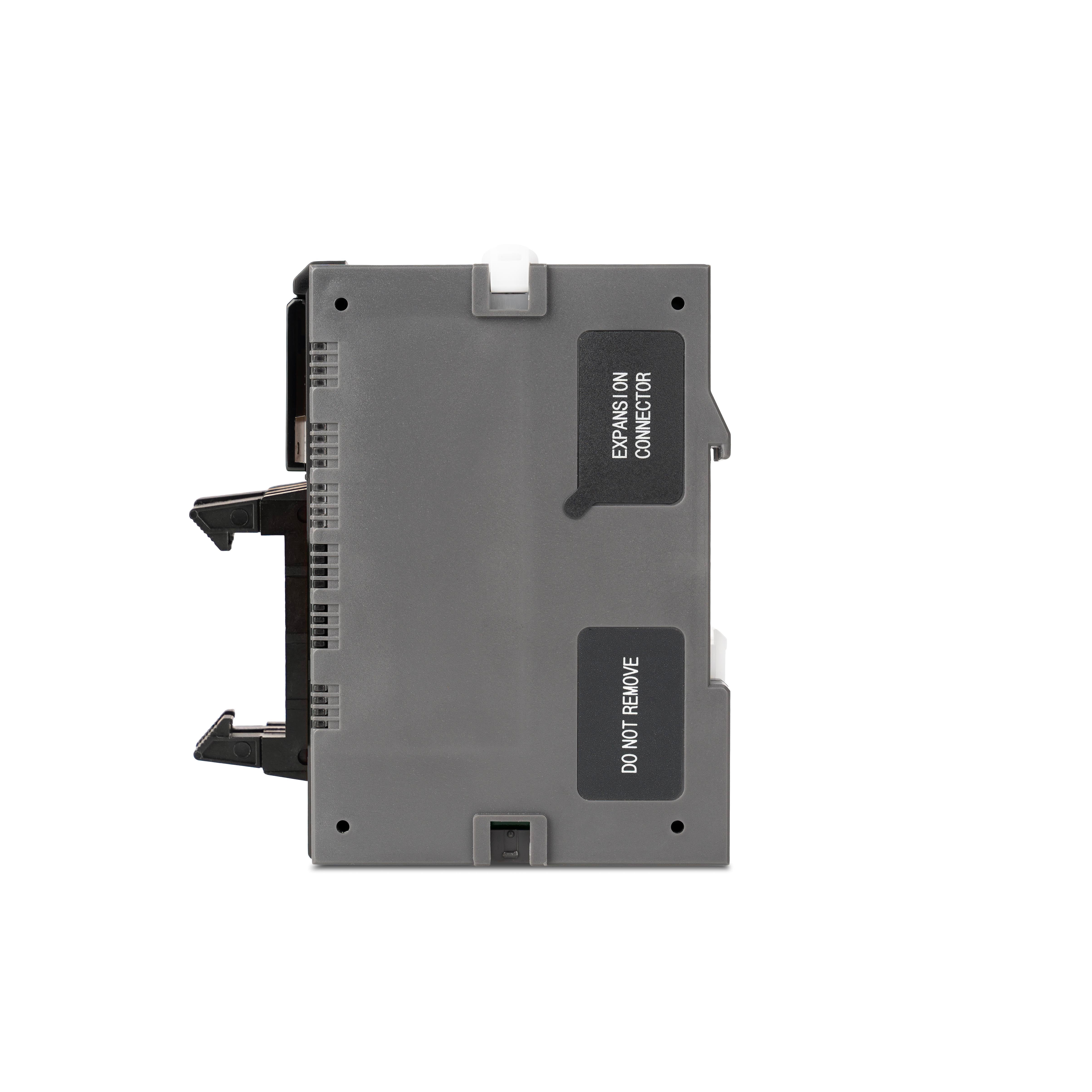

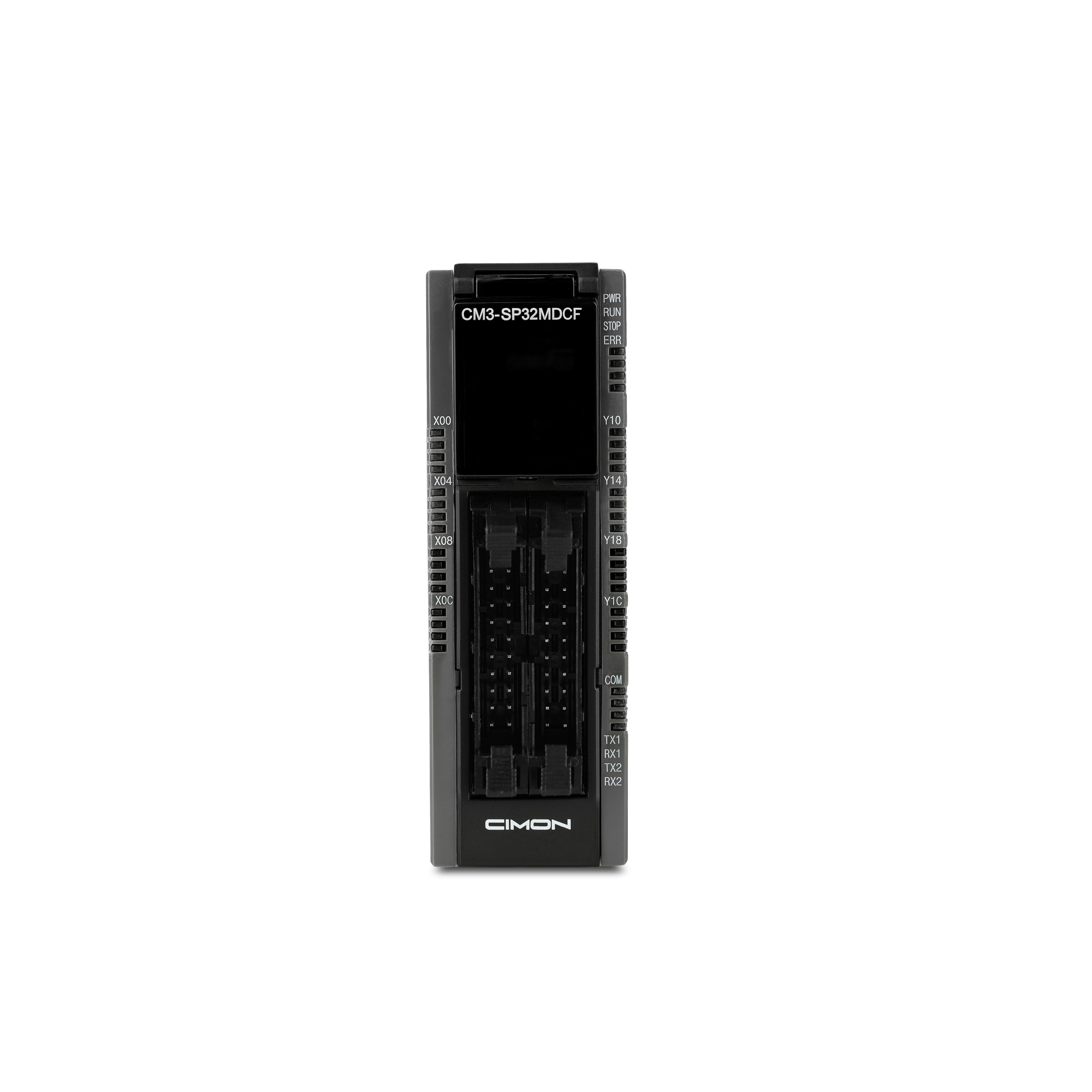

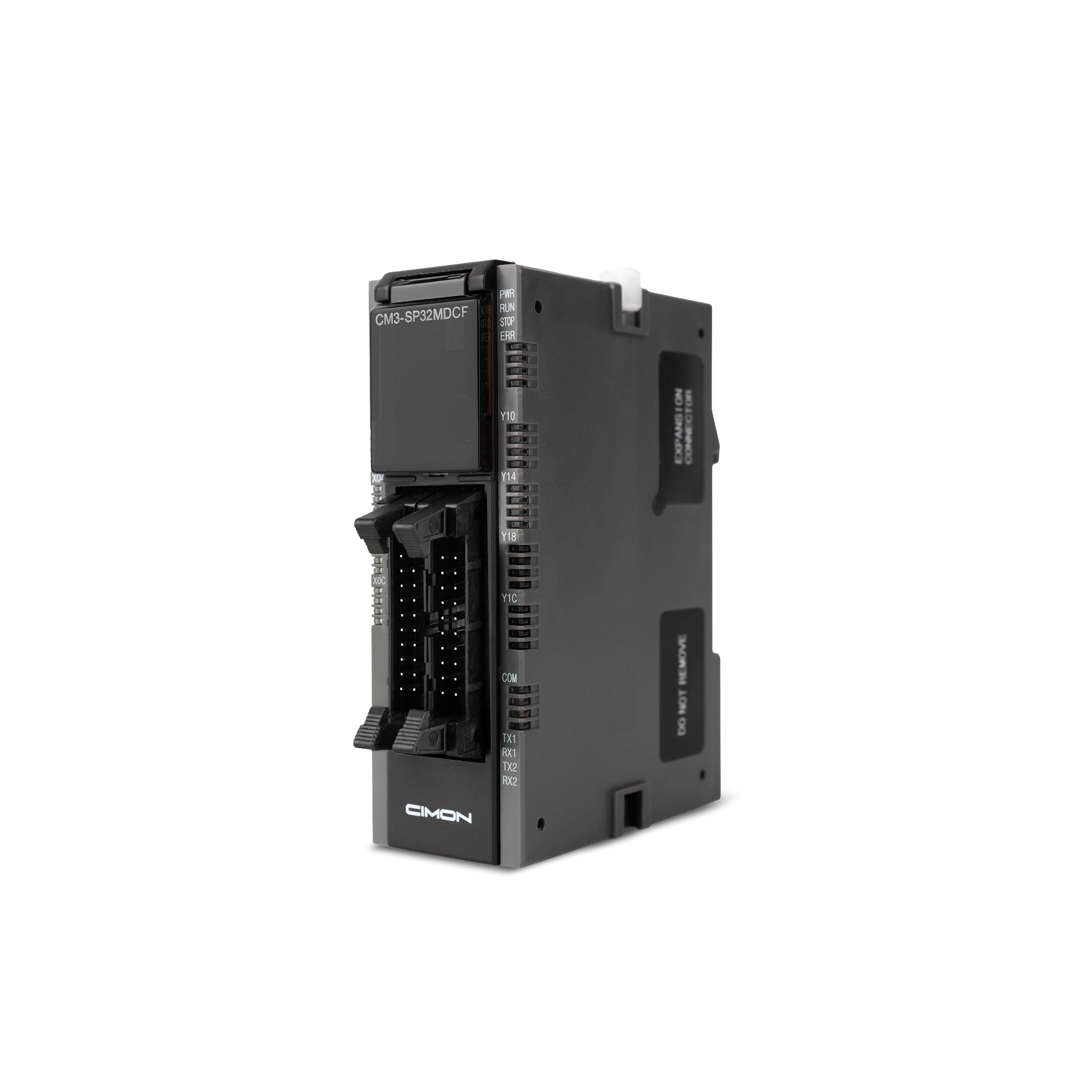

PLC-S CPU Module (32 I/O, Source/Sink Output)

CM3-SP32MDTF-SD
Sale price$460.00

  • PLC-S Mini-Modular PLC
  • Power: 12/24 VDC
  • Expandable
  • (1) Ethernet
  • (2) Serial
  • (1) SD/MMC Card Slot
  • (1) USB Mini-B Port
  • Discrete Input: 16 Point, 12/24 VDC, Sink/Source
  • Discrete Output: 16 Point, 12/24 VDC, Sink, 0.2 A/Point
  • CM0-TB32M terminal block and CM0-SCB15M connection cable required
Discrete Output: Sink

Discrete Output

Required for use:

Specifications
SKU CM3-SP32MDTF-SD
Power Consumption 12 W, 24 VDC, 0.5 A
Input Type TR Sink/Source
Output Type TR Sink
Number of Channels (32 Total)
16 Discrete Inputs,
16 Discrete Outputs
Rated Input Voltage 12 or 24 VDC,
Note: 12 VDC is used for the HSC.
Rated Input Current 4 mA
Input Insulation Method Photocoupler
Input Voltage/ Current Thresholds ON
CH1-4: 10 VDC/4 mA
CH5-16: 14 VDC/4 mA

OFF
CH1-4: 6 VDC/1 mA
CH5-16: 12 VDC/1 mA
Rated Output Voltage 12, 24 VDC
Rated Output Current 1 point = 0.2 A
1 COM = 2 A
Output Insulation Method Photocoupler
Communication Ports RS-232, 1 Channel
RS-422/485, 1 Channel
Ethernet, 1 Port
Utility/Program Port Mini-B USB, SD card, Ethernet, RS-232/422/485
