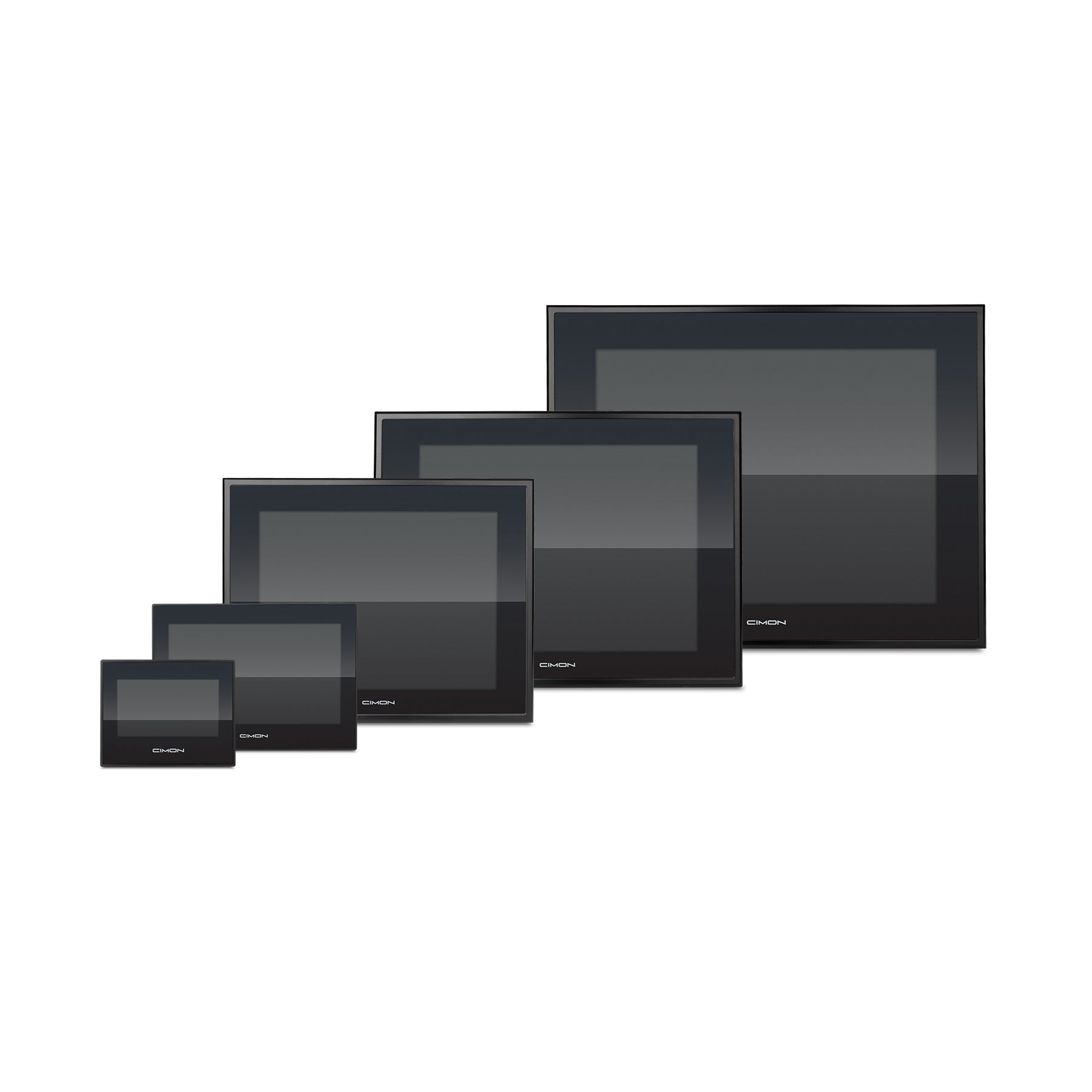

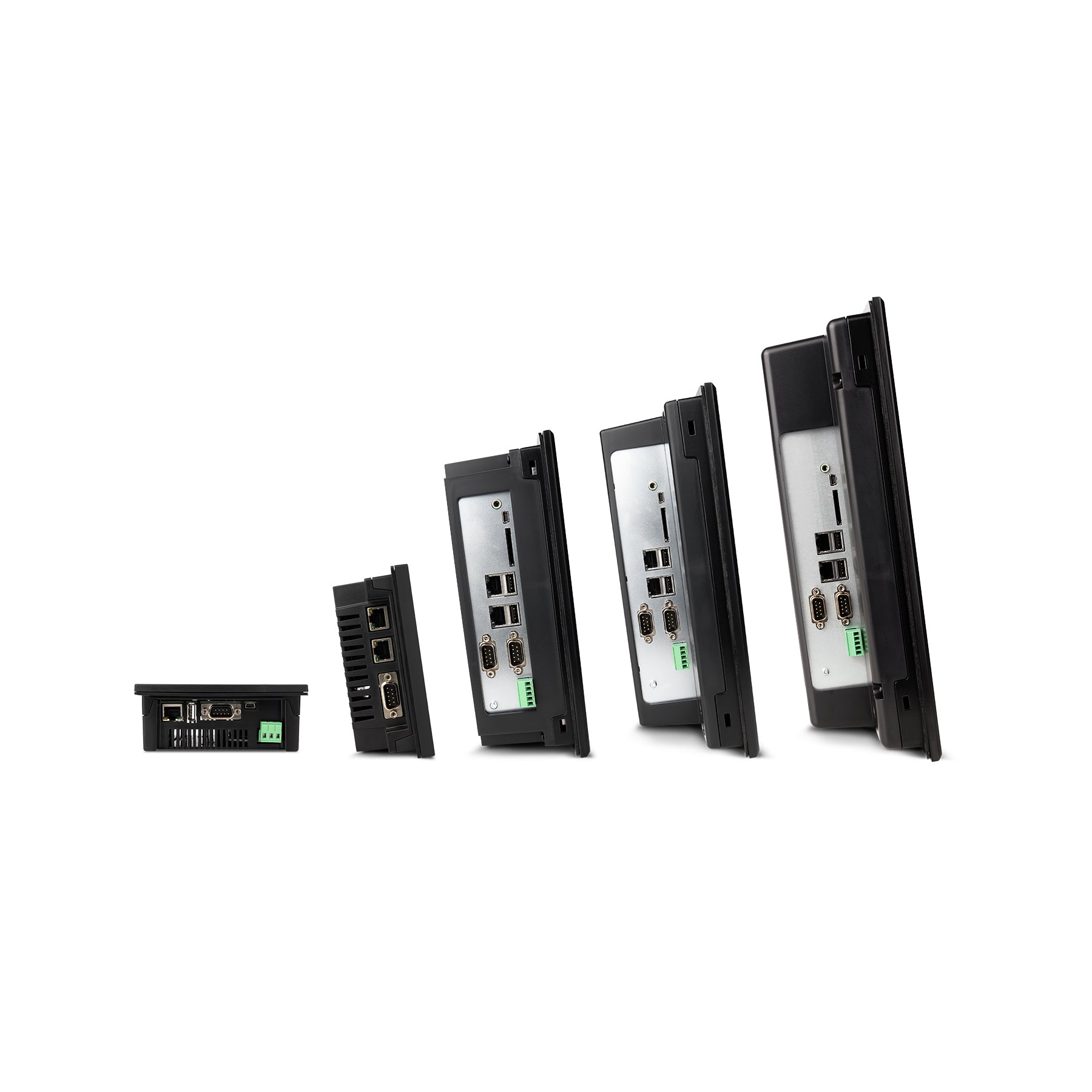

eXT Xpanel, Base HMI

Name: eXT Xpanel, Base HMI
Brand: CIMON
SKU: CM-eXT04-D
Price: 330.0 USD
Availability: InStock

CM-eXT04-D

$330.00

Screen Size:

4"

Variant

Quantity:

Specifications

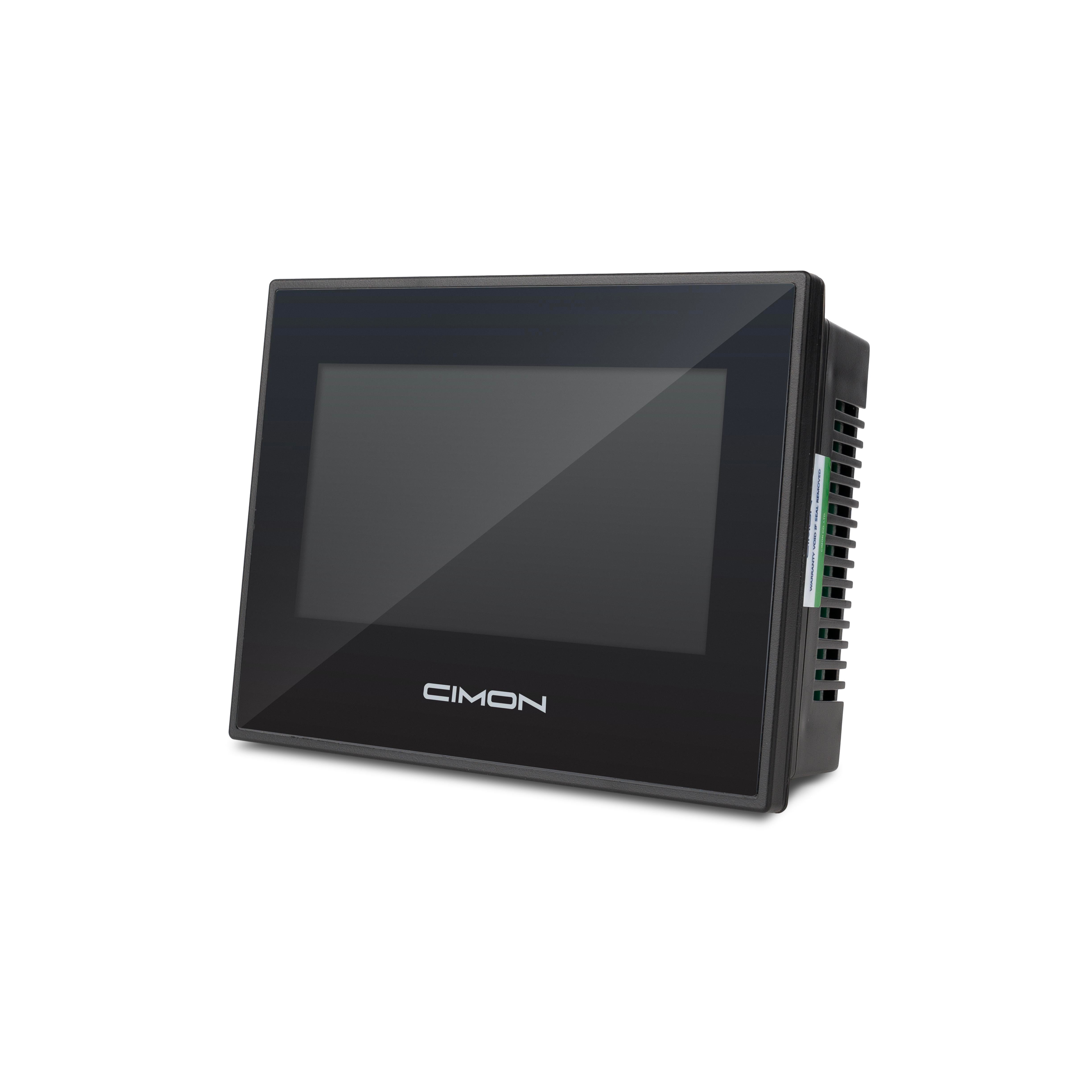

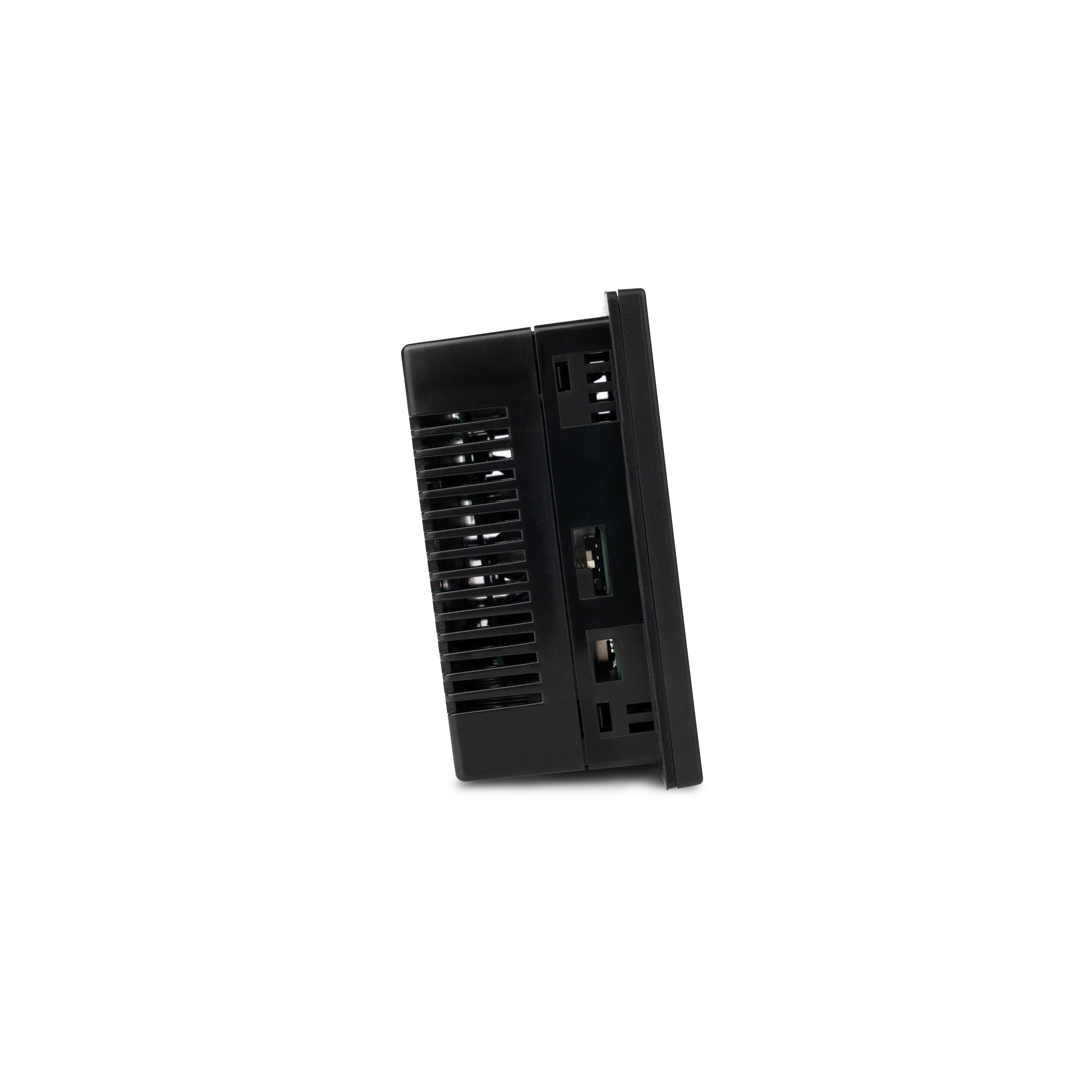

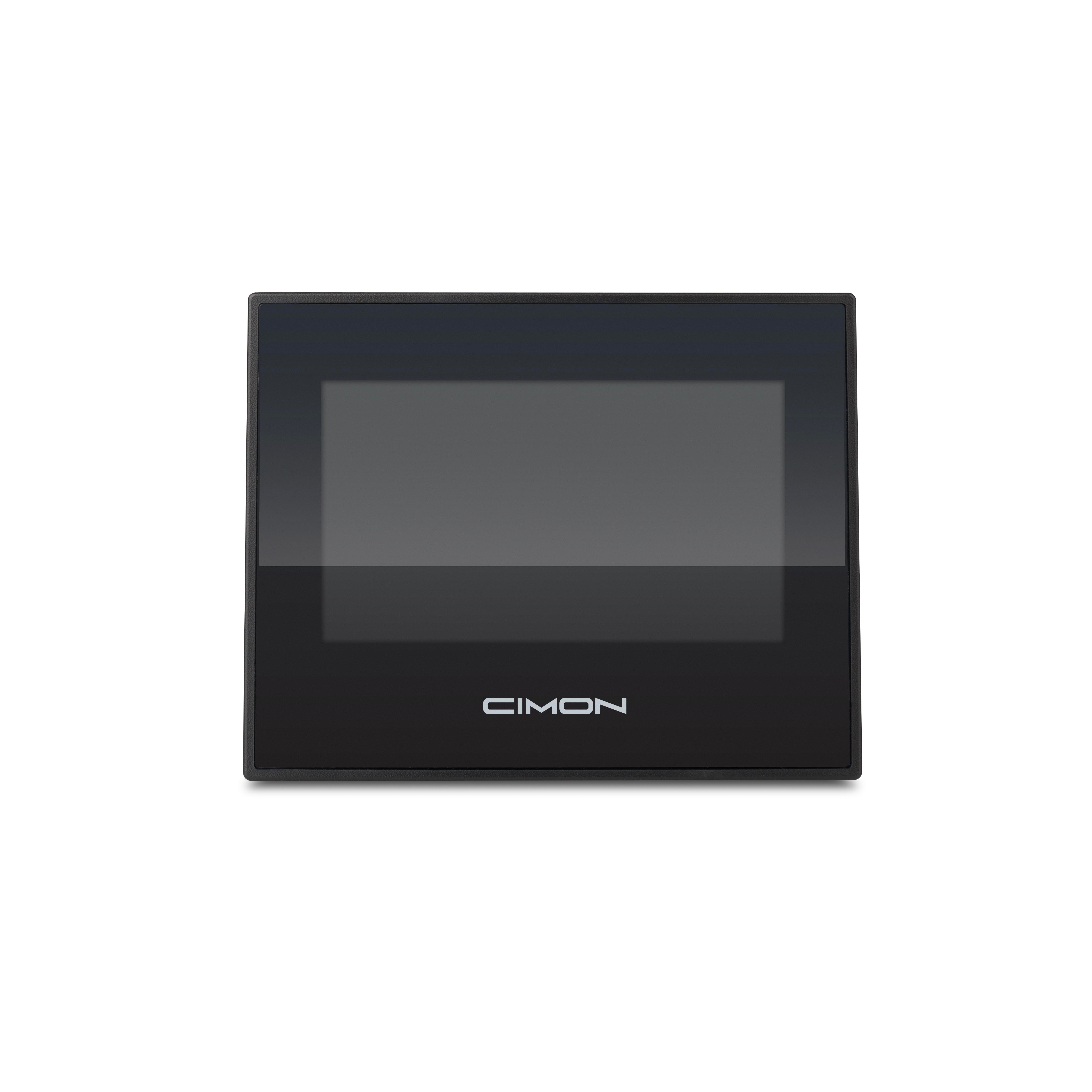

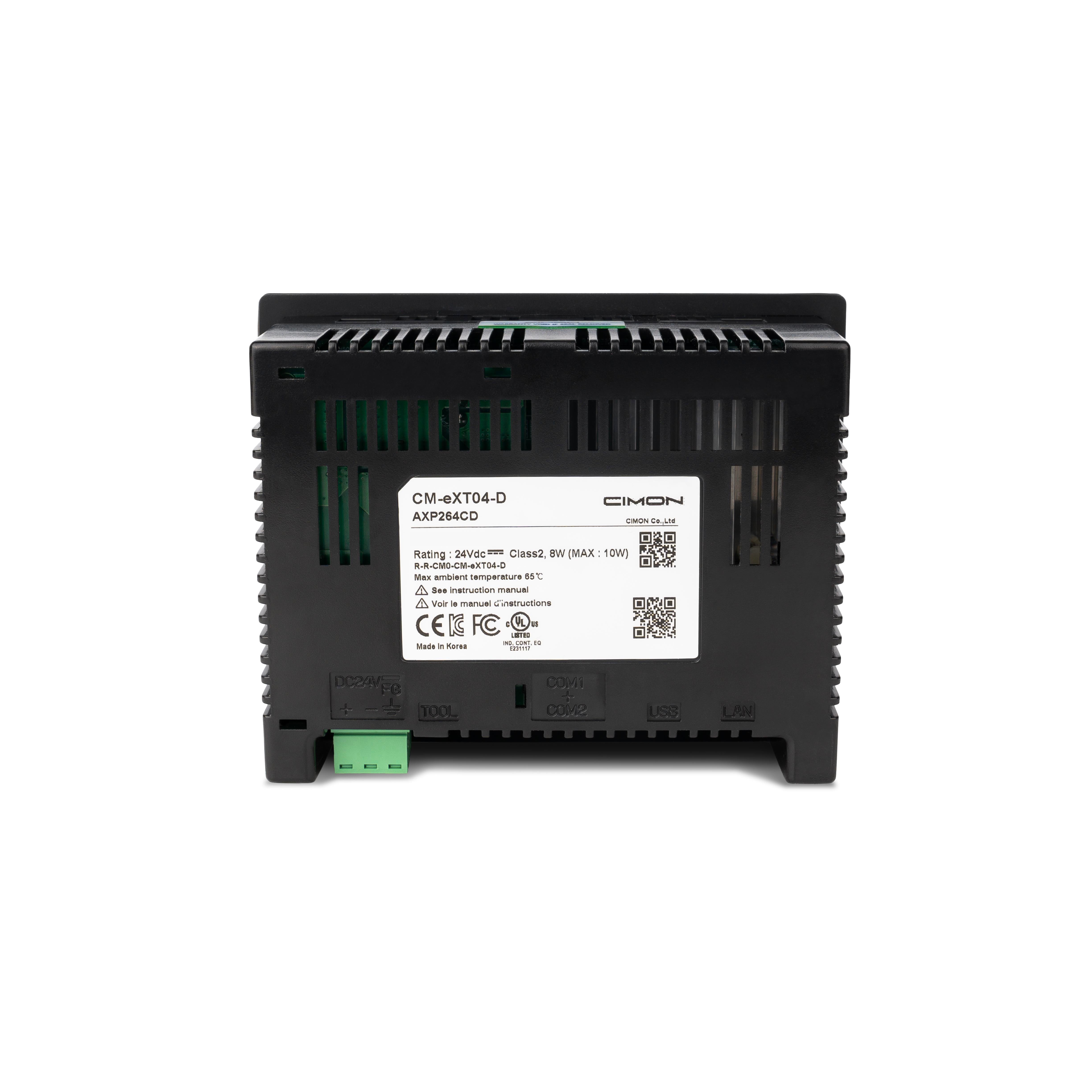

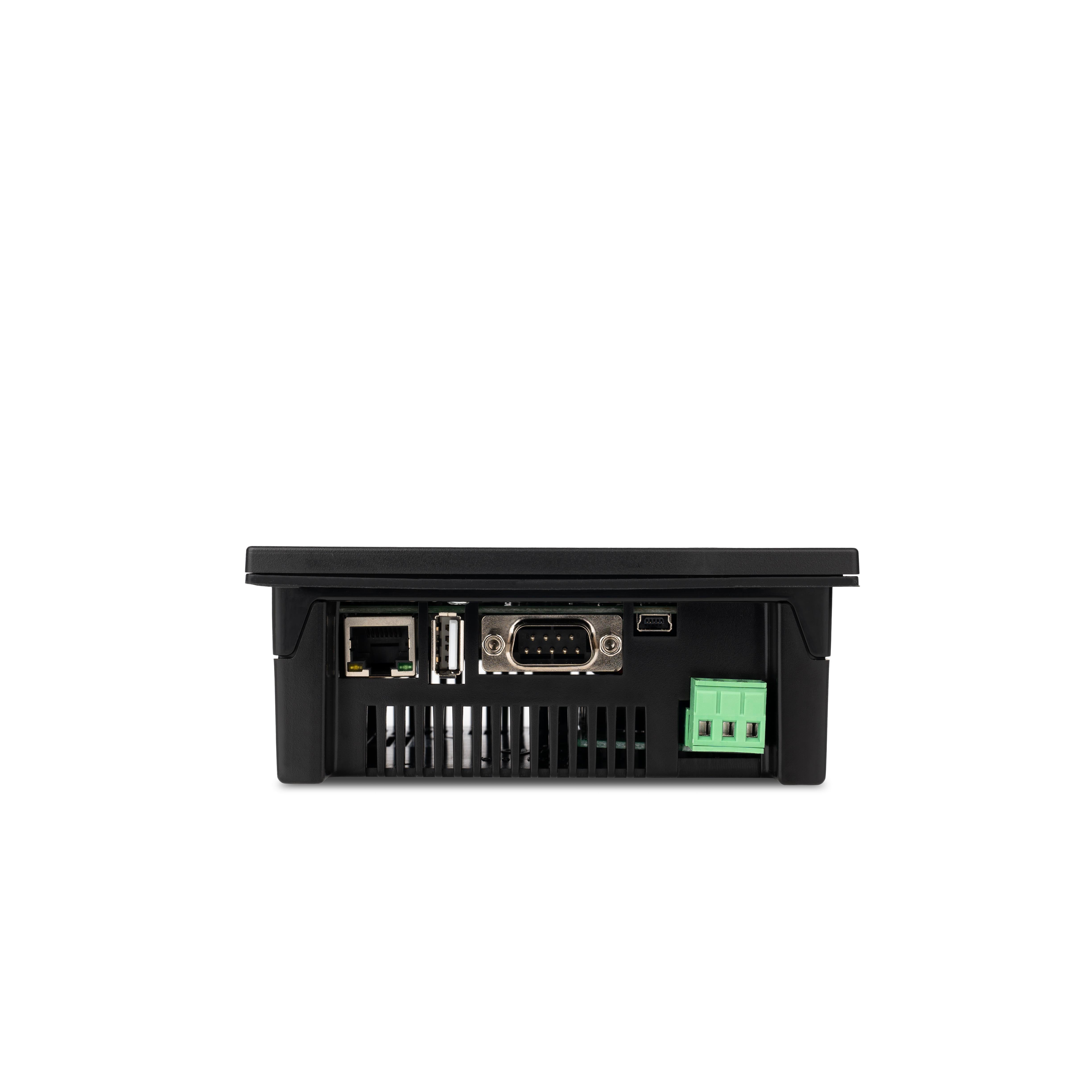

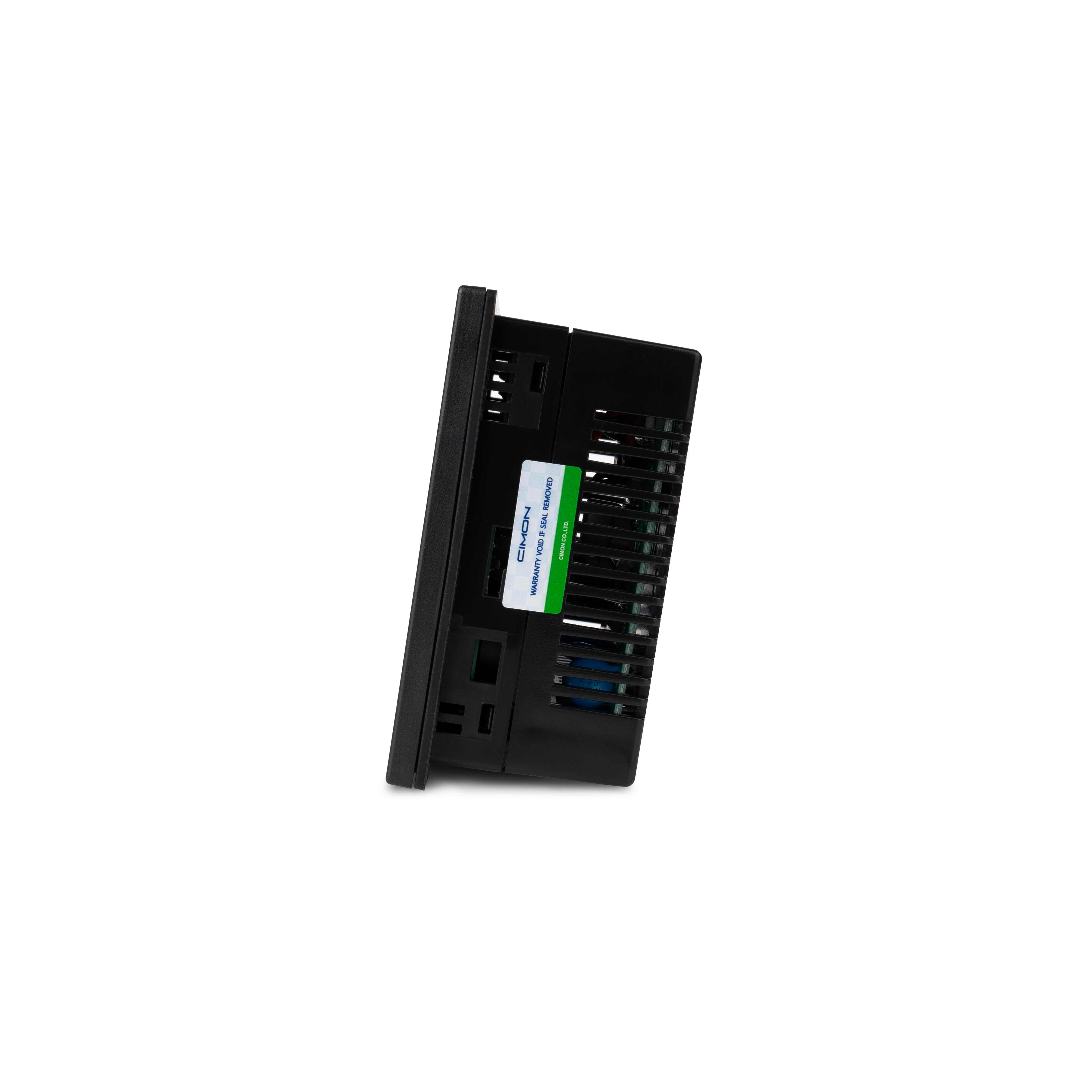

SKU	CM-eXT04-D
LCD Size	4.3 inch Wide TFT Color
Colors	16.7M colors
Resolution	WVGA 800 × 480
Backlight	LED
Luminance	650 cd/m²
Backlight Life	50,000 hours
Touch Panel	4 Wire Resistive
Memory	512 MB DDR3
Storage	8 GB eMMC
SD Card	N/A
COM1	RS-422/485
COM2	RS-232
Ethernet	Gigabit (RJ45), 1 port
USB Host	1 port
Tool Port	1 USB mini-B
Audio	N/A
Front Bezel	Plastic
Rated Voltage	-D: DC24 V (Class 2)
Power Consumption	9W (MAX: 10W)
OS	Embedded Linux
Weight	0.3 kg (0.66 lbs)
Dimension	128 × 102 × 50 mm (5.04 × 4.02 × 1.97 in)
Panel Cut	120 × 94 mm (4.72 × 3.7 in)
Operating Temperature	0°C – 65°C (32°F – 149°F)
Storage Temperature	-20°C – 65°C (-4°F – 149°F)
Operating Humidity	10–90% RH (below 29°C/84.2°F, not condensed)
Storage Humidity	10–90% RH (below 39°C/102.2°F, not condensed)
Environment Condition	800 hPa–1114 hPa (2000 m/6,500 ft or less)
Dust	≤ 0.1mg/m3 (No conductive dust allowed)
Pollution Degree	≤ Pollution Degree 2
Operating Ambience	No corrosive gas or dust
Noise Resistance	Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance	4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2)
Concussion Resistance	JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Vibration Resistance	JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)

Resources

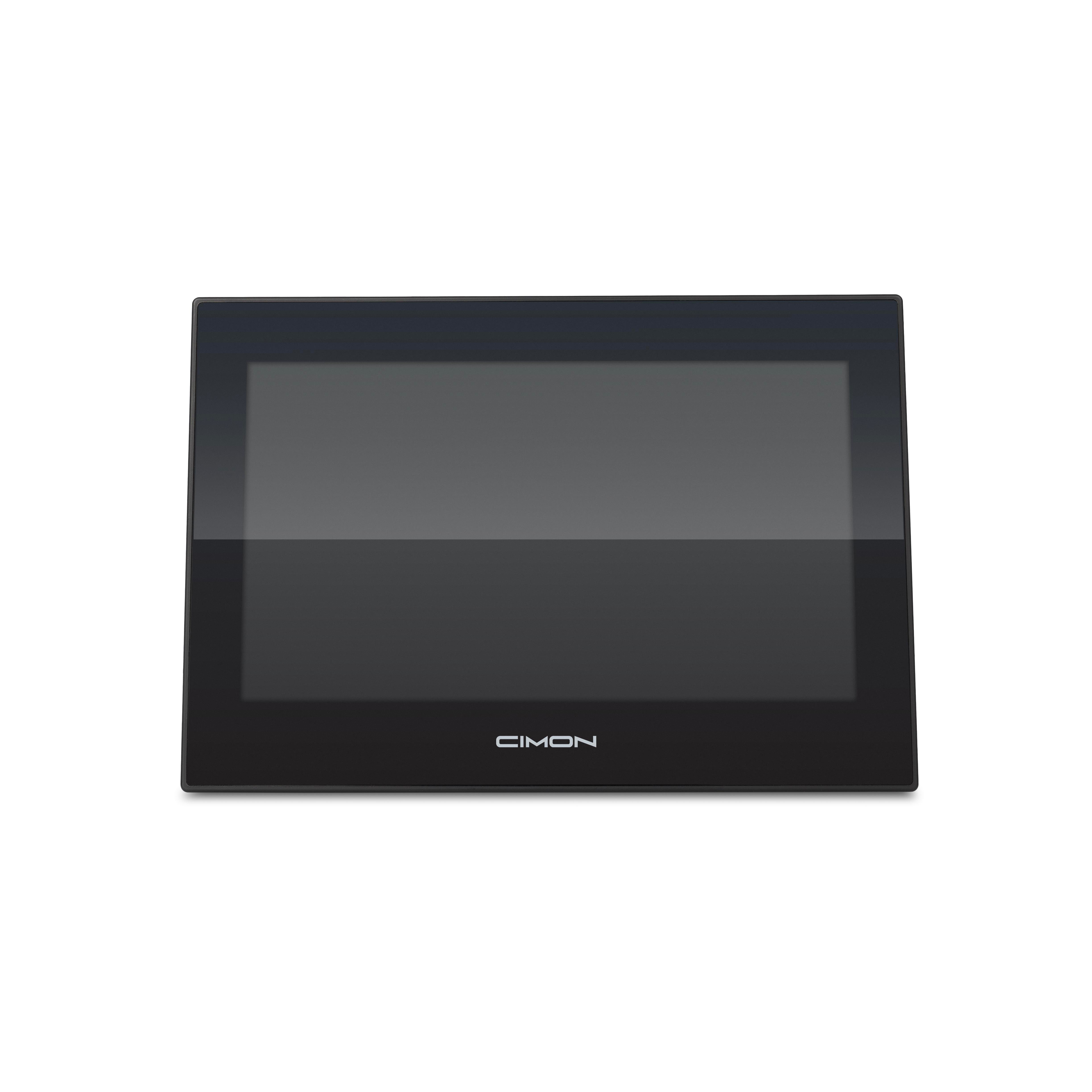

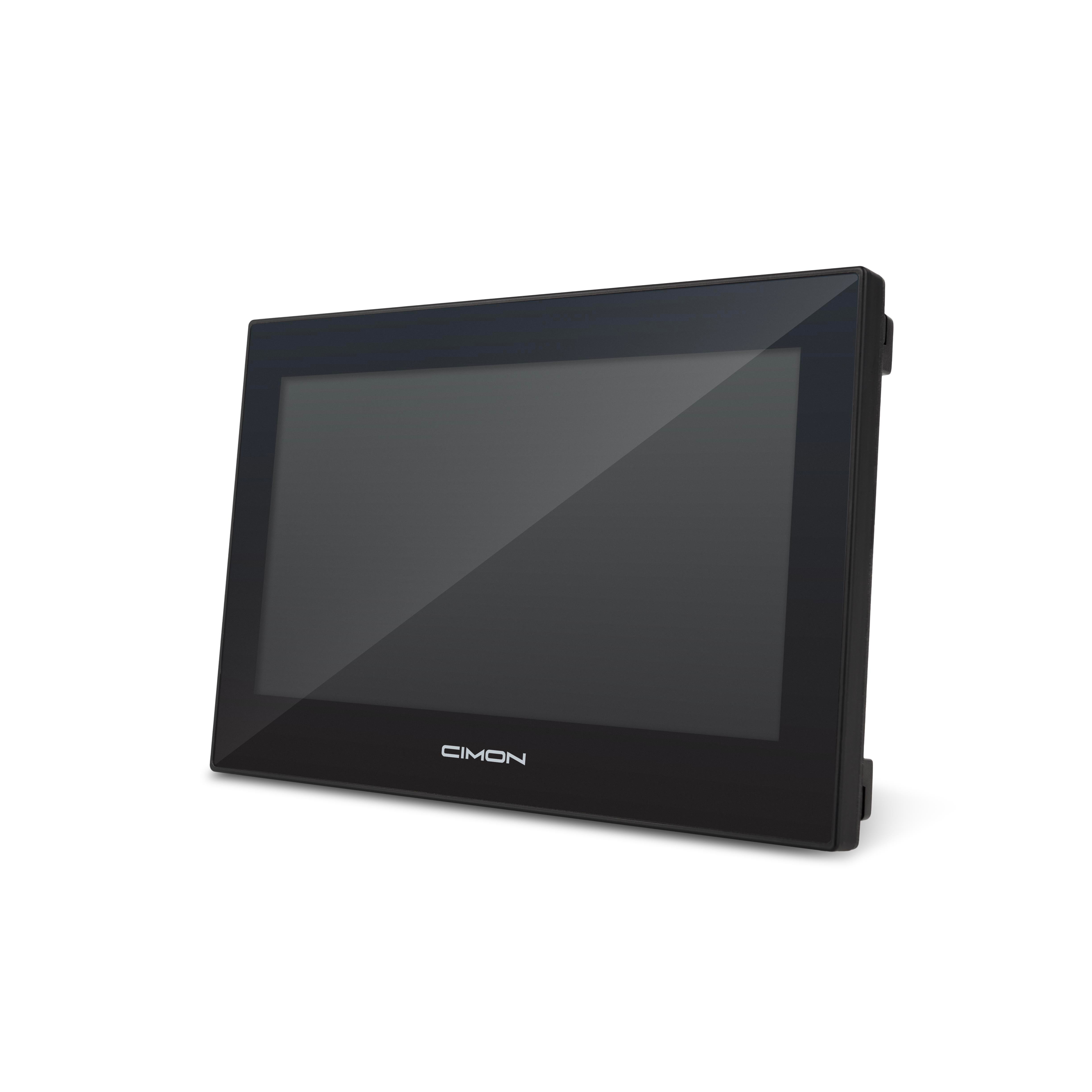

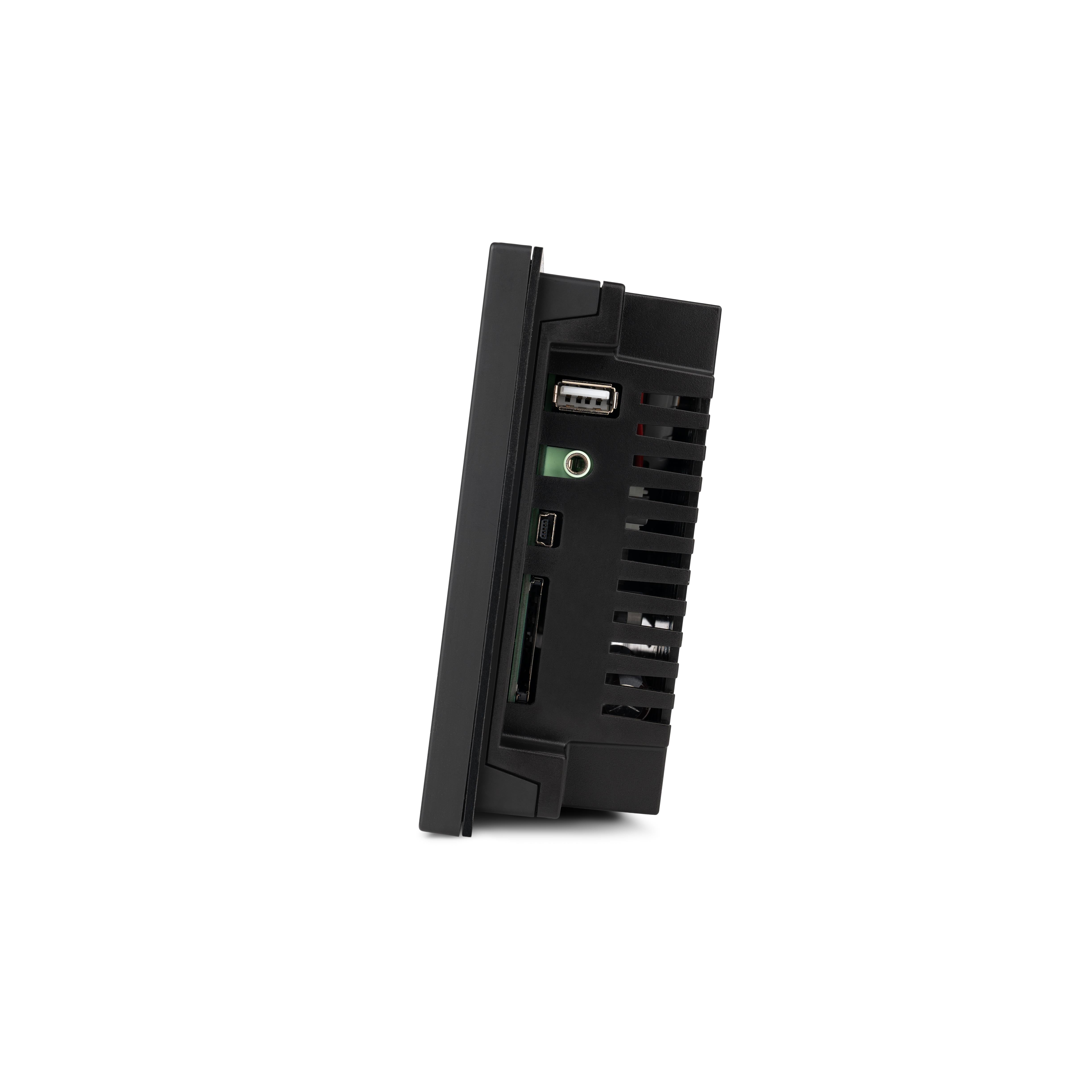

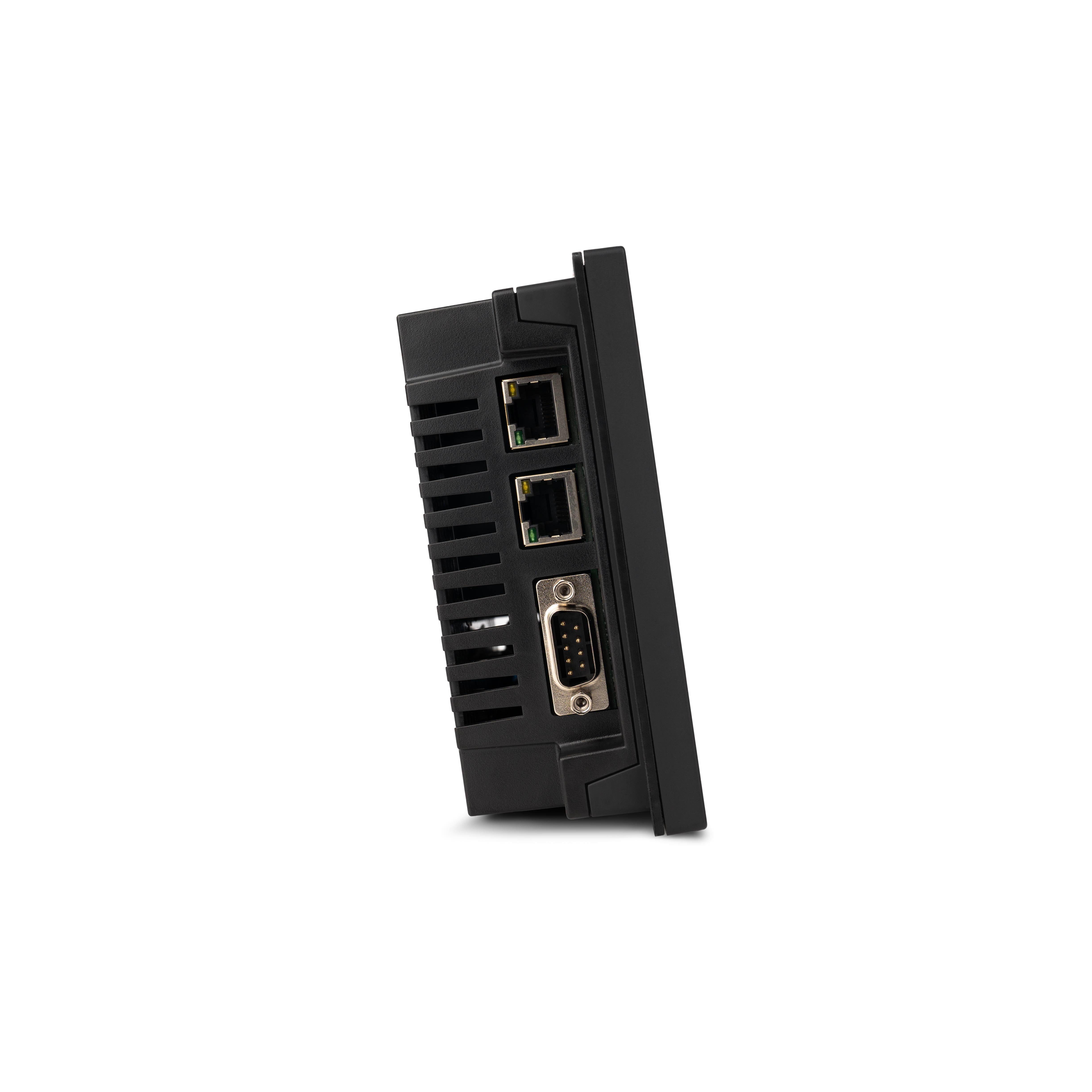

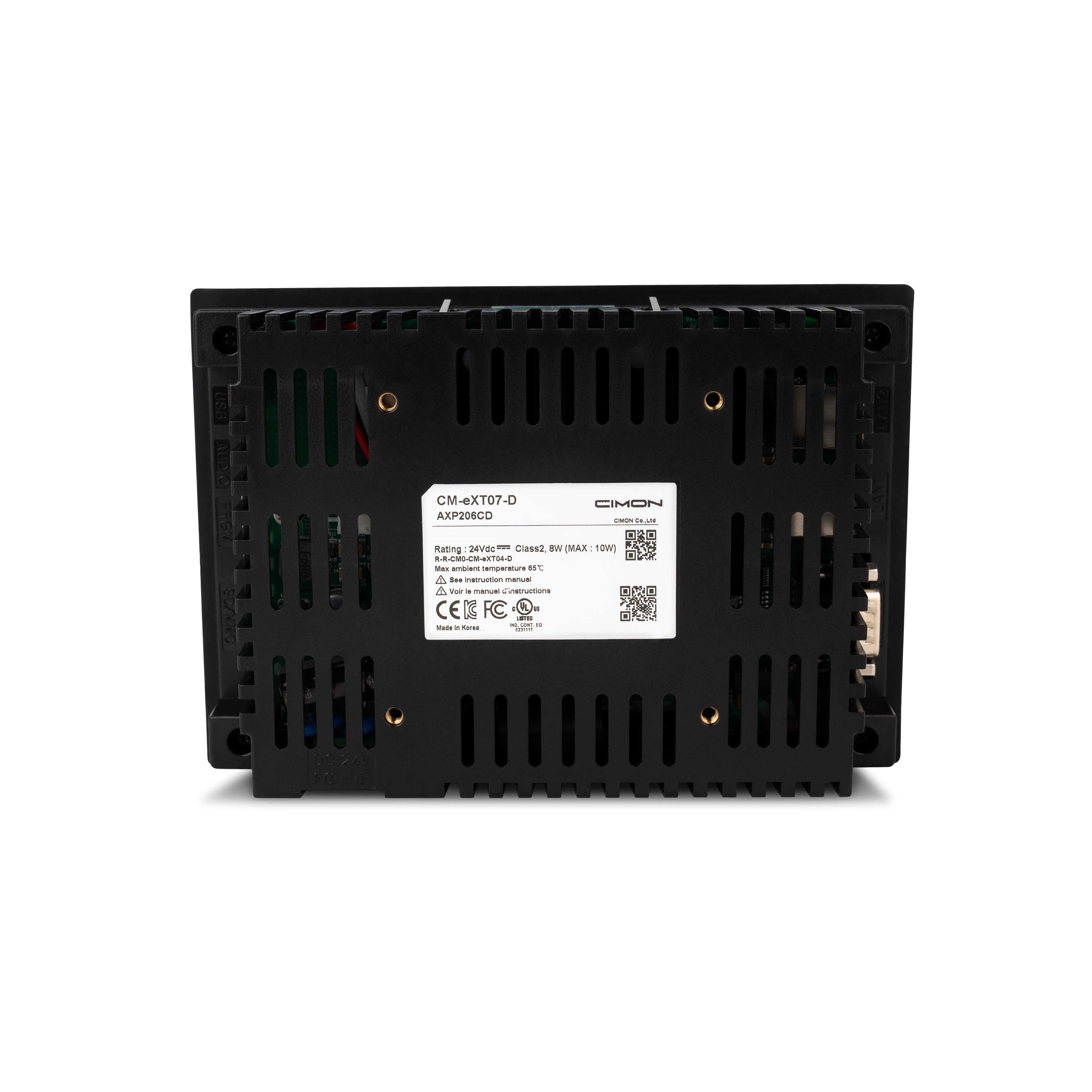

SKU	CM-eXT07-D
LCD Size	7 inch Wide TFT Color
Colors	16.7M colors
Resolution	WVGA 800 × 480
Backlight	LED
Luminance	600 cd/m²
Backlight Life	50,000 hours
Touch Panel	4 Wire Resistive
Memory	1 GB DDR3
Storage	8 GB eMMC
SD Card	1 SD slot
COM1	RS-422/485
COM2	RS-232
Ethernet	Gigabit (RJ45), 2 ports
USB Host	1 port
Tool Port	1 USB mini-B
Audio	1 port
Front Bezel	Plastic
Rated Voltage	-D: DC24 V (Class 2)
Power Consumption	7W (MAX: 12 W)
OS	Embedded Linux
Weight	0.612 kg (1.35 lbs)
Dimension	185 × 127 × 53 mm (7.28 × 5 × 2.09 in)
Panel Cut	177 × 119 mm (6.97 × 4.69 in)
Operating Temperature	0°C - 65°C (32°F - 149°F)
Storage Temperature	-20°C - 65°C (-4°F - 149°F)
Operating Humidity	10–90% RH (below 29°C/84.2°F, not condensed)
Storage Humidity	10–90% RH (below 39°C/102.2°F, not condensed)
Environment Condition	800 hPa–1114 hPa (2000 m/6,500 ft or less)
Dust	≤ 0.1mg/m³ (No conductive dust allowed)
Pollution Degree	≤ Pollution Degree 2
Operating Ambience	No corrosive gas or dust
Noise Resistance	Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance	4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2)
Concussion Resistance	JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Vibration Resistance	JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)

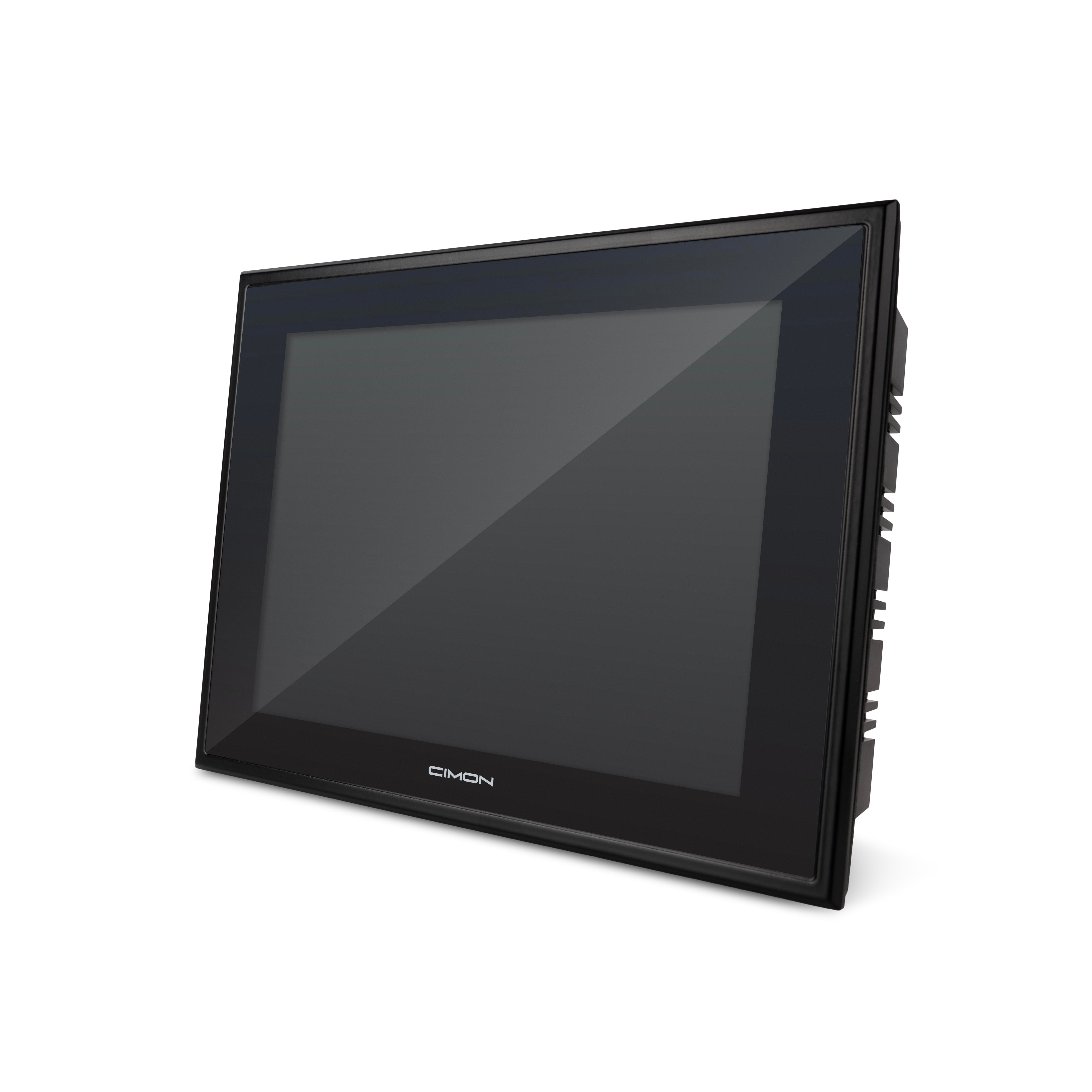

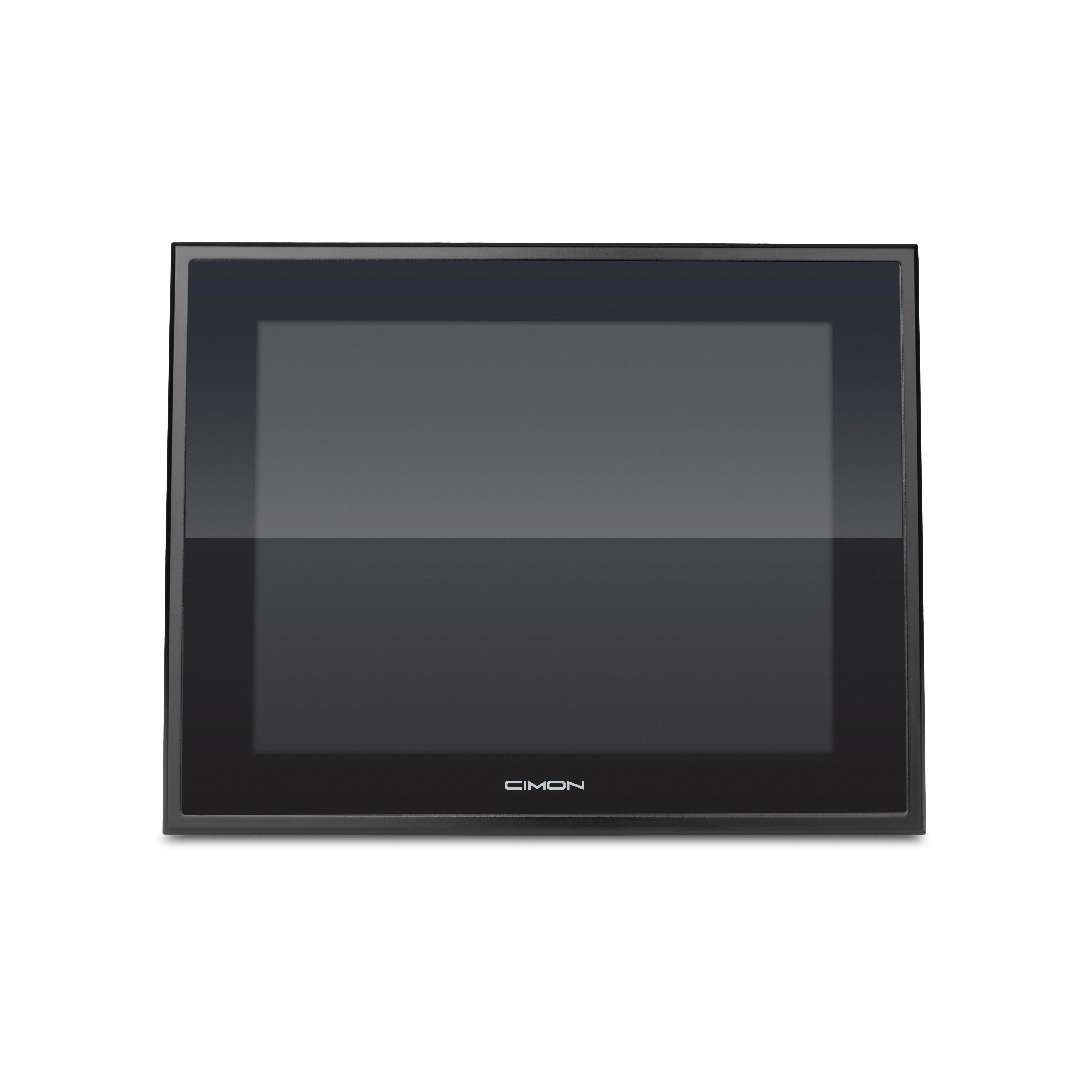

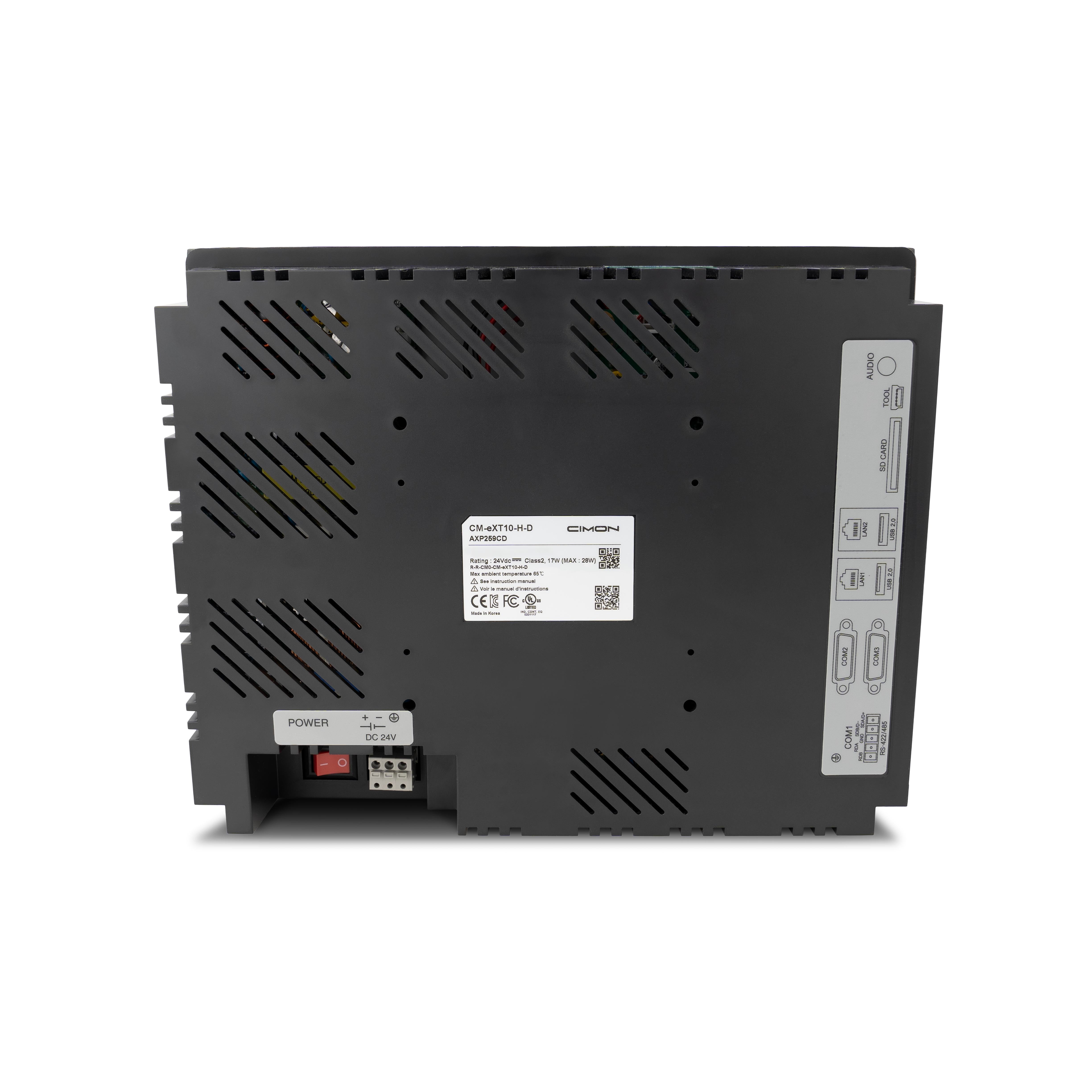

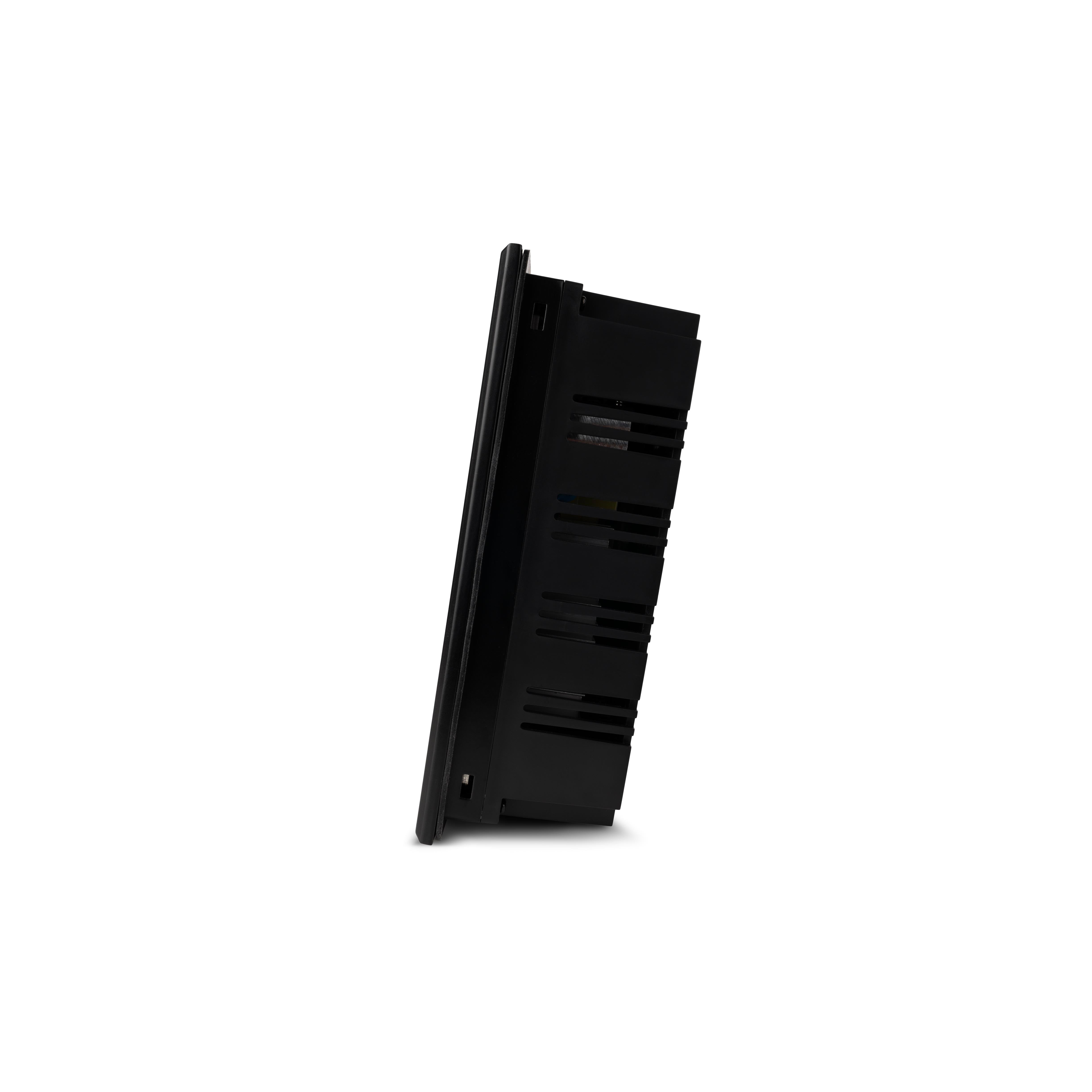

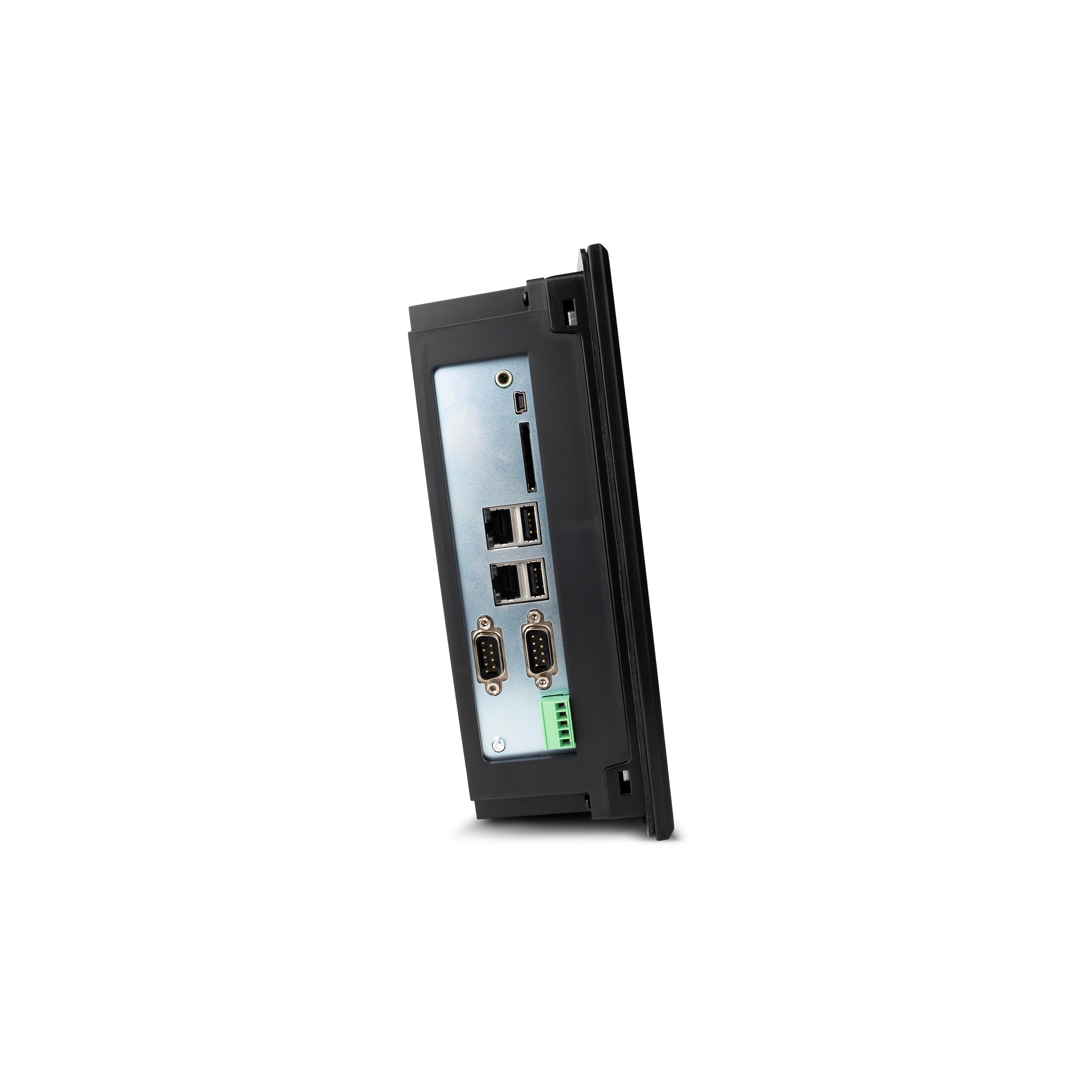

SKU	CM-eXT10-H-D
LCD Size	10 inch Wide TFT Color
Colors	16.2M colors
Resolution	1024 × 768
Backlight	LED
Luminance	700 cd/m²
Backlight Life	50,000 hours
Touch Panel	4 Wire Resistive
Memory	1 GB DDR3
Storage	8 GB eMMC
SD Card	1 SD slot
COM1	RS-422/485
COM2	RS-232
Ethernet	Gigabit (RJ45), 2 ports
USB Host	2 ports
Tool Port	1 USB mini-B
Audio	1 port
Front Bezel	Aluminum
Rated Voltage	-D: DC24 V (Class 2)
Power Consumption	11W (MAX : 20W)
OS	Embedded Linux
Weight	2.5 kg (5.5 lbs)
Dimension	280 × 220 × 76 mm (11.02 × 8.66 × 2.99 in)
Panel Cut	267 × 207 mm (10.51 × 8.15 in)
Operating Temperature	0°C - 65°C (32°F - 149°F)
Storage Temperature	-20°C - 65°C (-4°F - 149°F)
Operating Humidity	10–90% RH (below 29°C/84.2°F, not condensed)
Storage Humidity	10–90% RH (below 39°C/102.2°F, not condensed)
Environment Condition	800 hPa–1114 hPa (2000 m/6,500 ft or less)
Dust	≤ 0.1mg/m³ (No conductive dust allowed)
Pollution Degree	≤ Pollution Degree 2
Operating Ambience	No corrosive gas or dust
Noise Resistance	Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance	4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2)
Concussion Resistance	JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Vibration Resistance	JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)

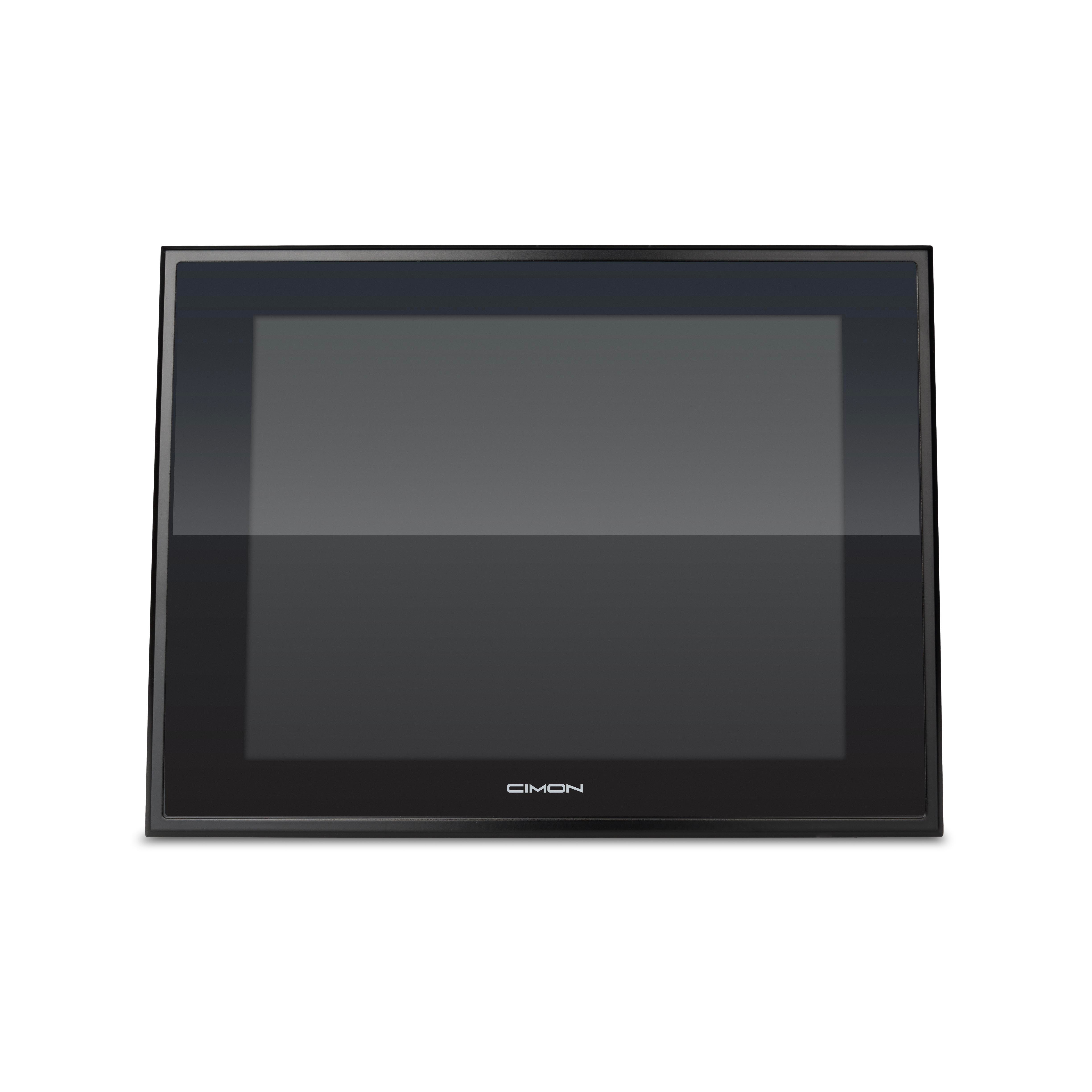

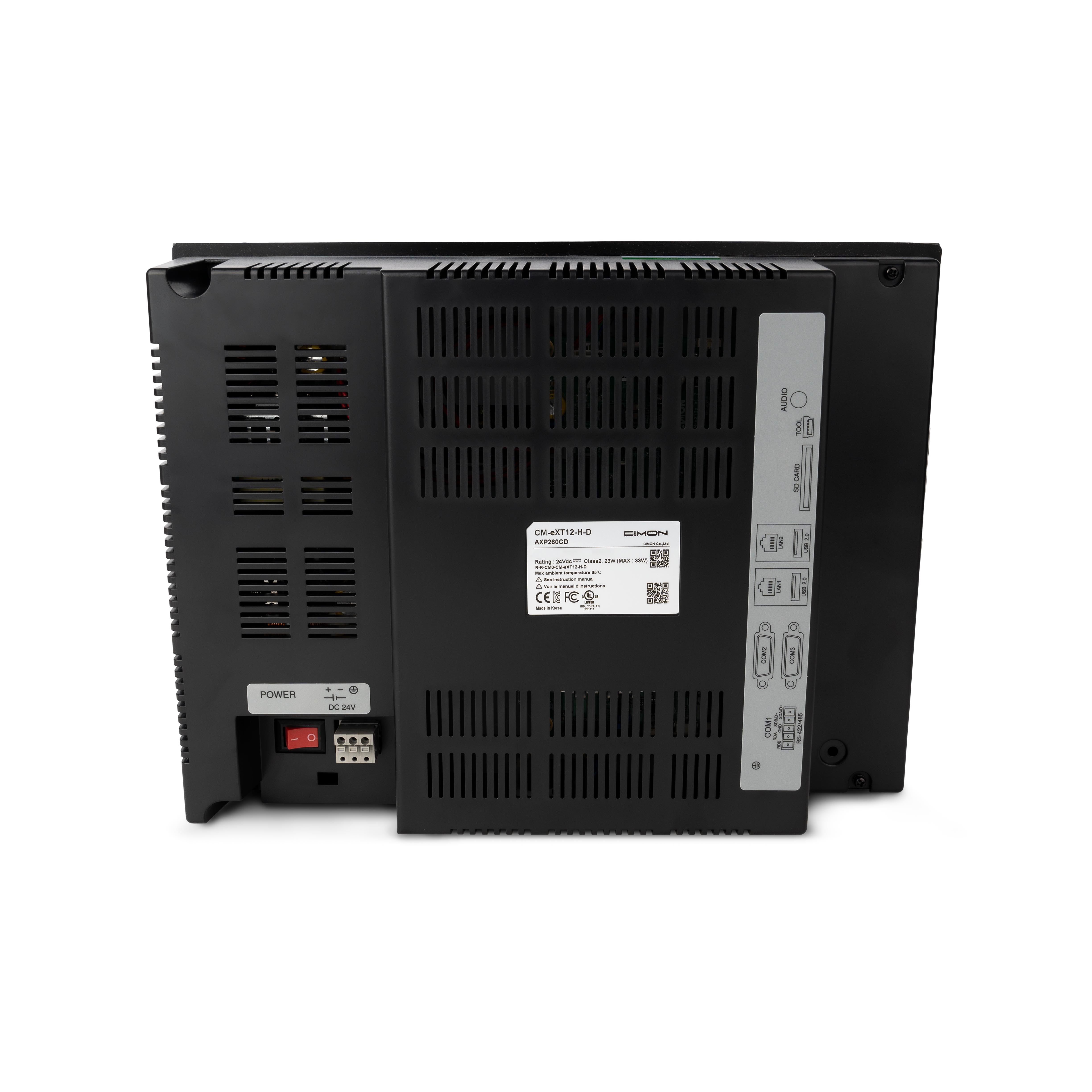

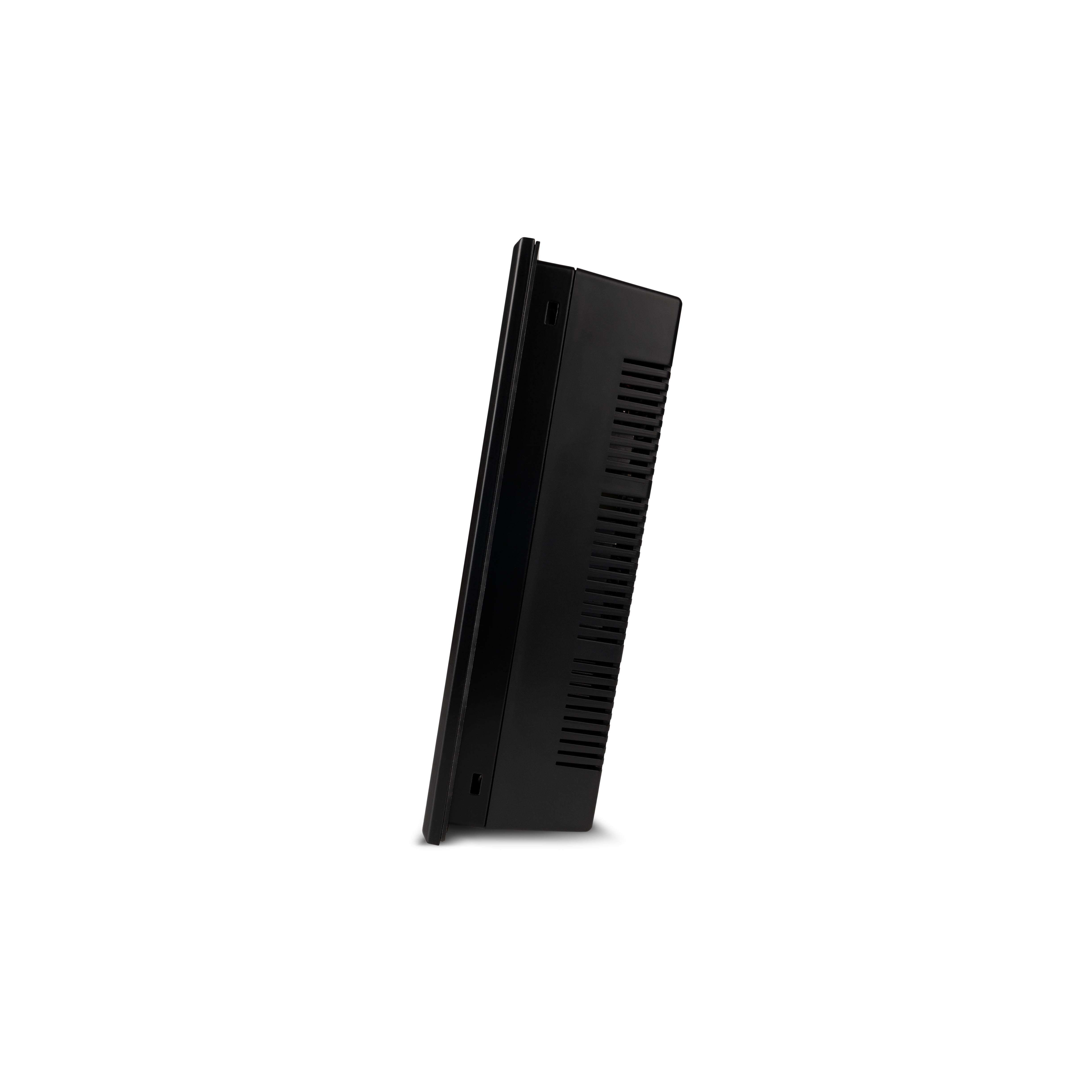

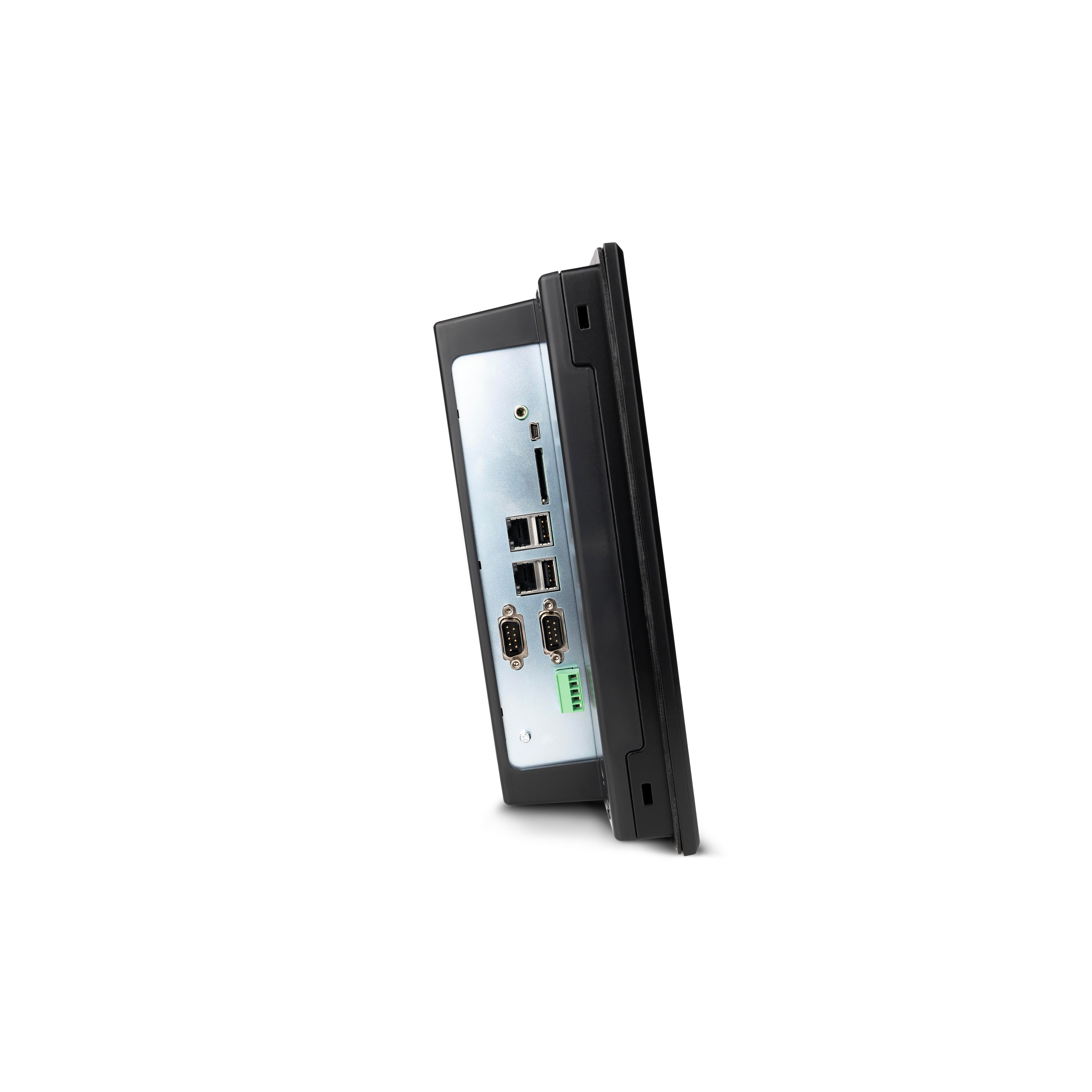

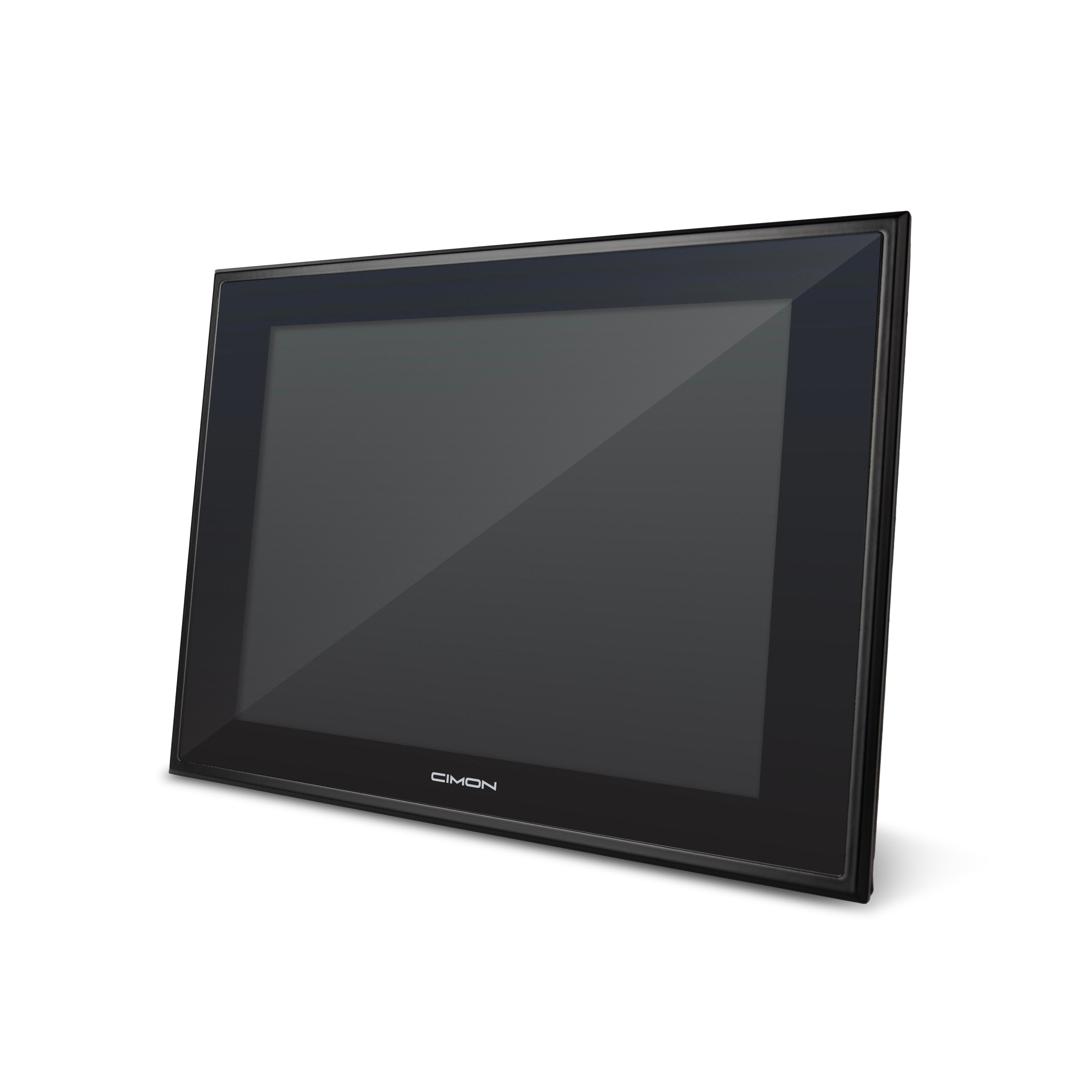

SKU	CM-eXT12-H-D
LCD Size	12 inch Wide TFT Color
Colors	16.2M colors
Resolution	1024 × 768
Backlight	LED
Luminance	700 cd/m²
Backlight Life	50,000 hours
Touch Panel	4 Wire Resistive
Memory	1 GB DDR3
Storage	8 GB eMMC
SD Card	1 SD slot
COM1	RS-422/485
COM2	RS-232
Ethernet	Gigabit (RJ45), 2 ports
USB Host	2 ports
Tool Port	1 USB mini-B
Audio	1 port
Front Bezel	Aluminum
Rated Voltage	-D: DC24 V (Class 2)
Power Consumption	12W (MAX : 25.5W)
OS	Embedded Linux
Weight	3.3 kg (7.3 lbs)
Dimension	330 × 250 × 83 mm (12.99 × 9.84 × 3.27 in)
Panel Cut	319 × 239 mm (12.56 × 9.41 in)
Operating Temperature	0°C - 65°C (32°F - 149°F)
Storage Temperature	-20°C - 65°C (-4°F - 149°F)
Operating Humidity	10–90% RH (below 29°C/84.2°F, not condensed)
Storage Humidity	10–90% RH (below 39°C/102.2°F, not condensed)
Environment Condition	800 hPa–1114 hPa (2000 m/6,500 ft or less)
Dust	≤ 0.1mg/m³ (No conductive dust allowed)
Pollution Degree	≤ Pollution Degree 2
Operating Ambience	No corrosive gas or dust
Noise Resistance	Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance	4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2)
Concussion Resistance	JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Vibration Resistance	JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)

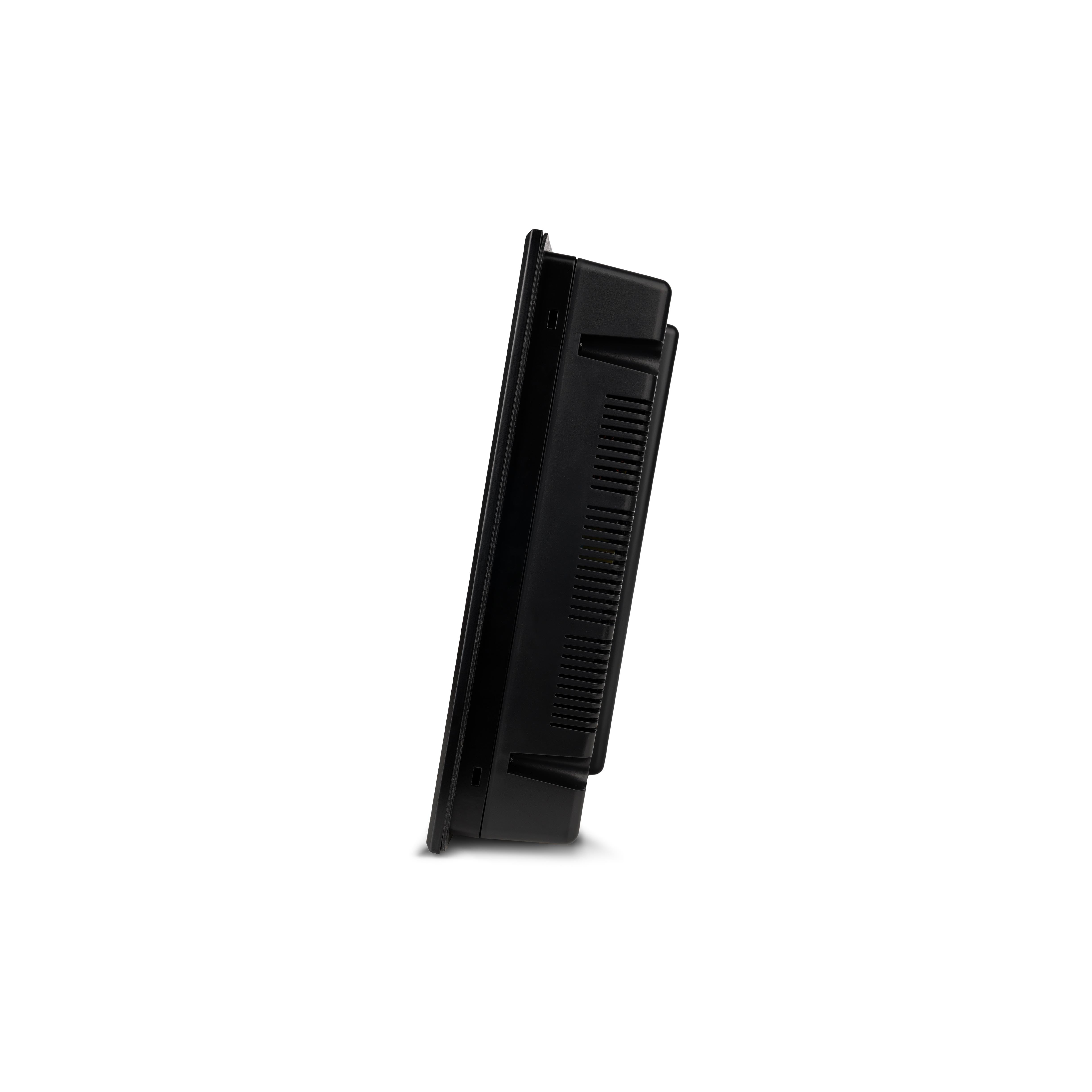

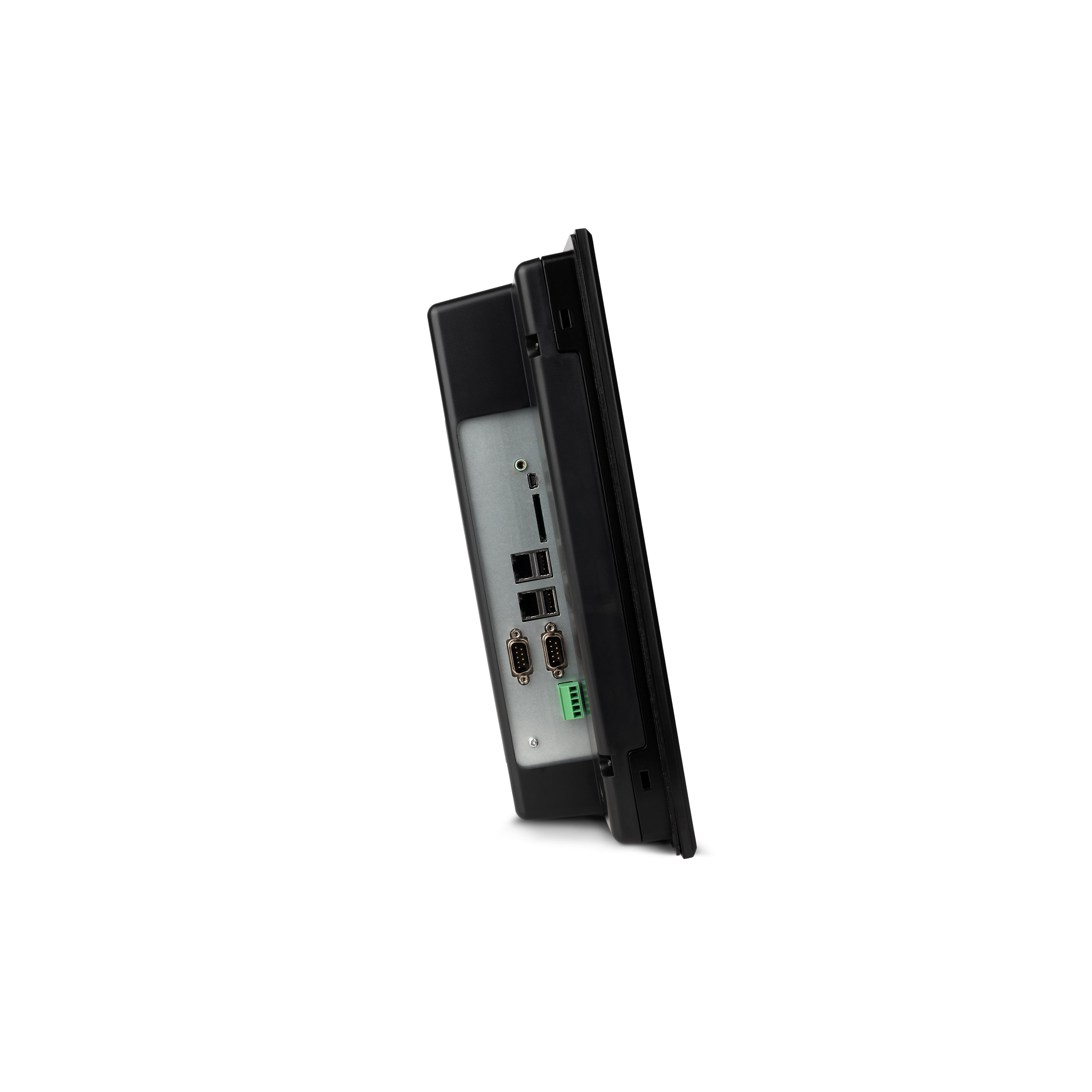

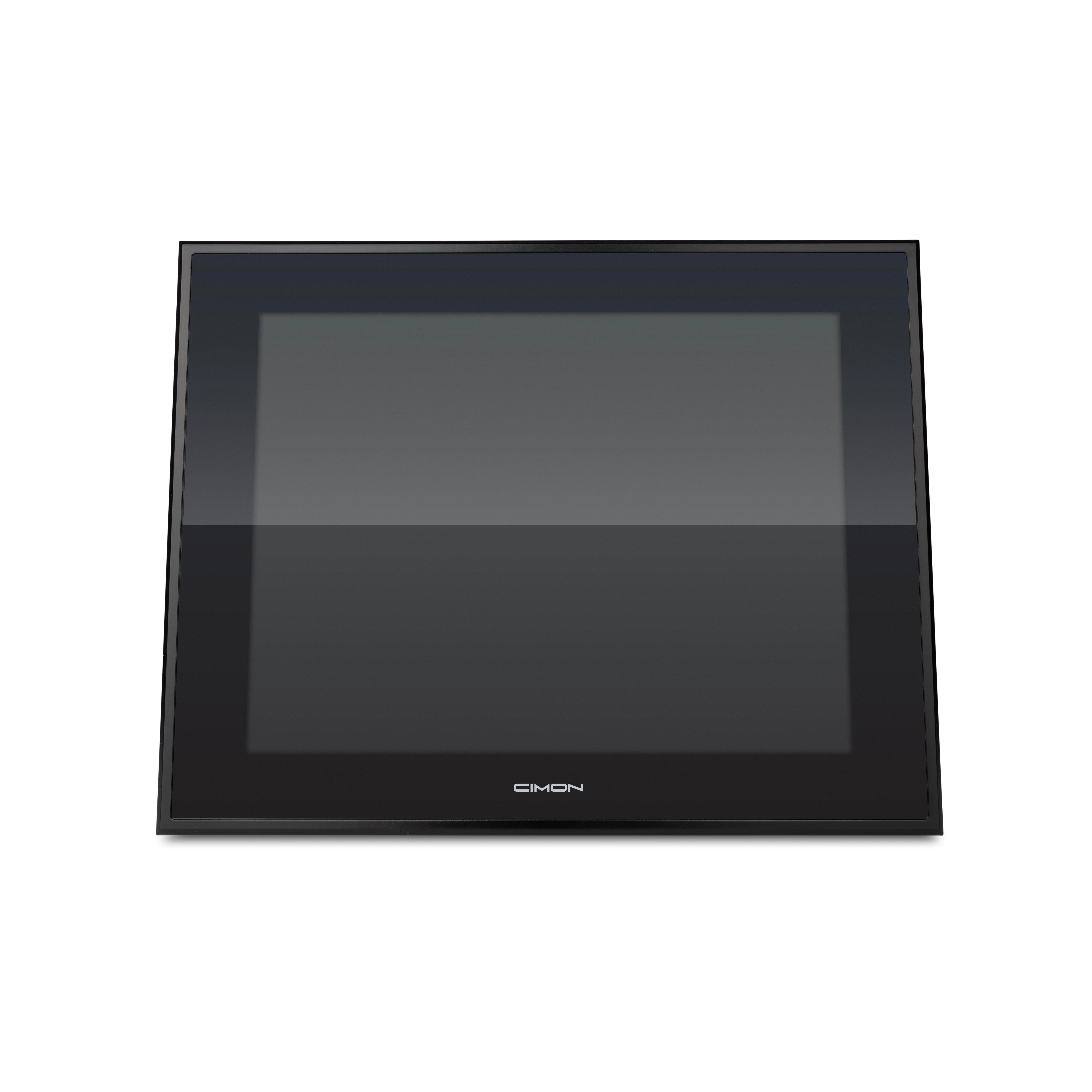

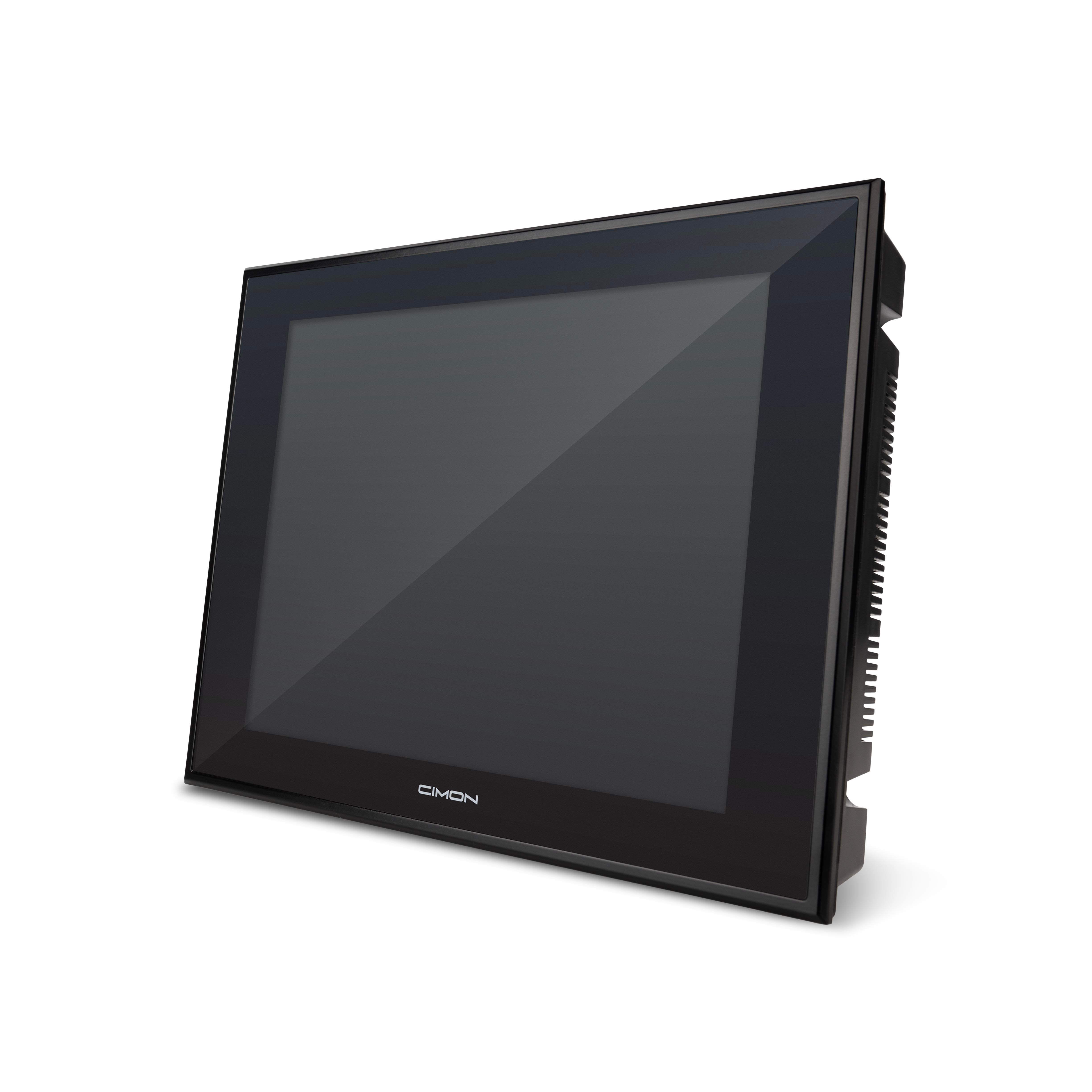

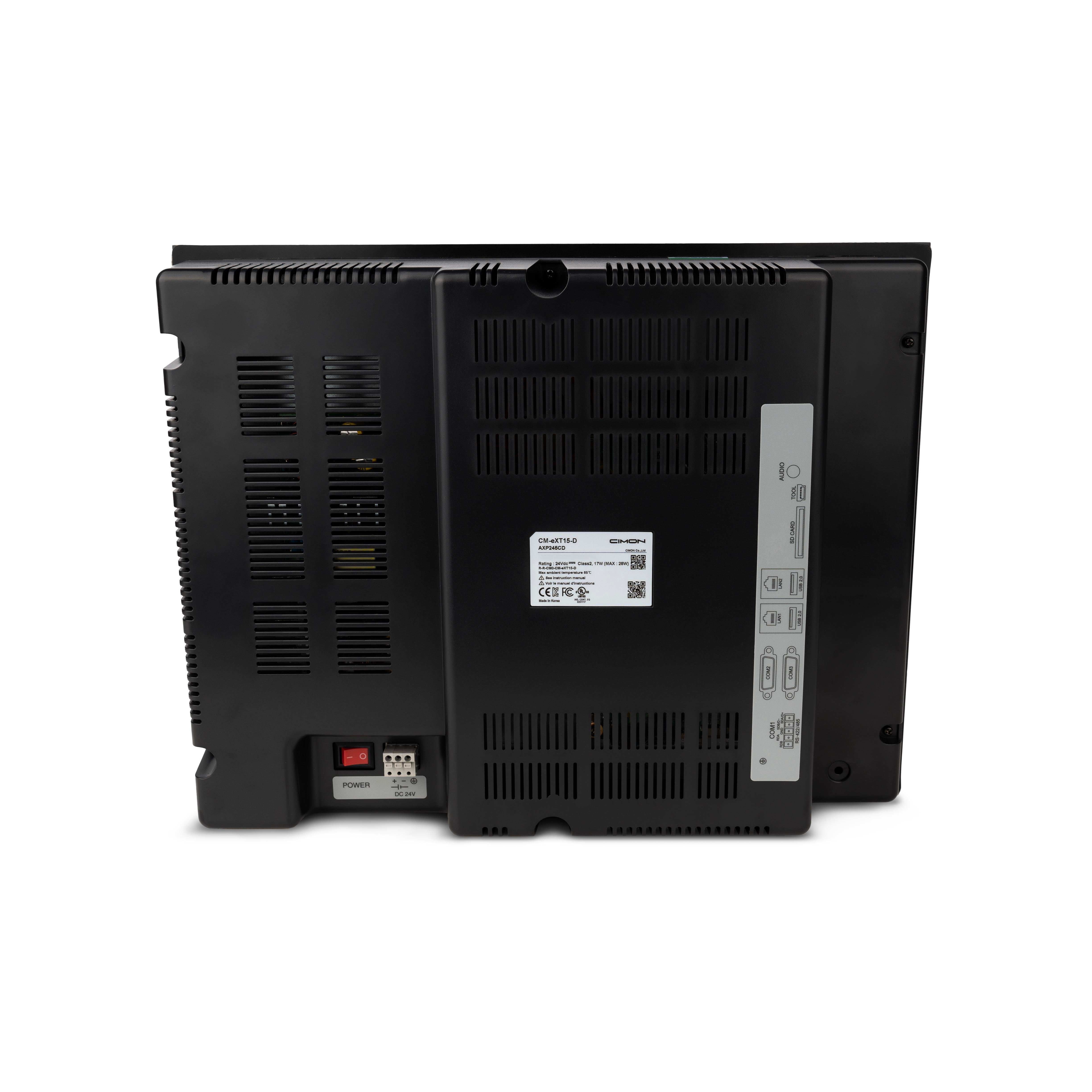

SKU	CM-eXT15-D
LCD Size	15 inch Wide TFT Color
Colors	16.7M colors
Resolution	1024 × 768
Backlight	LED
Luminance	500 cd/m²
Backlight Life	70,000 hours
Touch Panel	4 Wire Resistive
Memory	1 GB DDR3
Storage	8 GB eMMC
SD Card	1 SD slot
COM1	RS-422/485
COM2	RS-232
Ethernet	Gigabit (RJ45), 2 ports
USB Host	2 ports
Tool Port	1 USB mini-B
Audio	1 port
Front Bezel	Aluminum
Rated Voltage	-D: DC24 V (Class 2)
Power Consumption	15W (MAX : 26W)
OS	Embedded Linux
Weight	4.4 kg (9.7 lbs)
Dimension	395 × 310 × 86 mm (15.55 × 12.2 × 3.39 in)
Panel Cut	382 × 297 mm (15.04 × 11.69 in)
Operating Temperature	0°C – 65°C (32°F – 149°F)
Storage Temperature	-20°C – 65°C (-4°F – 149°F)
Operating Humidity	10–90% RH (below 29°C/84.2°F, not condensed)
Storage Humidity	10–90% RH (below 39°C/102.2°F, not condensed)
Environment Condition	800 hPa–1114 hPa (2000 m/6,500 ft or less)
Dust	≤ 0.1mg/m³ (No conductive dust allowed)
Pollution Degree	≤ Pollution Degree 2
Operating Ambience	No corrosive gas or dust
Noise Resistance	Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance	4 kV (Contact Discharge), 8 kV (Air Discharge) (IEC 61000-4-2)
Concussion Resistance	JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Vibration Resistance	JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)
