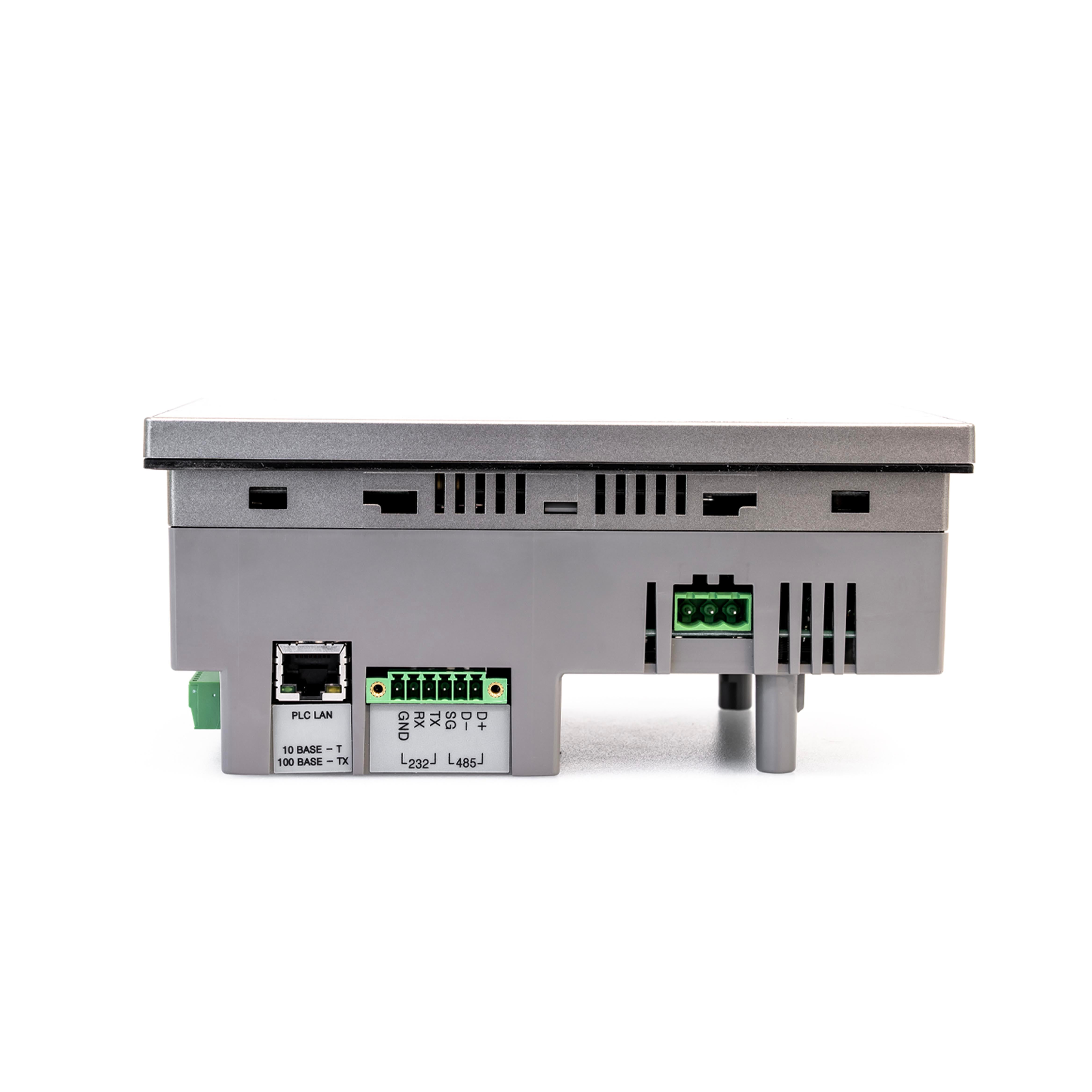

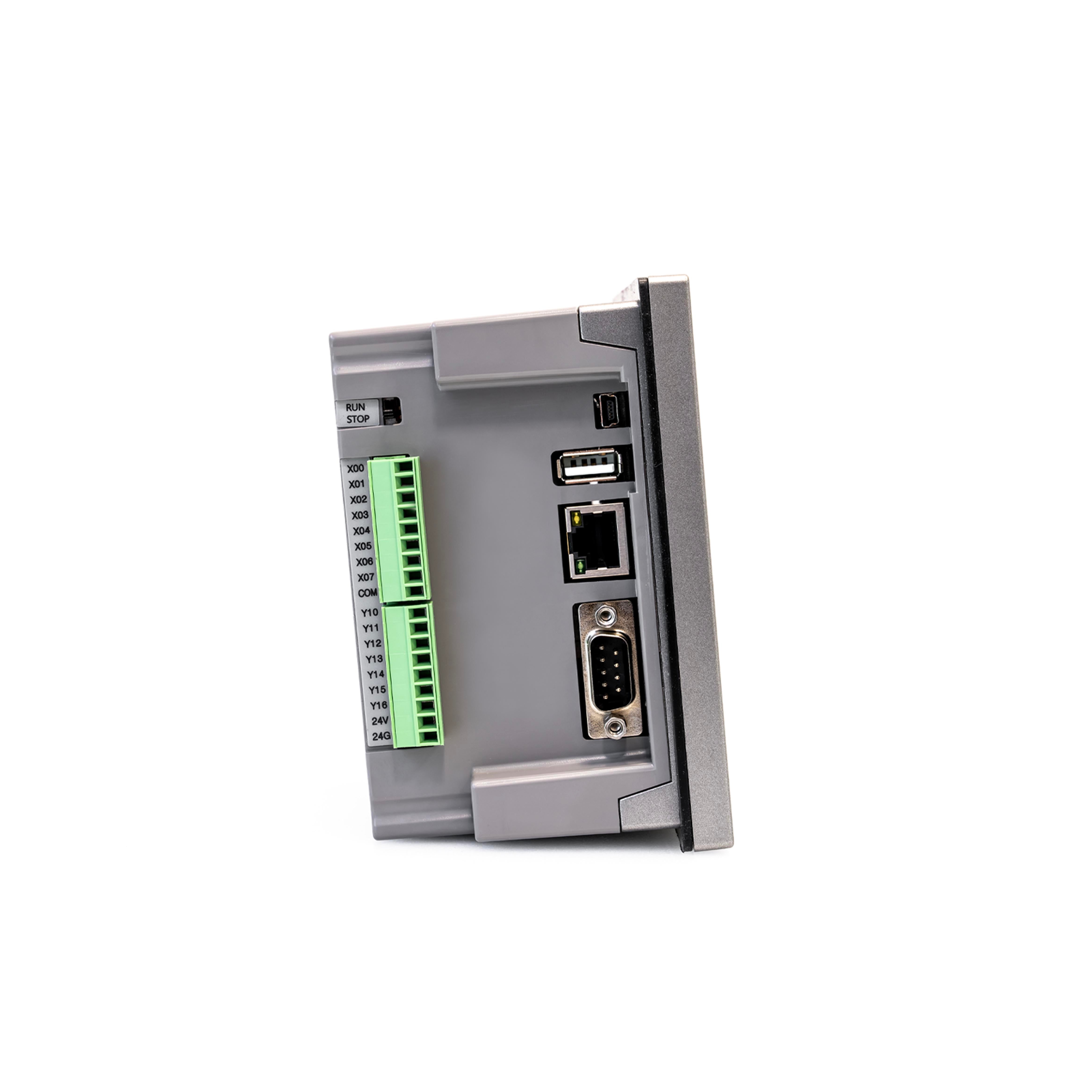

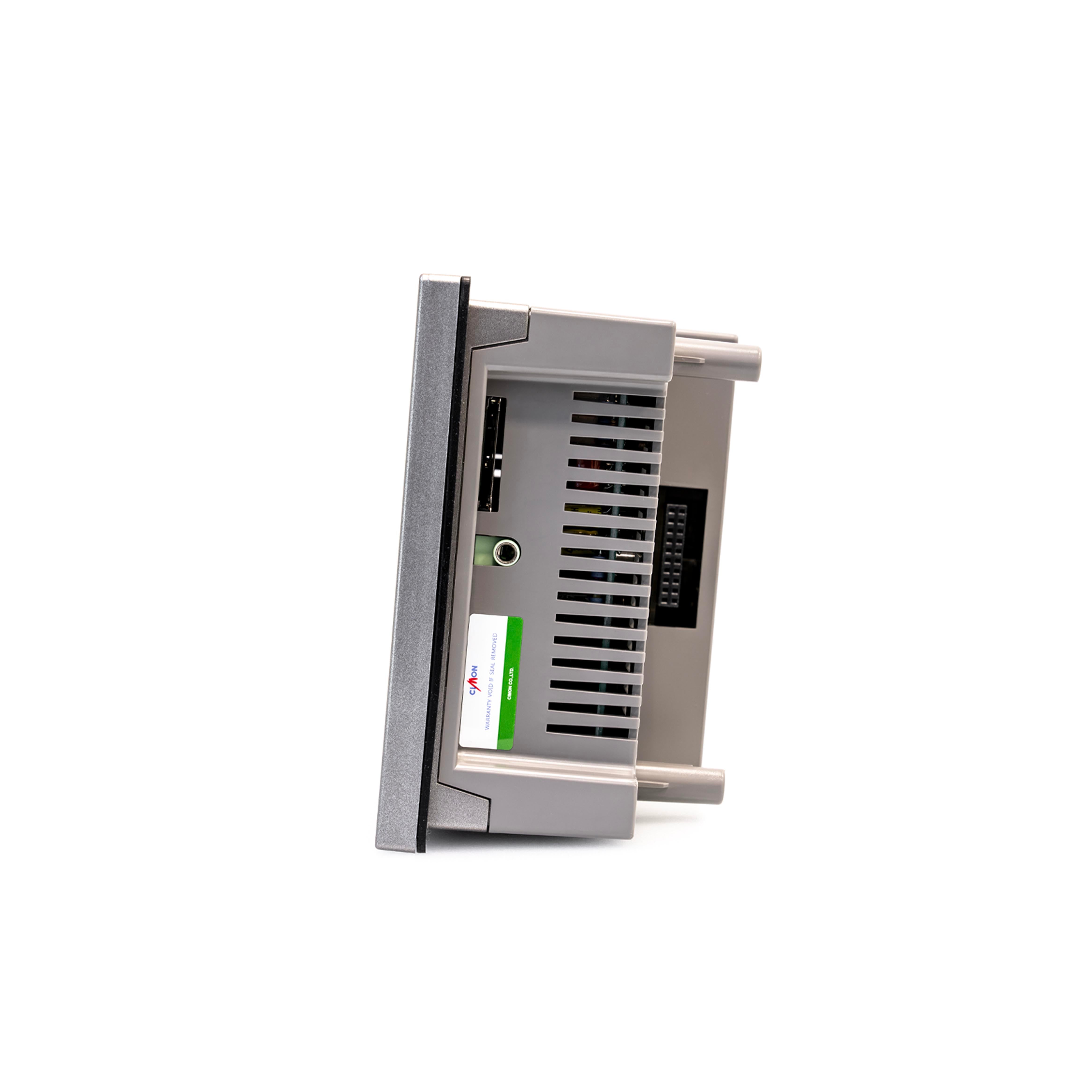

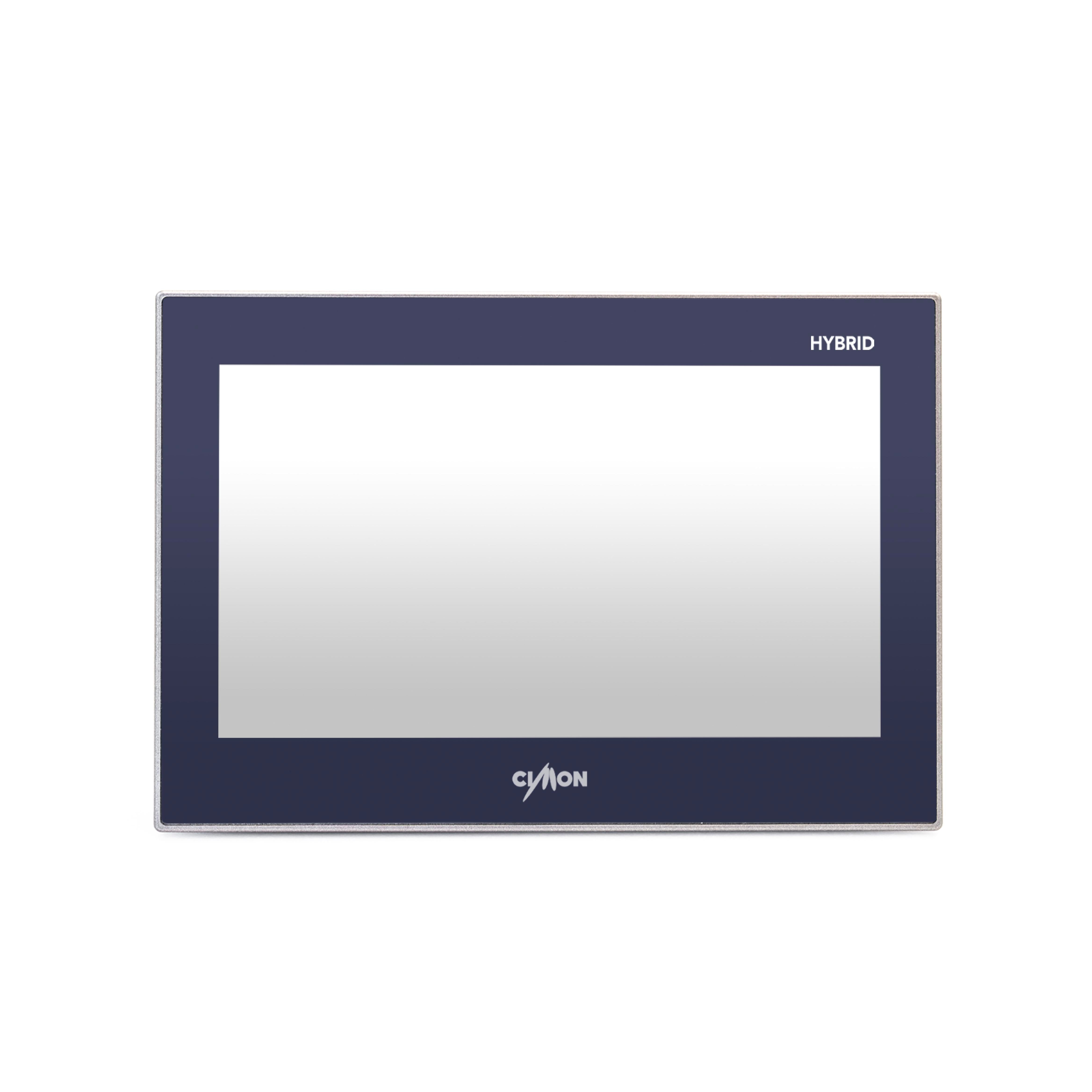

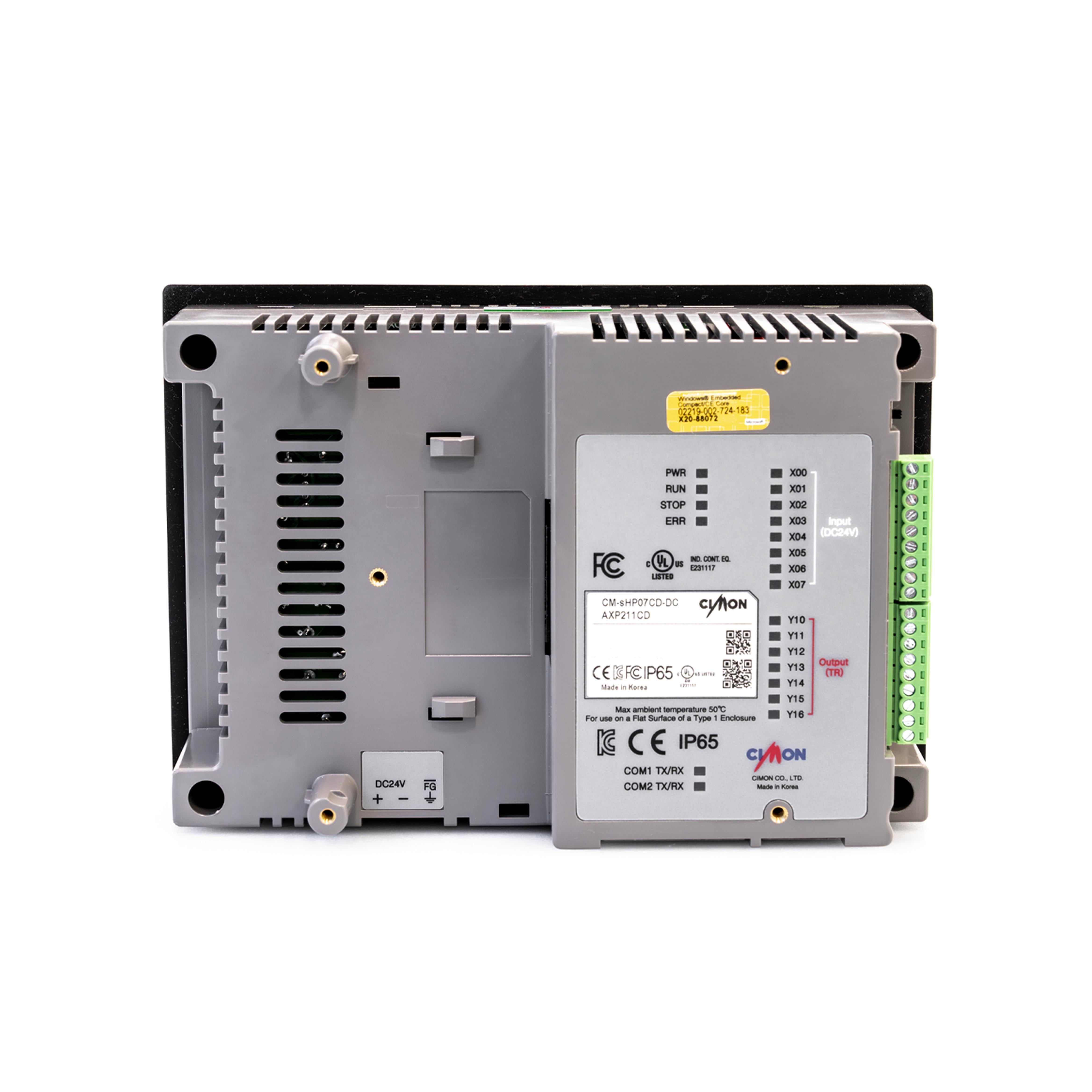

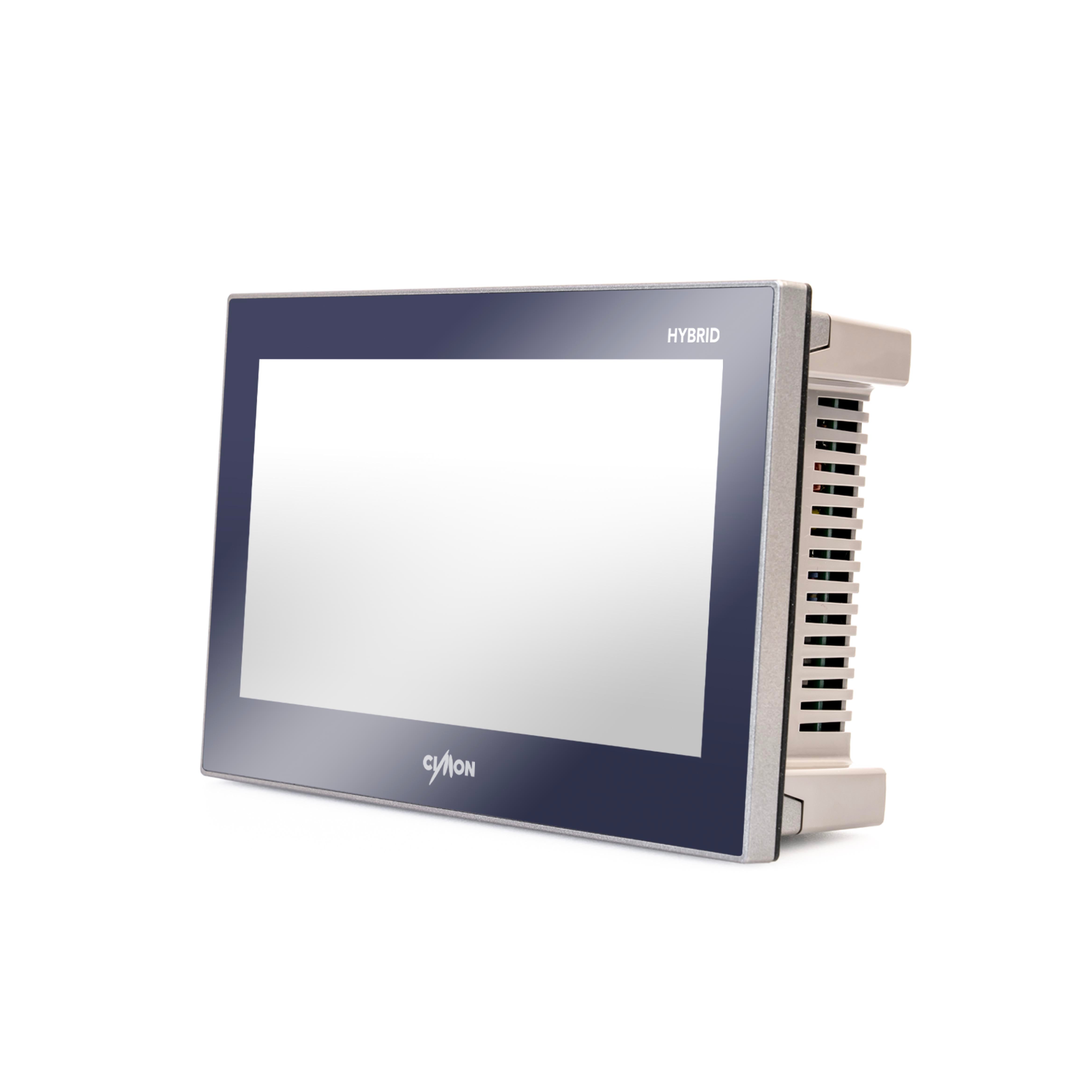

Refurbished Xpanel Hybrid, Standard HMI and PLC
- Xpanel and PLC-S Hybrid Touch Screen HMI and PLC
- XpanelDesigner Software
- 7 inch Wide Display
- Resistive Single Touch
- 5:3 - 800 x 480
- (2) Ethernet
- (3) Serial
- (1) USB Port
- (1) SD Card Slot
- (1) Audio Port
- Expandable
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 7 Point, 12/24 VDC, Source, 0.2 A/Point
- Removable screw-based terminal blocks
Refurbished Xpanel Hybrid, Standard HMI and PLC
Sale price$623.90
Regular price$734.00 (/)
Specifications
| SKU | CM-sHP07CD-DC |
| Rated Voltage | 24VDC (0.33 A) |
| Resolution | WVGA 800x480 |
| Backlight | LED |
| Luminance | 600 cd/m² |
| Backlight Life | 50,000 hours |
| Touch Panel | 4 wire resistive |
| Memory | 128 MB DDR2 |
| Storage | 128 MB SLC NAND Flash |
| SD Card | 1 SD slot |
| Comm. Ports (HMI) | 1 Ethernet (10/100 Base-T), 1 Serial (internal), 1 Serial (RS-232C/422/485) |
| Comm. Ports (PLC) | 1 Ethernet (10/100 Base-T), 1 Serial (internal), 1 Serial (RS-232C), 1 Serial (RS-422/485) |
| USB 2.0 Host | 1 port |
| Tool Port (HMI + PLC) | 1 USB mini-B |
| Audio | 1 port |
| Output (PLC) | TR output (SRC) 7 pts |
| Input (PLC) | TR input 8 pts |
| Max. I/O + Expansion | 94 pts / 1 option module + 2 PLC-S modules |
| OS | Windows CE 6.0 |
| Weight | 0.85 kg (1.87 lbs) |
